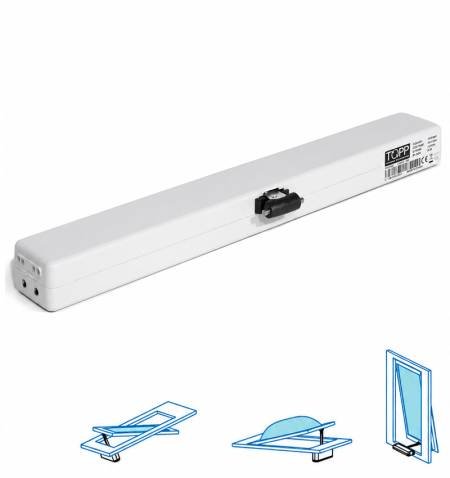

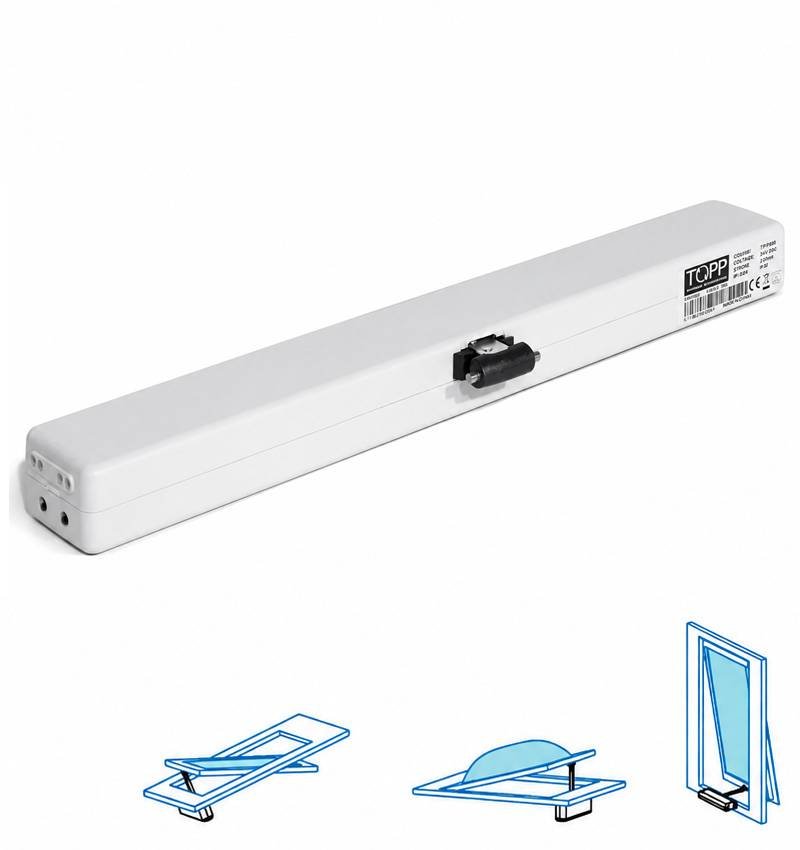

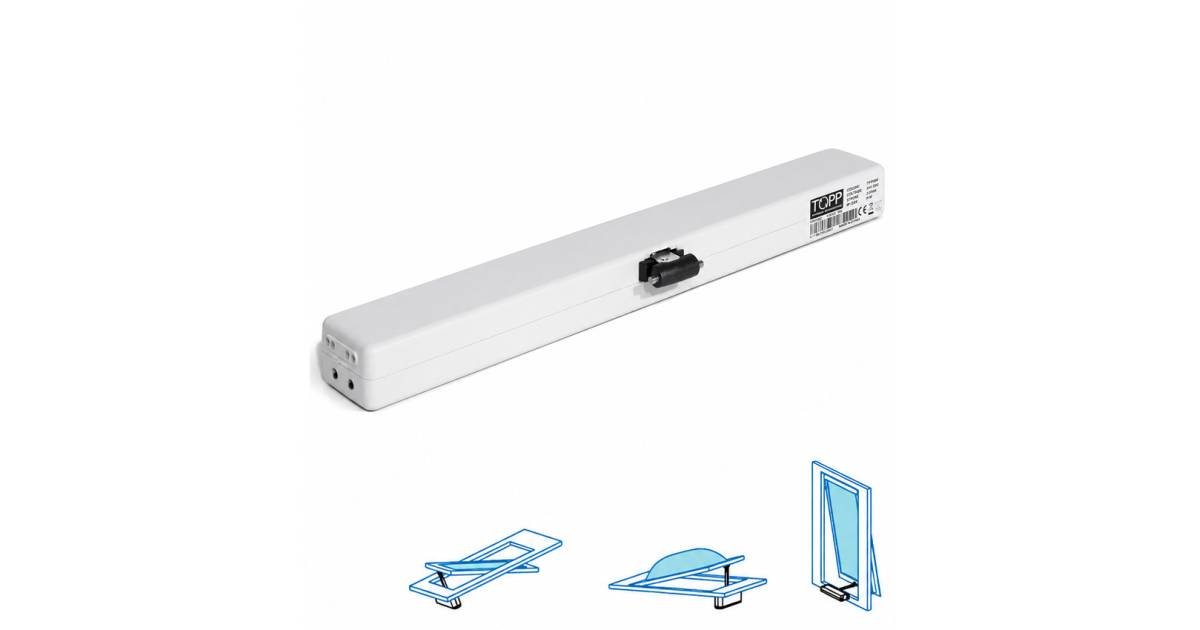

Engine for skylights and windows Motorline MJ1 230V / 24V

Referencia: MJ1

€194.00

IVA excluido

234,74 €

IVA incluido

Motorline Mj1 It is a chain actuator designed to automate opening and closing windows, skylights and natural ventilation systems. It is an indicated solution for installations where windows is needed electrically by means of a compatible control device.

Mj1

Quantity

Add to Wishlist

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain

Except bulky

Description
Product Details

Motorline MJ1 | Chain actuator for window automation

Motorline Mj1 it is a chain actuator designed to automate opening and closing windows, skylights and natural ventilation systems. It is an indicated solution for installations where windows is needed electrically by means of a compatible control device.

This engine is available in two versions, which can be selected by drop-down product:

Mj1 / 230v: version with power to 230V AC.
Mj1 / 24v: version with 24V dc power.

The actuator allows you to select the work journey between 240 mm and 360 mm, adapting to different types of windows and opening needs.

Compatible applications

Outstanding windows.
Windows type vasists.
Scale windows.
Lucarns or dome windows.
Natural ventilation windows in homes, offices, ships or commercial buildings.

Main features

Compact chain actuator for windows automation.
Available in version 230v or 24v.
Selectable 240 mm or 360 mm.
Pushing force 300 n.
Traction force 200 n.
End of electronic race in opening.
Close by amperometric absorption.
Compatible with installation in different types of interior windows.
Simple installation using supports and accessories included.

Table of technical characteristics

Feature	Mj1 / 230v	Mj1 / 24v
Supply voltage	230V - 50Hz	24V DC
Absorption	0, 12	0,43
Power absorbed in load	25 W	9 W
Push force	300 n	300 n
Traction force	200 n	200 n
Vacuum translation speed	8 mm / s	7.5 mm / s
Duration of the vacuum travel	46 s with 360 mm travel	48 S with 360 mm travel
Travel length	240/360 mm	240/360 mm
High Siege Minimum - Outstanding Window	250 mm with travel 240 mm / 360 mm with 360 mm travel	250 mm with travel 240 mm / 360 mm with 360 mm travel
High Sine Minimum - Window Vasistas	500 mm with travel 240 mm / 900 mm with 360 mm travel	500 mm with travel 240 mm / 900 mm with 360 mm travel
High minimum of fence - dome	300 mm with 240 mm / 400 mm travel with 360 mm travel	300 mm with 240 mm / 400 mm travel with 360 mm travel
Trail	Electronic in opening / amperometric absorption in closing	Electronic in opening / amperometric absorption in closing
Protection against electric shock	Class II	Class III
Service type	S2 - 4 min	S2 - 4 min
Operating temperature	-5 ºC to +50 ºC	-5 ºC to +50 ºC
Degree	Ip30	Ip30
Adjusting the counterattte	Not	Not
Parallel connection from several actuators on the same window	Not	Not
Parallel connection from several actuators over several windows	Yes, according to Electrical Scheme	Yes, according to Electrical Scheme
Full actuator weight with stirrups	0.97 kg	0.97 kg
Gross weight	1.15 kg	1.15 kg

Important about the installation

The actuator must be installed in a protected area and should not be placed on the outside of the fence if it is directly exposed to rain, snow or other atmospheric agents. Your degree of protection is Ip30, so it is designed for indoor or protected installations.

Before installing the engine, it is necessary to check that the window moves correctly, that the hinges do not have excessive hardness and that the actuator is well aligned with the window sheet. The installation must be performed by qualified technical personnel.

Note for Substitutions or Adaptations

The Motorline MJ1 is a universal chain actuator. It can be used as an adaptable solution in different types of windows, but it should not be considered a specific original spare part of a specific window mark. Substitutions, it is recommended to priorly check the available power, the mounting space, the type of opening and the mechanical compatibility of the supports.
