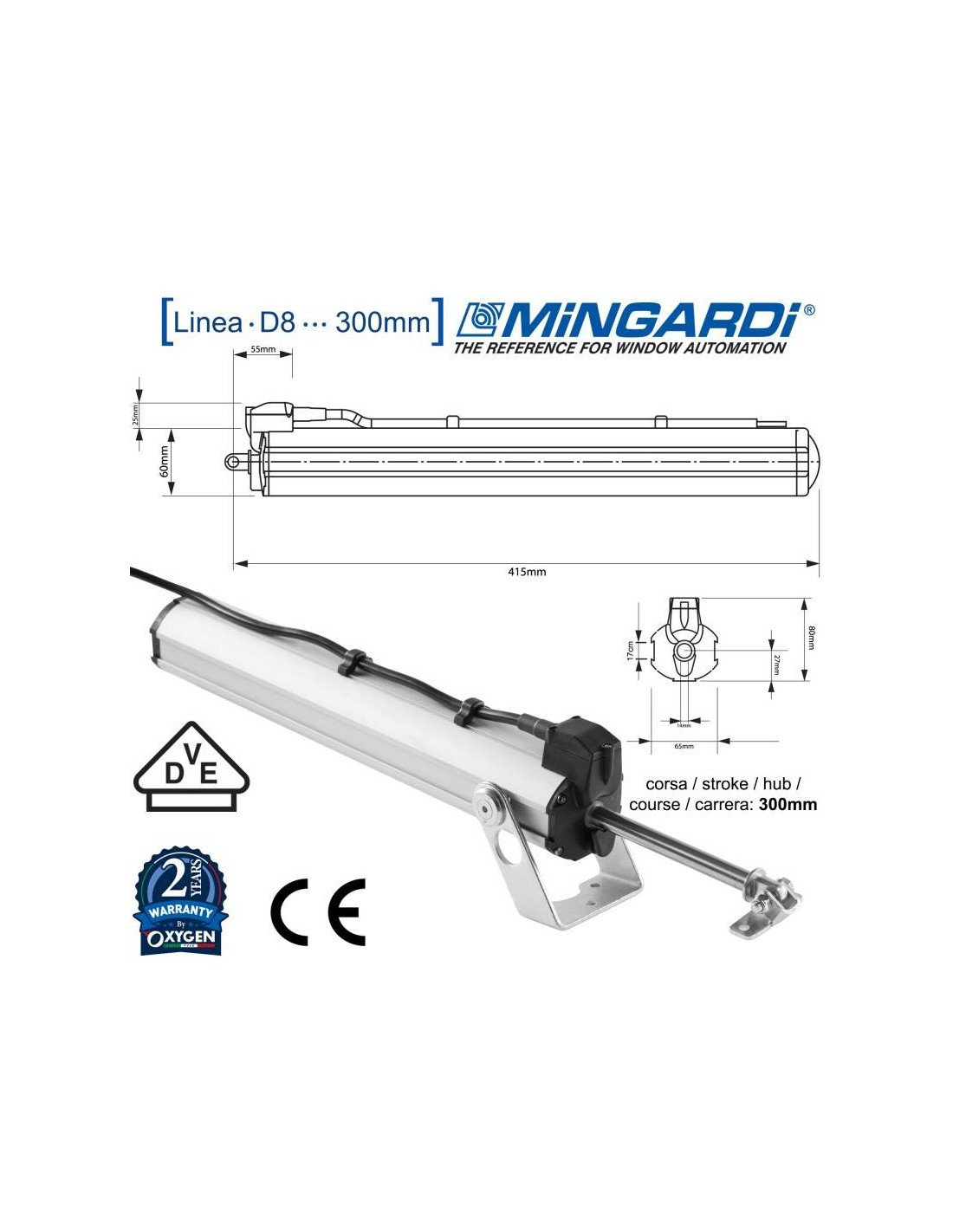

MINGARDI D8 230V zipper actuator 300 mm wheelbase for powering windows
2700293
€75.00
VAT excluded
90,75 €
Tax incl.

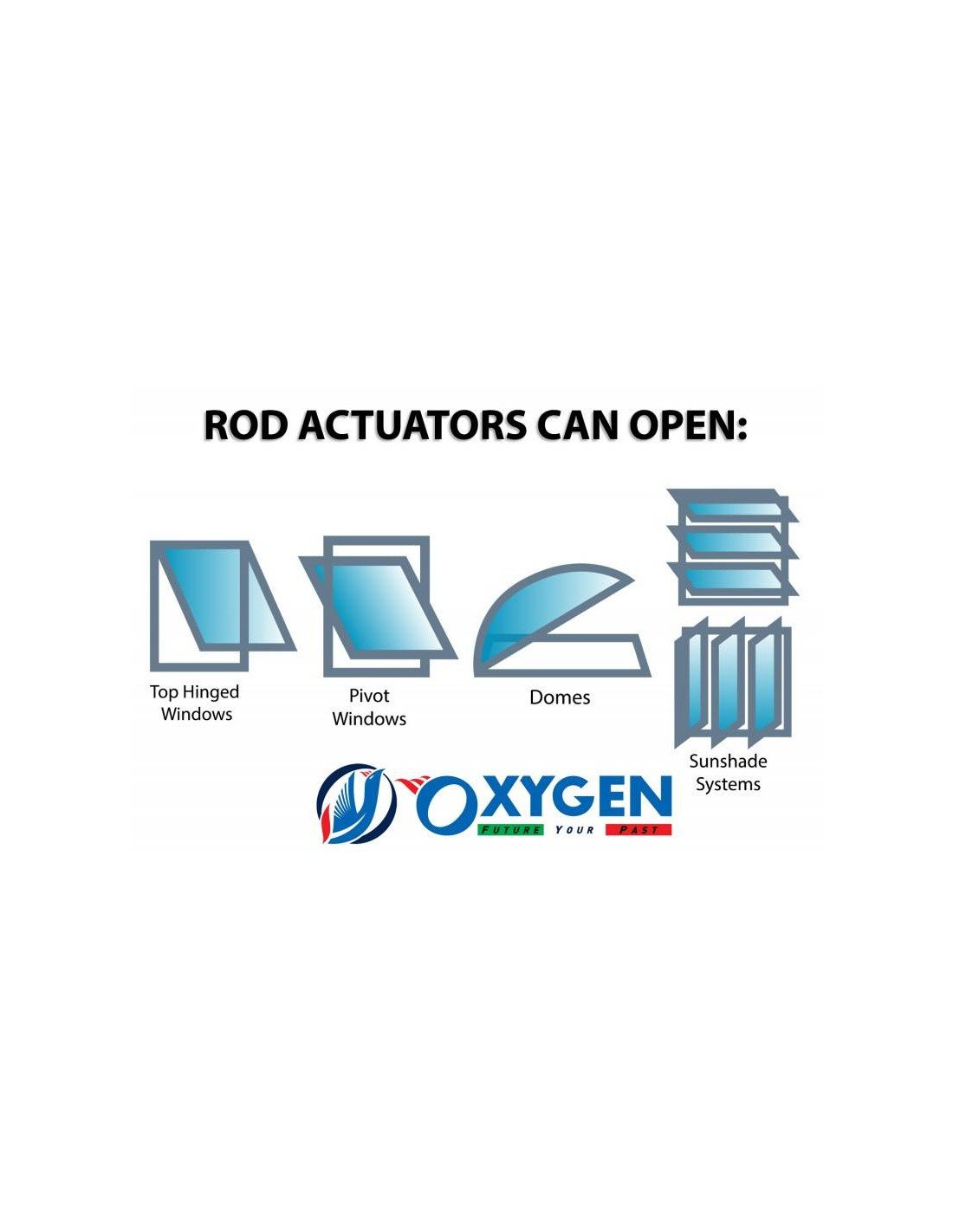

MINGARDI D8 230V zipper actuator with a stroke of 300 mm to drive hanging windows, domes, shade blades, laminated windows.
D8 FCE Mingardi linear electric actuator with rigid bar movement, very resistant to peak loads.
Save with this discounts
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
MINGARDI D8 230V stroke 300 mm rack and pinion actuator for motorizing hanging windows, domes, parasol shovels, laminated windows.
D8 FCE Mingardi electric linear actuator with rigid bar movement, very resistant to load peaks.
Operating with 230V~/50Hz power..
In accordance with LVD 2006/95 - EMC 2004/108.
It is equipped with limit switches and relays for parallel connection.
Thermal protection.
Color: anodized silver. Complete with attachment accessories.
Characteristics:
- Glide fixing bracket along the entire body;
- Lack of maintenance;
- High degree of protection: IP 55;
- Switch Closing Limit - Opening: Micro;
- Color: anodized silver.
- Stroke 300mm
- Close-Close Switch: Micro Switch
Technical Data

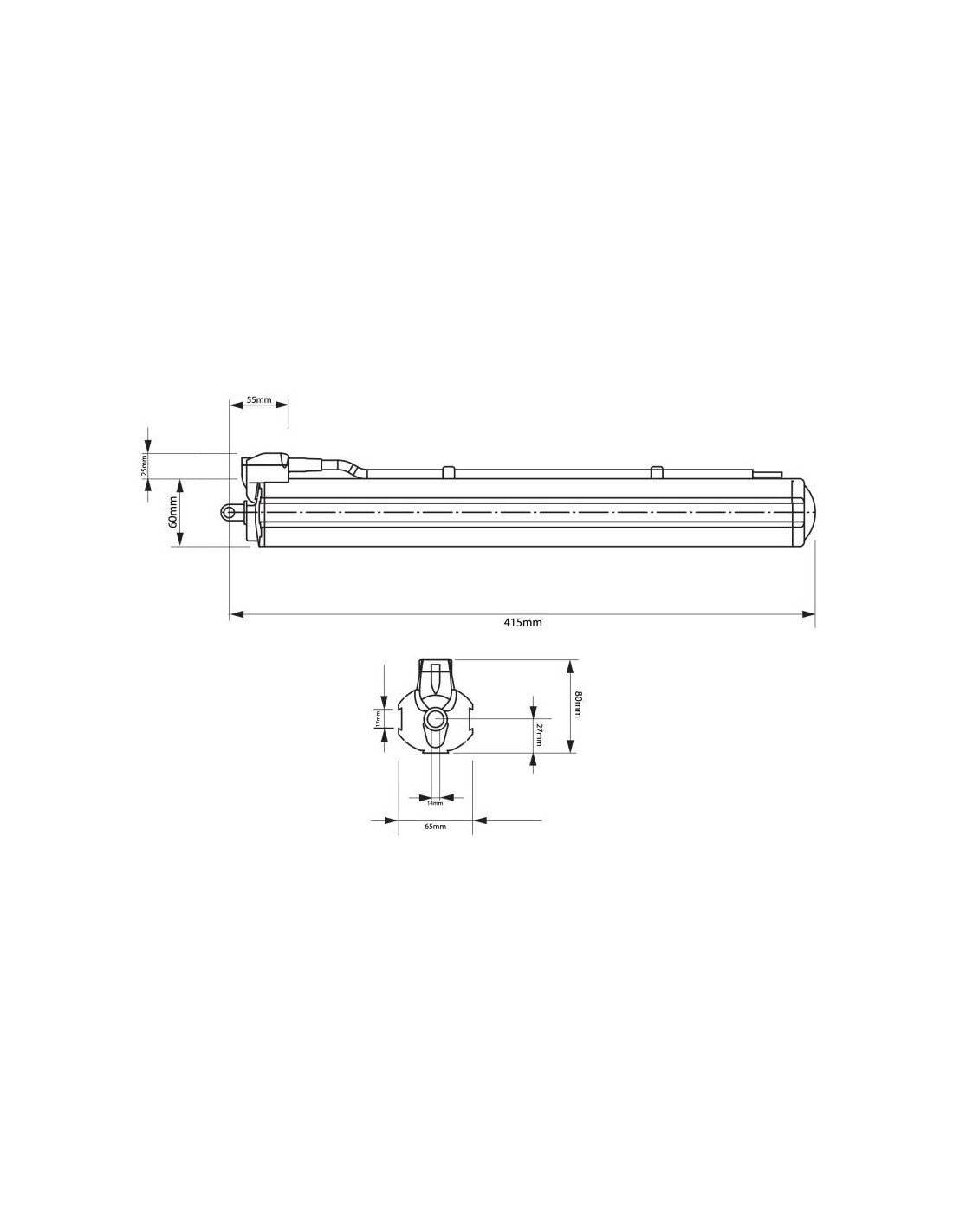

| Prefix | Description | Tension | Push Pull | Race | Max Absorption | Low speed | A (mm) |
| 2700293 | D8 300 mm - (W) | 230V / 50Hz | 500N | 300mm | 175W | AC. 12 mm/s | 418.8 |
* The performance values shown in the table have been produced at a temperature of -10°C / +40°C, with a maximum relative humidity of 60%.
