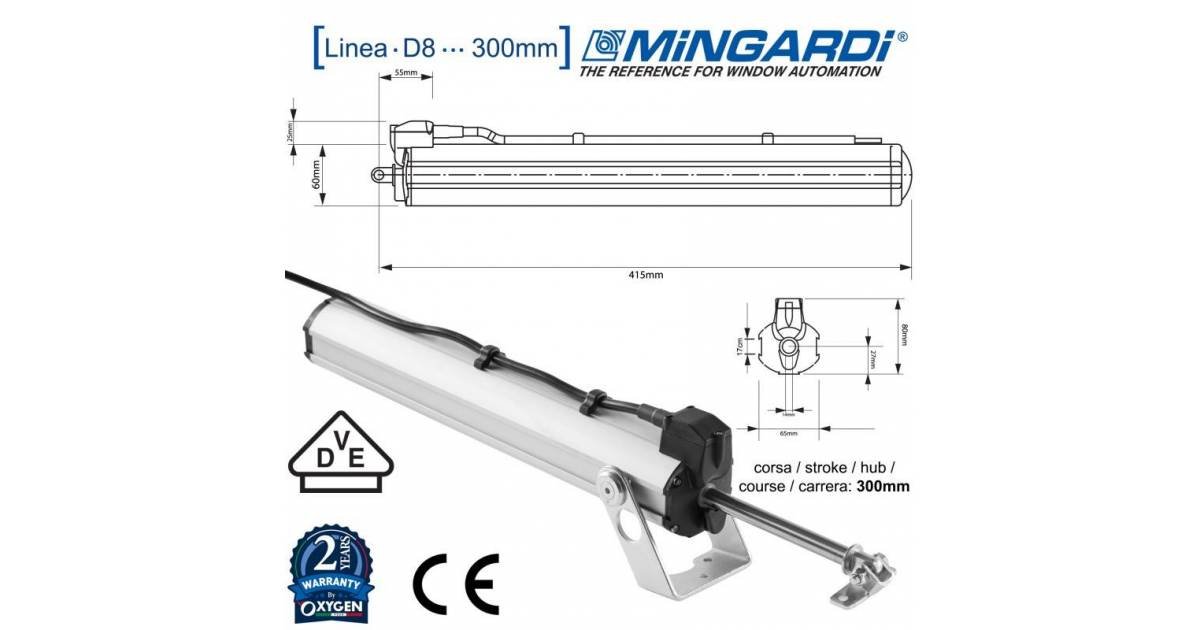

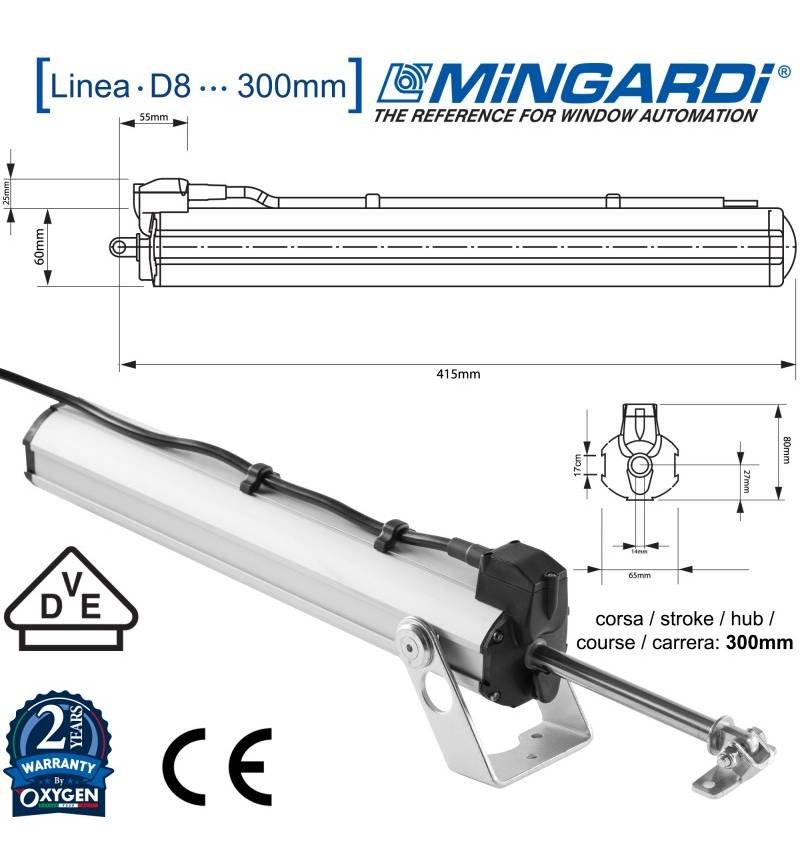

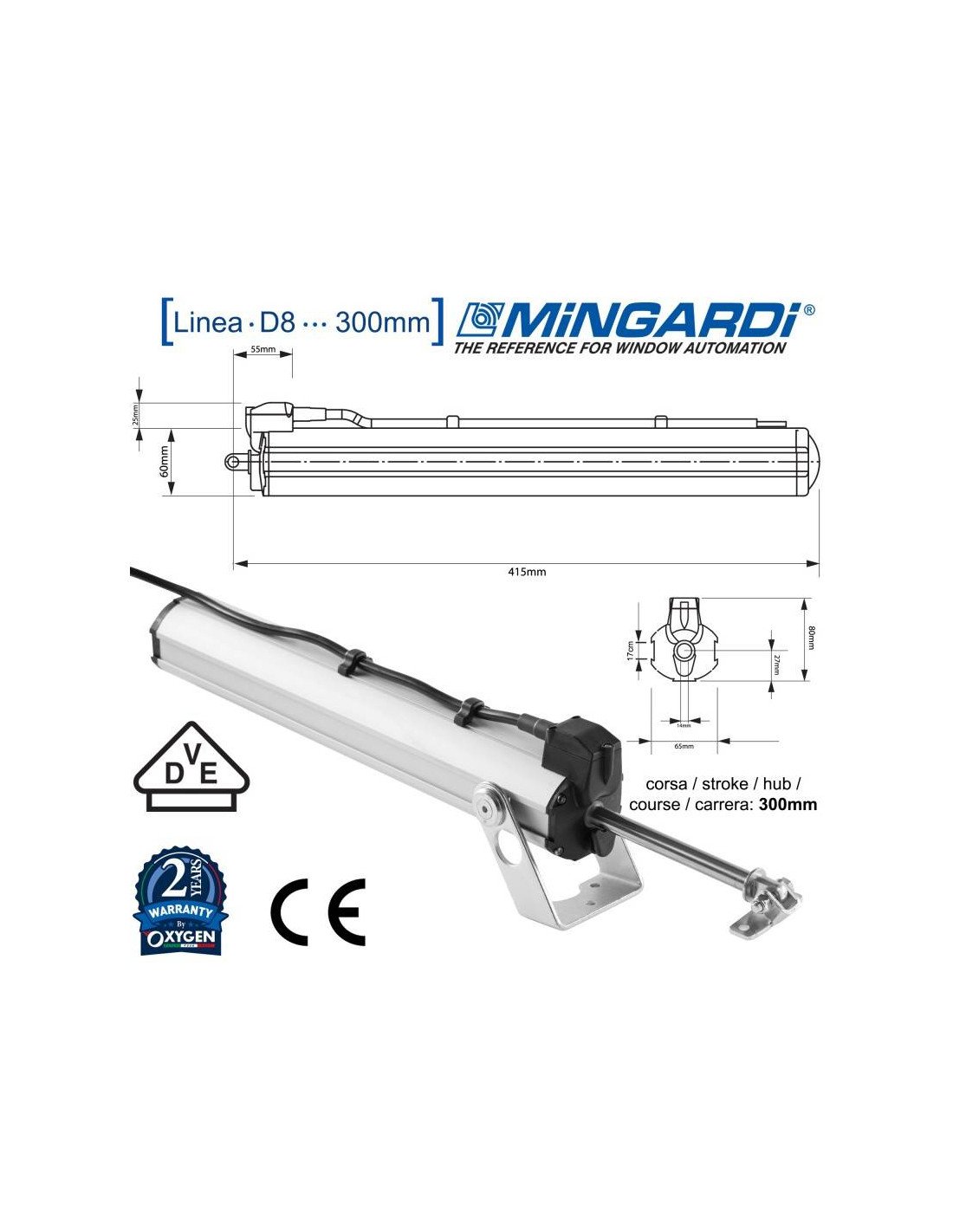

copy of Actuator Zipper MINGARDI D8 230V Race 300 mm to Motorize Windows
2700934
€75.00
VAT excluded
90,75 €
Tax incl.

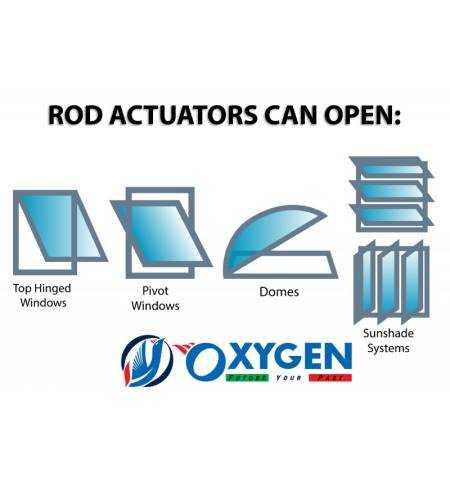

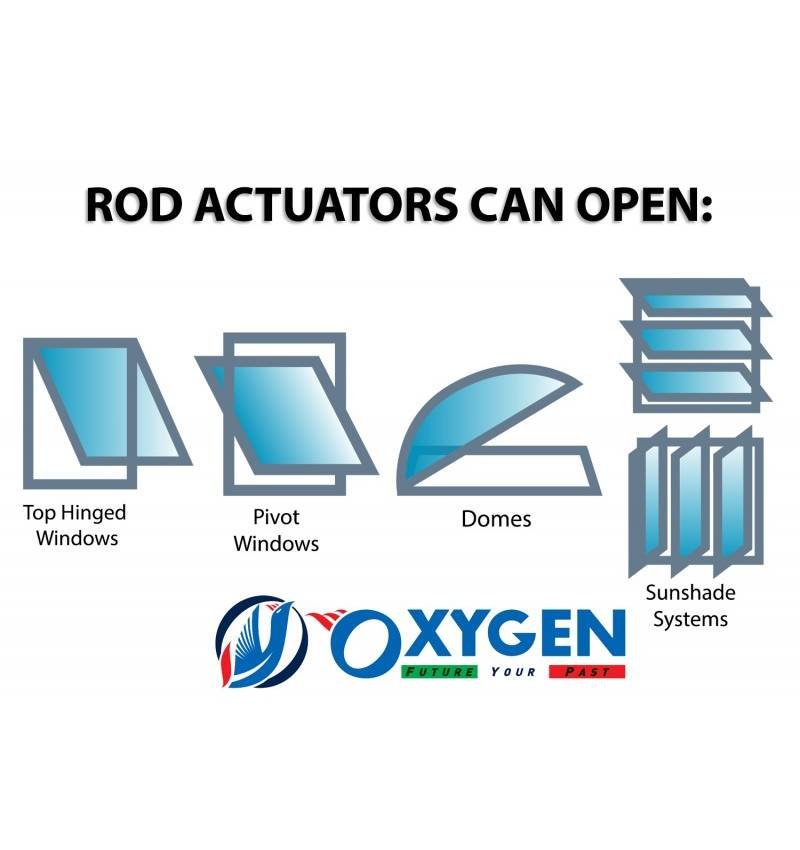

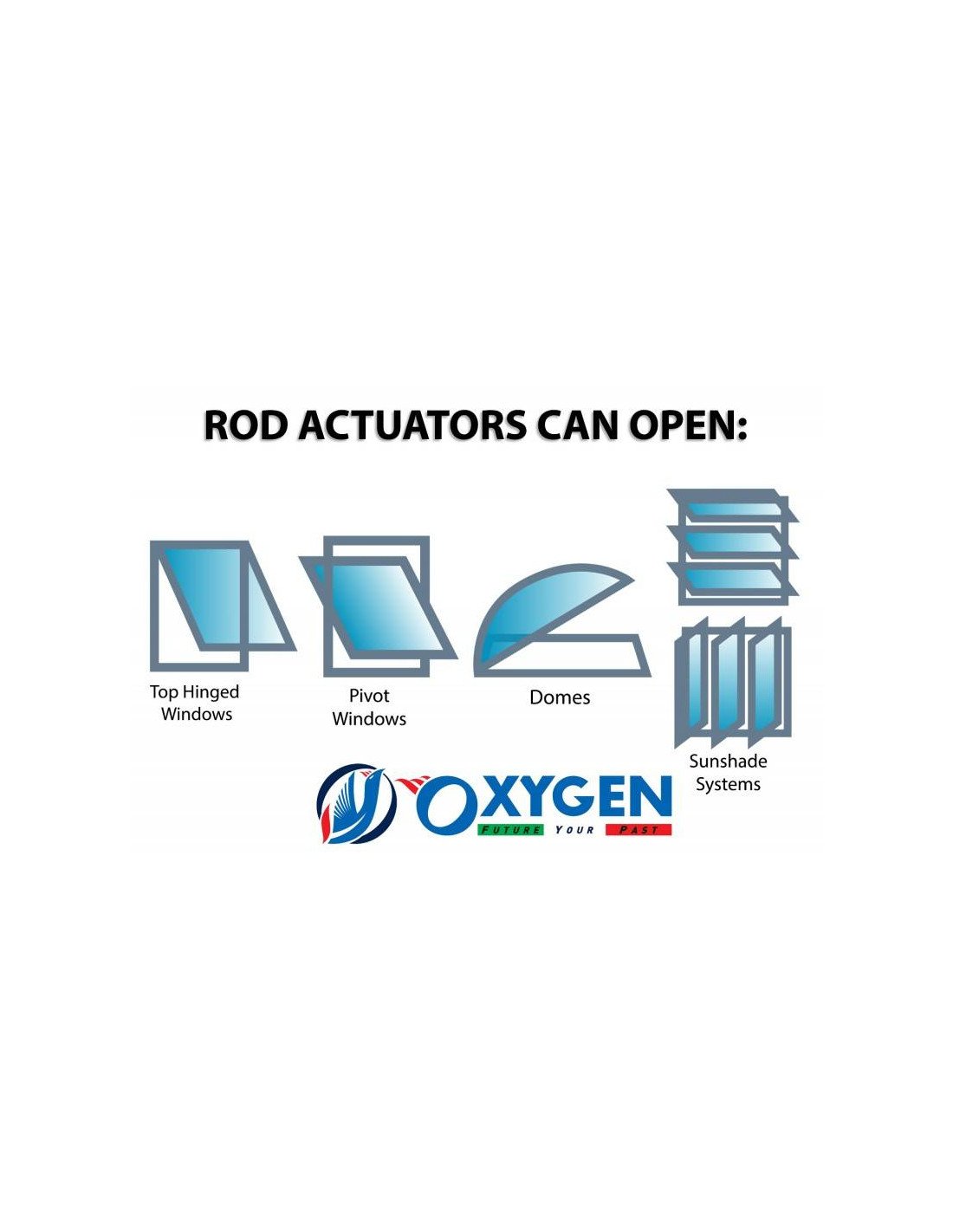

Zipper actuator MINGARDI D8 230V Race 300 mm to motorize hung windows, domes, blades for umbrellas, laminated windows.
D8 FCE MINGARDI Linear electric actuator with rigid bar movement, very resistant to cargo peaks.
Save with this discounts
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
MINGARDI D8 230V racing zipper actuator for motorizing hanging windows, domes, blades for umbrellas, laminated windows.
D8 FCE MINGARDI Linear electric actuator with rigid bar movement, very resistant to cargo peaks.
Operation with 230V ~ / 50Hz energy ..
In accordance with 2006/95 LVD - EMC 2004/108.
It is equipped with limit switches and relays for the parallel connection.
Thermal protection.
Color: Anodized Silver. Complete with fixing accessories.
Features:
- Sliding fixing bracket along the entire body;
- Lack of maintenance;
- High degree of protection: IP 55;
- Limit closure of the switch - Opening: micro;
- Color: Anodized Silver.
- Carrera 200mm
- Closure-opening closure switch: Microswitch
Technical data
| Prefix | Description | Voltage | Push pull | Race | Absorption max | Low speed | A (mm) |
| 2700293 | D8 200 mm - (A) | 230V / 50Hz | 500n | 200mm | 175w | CA. 12 mm / s | 418.8 |
* The yield values shown in the table have occurred at a temperature of -10 ° C / + 40 ° C, with a maximum relative humidity of 60%.
