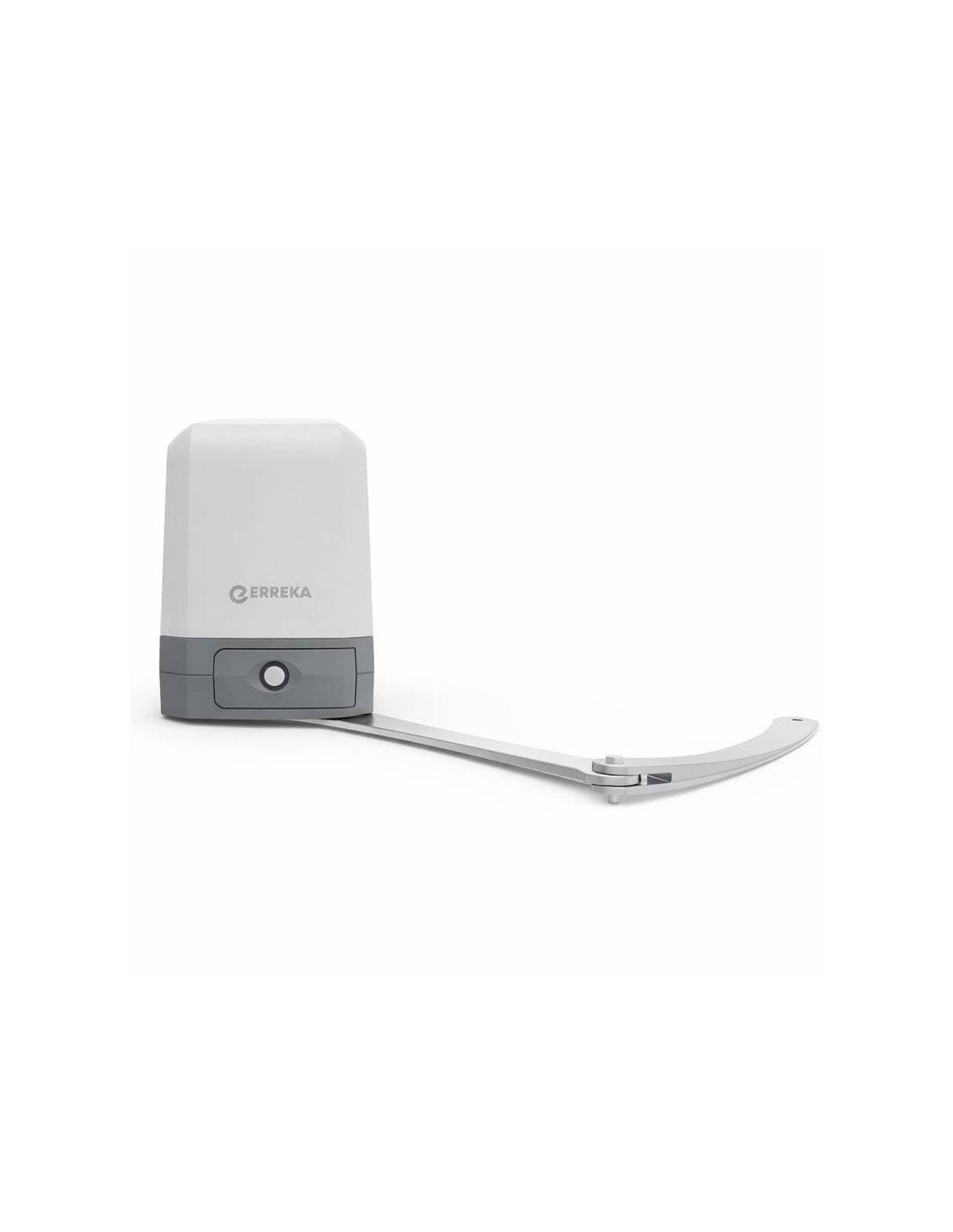

Articulated arm motor Erreka Pyrene for residential swing doors
Pyrene
€398.00
VAT excluded
481,58 €
Tax incl.
24VDC articulated arm motor For swing doors up to 2.5m per leaf
The motor Articulated arm pyrene is designed especially for residential swing doors of maximum length of 2.5m per sheet up to 250kg of weight.
24VDC Arm Electromechanical Engine, especially indicated To cancel with large pillars With displaced hinges of the edge of the pillar.
It is an engine with Security for obstacle detection and soft electronic stop.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Erreka Pyrene | Handiculated motor for swing doors
24VDC articulated arm motor For swing doors up to 2.5m per leaf
The motor Articulated arm pyrene is designed especially for residential swing doors of maximum length of 2.5m per sheet up to 250kg of weight.
24VDC Arm Electromechanical Engine, especially indicated To cancel with large pillars With displaced hinges of the edge of the pillar.
It is an engine with Security for obstacle detection and soft electronic stop.
Features:
✔ Easy-operated metal unlock lever with key
✔ Single installation with screwing bracket
✔ Simple and precise adjustment of electromechanical career endings and mechanical stops
✔ Possibility of operating with batteries (ASM01) housed within the operator
✔ Robust arm of aluminum anti-shearing
Technical characteristics - Erreka Pyrene
| Py2524ec TEACHER |
Py2524c Slave |
|
|---|---|---|
| Food (VAC / HZ) | 230 / 50-60 | - |
| Capacitor (μF) | - | |
| Motor power (VDC) | 24 | |
| Absorbed power (W) | 100 | |
| Intensity (a) | 4,2 | |
| Maximum torque (NM) | 250 | |
| Speed (RPM) | 1,7 | |
| Opening time 90 ° (s) | 11 | |
| Work cycles | Intensive use | |
| Block | Yes | |
| Run-up | Yes | |
| Encoder | Not | |
| Maximum opening | 110 ° | |
| Degree | Ip44 | |
| Service temperature (° C) | -20/50 | |
| Motor weight (kg) | Kit: 20 | |
| 10 | 10 | |
| Dimensions Packaging (cm) | Kit: 55x32x41 | |
| 40x23x32 | 40x23x32 | |
| Max door length. (meters) | 2,5 | |
| Max door weight (kg) | 250 | |
Measures Erreka Pyrene
Documentation
- Type of engine
- Articulated arm
- Type of door
- Residential door
