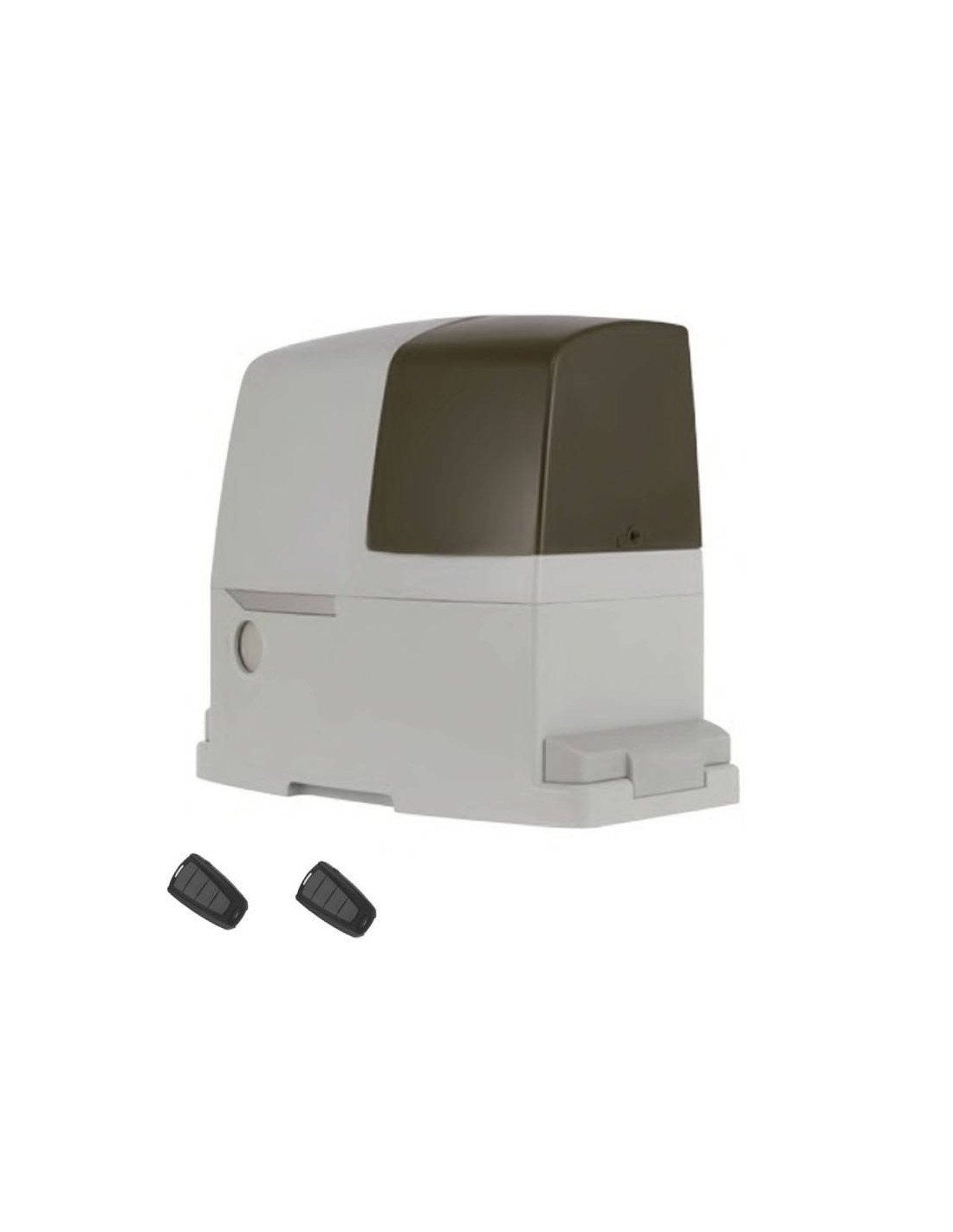

Electromechanical motor of 24 V dc MEDVA PL1000 for sliding doors of residential use up to 1000 kg with built-in receiver box and 2 RollingCode controls.

" THE PRODUCT HAS BEEN DISCONTINUED BY THE MANUFACTURER . WE RECOMMEND YOU CHECK OTHER ENGINES IN OUR SLIDING ENGINE CATEGORY "

The helical gear provides durability and silence in engine operation.

Engine reading for precise positioning control.

Soft stop on opening and closing manoeuvres.

The magnetic limit switch and the spring limit switch are available for customer choice.

TECHNICAL CHARACTERISTICS

• Rated thrust: 10,000 N
• Power supply: 24V dc
• It shall be capable of operating at a speed exceeding 300 km/h
• Maximum weight of the door: Up to 1000 kg
• Length of door: 12 m
• Size: 333x216x287mm
• Speed: 22.2 cm/s
• Power absorbed: 120 W
• Rated power input: 5 A
• Max current. operation: 5.5 A for max. 10 s
• The test shall be carried out in accordance with the instructions of the manufacturer
• Weight of engine: 12,5 kg

CONTENT

• 1 Sliding motor Medva PL1000 with built-in box-receiver 433,92 MHz
• 2 garage controls 4 channels at 433.92 MHz
• Instruction manual
