Electronic card CAME ZN2 3199ZN2 for BX-243 sliding motor

Electronic card CAME ZN2 for sliding motor BX-243

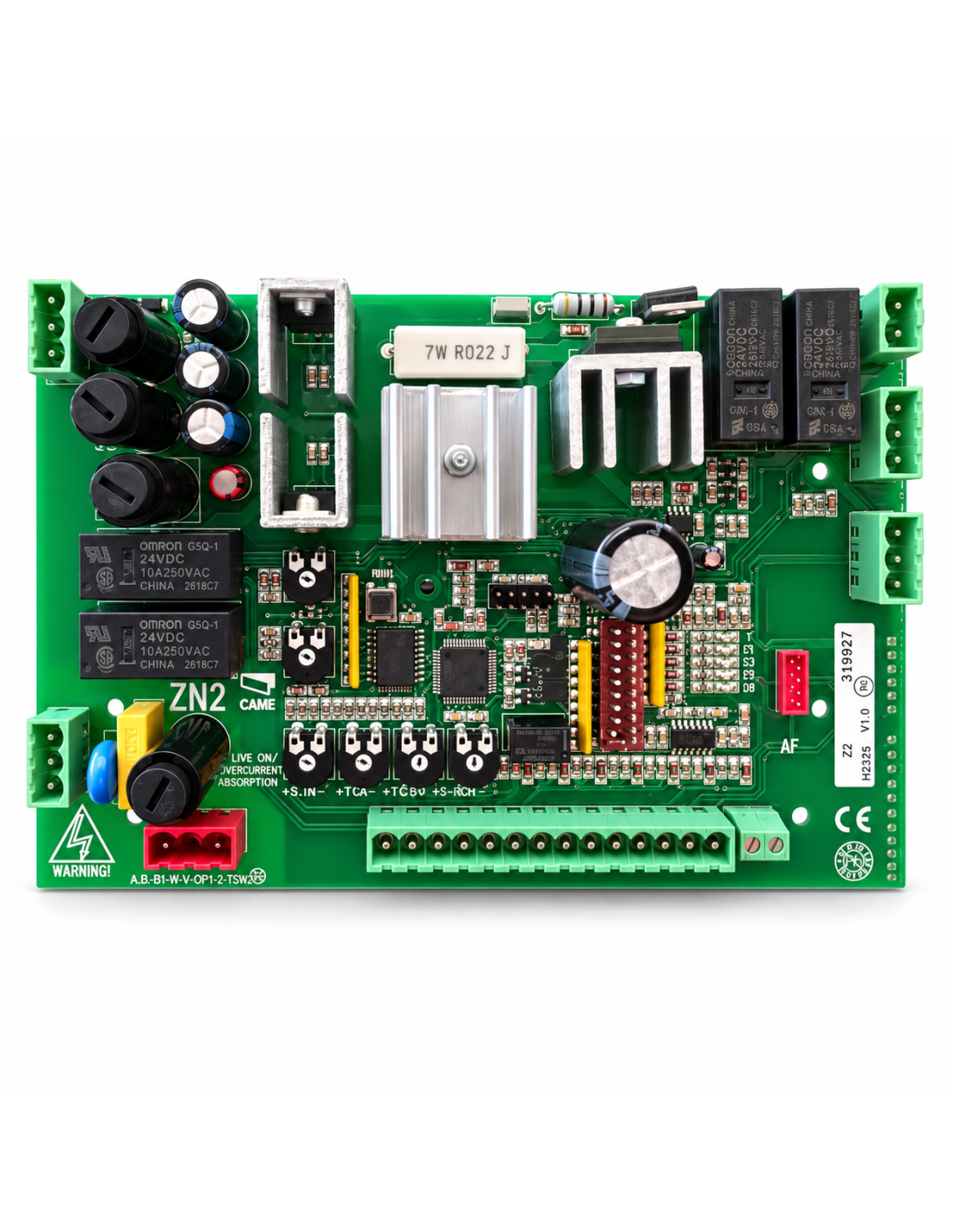

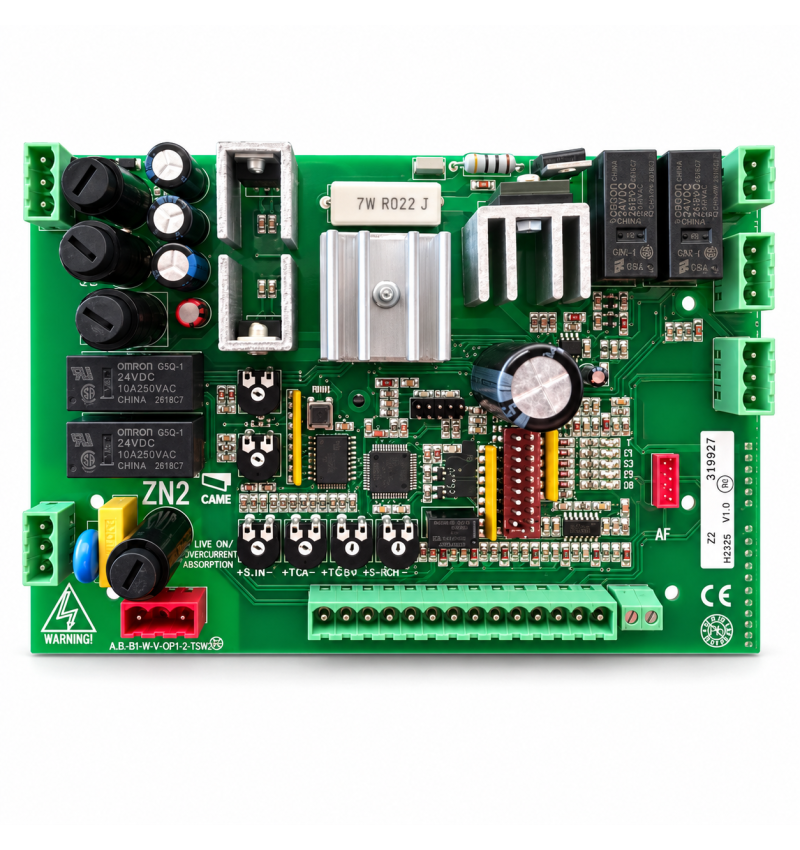

CAME Zn2, reference 3199zn2, is the electronic control card used in the automatism CAME Bx-243 For sliding doors.

This product is mainly intended for Repair or replacement of a broken zn2 plate, allowing to preserve the existing BX-243 gearmotor when the rest of components are in good condition.

The plant manages the operation of the engine, control devices, assurances, race endings and the different programming functions available in the automatism CAME Bx-243.

Compatibility

✓ CAME Bx-243 - Automatism for sliding doors with 24V engine.

Important: Check the plate reference

This card corresponds to the reference CAME 3199zn2 And to the electronics Zn2.

Before placing the order, we recommend checking the reference of the installed card and the accurate model of the gearmotor to avoid confusing it with other plates used in family engines CAME Bx.

✓ Electronic control card CAME Zn2.

✓ Reference 3199zn2.

✓ Designed for the sliding motor CAME Bx-243.

✓ Management of the opening and closing movement of automation.

✓ Management of race.

✓ Management of security devices such as photocells.

✓ Configurable opening, closing and stop functions according to the installation.

✓ Compatible with the detection and control system of the movement used by the BX-243.

✓ Prepared to use a Radio receiver card CAME compatible.

The ZN2 center has a connection for a Radio receiver card CAME plug.

In the original configurations of the BX-243, the receiving card was used, among others, CAME AF43S of 433,92 MHz.

Radio receiver not included

This product corresponds only to the electronic card CAME Zn2. The radio receiver card, controls, motor, transformer and other accessories They are not included.

■ 1 × Electronic Card CAME ZN2 - Ref. 3199ZN2.

Electronic replacement

Before replacing the card, it is recommended to identify and document the connection of the existing plate and subsequently perform the programming and checking of the control devices and safety of the installation.
