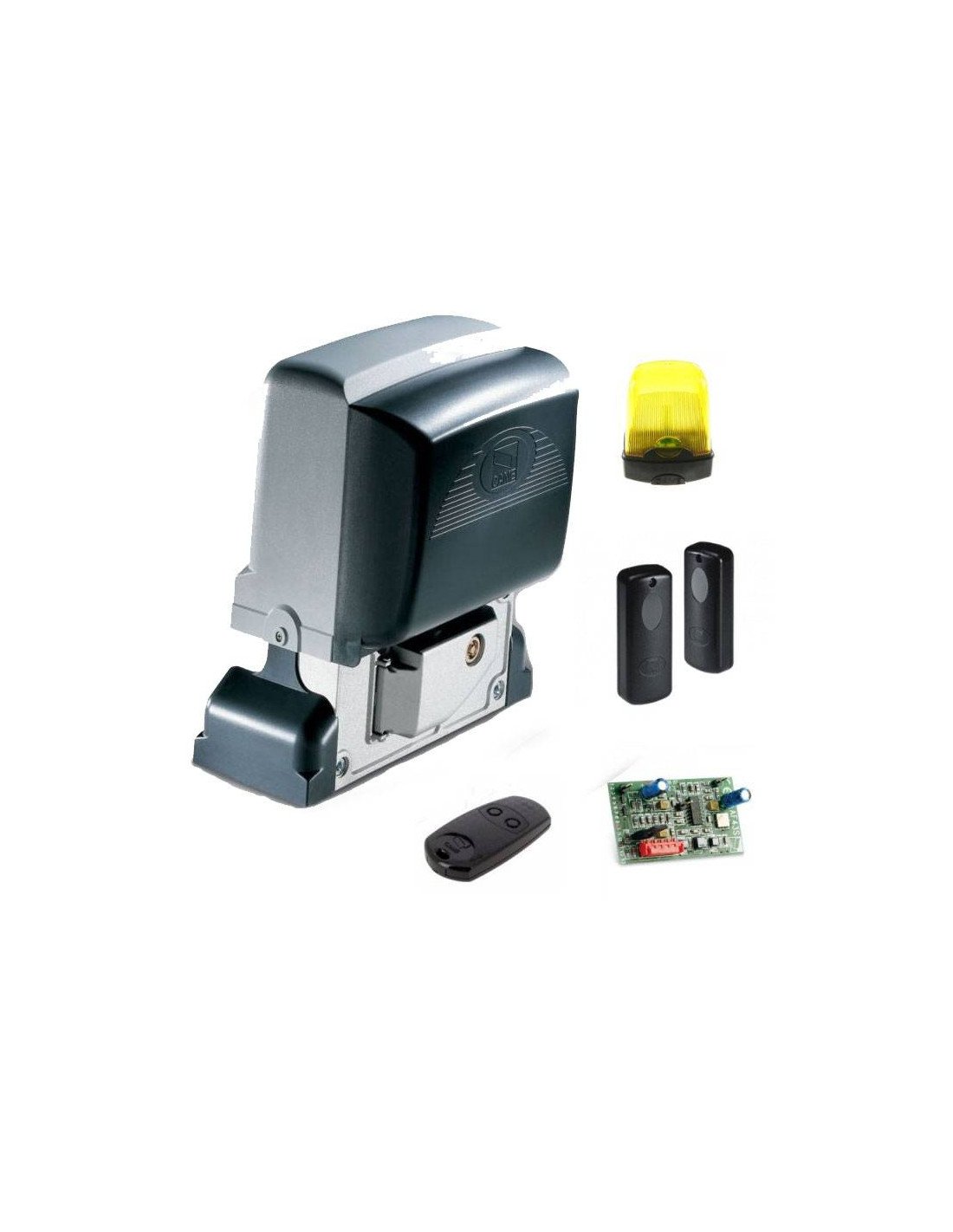

KIT Motor Came BX-78 from 230V for sliding doors of up to 800 kg and of a length not exceeding 14 metres. What. It incorporates electronic card with programming display, built-in radio decoding, motion control device and mechanical race terminals.

" THIS PRODUCT IS DISCONTINUED, REPLACED BY MODEL OTHER OF A THICKNESS OF "

CHARACTERISTICS

• FoodOTHER:
• Squeeze sensor
• Maximum sheet weight: 800 kgs
• Power: 300W
• EngineOTHER:
• Maximum leaf length: 14 m
• Output to button
• Slowing in opening and closing
• Possibility of automatic closure
• Velocity: 10.5 meters a minute
• Mechanical race finishes

THE KIT CONTAINS:

• BX-78: Sliding motor 230V up to 800 kg
• AF43S: Plug-in receiver card
• SAY10: Surface photocell pair of 12 - 24 V AC - DC. Range , 10 meters .
• KLED: flashing indicator light with LED.
• UP-432EE: Garage control 2 channels fixed code 433.92 MHz

MANUAL

Download manual engine Came BX-78
