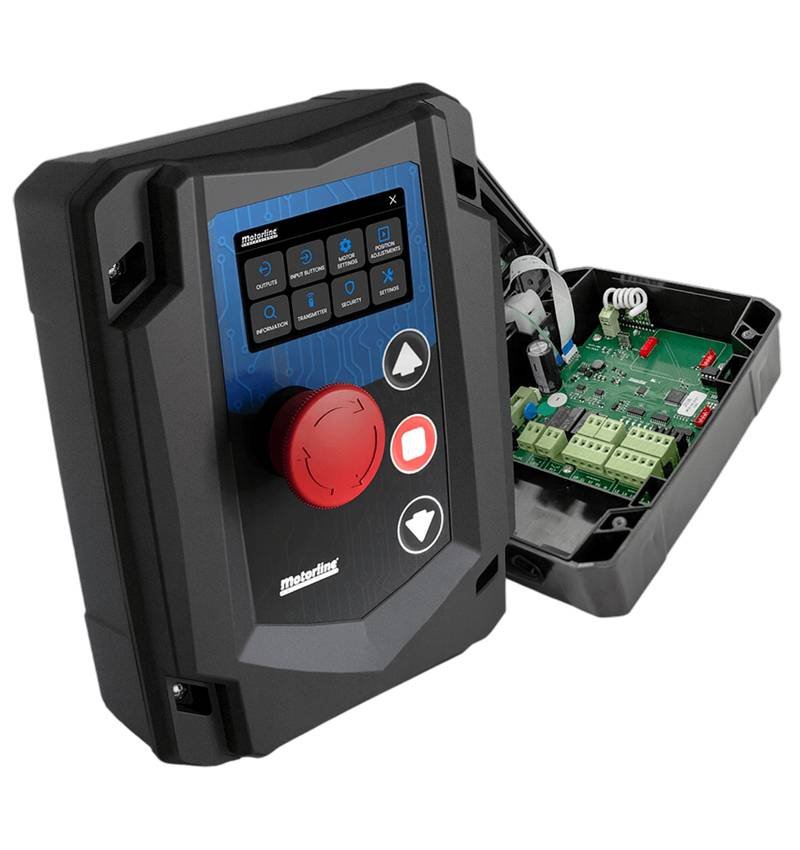

Motorline Mc93-300

Electronic control center for sectional gates, equipped with Interactive touch screen To make configurations, diagnostics and monitor the system.

The control plant Communicates with the engine through an RJ45 cable, which provides 24VDC and integrates two RS485 communications for engine management.

System structure:

• Control Central: Designed to be installed at an accessible place, it allows you to easily program, make adjustments and connect the peripherals. This central operates with a safe tension of 24VDC, preventing short circuits and electrocutions

• Power Central: Integrated in the motor, controls the movement of the door and energy management, available in versions for engines

36V (with backup battery holder and loading and unloading) and 310V

Main features:

• Error registration: stores the historic error occurred, with date and time, facilitating diagnostics

• Date and time setting: Synchronization via mobile

• Remote connection: Configuration of the central and firmware update via MConnect Link (Wi-Fi)

• Compatibility with MR15: Integrates wireless security systems via radio, such as the MX14 emitter

• Radio receiver: Frequency of 433.92 MHz, up to 200 commands (100 total + 100 pedestrian)

• Security Inputs: Compatible with photocells, 8K2 and OSE systems

• Various outputs: for door status, programmable relay and accessories (24VDC 8W)

• Absolute encoder: precision in position control

• Travel Programming: Manually performed

Technical data (MC93-300)

Manual

Manual Motorline KVM 300 Series + Central MC93-300
