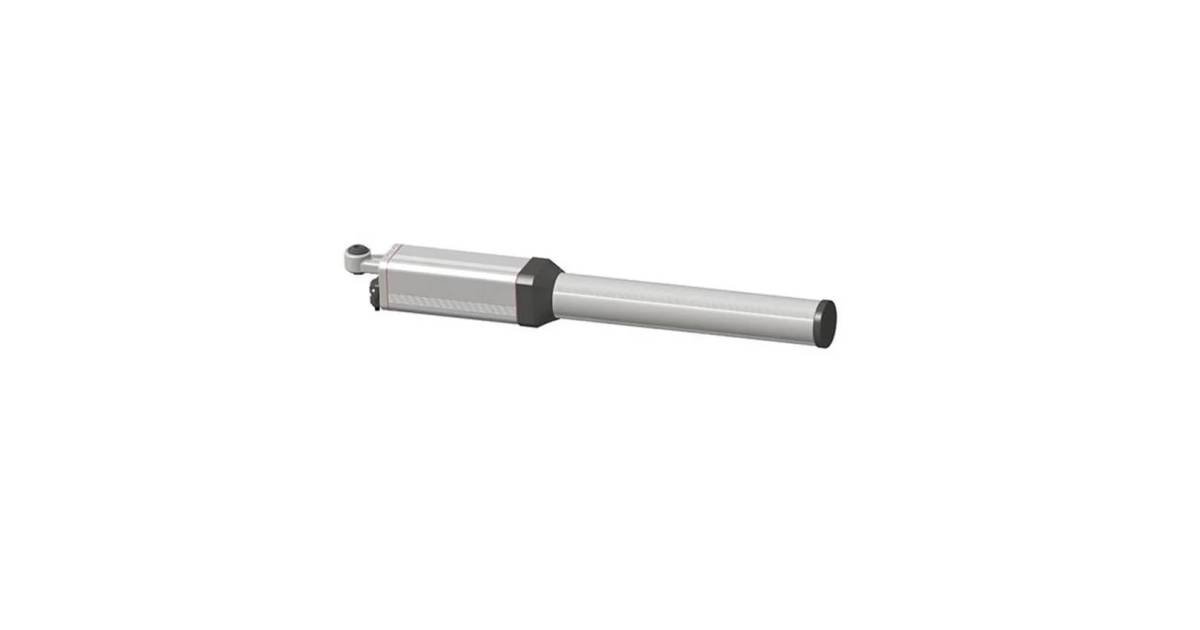

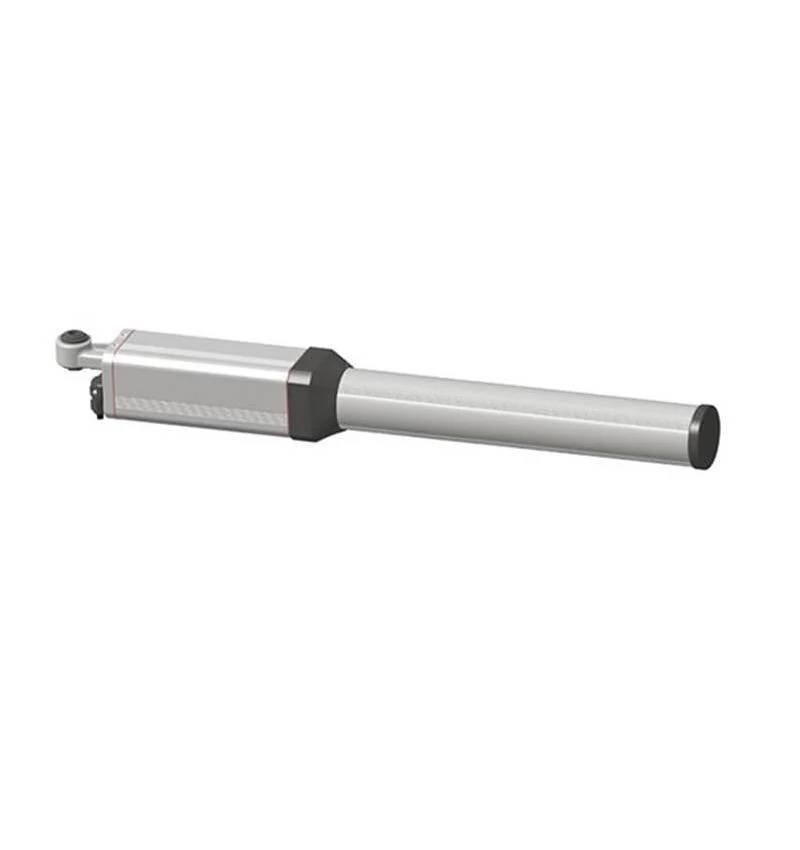

230V Medva ECO hydraulic motor for residential and community swing doors with maximum length of 4, 6 and 7 meters depending on the model.

Improvements have been made to the actuator that make it quieter and faster, offering a higher opening and closing speed

Patented system of adjustable ring on the stem to adjust the degrees of opening, adjustable soft stop on the closing.

Suitable for hydraulic lock connection, except on BACN model.

The BAC and BACN versions are equipped with a universal system that allows you to select the operation (reversible, locking or semi-locking) individually in each manoeuvre, excellent anti-wind system.

The BACN version is equipped with 2 adjustable pressure sensors, suitable to comply with the standard (EN 12453)

SPECIFICATIONS

AVAILABLE MODELS

■ ECO280 BAC-1.3: Actuator with BAC system. 280 mm stroke.

■ ECO360 BAC-1.3: Actuator with BAC system. 362 mm stroke.

■ ECO240 BAC-1.3 Actuator with BAC system, hydraulic deceleration at closing, max. 3m, 800Kg.

■ ECO280 BACN-1.3: Actuator with BACN system + interface connections. 280 mm stroke.

■ ECO360 BACN-1.3: Actuator with BACN system + interface connections. 362 mm stroke.

■ ECO280 BAC BI-1.3: Actuator with BAC system. 280 mm stroke. With independent pump.

■ ECO360 BAC BI-1.3: Actuator with BAC system. 362 mm stroke. With independent pump.

■ ECO360 BAC MA&ES-1.3: Actuator with BAC system. 362 mm stroke. Master plus slave, maximum door width 8m and maximum weight 800kg.

MEASUREMENT

MANUAL

Medva ECO Instruction Manual
