MEDVA UNITECH

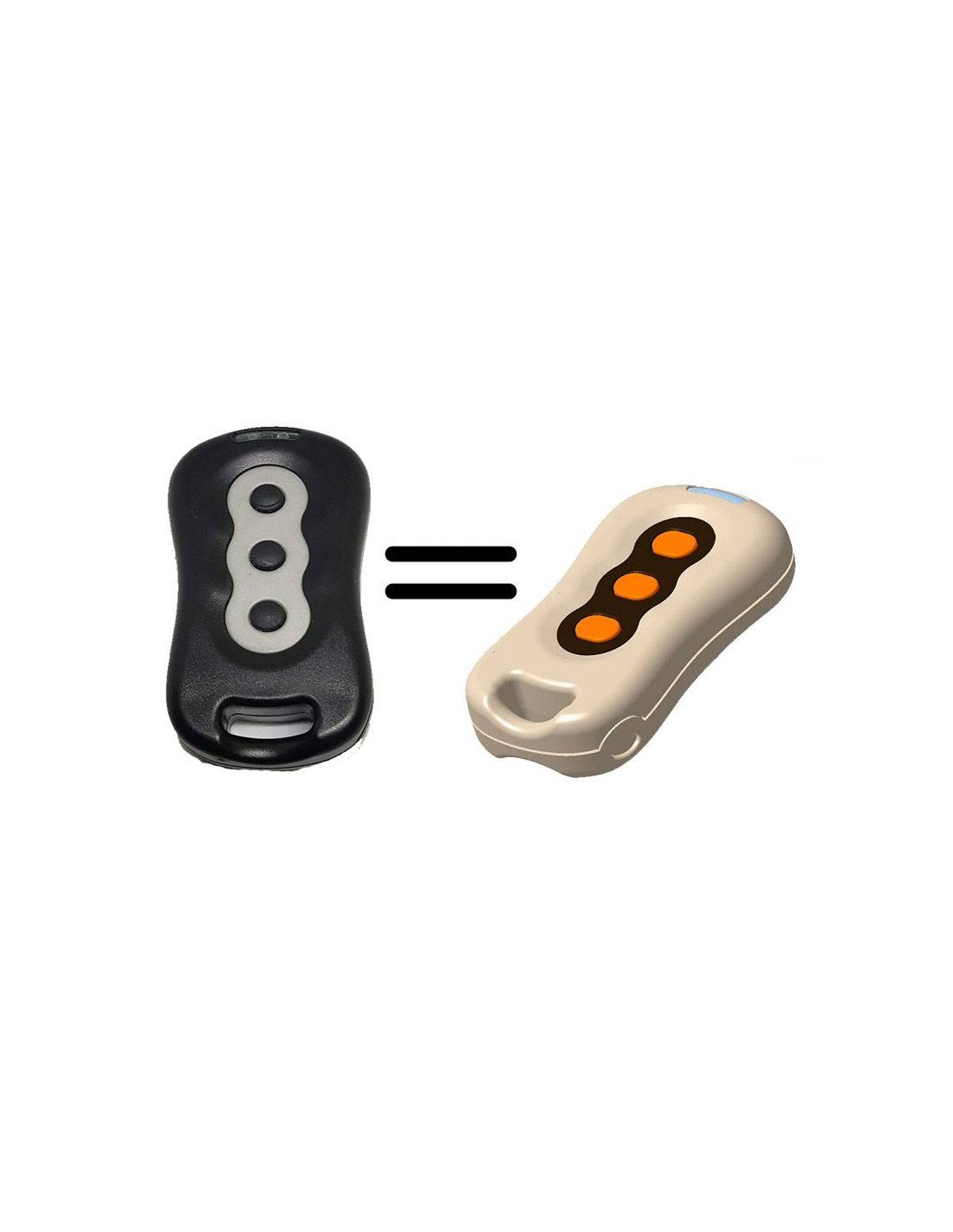

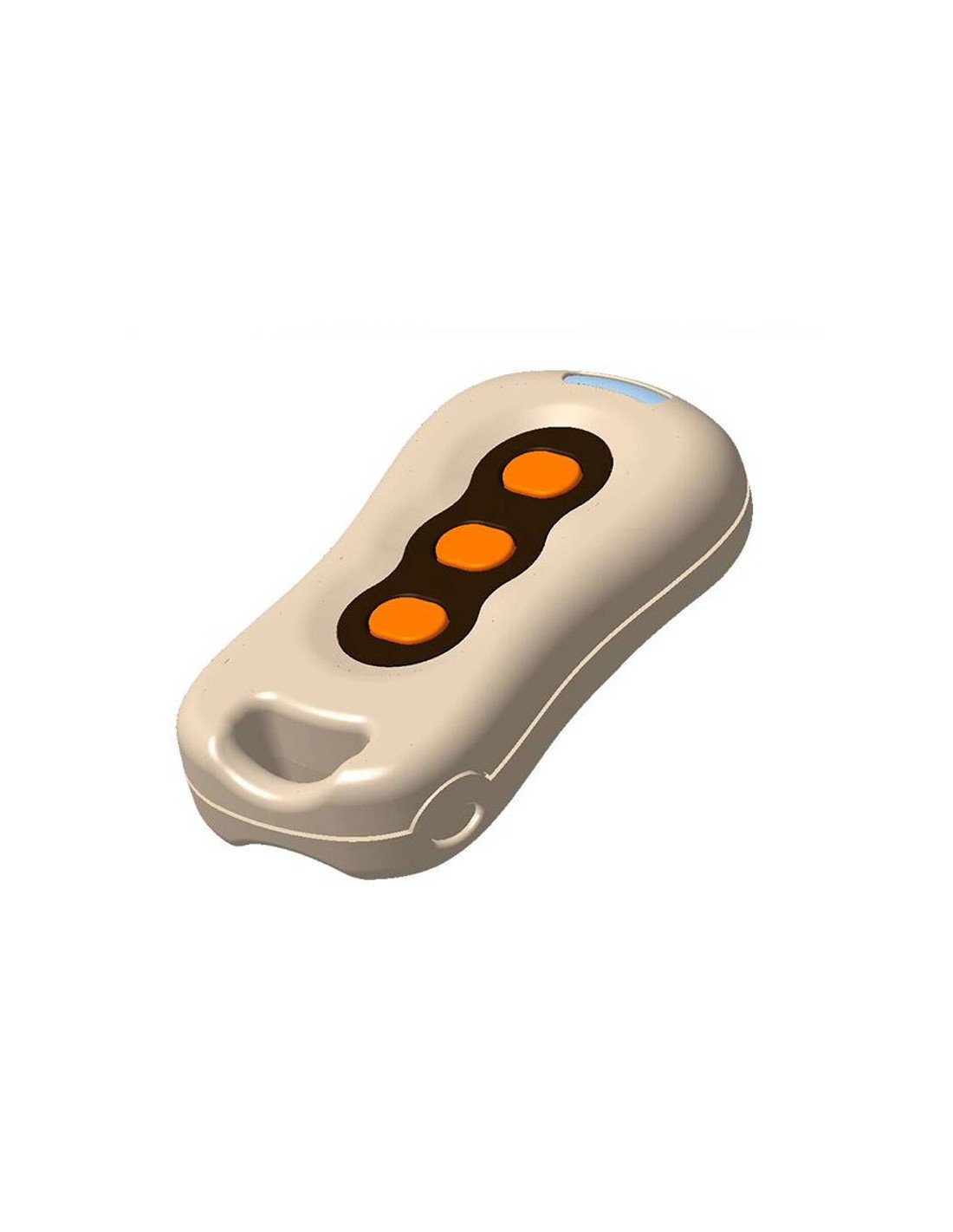

Garage crew MEDVA model of the vehicle with 3-channel RollingCode coding at 433.92 MHz.

The new transmitter can be programmed remotely using a pre-programmed control or by pressing the "PROG EMISSORES" button on the receiver.

PROGRAMMING RADIO COMMAND

In a position close to the manoeuvre bar, press the special function on the EVO or UNITECH emitters as shown in Figure 1

indicates further down.

ATTENTION! , the special function shall only be activated on a transmitter previously stored in the manoeuvre table.

(Note: the special function is used to register new transmitters on the selected receiver).

When pressing the special function of the emitter MEDVA (EVO, UNITECH) is selected, the red LED indicating PROG/RADIO is

it will light up.

We will then press the emitters you wish to discharge into the receiver of the manoeuvre box.

Only transmitters recorded on the same channel as the transmitter with which the special function was activated shall be allowed

to full maneuver.

After 10 seconds from the memory of the last emitter, the indicator red LED shall be switched off. The painting will be out

the issuer memory mode.

(Note: you can force exit from memory mode ahead of time by pressing the special function of any of the

recorded emitters).
