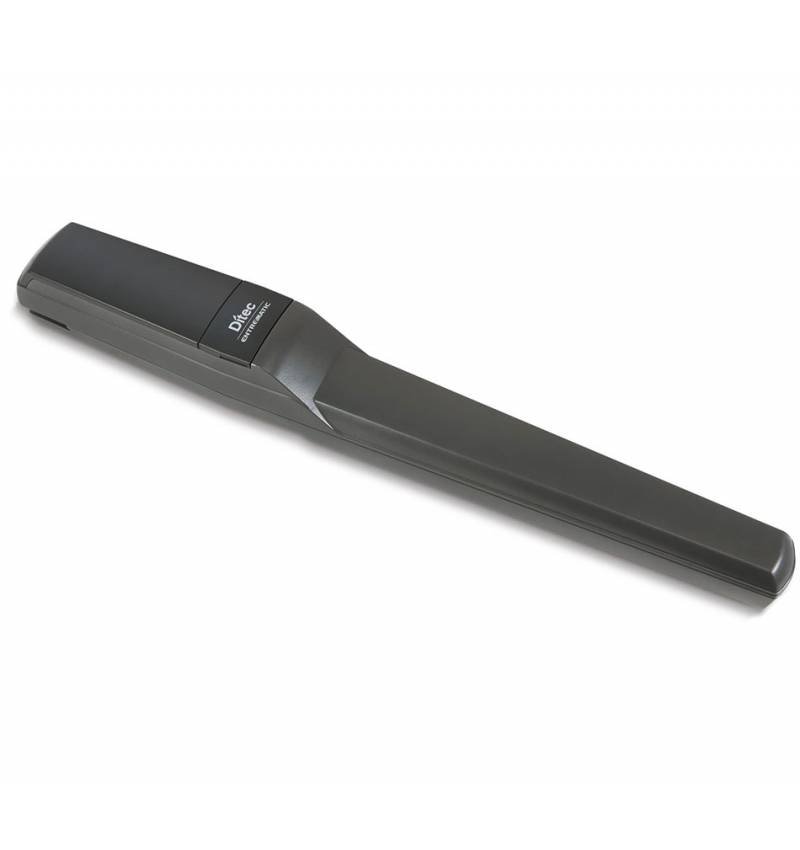

KIT Electromechanical engines DITEC PWR35H 24V for heavy use swing doors with a leaf length of up to 3.5 metres.

The irreversible actuator DITEC The 24Vcc PWR35H is intended for frequent and heavy use. With machinery for making pulp of fibrous cellulosic material.

Easy: it is enough to loosen a single screw to remove the plastic cover and access the terminals for the electrical wiring.

Strong: automation composed of two strong aluminium castings that guarantee perfect resistance to torsion and cutting forces.

Practical: manual unlocking ensuring opening with minimum effort and removable cover for easy access to the screw for adjustment and maintenance operations.

TECHNICAL CHARACTERISTICS

• Electromechanical automatic systems: irreversible for sheet up to 3,5 m
• Running management: mechanical cap
• Maximum capacity: 600 kg by 1,75 m 250 kg by 3,5 m
• Power supply: 24 Vcc
• Maximum power: 5.5A
• Consumption: 65 W nom. / 132 W max
• Push: 3000 N
• The test shall be carried out in accordance with the instructions of the manufacturer
• Maximum clearance: 450 mm
• Maximum aperture of the vehicle
• Intermittency: 50 consecutive cycles at 20°C
• Service class: intensive up to 300 000 cycles
• Unlocking for manual opening: by key
• Operating temperature: -20°C ÷ +55°C (-35°C ÷ +55°C with NIO activated)
• Protection degree: IP44
• Weight: 9

INSTALLATION MEASURES

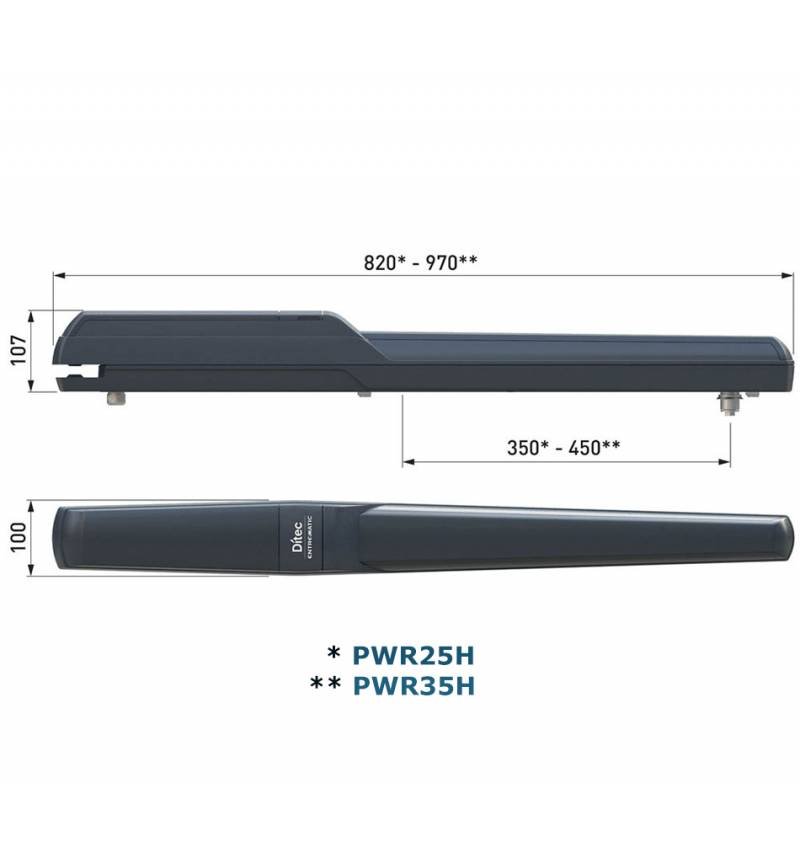

MOTOR MEASURES

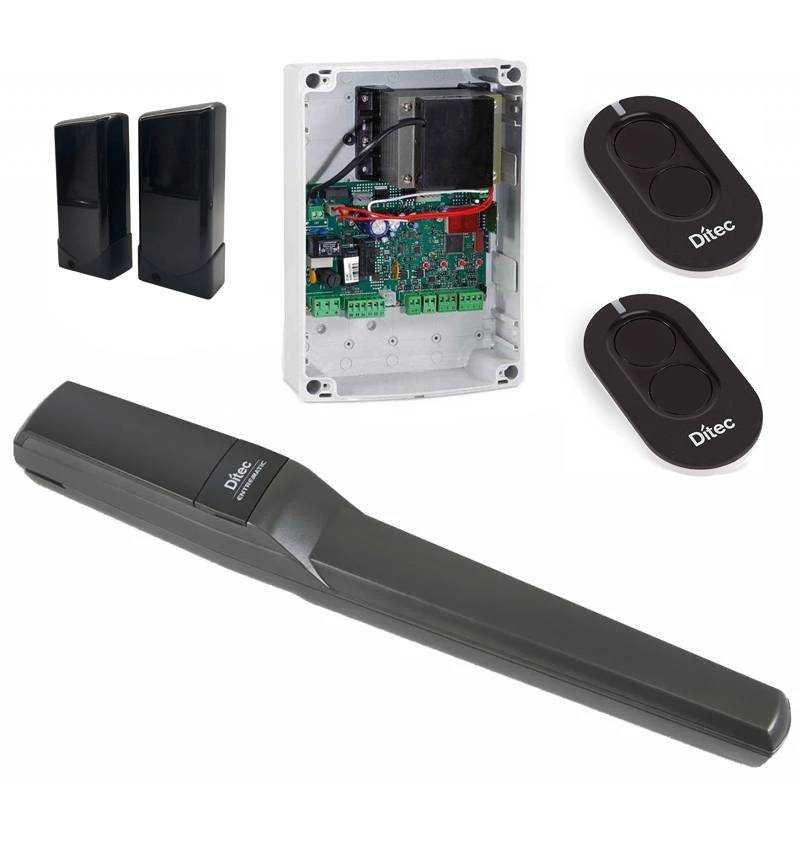

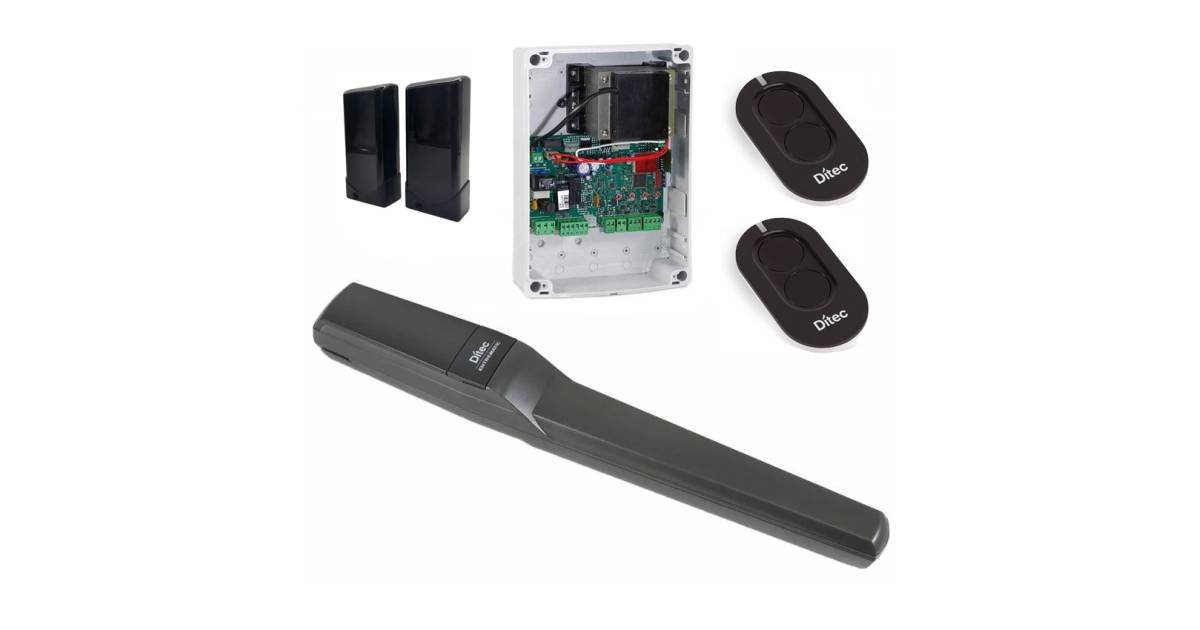

THE KIT CONTAINS:

■ 1 unit PWR35H: 24V electromechanical operator 3.5m by sheet.

■ 1 unit OF WHICH:: 24V operator central with built-in receiver.

■ 2 units TECH3Rolling code 433 MHz.

■ 1 unit FTALL: pair of emitter-receiver photocells.

MANUAL

Instruction manual DITEC IT'S THE SAME THING

Instruction manual for central electronic BIOS2 24V
