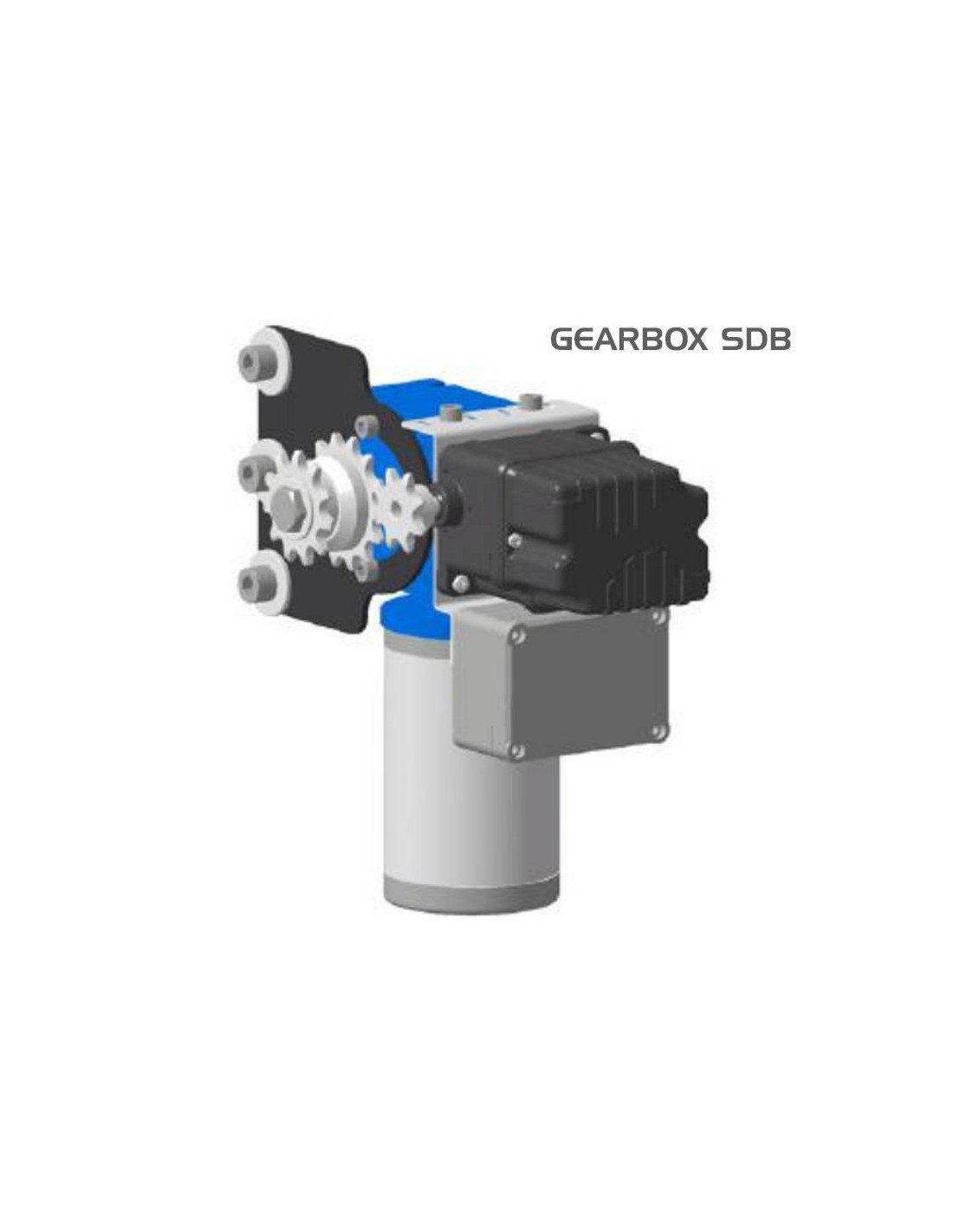

Medva GEARBOX 24V electromechanical chain pull motor for counterbalanced overhead doors with a maximum height of 4 m and 20 m².

Ideal for residential, community and industrial use.

■ Power supply to the electric motor at 24 Vdc.

■ Microswitch limit switches.

■ Equipped with encoder.

■ Compliant (EN 12453).

SPECIFICATIONS

MEASUREMENT

AVAILABLE MODELS GEARBOX

■ GEARBOX.SDB.R: Right actuator for PRB extension, max. 20 m². (443€)

■ GEARBOX.SDB.L: Left drive for PRB extension, max. 20 m² (443€)

MOUNTING ACCESSORIES

Once the motor has been selected, you must choose the mounting accessories one by one and add them to the cart. If you have any doubts, you can contact us to make a tailor-made quote.

■ RUBI. SIMPLE3: A complete transmission guide, 3 m high. (192€)

■ RUBI. SIMPLE5: A complete transmission guide, 5 m high. (258€)

■ RUBI. SIMPLE6: A complete transmission guide, 6 m high. (277€)

■ RUBI. DOBLE33: Two complete drive guides, 3 m wide x 3 m high. (452€)

■ RUBI. DOBLE63: Two complete transmission guides, 6 m wide x 3 m high. (519€)

■ RUBI. DOBLE65: Two complete transmission guides, 6 m wide x 5 m high. (649€)

■ RUBI. DOBLE66: Two complete transmission guides, 6 m wide x 6 m high. (691€)

■ TUBE. RUBI: 3 m torque tube with welded ball joint for double transmission. (38€)

■ DOUBLE. RUBI: Kit for double transmission, bearing, shaft, bearing holder and ball joint. (28€)

■ FORWARDING D: Right hand forwarding kit to separate the MTC.RUBI. from the guide (49€)
