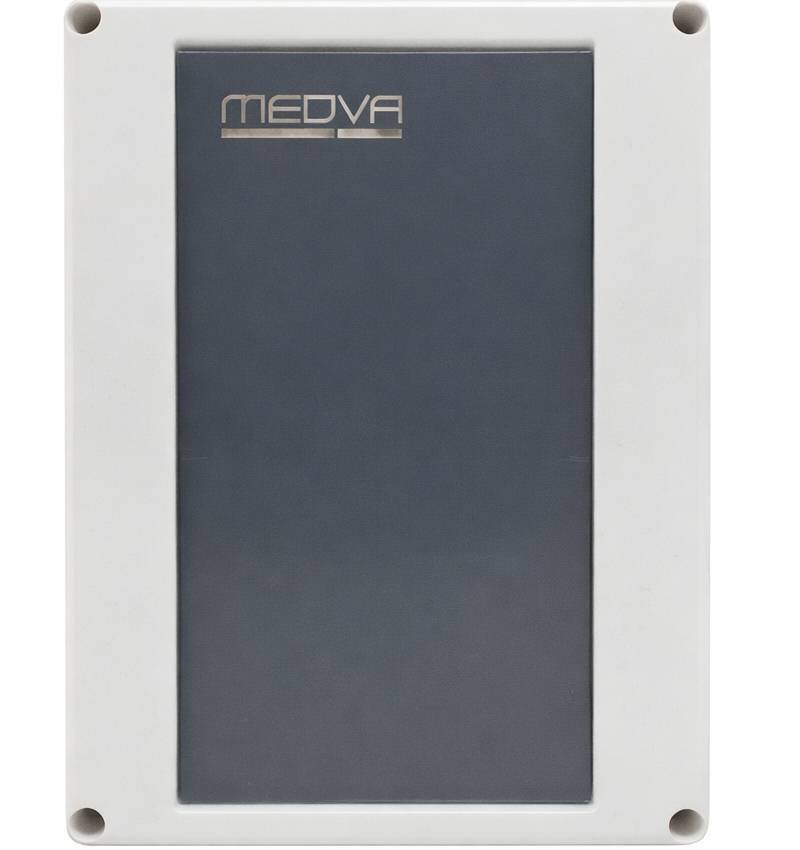

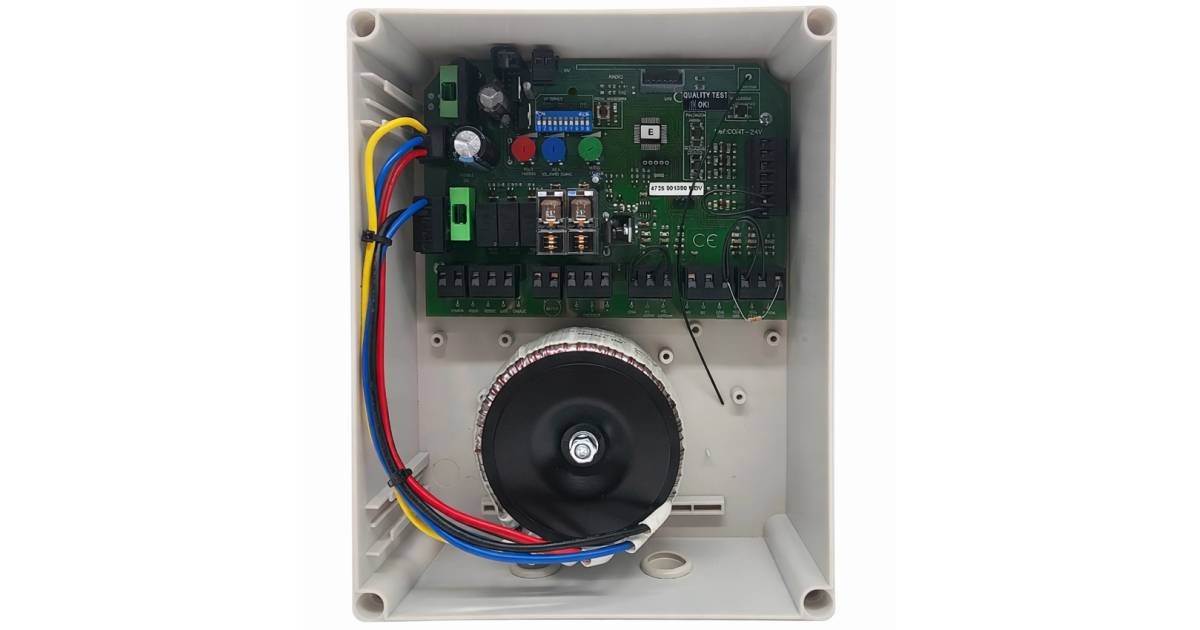

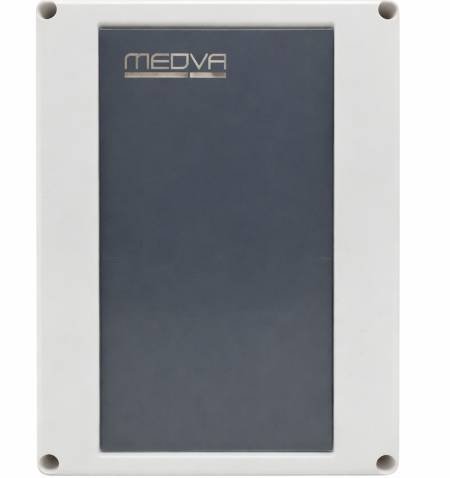

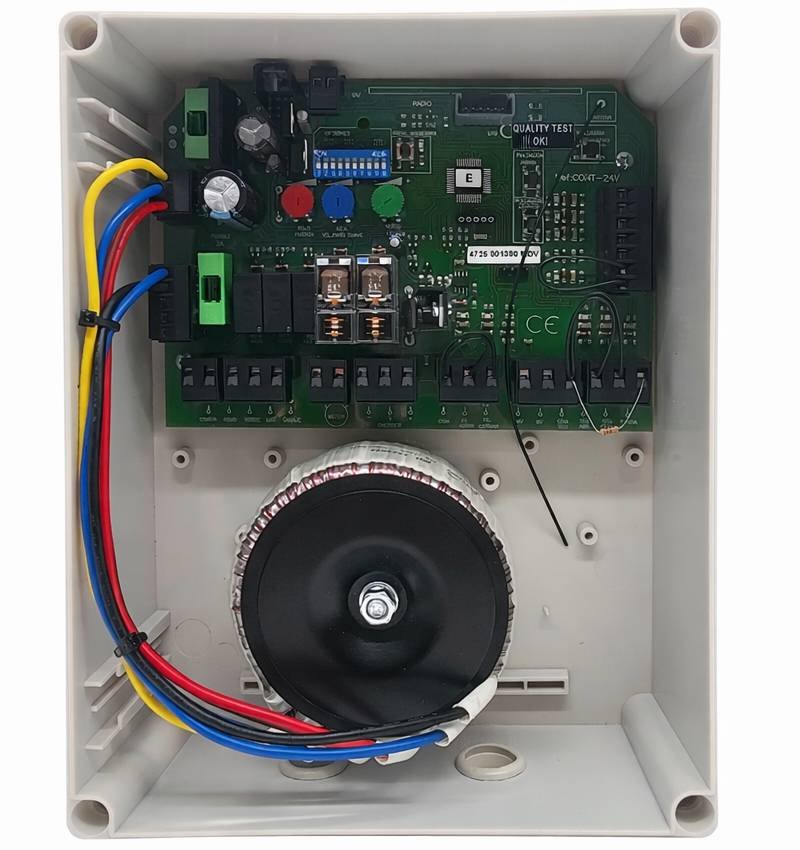

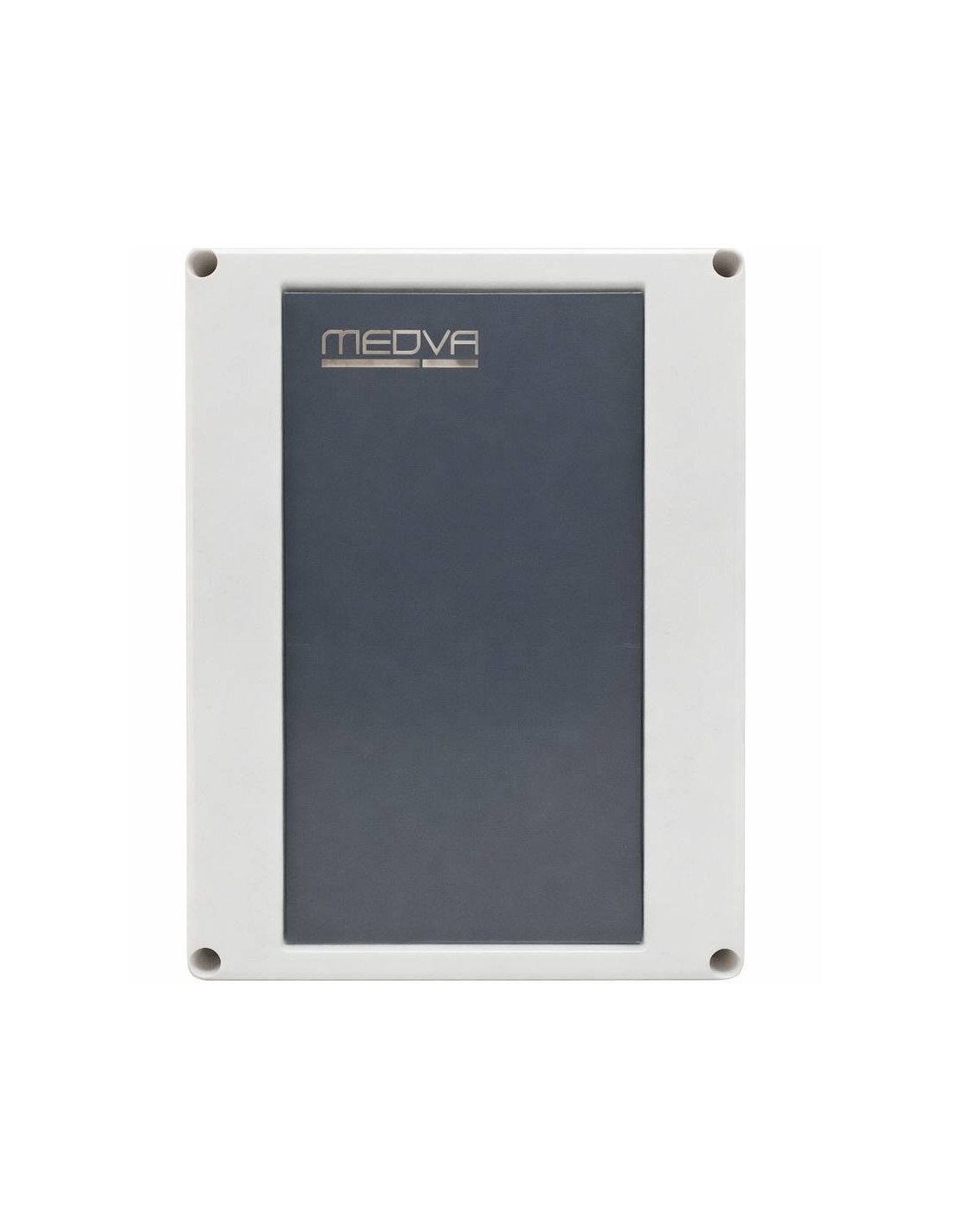

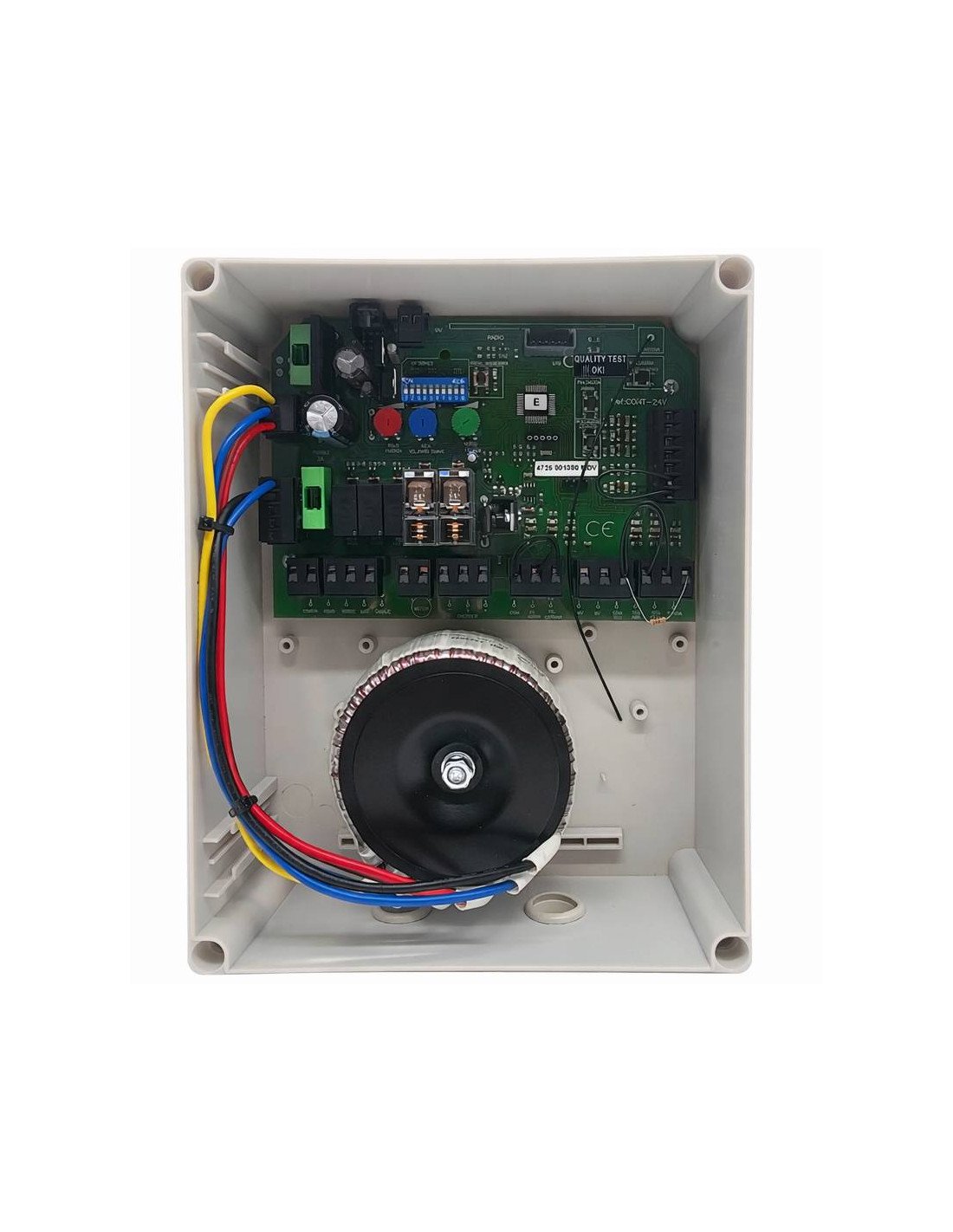

MEDVA BEDIA - Maneuvers box for 24V motors

Medva BEDIA maneuver box for 1 24V drive, with force regulation, speed and possibility of activating Encoder.

✓ Current table continues 24 Volts.

✓ Power regulation, smooth stop speed and automatic downtime.

✓ Indicator of pulser status and photocell with Leds.

✓ Exit garage light.

✓ Radio card connector.

✓ Entry to shrink.

✓ It has three separate ‘safety’ entries, one for a photocell that acts during the closing of the door, another photocell for the opening and another for a ‘pneumatic security’ with 8K2 resistive contact.

✓ We also have pushbutton inputs: alternative, Close,Open, Paro

✓ It has an open, close and alternative pushbutton integrated into a plate to perform the time mounting and programming test.

Technical characteristics BEDIA 24V

• Food: 24Vac
• Engine voltage: 24Vdc
• Maximum motor current: 2.5A
