Electromechanical motor EMFA Rot MEC A 230V for residential tilting doors up to 8m².

Auto-blocative mechanism with built-in receptor 433 MHz to motorize delinasive tilting doors of 1 or 2 sheets.

Features

■ Interior and exterior opening.

■ With manual unlocking.

■ With career finishes. With 530mm fixation basis.

■ For countext, central or lateral mounting doors.

■ Fits all types of tilting door.

■ Continuous movement, regular and silent.

■ Easy installation (with screws or welding.)

■ Irreversible. Ensures the closure of the door without the need for electronement.

■ Possibility of automating articulated swing doors

In front of electric failure, the door can be unlocked by turning the motor-reducing handle. By pressing the device, the unlocking can be carried out from the outside or the interior by means of the hand.

Technical characteristics

• Feed: 230v - 50Hz
• Intensity: 0.85A
• Power: 170W
• Pair: 480nm
• Intermitance Operation: 30%
• Operating time: 10 sec
• Protection: IP40
• Operating temperature: -20ºC A + 70ºC
• Capacitor: 9 μF
• Noise: <70 dB
• LubricationFatty
• Weight: 13 kg

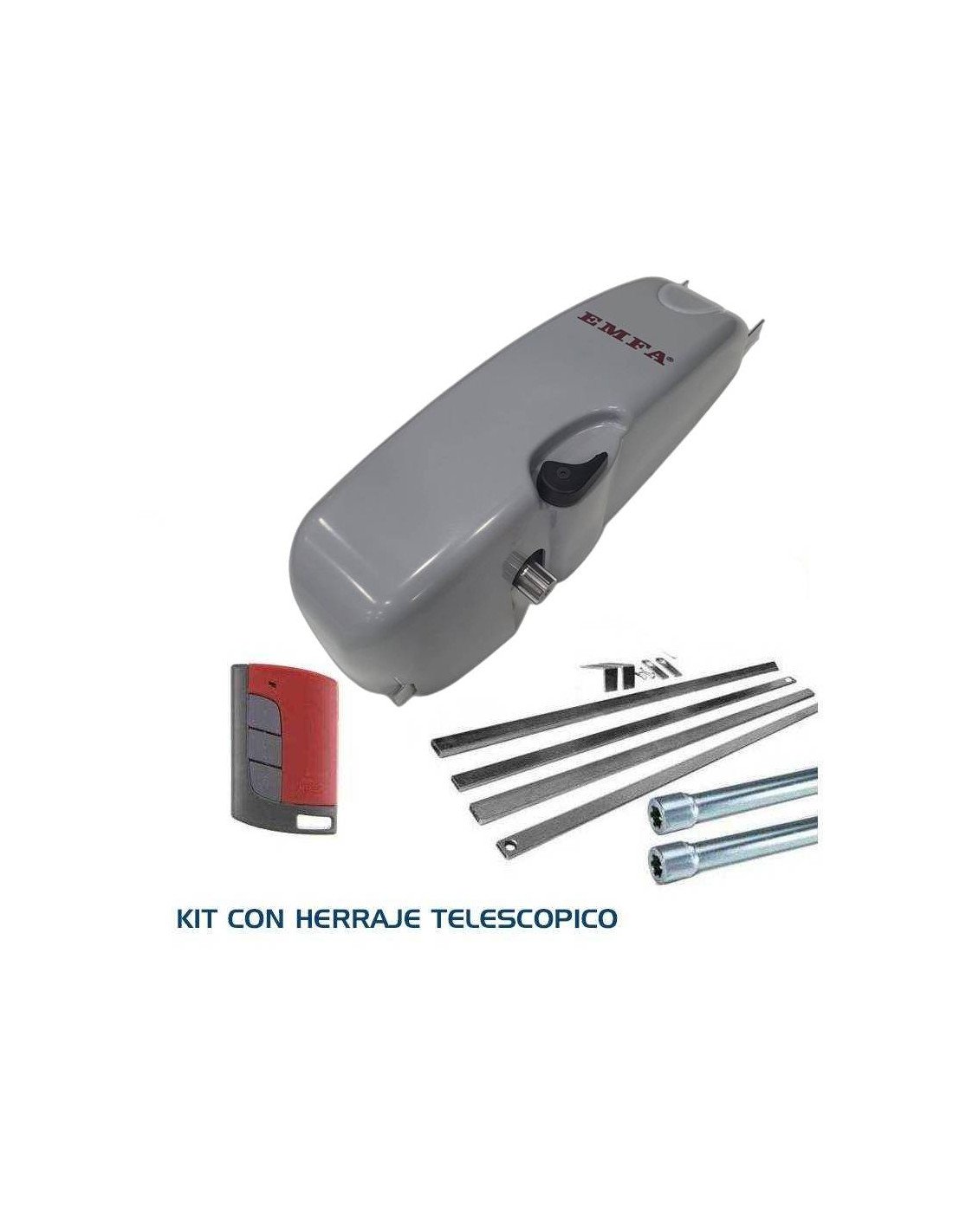

The Teléscopic Kit contains:

■ 1 pc ROT MEC + C + R (202011): 230V electromechanical motor with built-in box.

■ 1 pc B / 1 (202001): Telescopic fittings.

■ 1 pc Ta Rot MEC 2 (202003): Pair of 2x2000 mm drag tubes.

■ 1 pc TE3 DC 433 (209002): 3-channel 433 MHz frequency emitter.

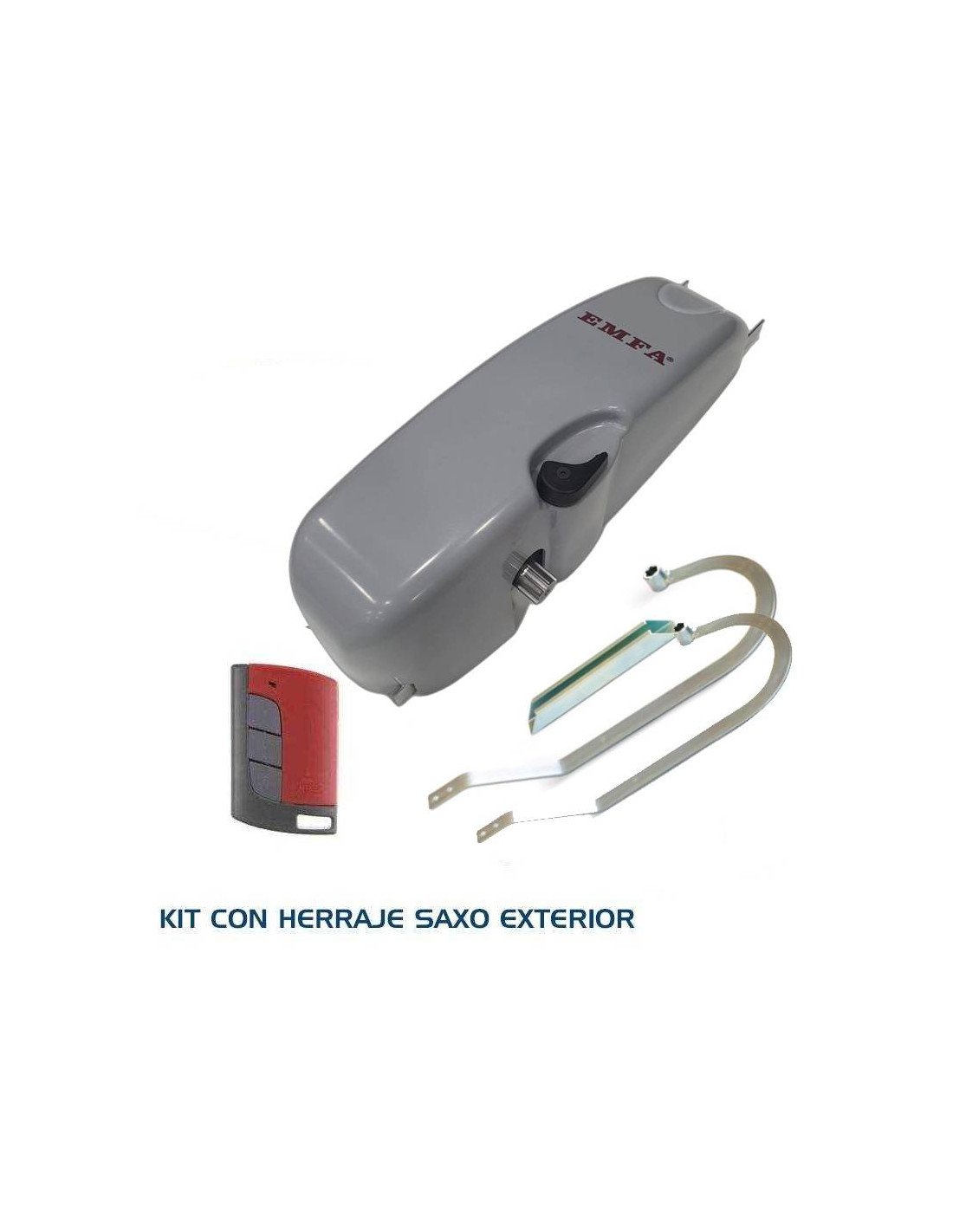

The outer opening sax kit contains:

■ 1 pc ROT MEC + C + R (202011): 230V electromechanical motor with built-in box.

■ 1 pc HebS-CD (202013): Outer central fitting for Rot MEC.

■ 1 pc TE3 DC 433 (209002): 3-channel 433 MHz frequency emitter.

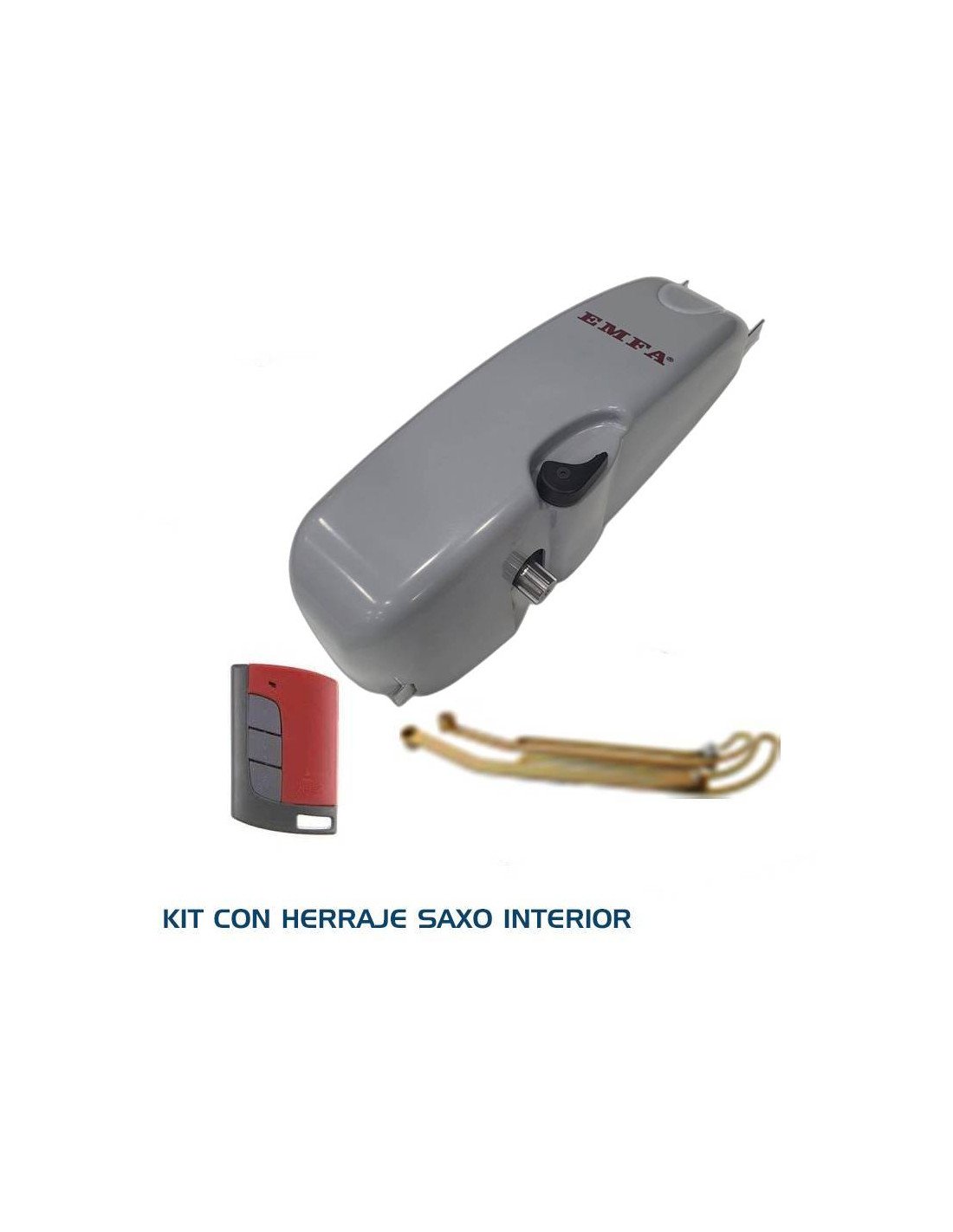

The Inner Opening Saxo Kit contains:

■ 1 pc ROT MEC + C + R (202011): 230V electromechanical motor with built-in box.

■ 1 pc Hibs love (202008): Central inner hardware damping for Rot Rot MEC.

■ 1 pc TE3 DC 433 (209002): 3-channel 433 MHz frequency emitter.
