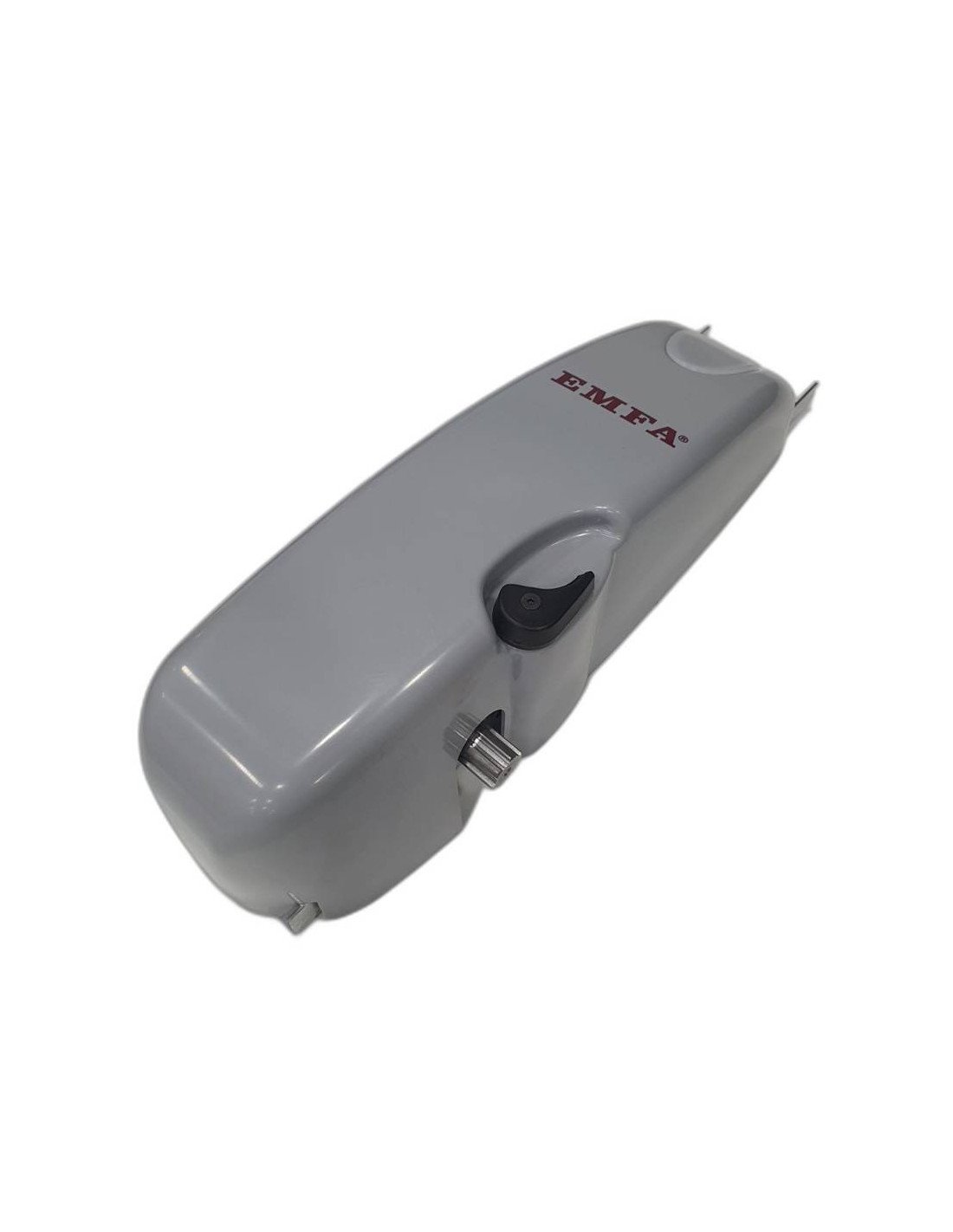

Electromechanical motor EMFA Rot MEC A 230V for residential tilting doors up to 8m².

Auto-blocative mechanism with built-in receptor 433 MHz to motorize delinasive tilting doors of 1 or 2 sheets.

Note: It does not include telescopic fittings or lateral drag bars. For this we have a complete kit.

Features

■ Interior and exterior opening.

■ With manual unlocking.

■ With career finishes. With 530mm fixation basis.

■ For countext, central or lateral mounting doors.

■ Fits all types of tilting door.

■ Continuous movement, regular and silent.

■ Easy installation (with screws or welding.)

■ Irreversible. Ensures the closure of the door without the need for electronement.

■ Possibility of automating articulated swing doors

In front of electric failure, the door can be unlocked by turning the motor-reducing handle. By pressing the device, the unlocking can be carried out from the outside or the interior by means of the hand.

Technical characteristics

■ Food: 230V - 50Hz

■ Intensity: 0.85A

■ Power: 170W

■ Par: 480nm

■ Intermitance Operation: 30%

■ Operating time: 10 sec

■ Protection: IP40

■ Operating temperature: -20ºC A + 70ºC

■ Capacitor: 9 μF

■ Noise: <70 dB

■ Lubrication: fatty

■ Weight: 13 kg

Measures

Manual

Manual EMFA ROT MEC + C

Instruction Manual Picture EMFA
