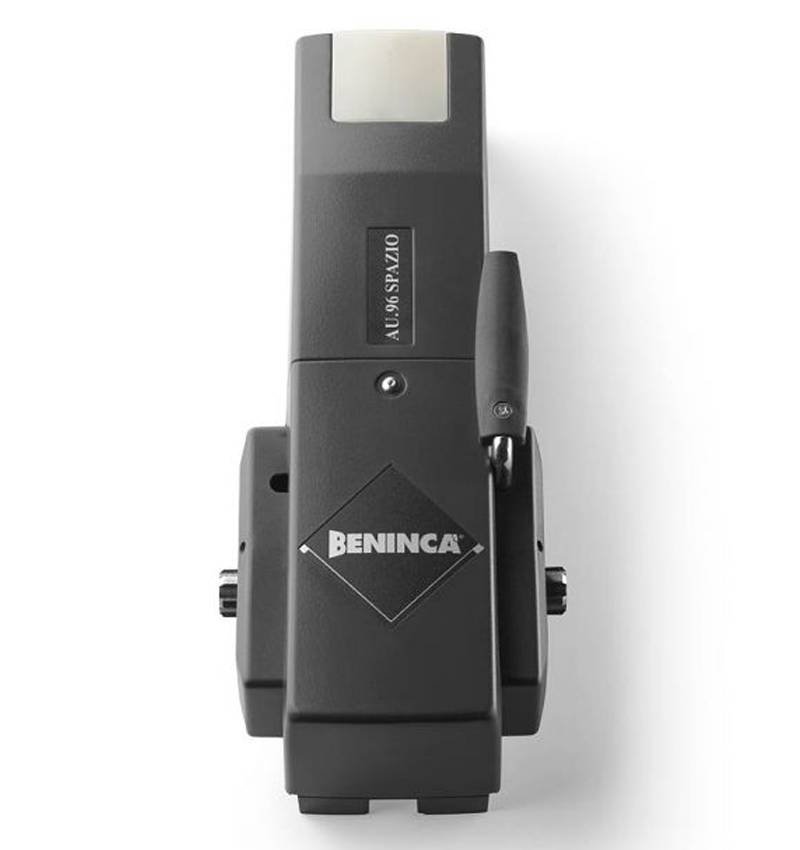

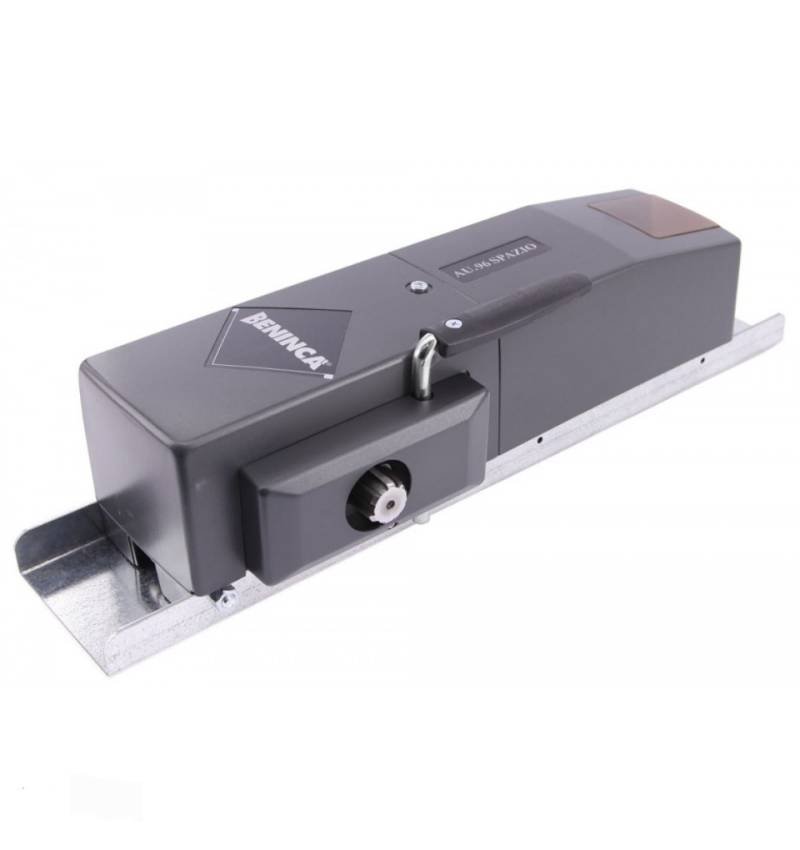

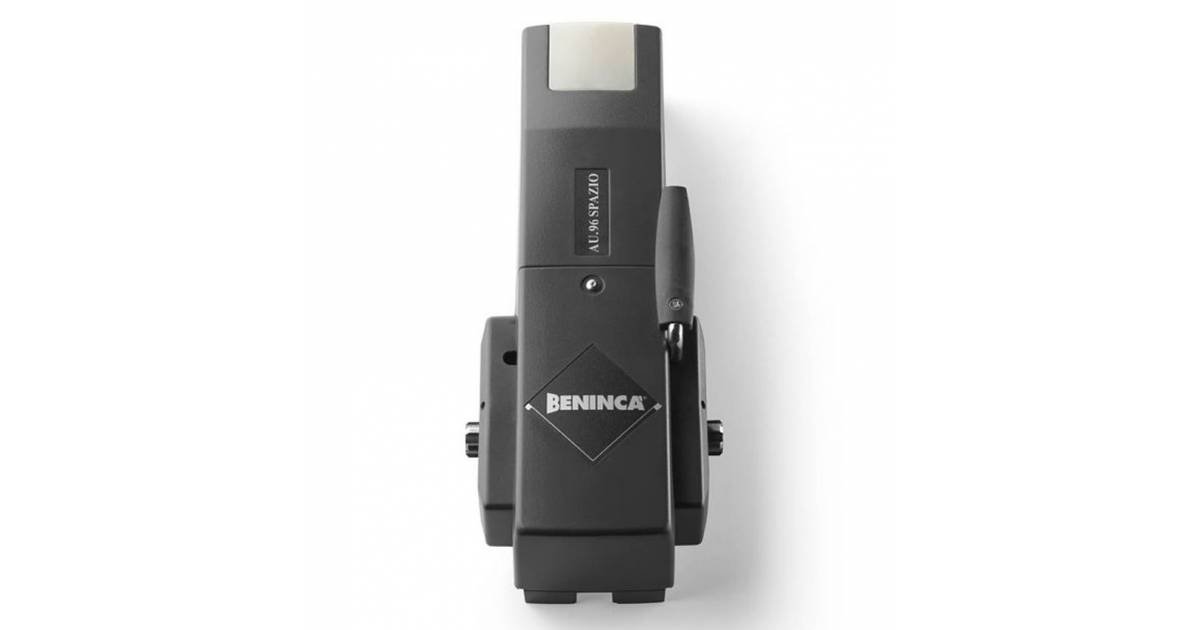

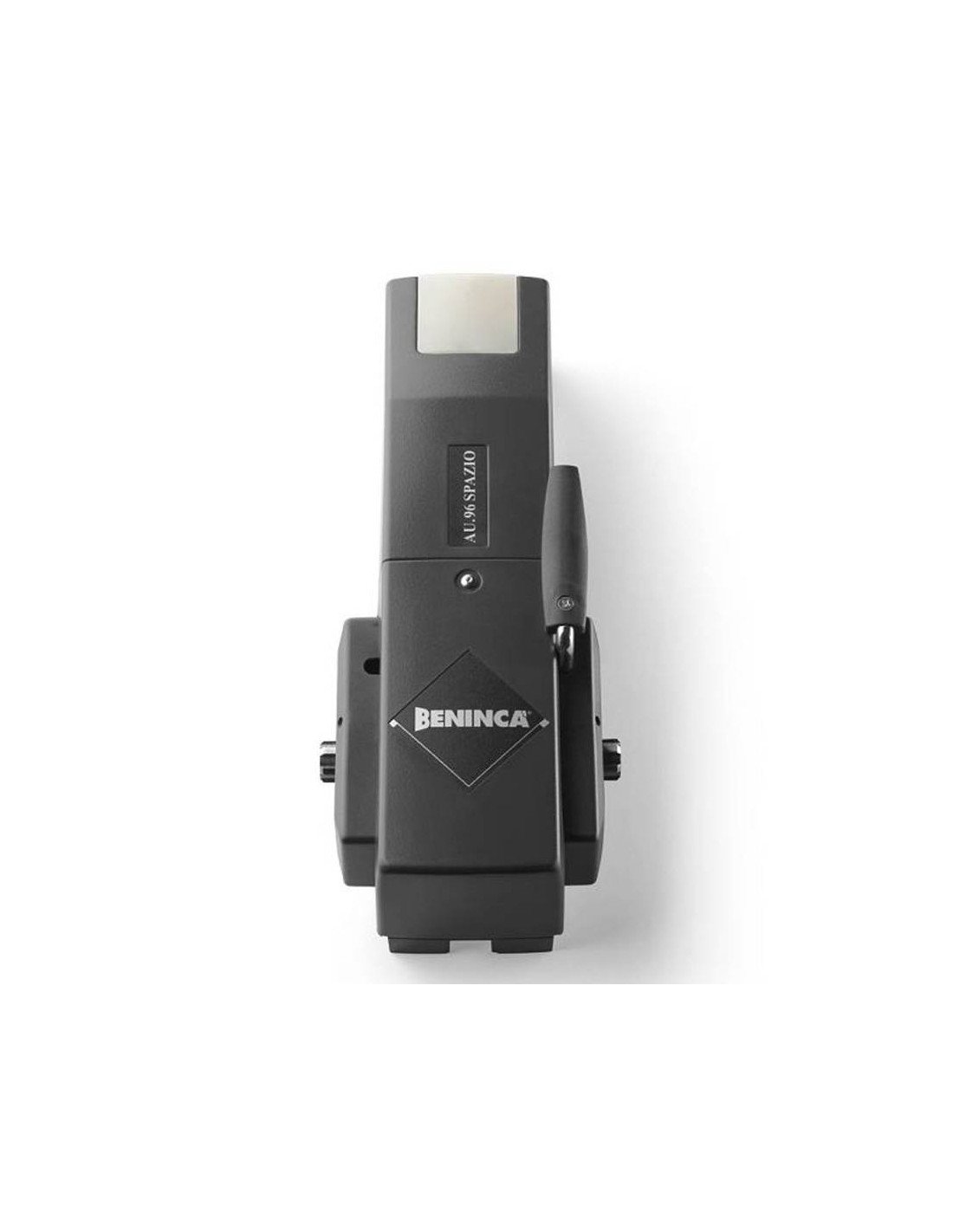

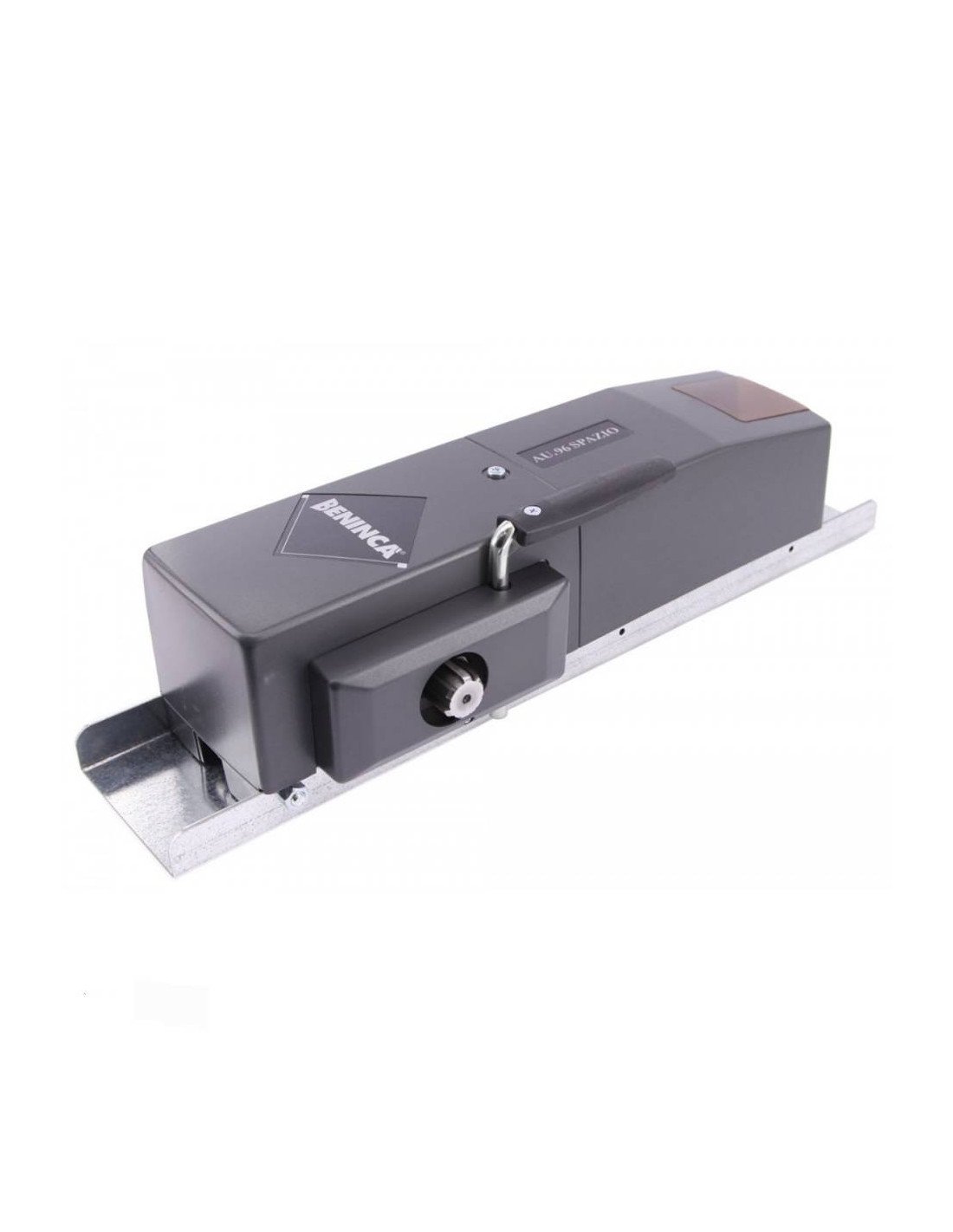

Beninca AU96 electromechanical motor for tilting doors residential use up to 12m²

Electromechanical motor Beninca AU96 for residential-use tilting doors, designed to automate sheets up to 12 m² in new facilities or as replacing existing operators.

The Beninca Au96 It is an irreversible operator of 230 Vac equipped with career finisms and a high strength metal transmission, ideal for private garages and communities with moderate traffic that require a reliable, silent and durable system. This version is supplied without maneuvering box, without hardware and no control, designed for installations where these elements are already available.

Main features

✔ Electromechanical motor 230 Vac

✔ Integrated race end

✔ Irreversible version for greater security

✔ Special for counterattom tilting doors

✔ Maximum door surface: 12 m²

✔ Aluminum and bronze gears for a long service life

✔ Ideal as replacement or existing motor replacement

Technical characteristics Beninca Au96

• Absorbed: 170 W
• Feed: 230 VAC
• Motor feed: 230 VAC
• Work cycle: 30%
• Degree: IP40
• Maximum absorbed current: 0.85 a
• Maximum pair: 480 nm
• Operator weight: 13 kg
• Fixing plate: 1250 mm
• Maximum door of the door: 12 m²
• Operating temperature: -20 ºC / +70 ºC
• Minimum temperature for opening: 10 °

Supply content

• 1 unit Beninca Au96 230 V tilting motor with 600mm bench

Documentation

Manual Beninca Au96
