Straight arm of traction (CAME 818xa-0040)

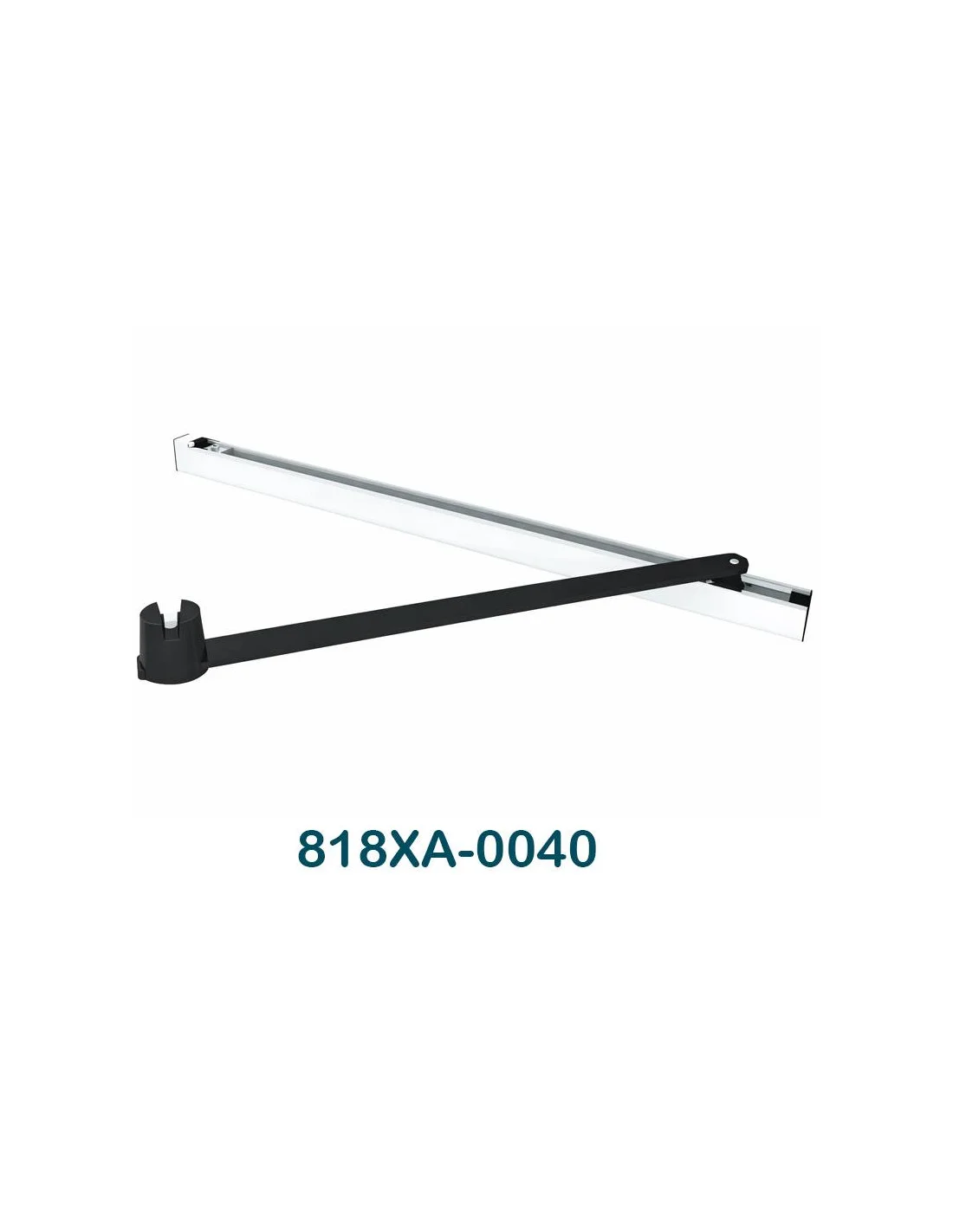

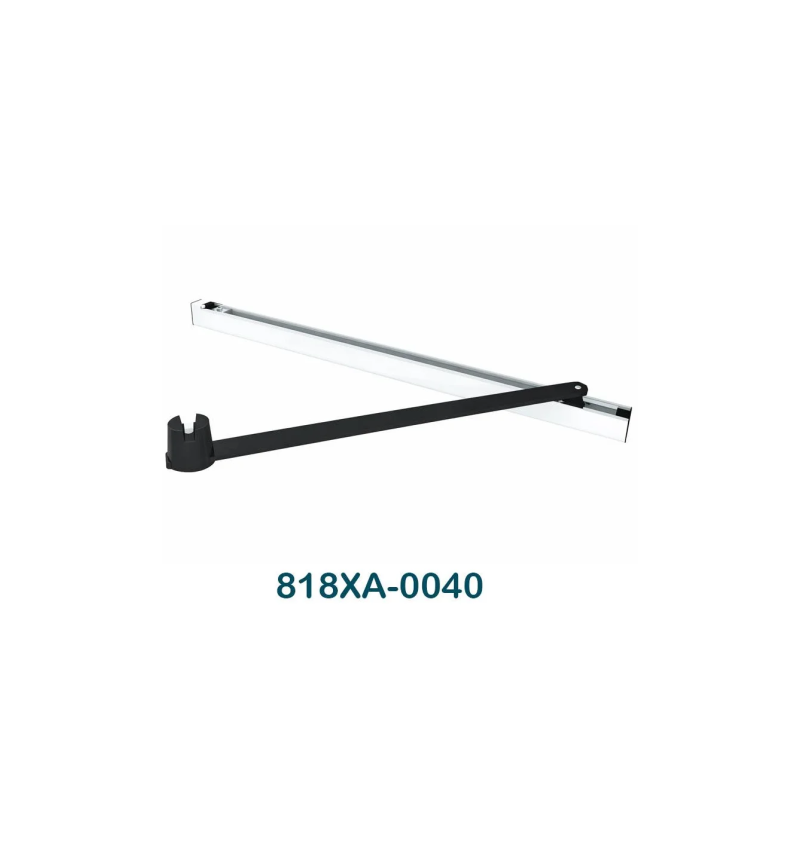

Straight traction arm CAME 818XA-0040 it is an original accessory designed for automation of swinged pedestrian doors CAME FLUO-SW.

It is a sliding traction arm intended for facilities in which the door open inside, view from the side where automatism is installed.

It is compatible with operators CAME FLUO-SW2 and Fluo-SW3 and allows you to perform a compact and discreet installation thanks to its sliding guide scroll system.

Traction arm CAME 818XA-0040

The reference 818XA-0040 it corresponds to the sliding straight arm used to transmit the movement of the automatism CAME FLUO-SW to the door leaf.

Unlike the articulated thrust arms, this model works through a sliding guide system and is specially designed for configurations traction opening.

• Straight traction sliding arm.
• Original accessory CAME.
• Compatible with automatisms FLUO-SW2 and Fluo-SW3.
• Designed for doors that open in views from the side of the automatism.
• Scroll through sliding guide.
• Integrated and adjustable mechanical opening stop.
• Maximum angle of opening up 100 °, depending on the installation conditions.

Technical characteristics CAME 818XA-0040

Compatible CAME FLUO-SW2 and Fluo-SW3

Arm CAME 818XA-0040 it is specifically designed to be used with automatisms of swinged garage pedestrian doors CAME FLUO-SW.

The FLUO-SW2 it is mainly intended for swinged pedestrian doors, while the FLUO-SW3 it is designed for leaves of greater dimensions and weight.

When to use the arm 818xa-0040?

The choice of the arm depends mainly on the door opening address regarding automatism.

The 818XA-0040 it is used for a configuration of traction:

• The automation is installed on the door.
• The leaf opens to the side where automatism is installed.
• The arm pulls the sheet during the opening maneuver.
• The guide allows the arm to move longitudinally during the movement.

Adjustable opening mechanical stop

The arm sliding guide allows regulate the mechanical stop corresponding to the open door position.

During the installation, once automatism and arm are placed, it must be manually checked that the door correctly performs all its opening and closing path and then adjust the mechanical stop in the proper position.

Separators to adapt the installation

CAME it has different optional separators they allow to modify the distance between the automation and the door plane when the characteristics of the lintel or the frame require it.

The necessary combination depends on the Fluo-SW model used and the cOTA H installation, so the technical manual must be consulted before selecting the separators.

Advantages of the arm CAME 818XA-0040

• Accessory original CAME.
• Designed specifically for the range FLUO-SW.
• Opening system by traction.
• Compact design with sliding guide.
• Compatible with Fluo-SW2 and Fluo-SW3.
• Mechanical opening butt adjustable.
• Opening up 100 °.
• Possibility of adapting certain dimensions using separators CAME optional.

Supply content

Original accessory CAME for automatic pedestrian doors

The CAME 818XA-0040 it offers the specific solution for Fluo-SW installations that require a traction opening, maintaining compact aesthetics and the smooth functioning characteristic of pedestrian automatisms CAME.

Before making the assembly, the installation dimensions, opening direction, positions of the hinges and distance between automation and leaf following the indications of the technical manual CAME FLUO-SW.

CAME 818XA-0040: right traction sliding arm for pedestrian automatisms Fluo-SW2 and Fluo-SW3.
