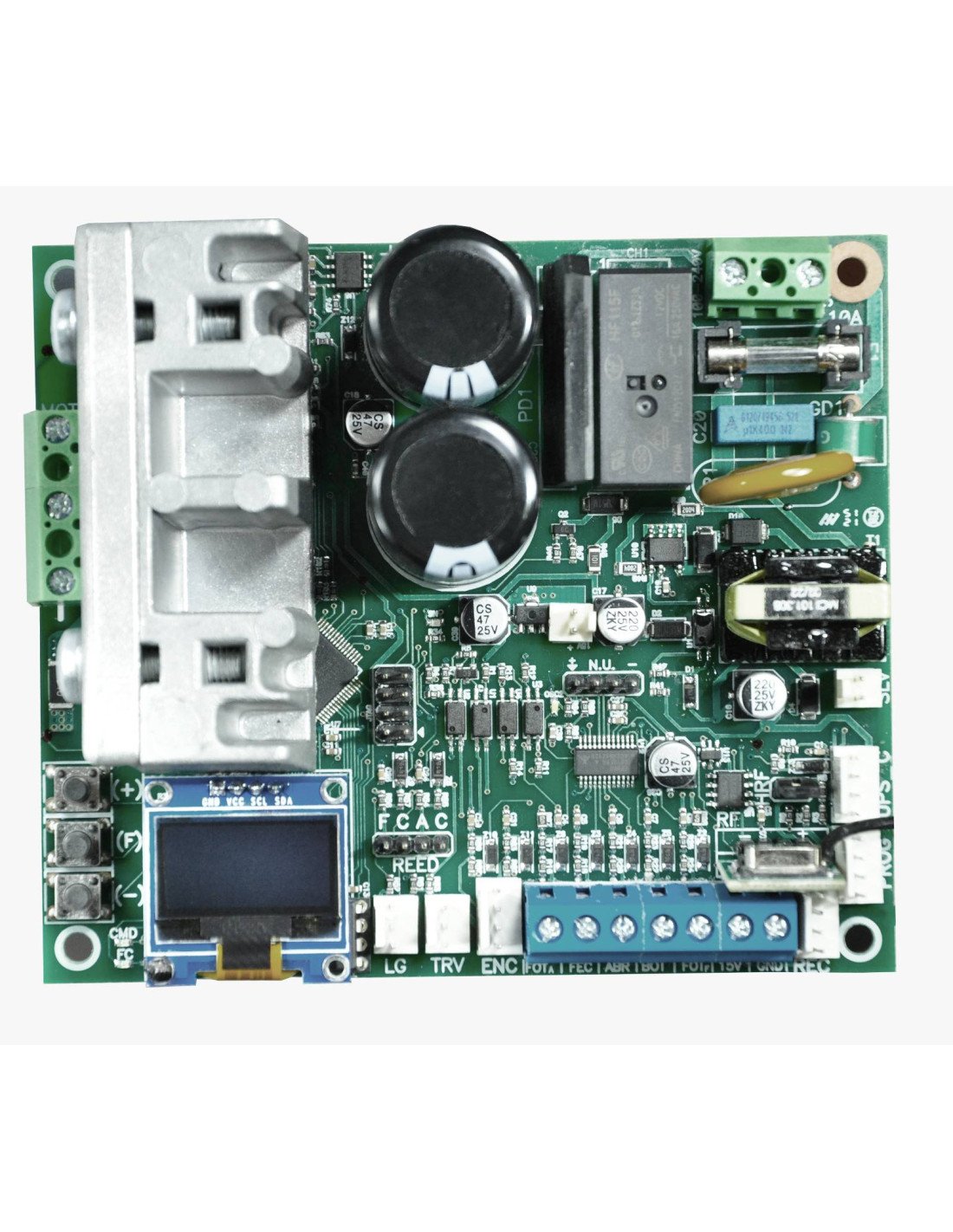

Electronic board PPA "TRIFLEX FULL RANGE DISPLAY" for sliding motors of the JETFLEX series.

• Frequency inverter for three-phase induction motors PPA.

• Panel with full range power supply from 100 Vac to 230 Vac (50 or 60 Hz).

• Compatible with safe code standard transmitters with their own protocol PPA.

• Built-in switching power supply, provides 15V/400mA for optional accessories.

• Outlets for electromagnetic locking and courtesy light.

• Digital End-of-Career System (encoder) or Hybrid

• EEProm memory (removable) that stores the recorded transmitter codes in encrypted form

• Individual open and close, open-only, close-only command inputs and external RF receiver.

• Inputs for individual opening photocell and closing photocell (NA, NC or resistive type safety gunwale).

• Built-in RF receiver 433.92 MHz.

• PROG compatible.

• Compatible with Connect and PPA ON line devices.

• Stand-by function that increases the autonomy with the UPS.

• Programming by built-in digital display or PROG (external display).

MANUAL

Instruction manual PPA TRIFLEX FULL RANGE DISPLAY
