Engine ACM K545 EF axle 76/240mm 1 re-sized coil for roller shutters up to 250 kg

Name: Engine ACM K545 EF axle 76/240mm 1 re-sized coil for roller shutters up to 250 kg
Brand: ACM
SKU: ES-K545EF
Price: 205 EUR
Availability: InStock

Reference ES-K545EF

€205.00

VAT excluded

248,05 €

Tax incl.

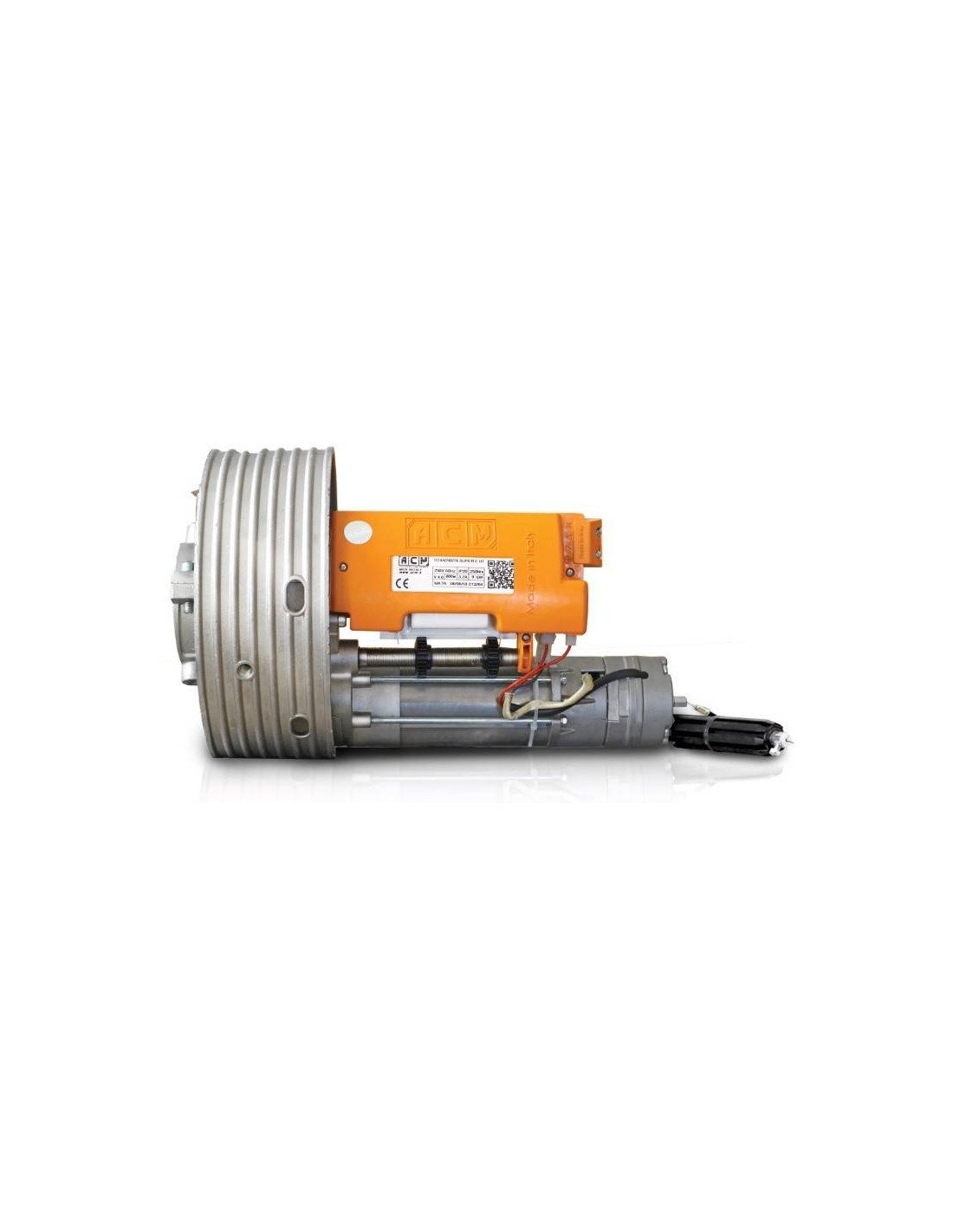

Motor centre axle ACM K545 EF, with 1-coil electrobrake resized for 76 axle and pulley 240mm, for roller shutters up to 250 kg.

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

Description
Product Details

Motor centre axle ACM K545 EF, with 1-coil electrobrake resized for 76 axle and pulley 240mm, for roller shutters up to 250 kg.

TECHNICAL CHARACTERISTICS

Par (Nm) 290
R.P.M 9
End of race 6
Working time ((min) 4
Power absorbed ((W) 665
Intensity Absorbed ((A) 2,9
Weight ((kg) 10
Weight to be lifted (kg) 250
Axis diameter (mm) Ø76
Polished ((mm) Ø240

Type of engine: Electromechanical 230V
Number of coils: Resized 1 coil motor
