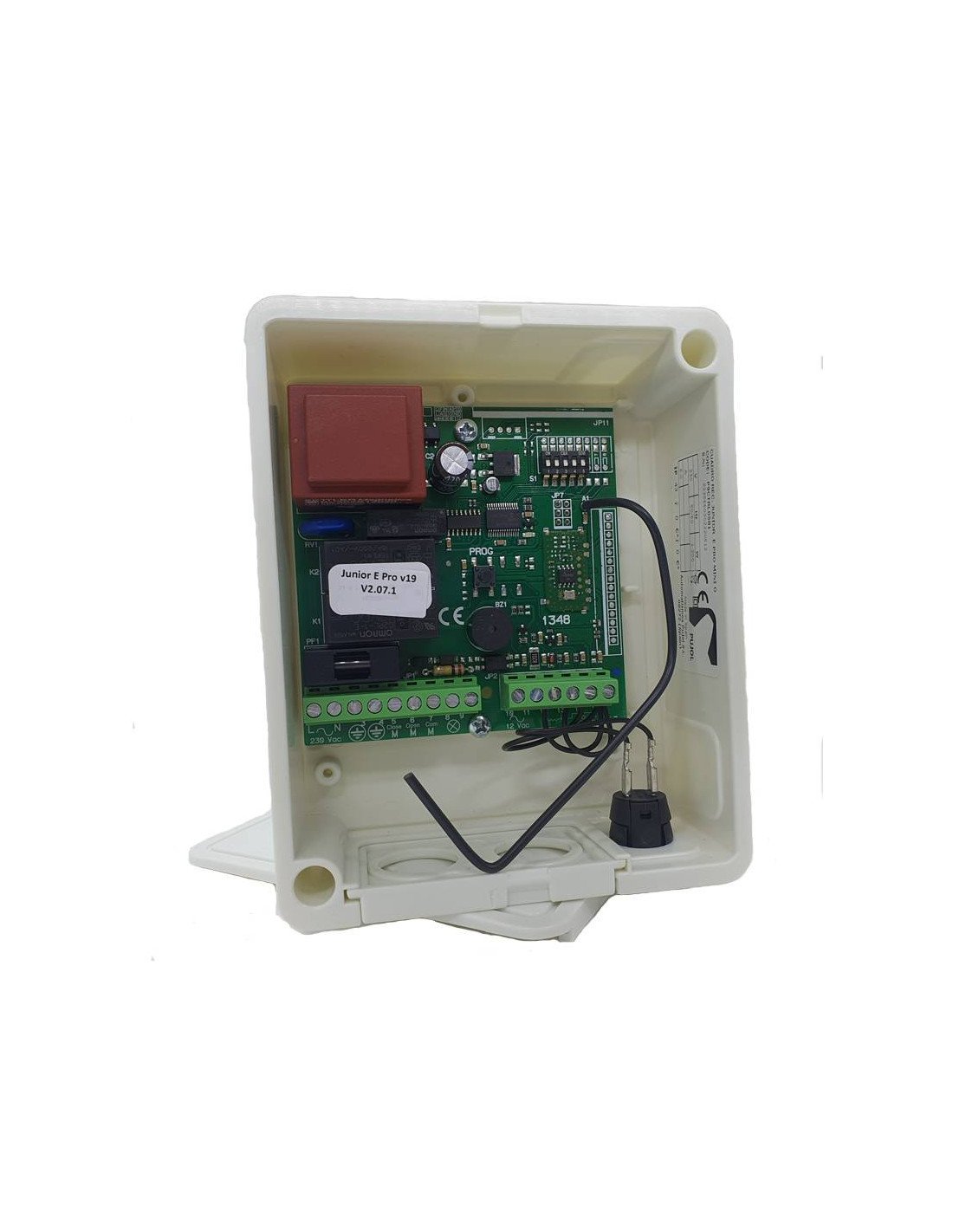

PUJOL JUNIOR control panel with built-in 433MHz receiver for roller shutters
JUNIOR
€45.00
VAT excluded
54,45 €
Tax incl.
PUJOL JUNIOR control panel for roller shutters incorporating a receiver open source radio frequency compatible with PUJOL VARIOCODE transmitters with a frequency of 433 MHz
Save with this discounts
-
3 units
€43.65 ud.
Total price €130.95
You save €4.05
-
5 units
€42.75 ud.
Total price €213.75
You save €11.25
-
10 units
€40.50 ud.
Total price €405.00
You save €45.00
-
25 units
€38.25 ud.
Total price €956.25
You save €168.75
-
50 units
€36.00 ud.
Total price €1,800.00
You save €450.00
-
100 units
€33.75 ud.
Total price €3,375.00
You save €1,125.00
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
THIS IS THE PUJOL JUNIOR MANEUVER BOARD
Control panel PUJOL JUNIOR single phase 230Vac for blinds or rolling doors incorporating a receiver open source radio frequency compatible with PUJOL VARIOCODE transmitters at a frequency of 433 MHz.
MAIN FEATURES PUJOL JUNIOR
- Manoeuvre entry protected with Zener diodes. Power and motor inlet protection by 6A fuse.
- LED power supply indicator.
- Alternate button input.
- Security photocell input and anti-crush band.
OPERATION MANEUVER BOARD JUNIOR PUJOL
Automation manoeuvres shall be performed by means of the alternate button or by a RollingCode emitter 433.92 MHz. The manoeuvre shall end when either of the following conditions is met: activation of the corresponding FC or termination of the operating time. Race finals have NO connection to the painting. The operating time is programmable up to a maximum of 2 minutes and 30 seconds and is a safety time. The automatic closing time is also programmable up to a maximum of 3 minutes and regulates the standby time before automatically executing the closing manoeuvre.
A RollingCode emitter and the alternate button perform the same function. If the door is opening, pressing the emitter or alternate button stops, if we press close again, if we press stop again, if we press open again, and so on.
SELECTION OF PUJOL JUNIOR OPTIONS
1. SEE. TIMER/AUTO CLOSING
On automatically timed shutdown.
OFF There is no automatic shutdown
2. PROGRAMMING TIMER
ON running time scheduling
OFF timing disabled
3. RADIO BROADCASTING
ON radio programming by new broadcasters allowed
OFF radio programming disabled
4. MAN PRESENT
ON to close, the button or switch must be kept pressed. If the pressure is not maintained, the manoeuvre stops.
Off normal operation.
Note: In normal operation, install a safety device to protect the closing edge.
5. LATERAL INPUT CONFIGURATION
ON Safety side verified type 8k2.
Side off not verified, NC contact.
JUNIOR PUJOL SCHEME
MANUAL PUJOL JUNIOR
- Type of frame
- Roller motor box
