Engine ACM K535 EF axle 60/200mm 1 re-sized coil for roller shutters up to 260 kg

Name: Engine ACM K535 EF axle 60/200mm 1 re-sized coil for roller shutters up to 260 kg
Brand: ACM
SKU: ES-K535EF
Price: 185 EUR
Availability: InStock

Reference ES-K535EF

€185.00

VAT excluded

223,85 €

Tax incl.

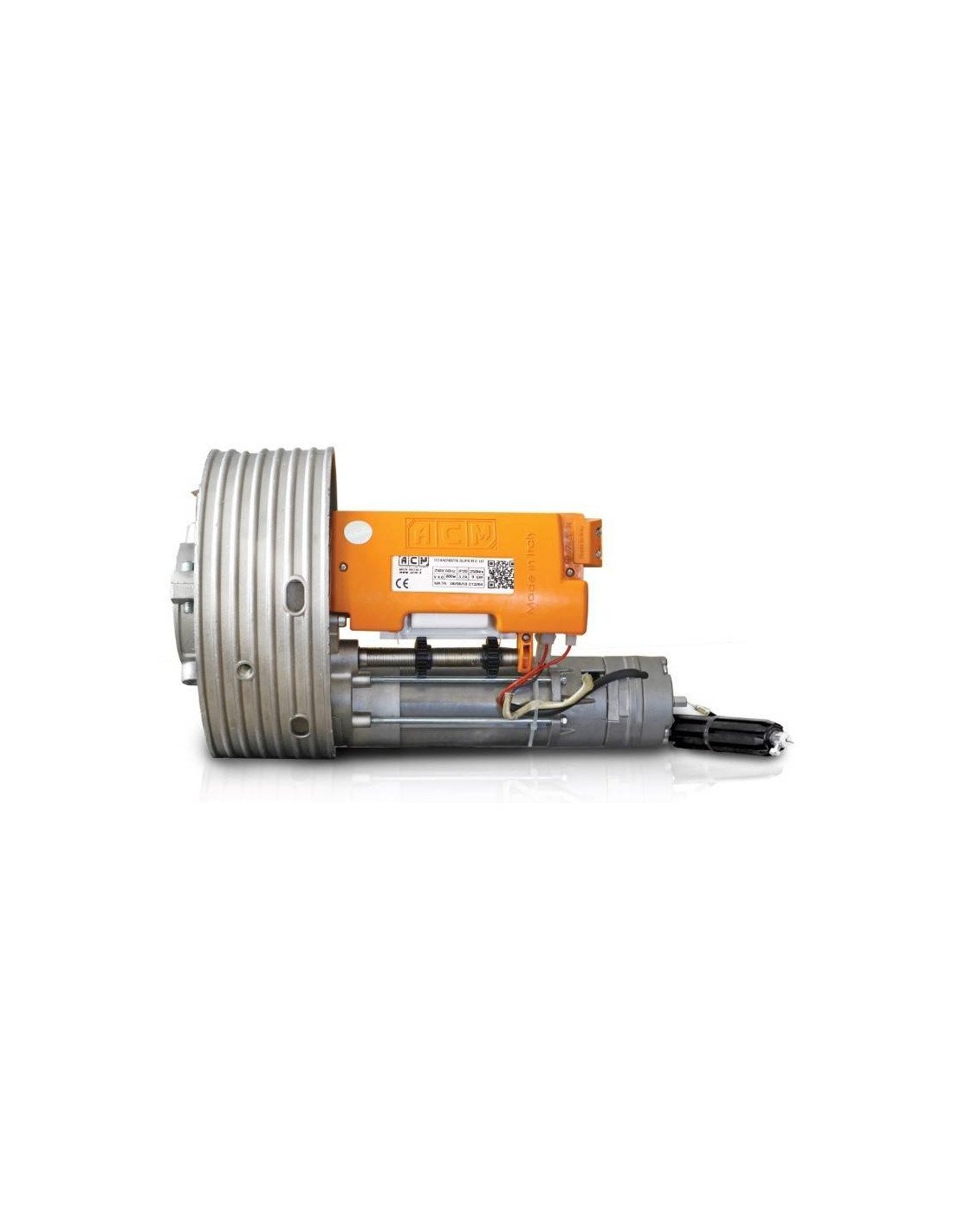

Motor centre axle ACM K535 EF, with 1 coil electrophrene removed for 60 axle and 200mm pulley, for roller shutters up to 260 kg.

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

Description
Product Details

Motor centre axle ACM K535 EF, with 1 coil electrophrene removed for 60 axle and 200mm pulley, for roller shutters up to 260 kg.

TECHNICAL CHARACTERISTICS

Par (Nm) 290
R.P.M 9
End of race 6
Working time ((min) 4
Power absorbed ((W) 665
Intensity Absorbed ((A) 2,9
Weight ((kg) 9
Weight to be lifted (kg) 260
The axle diameter ((mm) Ø60
Polished ((mm) Ø200

Type of engine: Electromechanical 230V
Number of coils: Resized 1 coil motor
