The 24Vdc ''SILENCE'' TRIK actuator has been designed to cover the market space of roller doors made of aluminum or stainless steel slats with skids on the guides and quality finishes, these doors require a quality actuator to perform silent and fast maneuvers with soft stops at the end of the travel to avoid the knocking of the closing.

TRIK ''SILENCE'' offers advantages over the traditional AC motor. It is easily installed on the locking shaft with manual limit switching adjustment. It is a direct current motor that does not exceed 50 db, has an opening and closing speed of 6.6 m/min. with soft stop at the end of travel and anti-crush regulation.

In the opening manoeuvre, the speed can optionally be increased by up to 25%, while maintaining a soft stop at the end of the stroke with a reversing stroke. The unlocking operation is easily carried out with a simple turn of the lever and the pulley once unlocked is free, this facilitates the movement of the closure manually, allowing easy opening or closing.

BATTERY SYSTEM

The TRIK actuator offers us the possibility of working with a 2x1.2Ah battery system that can be incorporated inside the control panel. It will allow us to perform consecutive maneuvers when we have a power cut, and the batteries will be automatically recharged once we recover the power supply.

CHARACTERISTICS

• Easy-to-install equipment
• Easy adjustment of limit switches
• Silent due to current regulations
• Adjustable opening and closing speed
• Manoeuvres with adjustable soft stop
• Lightweight and fast manual operation
• Adjustable anti-crush
• Optional: Batteries, Solar Panel or Said
• Can be operated by

SPECIFICATIONS

• Nominal voltage: 24 V
• Consumption: 0.9 A
• Power: 60 W
• Pulley dimension: 225 mm
• Axle dimension: 60 mm
• Engine length: 320 mm
• Speed: 10 rpm
• Working temperature: -20º to 70º
• Offset door weight: 190 kg
• Max. door dimensions: 15 m²
• Thermal Protection: No
• Combined weight: 5 kg
• Maximum door height: 5 meters
• Unlocking: Manual
• Maintenance: No
• Opening speed: 6 m/min
• Closing speed: +25% optional

MEASUREMENT

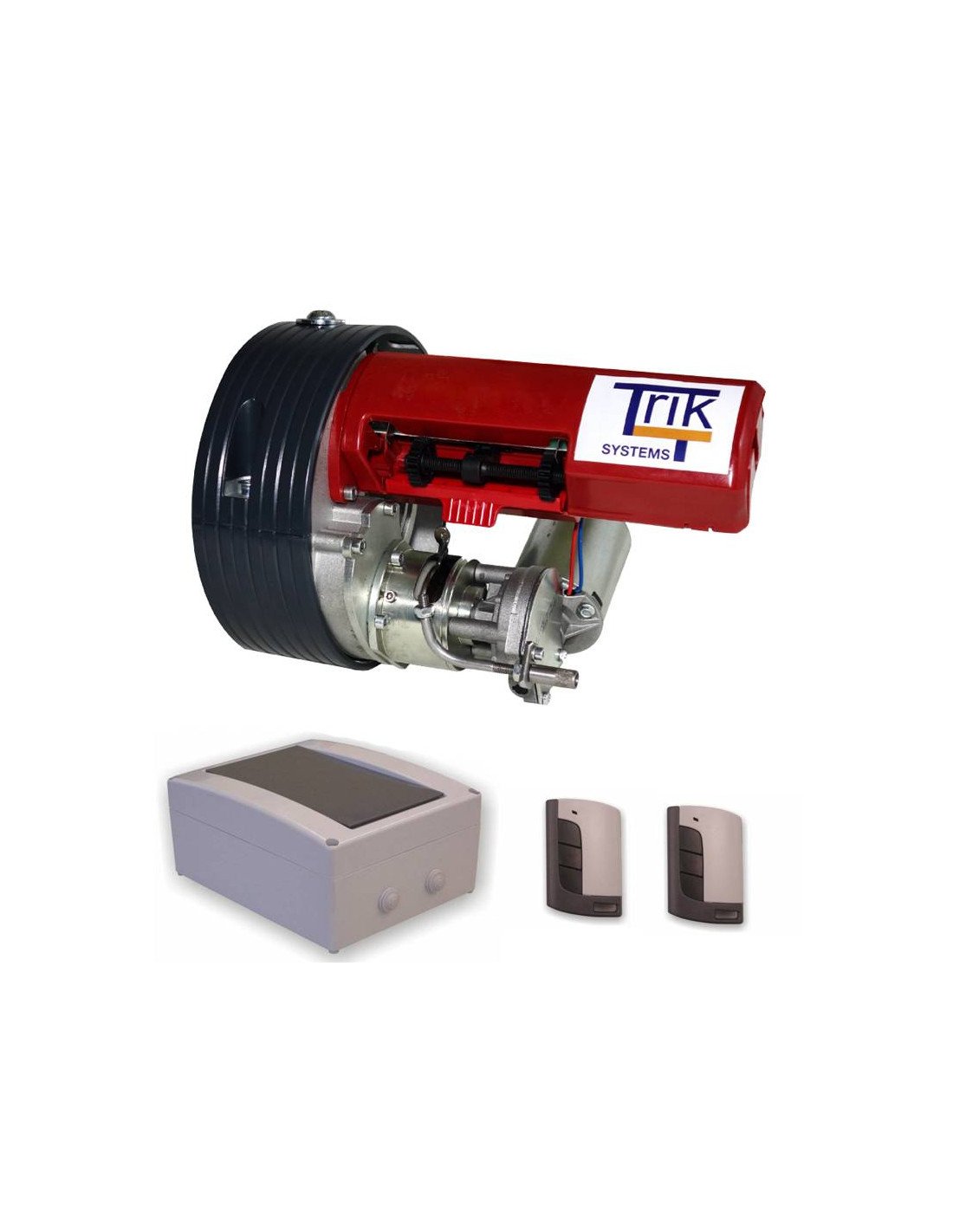

KIT CONTENTS

• 1 pc TRIK SILENCE 225/60: 24 pcs for roller blinds.

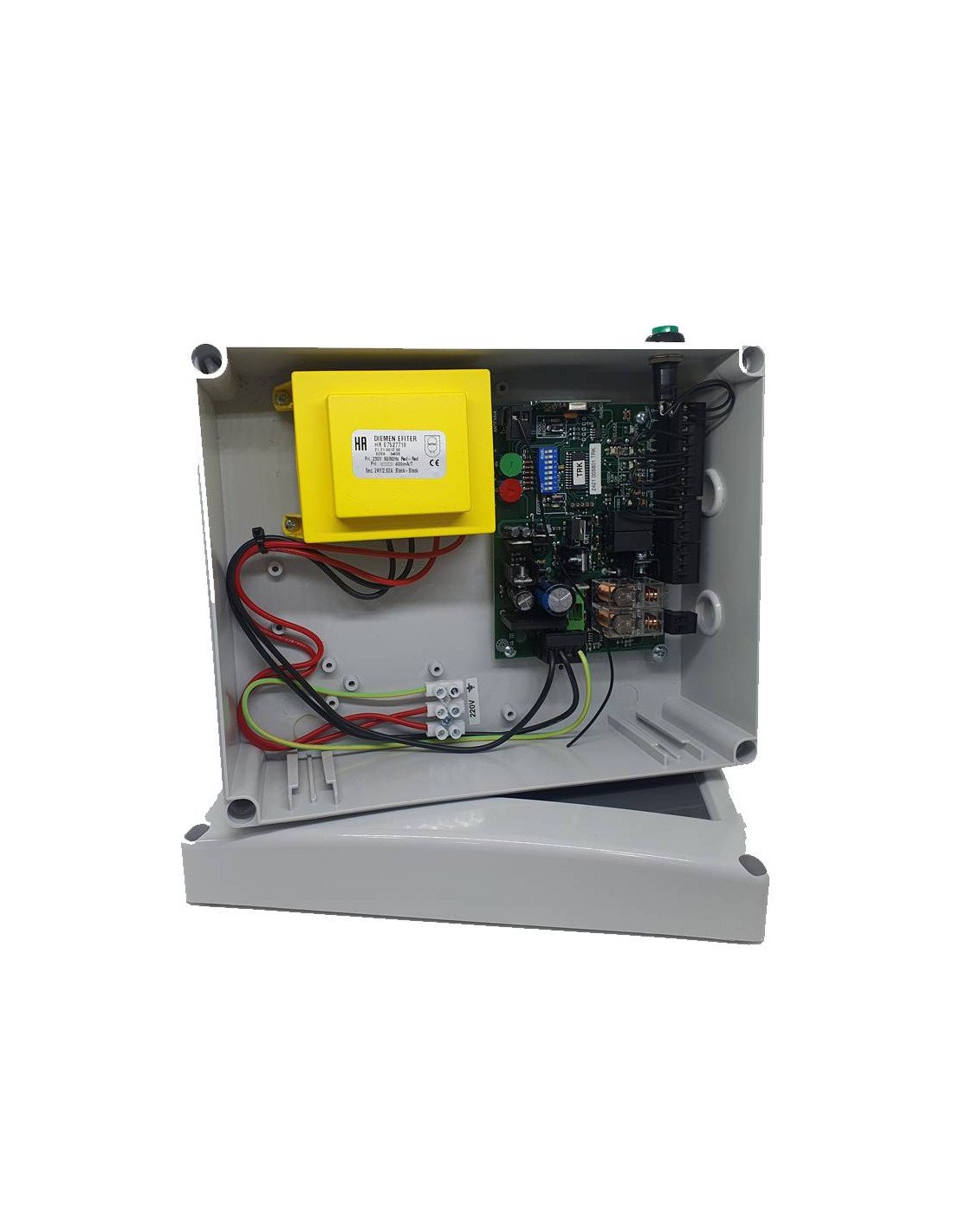

• 1 unit FRAME TRIK SILENC: 24V control panel with built-in receiver.
• 2 pc TERRA C4: Rollingcode 433 MHz transmitter

TRIK SILENCE

MANUAL

Operating manual TRIK SILENCE engine

Operating manual TRIK SILENCE control panel

New instruction manual TRIK SILENCE

DEMO VIDEO
