ACM TITAN Δ Motor for roller blinds

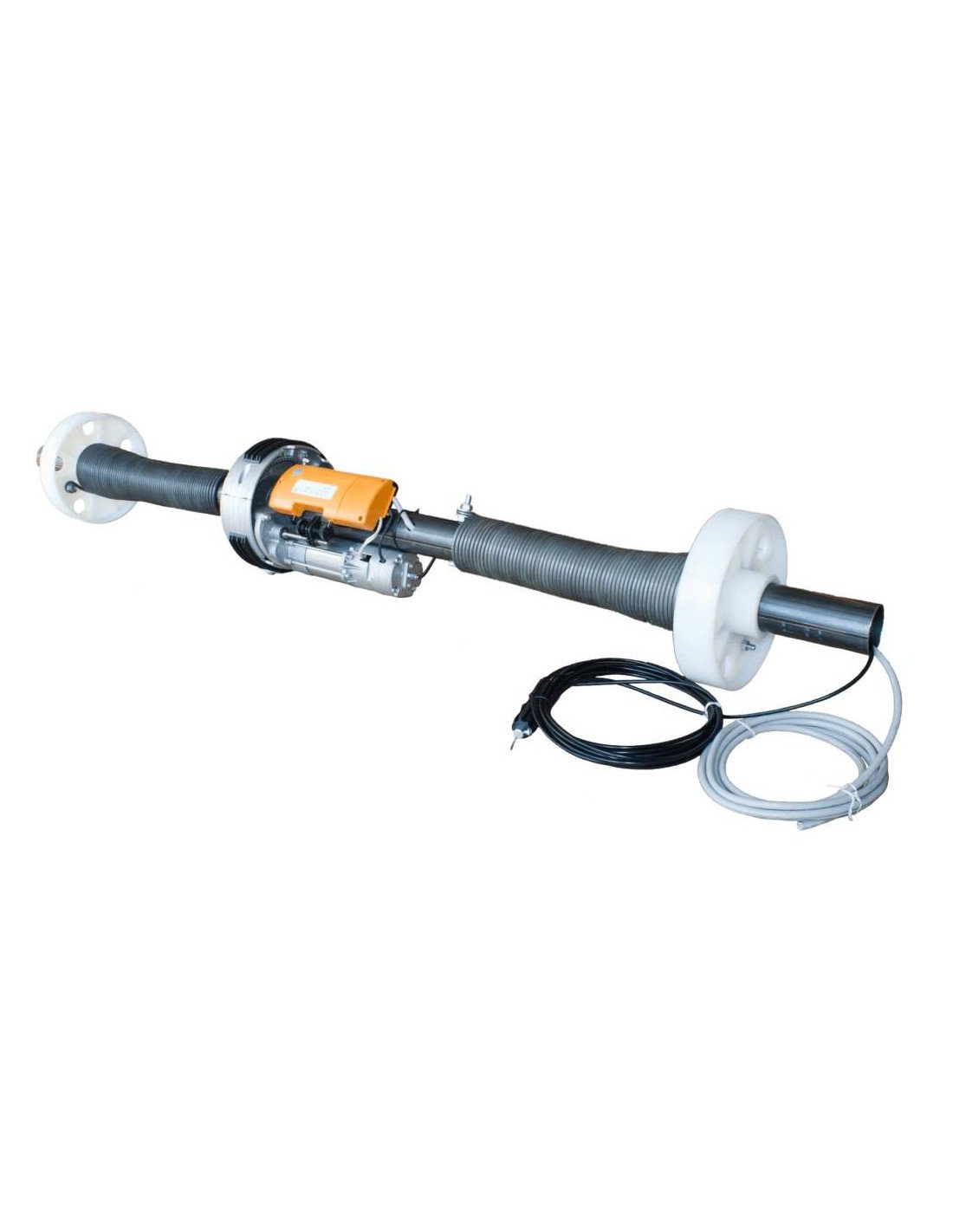

Motor center shaft ACM with electrophrase for roller blinds up to 170 kg of elevation, ideal to motorize shopping doors or private garages.

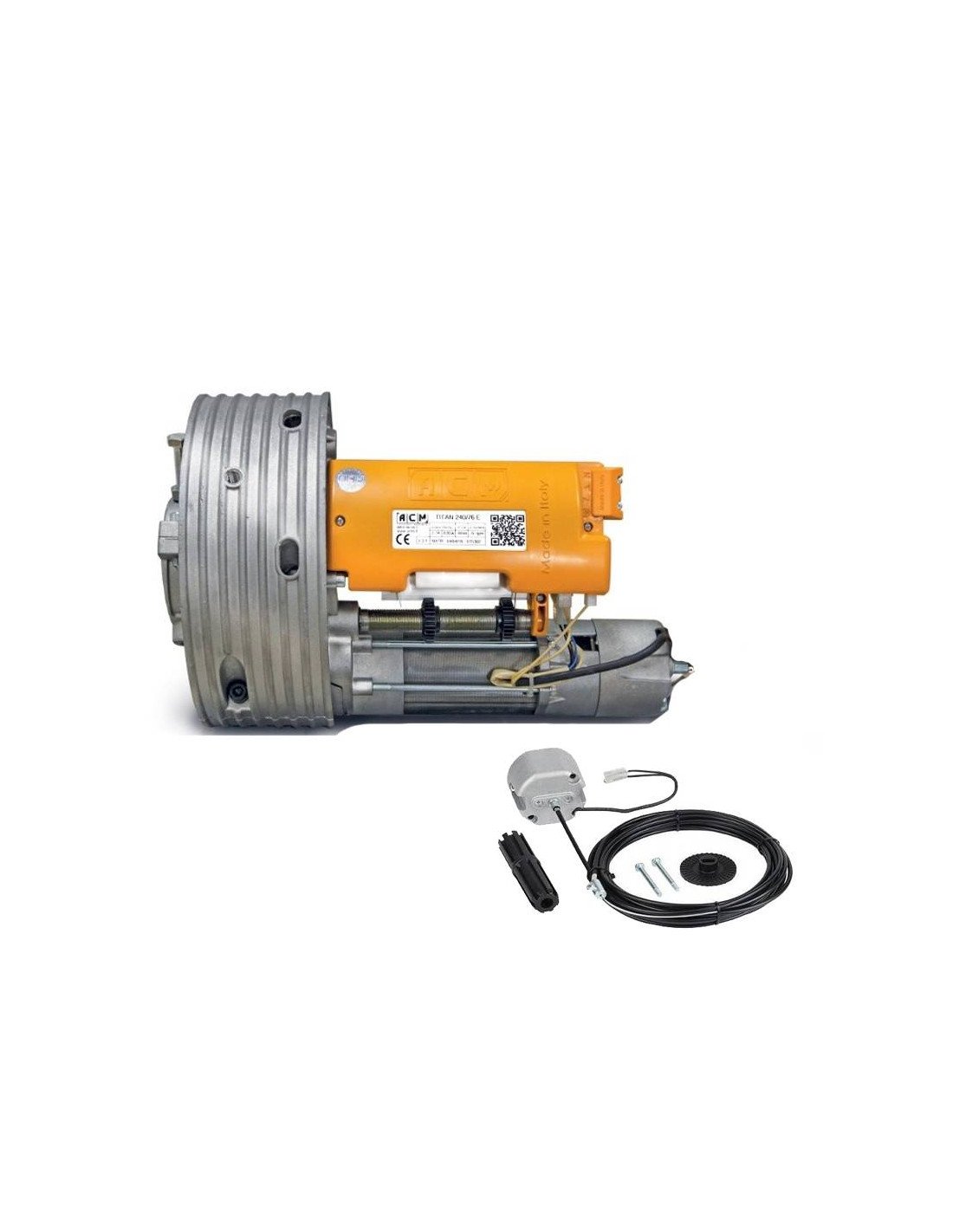

The electrophrase brakes the blind once it's closed and avoiding its opening manually. In the engine comes included the unlocker of the self-adventure (black cable), to be able to activate the blind in the case of lack of electric current in the local or garage.

Note: it is advisable to install an electric motor when other alternative access is available. Although there is the possibility of installing a unlocker on the outside to access the unlock through a key.

The engine ACM for rolled doors gives us the possibility of mechanical or electronic manoeuvres by maneuver and receiver frame with remote controls.

TECHNICAL CHARACTERISTICS

• Powerful motor 170Nm. from 630W to 10rpm.
• To handle blinds up 170Kg.
• For metal roller shutter shaft of diameters of 48 or 60 with adapters (including)
• Alternating power supply to 220Vac
• Equipped for 200/220 pulleys with corresponding adapters.
• To operate blinds up to 9 square meters.
• Mechanical run ends of simple programming

" IN SHAFTS LESS THAN 42 MM IN DIAMETER (FOR SMALL THICKNESS) INSTALLATION IS NOT RECOMMENDED. ALL MODES IN THE PRODUCT ACCESSORIES "

• Body and crown in aluminium cast to presiding in steel
• Crown slide over bearing with rollers
• Transmission tree on double bearings to spheres
• Motor asynchronous to 4 pol.: 1,400 rpm.
• Insulation class: B
• Thermoprotection in the engine: 160° C.
• Top with easy screw
• Maximum height of the closure-metallic: 6 meters
• Electrical power supply: 4x1 mm2 for Unititan
• Operating temperature: -20° C.+ 85°c.
• Predisposition for the application of the P-PBM-P115 electrode.

MANUAL

Installation manual ACM Titan 170 Kg
