Pujol
Twin Pujol Winner AC A1260 / 240-76 EF for roller shutters up to 380 kg Ø76 axis
Referencia: WINNER AC A1260/240-76 EF
€220.00
IVA excluido
266,20 €
IVA incluido
Twin Pujol Winner AC A1260 / 240-76 EF It is designed to automate Roller garage doors, metal shutters and commercial closures Large size. It is compatible with 76 mm axis and he works with a 240 mm base crown.
This automatism offers a Lifting capacity of up to 380 kg with a crown of 240 mm, a power of 1260 W and a torque of 450 nm, which makes it a robust solution for installations where strength, safety and reliability is needed.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain
Except bulky
Twin Pujol Winner AC A1260 / 240-76 EF for roller door
Twin Pujol Winner AC A1260 / 240-76 EF It is designed to automate Roller garage doors, metal shutters and commercial closures Large size. It is compatible with 76 mm axis and he works with a 240 mm base crown.
This automatism offers a Lifting capacity of up to 380 kg with a crown of 240 mm, a power of 1260 W and a torque of 450 nm, which makes it a robust solution for installations where strength, safety and reliability is needed.
The model Winner AC A1260 / 240-76 EF incorporates electrofreno, allowing to block the roller door once closed. In addition, it has manual unlocking system by handle to be able to drive the blind in case of electric current.
Thanks to your diet 230 V / 50-60 Hz, This engine offers a versatile and adaptable installation to different environments. Your work speed is 10 rpm and has a career end capacity of 6 Pulley Turns.
Main features
- Rolling door engine Pujol Winner AC
- Model: Winner AC A1260 / 240-76 EF
- Compatible with 76 mm axis
- 240 mm base crown
- Elevation capacity up to 380 kg
- 450 nm spin torque
- 1260 W power
- Built-in electrower
- Unlocking manual for opening in case of electric cut
- Ideal for Garages, commercial premises, metal shutters and roller closures
Table of technical characteristics
| Model | Winner AC A1260 / 240-76 EF |
| Sponge | 450 nm |
| Power | 1260 W |
| Lifting capacity with crown Ø 240 mm | 380 kg |
| Voltage | 100-230 V / 50-60 HZ |
| Consumption | 5.6 A |
| Speed | 10 rpm |
| Career-end capacity | 6 Pulley Turns |
| Weight | 14 kg |
| Compatible with shutter tube | 76 mm |
| Size of the base crown | 240 mm |
| Run-up | Manual regulation system |
| Unlock | With electrofreno and manual unlocking system |
| Operating temperature | +5 ºC / +40 ºC |
| Protection index | Ip20 |
| Power cord | H05VV-F of 4 threads, peeling and with terminals |
| Daily cycles | 20 |

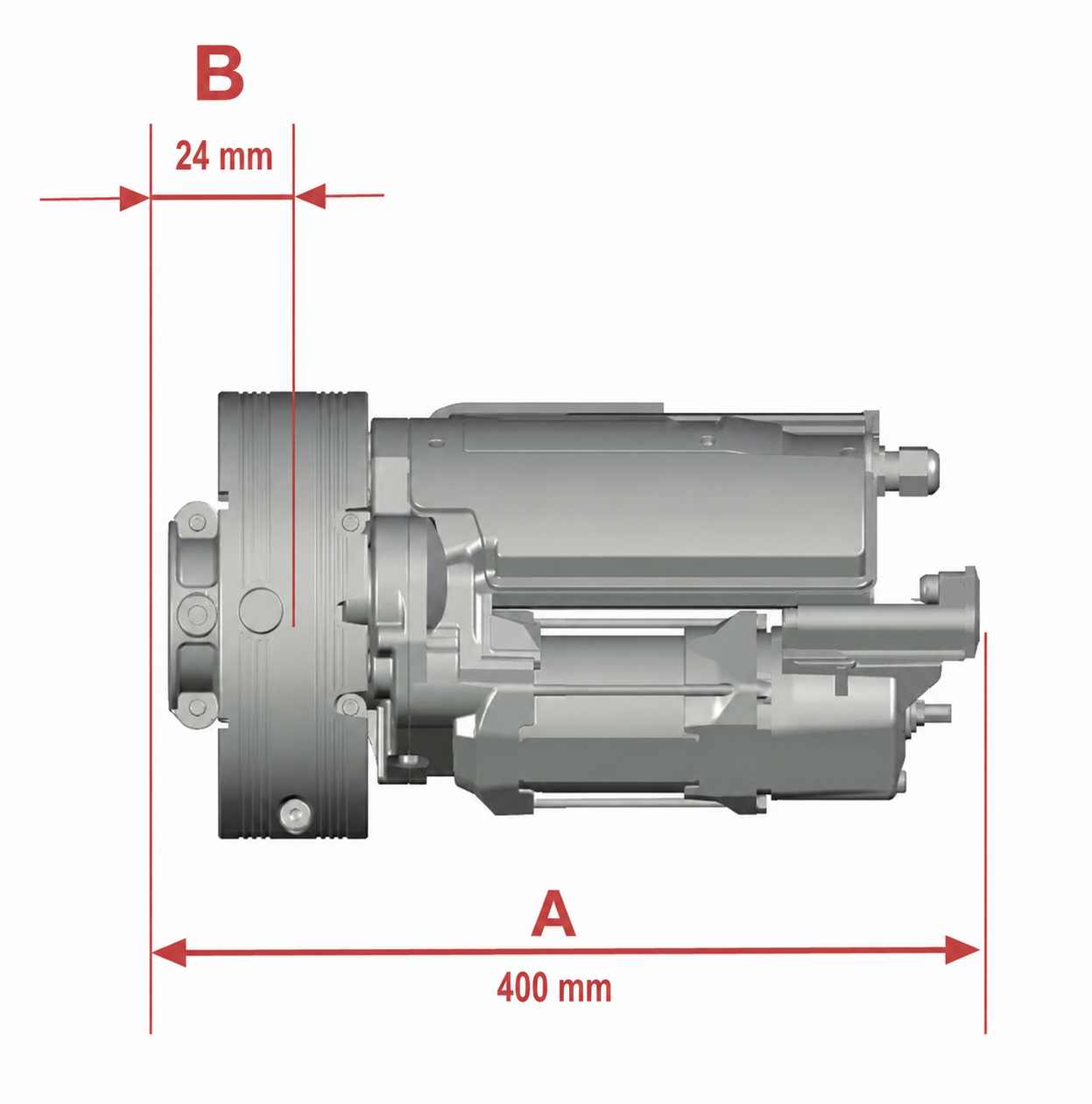

Measures Winner AC A1260 / 240-76 EF
Product Details
WINNER AC A1260/240-76 EF
Data sheet
- Type of engine
- Electromechanical 230V
- Number of coils
- For the purposes of this Regulation, the following definitions apply:
