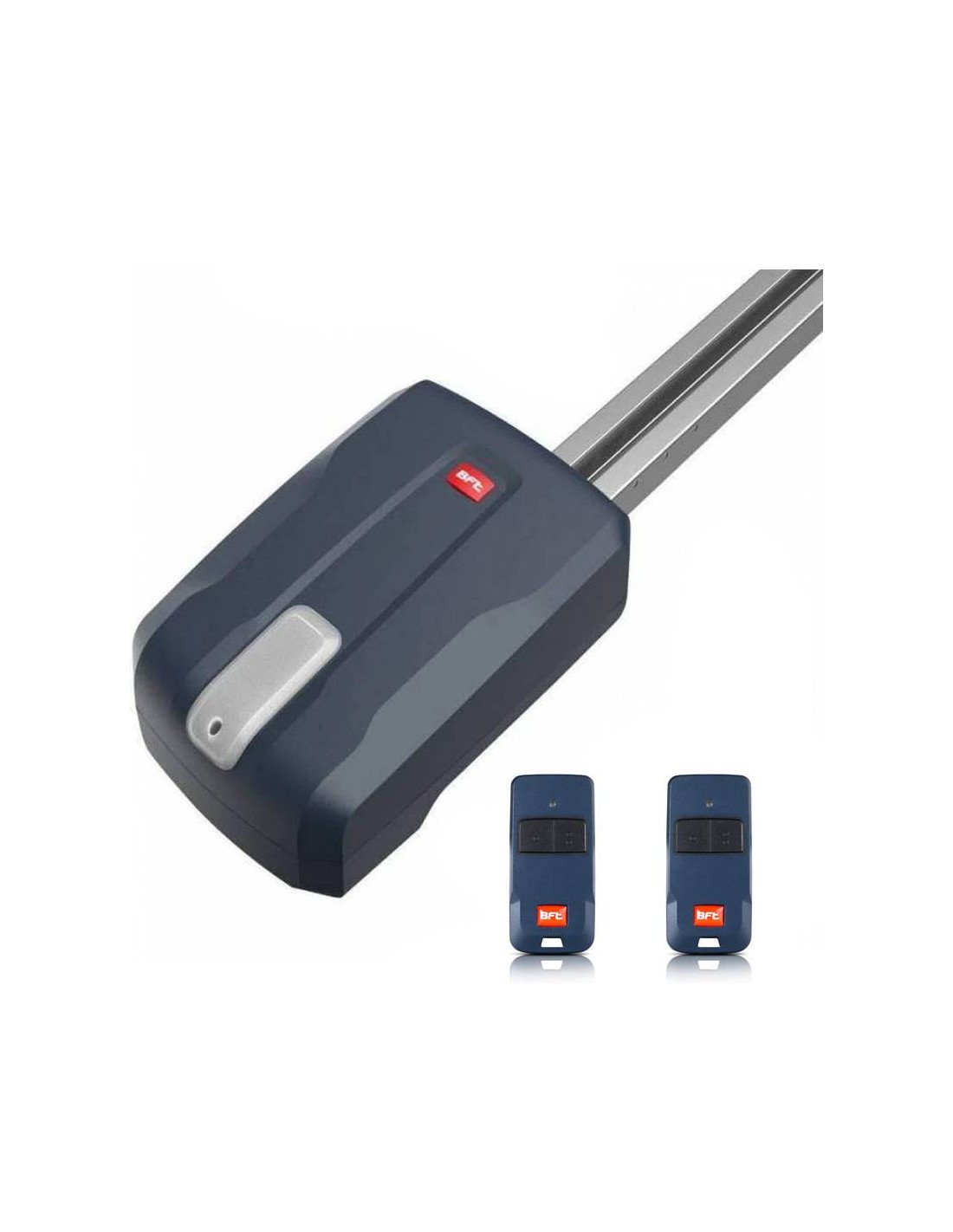

Electromechanical engine BFT BOTTICELLI SMART BT A for intensive or very intensive use, designed to automate sectional garage doors.

It has a very compact design, suitable for installation anywhere, thanks to the wide range of chain rails available in various lengths.

The control centre and the end of run with encoder and mechanical cap are incorporated, respectively, on the operator and the guide.

The intensity of use makes them suitable for any type of installation, both residential and municipal. The quick configuration function from the ground makes the installation quick and easy. High opening speed minimizes waiting times and maximizes end-user comfort. The exclusive anti-intrusion function (SMART models) protects the garage against unwanted access.

TECHNICAL CHARACTERISTICS

MODEL DISPONIBLES

• BOTTICELLI BT A 650 (P915211 00002): Operator 24V 60 kg traction force and intensive use. Maximum surface of the cancellation: 10 m2.
• BOTTICELLI SMART BT A 850 (P915212 00002): Operator 24V 80 kg traction force and intensive use. Maximum surface of the cancellation: 13 m2.
• BOTTICELLI SMART BT A 1250 (P915213 00002): Operator 24V 120 kg traction force and very intensive use. Maximum surface of the cancellation: 16 m2.

NotesThe following: 2 MITTO handles 2 channels to 433.92 MHz

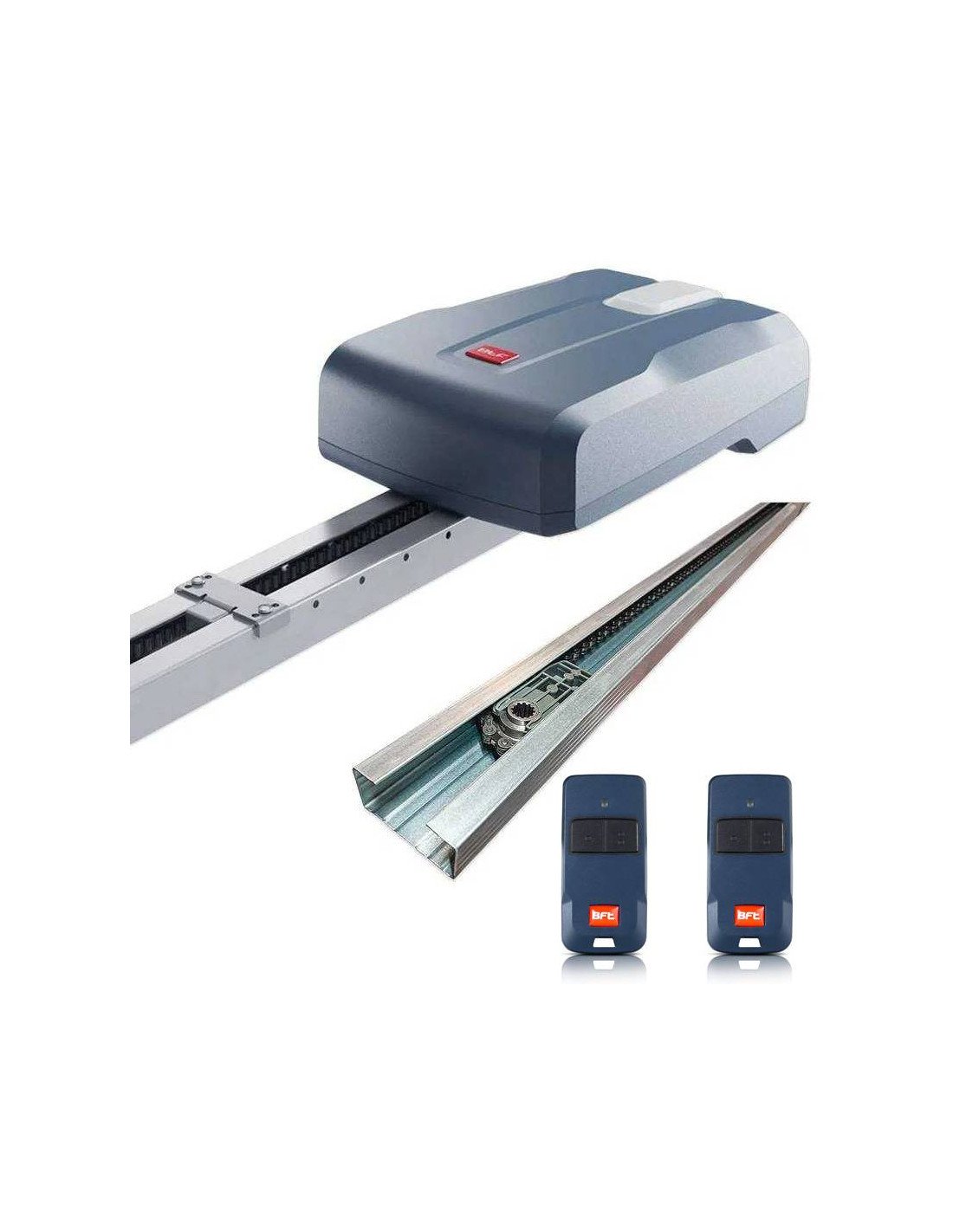

GUIDES

• P115036 00004: chain guide 2x1450mm . Compatible with Botticelli BT A 650-850. Length is 2900mm, Race is 2400mm.
• P115037 00003: Leash guide 2x1450mm . Compatible with Botticelli BT A 650-850. Length is 2900mm, Race is 2400mm.
• P115036 00005: chain guide 2x1750mm . Compatible with Botticelli BT A 650-850. Length is 3500mm, Race is 3000mm.
• P115037 00004: Leash guide 2x1750mm . Compatible with Botticelli BT A 650-850. Length is 3500mm, Race is 3000mm.
• P115035 00003: chain guide 2x1450mm . Compatible with Botticelli BT A 1250. Length is 2900mm, Race is 2400mm.
• P115035 00004: chain guide 2x1750mm . Compatible with Botticelli BT A 1250. Length is 3500mm, Race is 3000mm.

MANUAL

Instruction manual BFT BOTTICELLI BT A
