OXYGEN ARTEMIS 230V sliding motor for residential sliding doors up to 800 kg, with built-in receiver panel.

The 230V electromechanical ARTEMIS motor is designed to motorize light or heavy doors up to 800 kg for residential use.

ARTEMIS FEATURES

• Power supply: 230Vac
• Maximum door weight: 800 kg
• Power: 350 W
• Power consumption: 1.5 A
• Thermal protection: 150 ºC

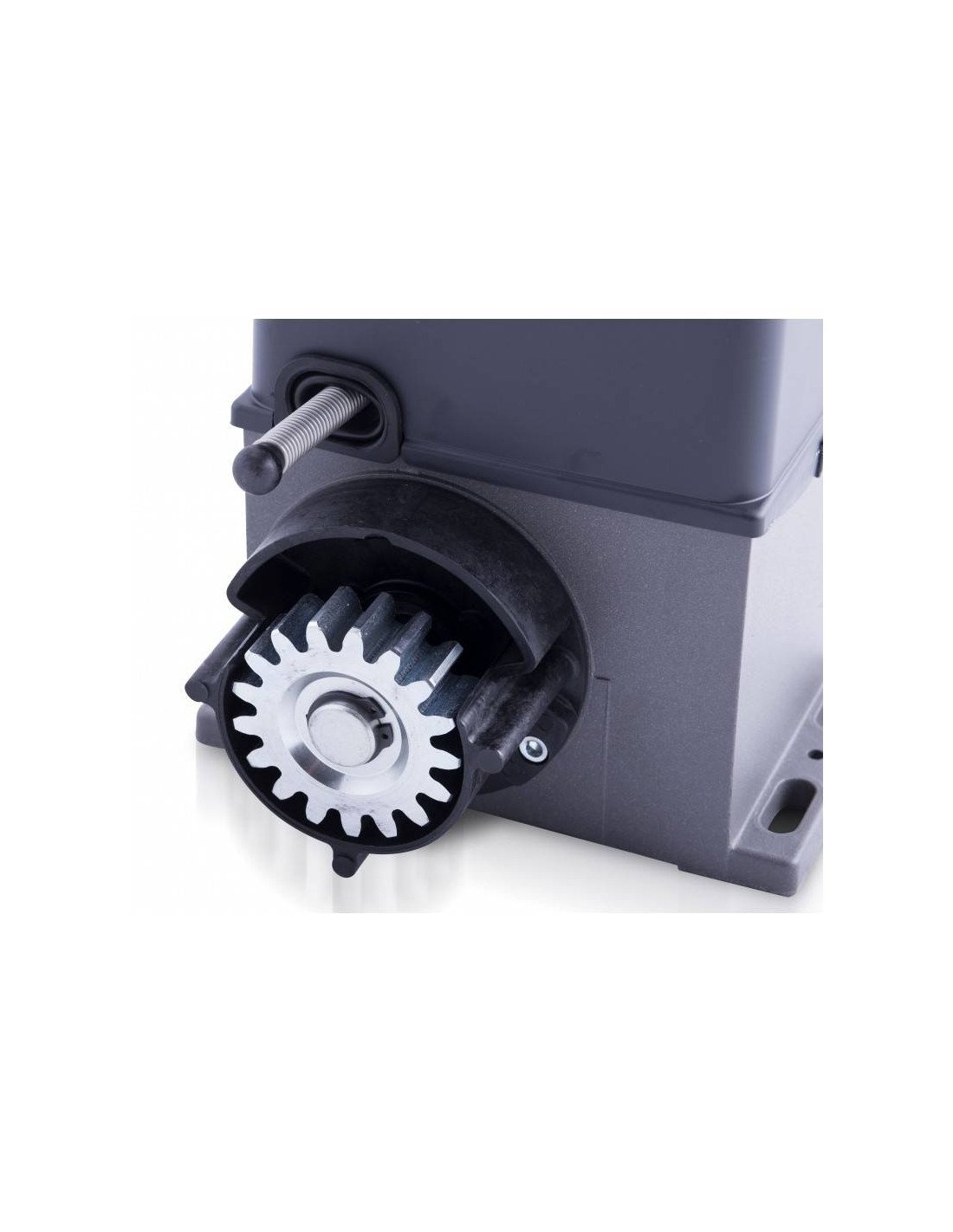

• Sprocket: M4 Z17
• Speed: 10mt/min
• Protection: IP55

CIRCE 230V FEATURES

• Automatic or step-by-step operation (open-close-stop)
• Programmable automatic shut-off
• Programmable pedestrian opening
• Safety photocell connection
• Force regulation and initial starting by trimmer
• Deceleration regulation
• Connection for flashing light

CIRCE 230V TECHNICAL SPECIFICATIONS

• Power supply : 230 Vac 50/60Hz 900W (4A) max.
• Flashing Light Output : 230 Vac 50/60Hz 100 W Resistive Load max. 50 W Inductive Load max.
• Motor outputs : 230 Vac 50/60Hz 750 W max.
• Aux power outputs : 24 Vac 3 W max.
• Limit switch and LV controls : 24 Vdc
• Operating temperature : -10 to 55 °C
• Radio receiver : see the model
• Op. Transmitters : 12-18 Bit or Rolling Code
• Max TX codes in memory : 120 (CODE + PED CODE)
• Box dimensions : 110x121x47 mm.

MEASUREMENT

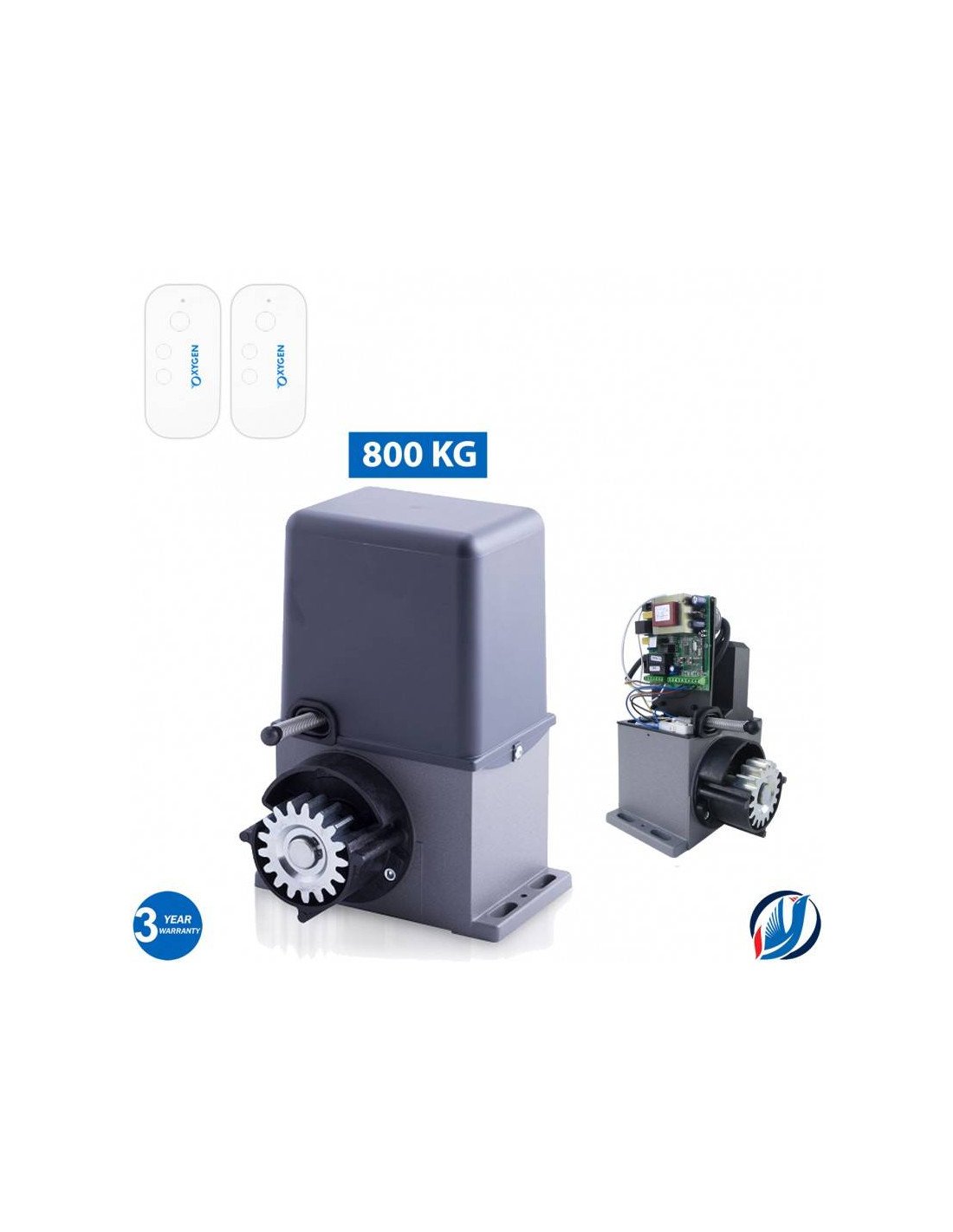

THE KIT CONTAINS

• Artemis 230V geared motor

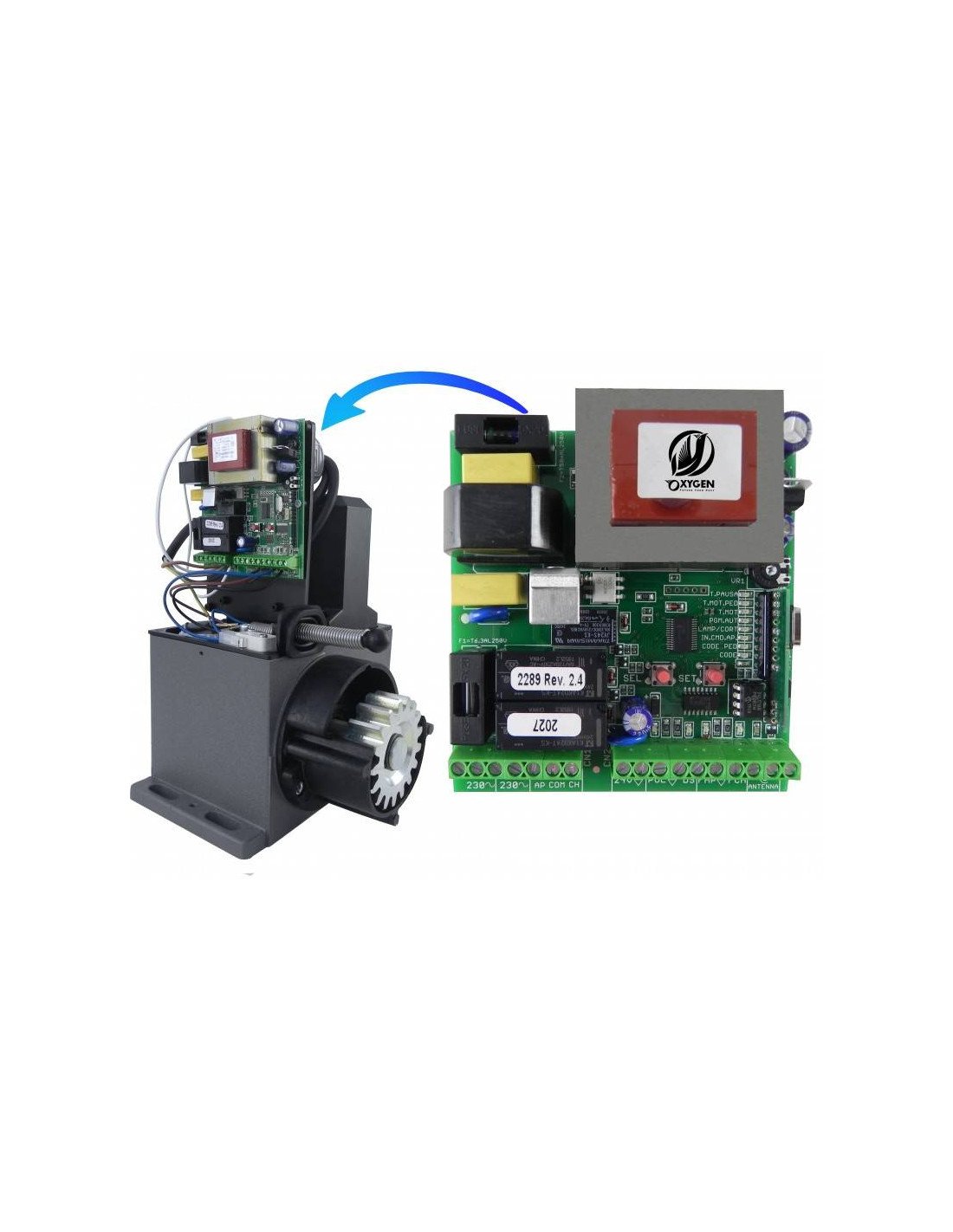

• 230V control card included
• 2x VENUS 433.92 MHz controllers

MANUAL

ARTEMIS Instruction Manual

Operating manual CIRCE 230V

ARTEMIS MOTOR VIDEO
