OXYGEN NYX

OXYGEN NYX 230V motor for residential sliding doors up to 1,000 kg, with built-in box-receiver and mechanical racing ends.

The 230V NYX electromechanical motor is thought to power light or heavy doors up to 1,000 kg for residential or industrial use.

CHARACTERISTICS OF OXYGEN NYX

• FoodOther: 230Vac
• Maximum weight of door: 1 000 kg
• Power: 350 W
• Power absorbed: 1.5 TO
• Thermal protection: 150 oC

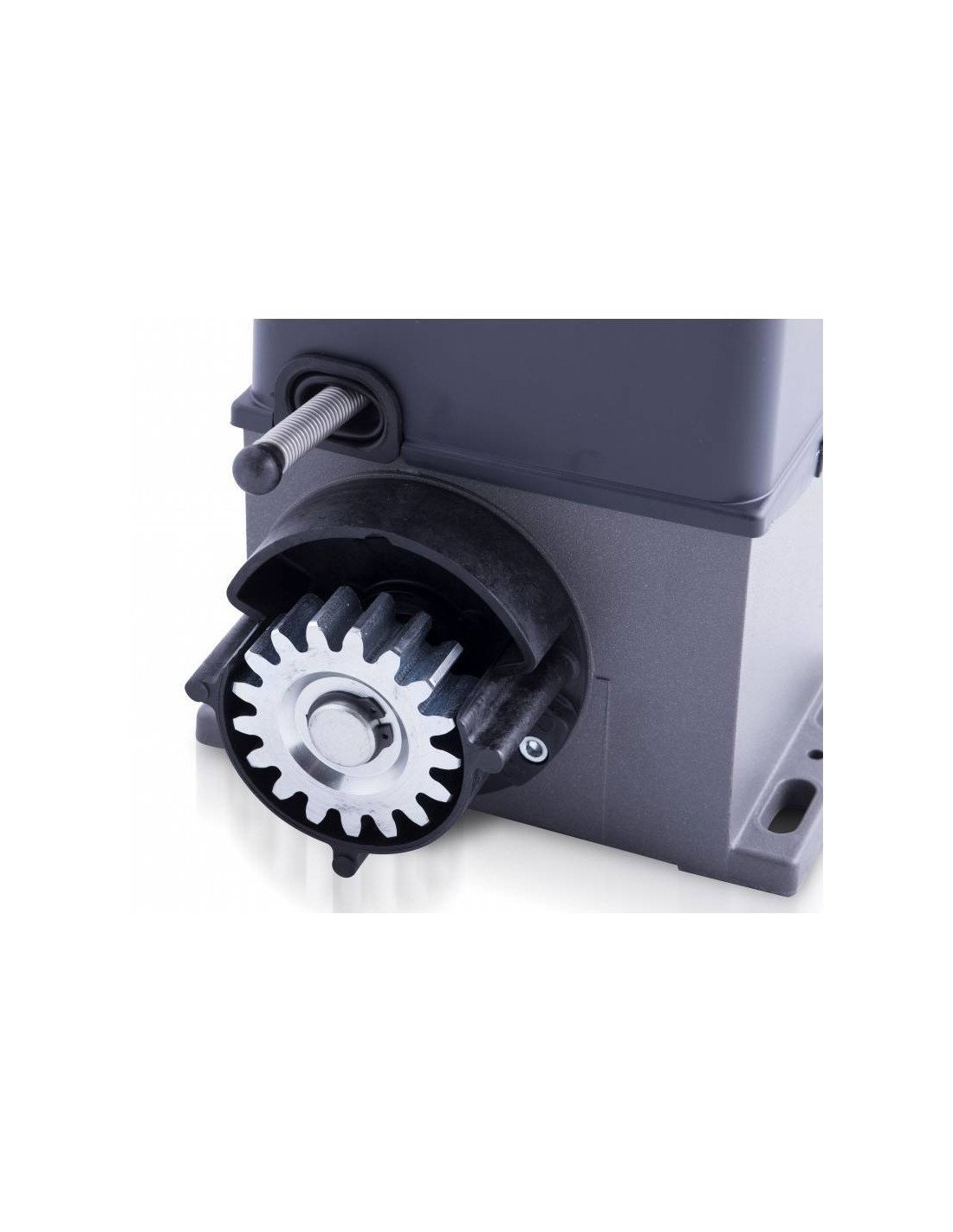

• Pineapple: M4 Z17
• Velocity: 10 mt/min
• Protection: IP55

CHARACTERISTICS AROUND 230V

• Automatic or step-by-step operation
• Automatically programmable shutdown
• Programmable pedestrian opening
• Connected safety photocells
• Force regulation and initial start by trimmer
• Control of deceleration
• Connection for flashing light

TECHNICAL CHARACTERISTICS

• Food In the case of vehicles of categories N1 and N2 with a maximum mass exceeding 2000 kg:.
• Light output of flashing : 230 Vac 50/60Hz 100 W Resistive Load maximum 50 W Inductive Load maximum.
• Engine outputs : 230 VAC 50/60 Hz 750 W maximum.
• Food supplies : 24 Vac 3 W maximum.
• Race finish and controls on BT : 24 Vcc
• Operating temperature : -10 to 55 °C
• Radio receiver : see model
• Transmitters op. What. : 12-18 Bit or Rolling Code
• Maximum TX codes in memory : 120 (CODE + CODE PED)
• Box dimensions The following: 110x121x47 mm .

MEASURES

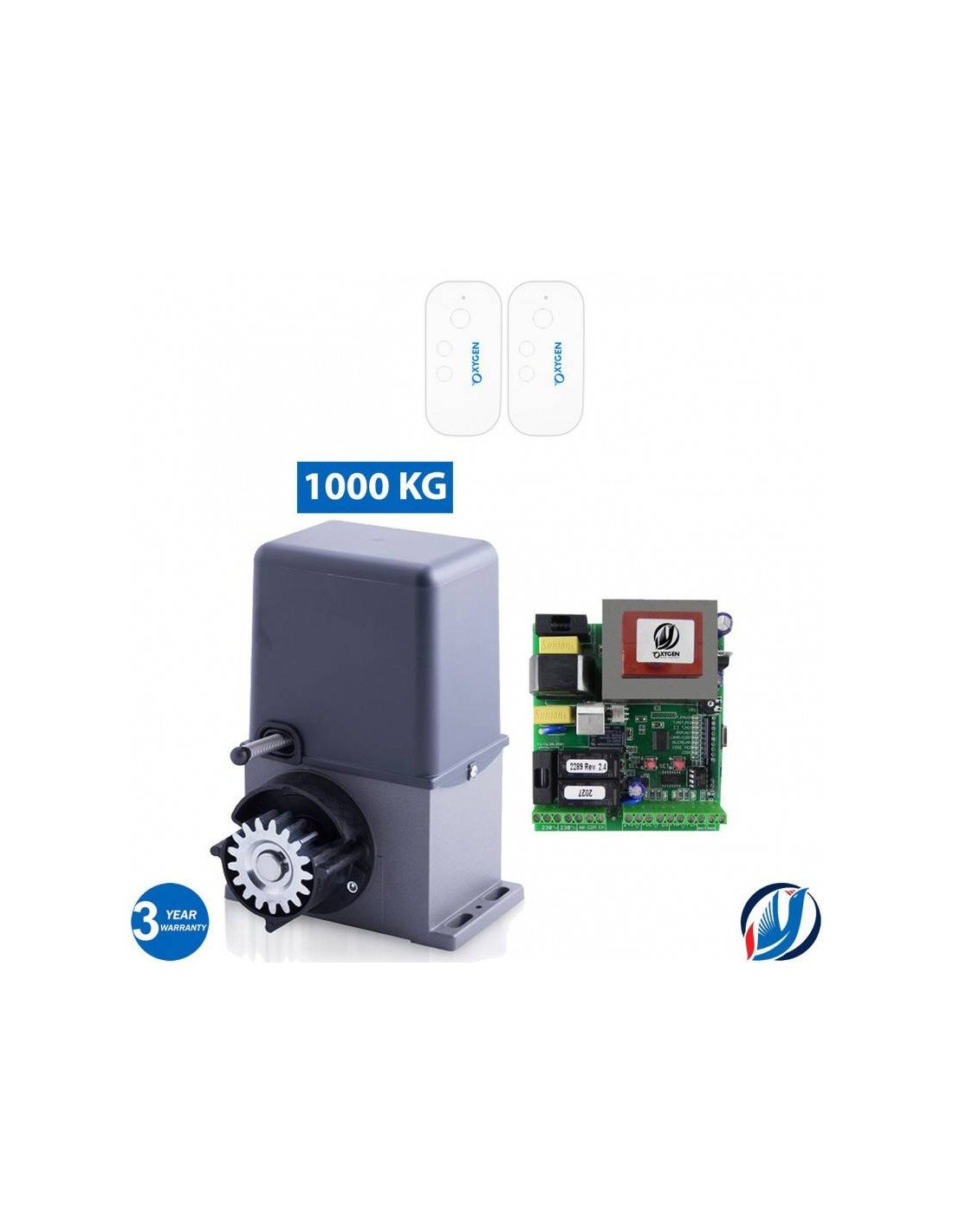

THE KIT CONTAINS:

• Motor gearbox 230 V NYX 1000 kg and other

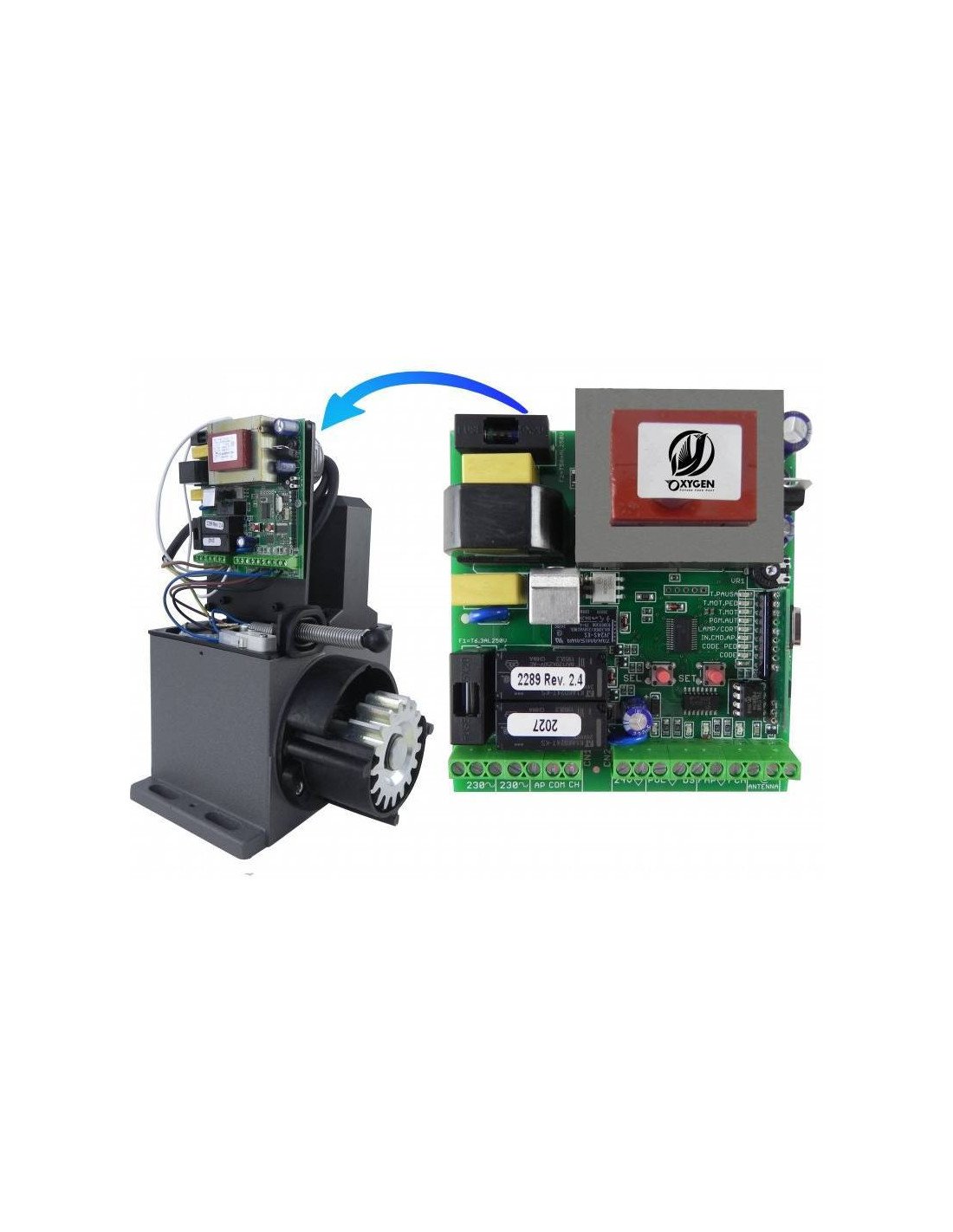

• 230V control board included
• 2x controls VENUS 433.92 MHz

MANUAL

NYX instruction manual

Instructions for use CIRCE 230V

VIDEO ENGINE NYX
