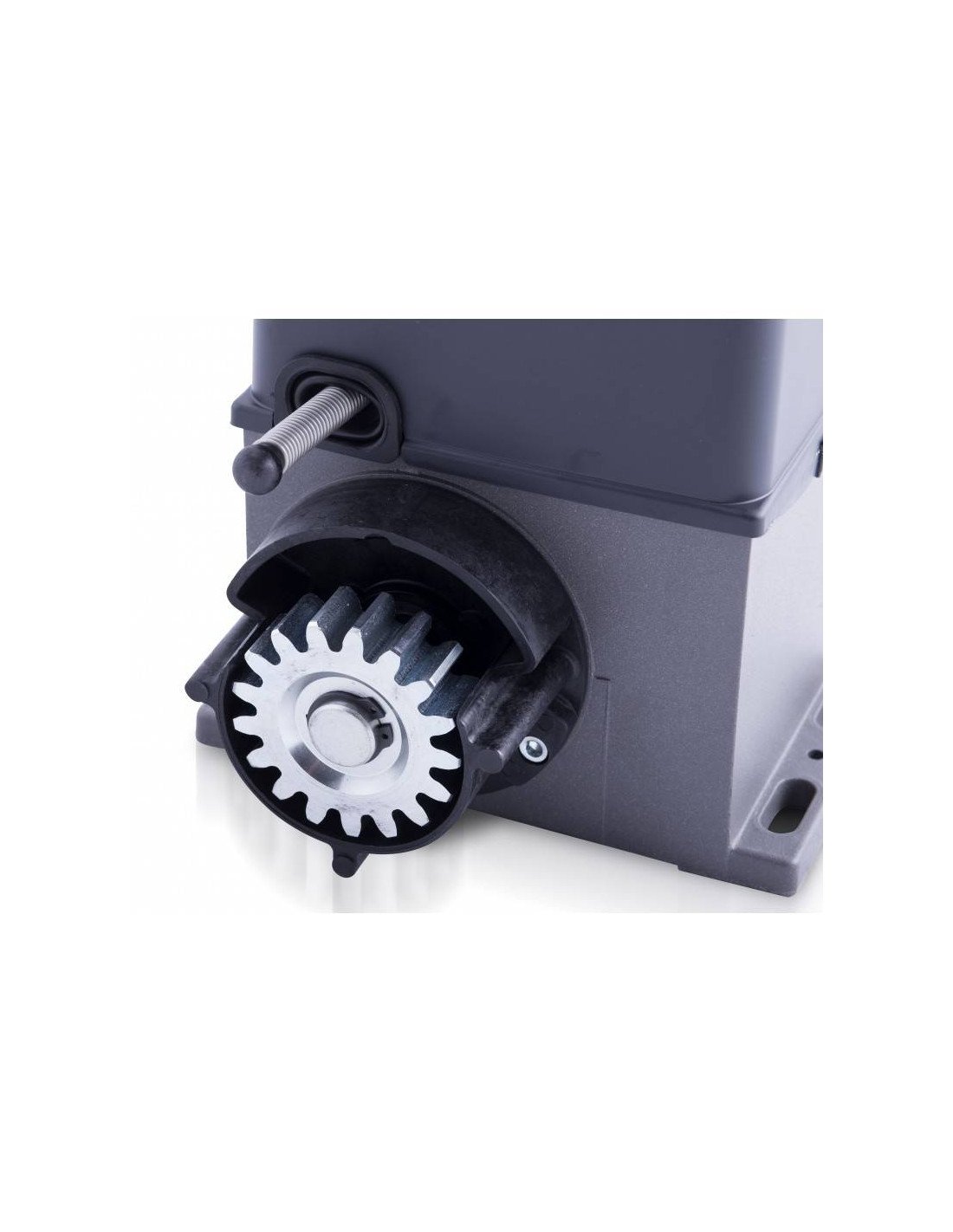

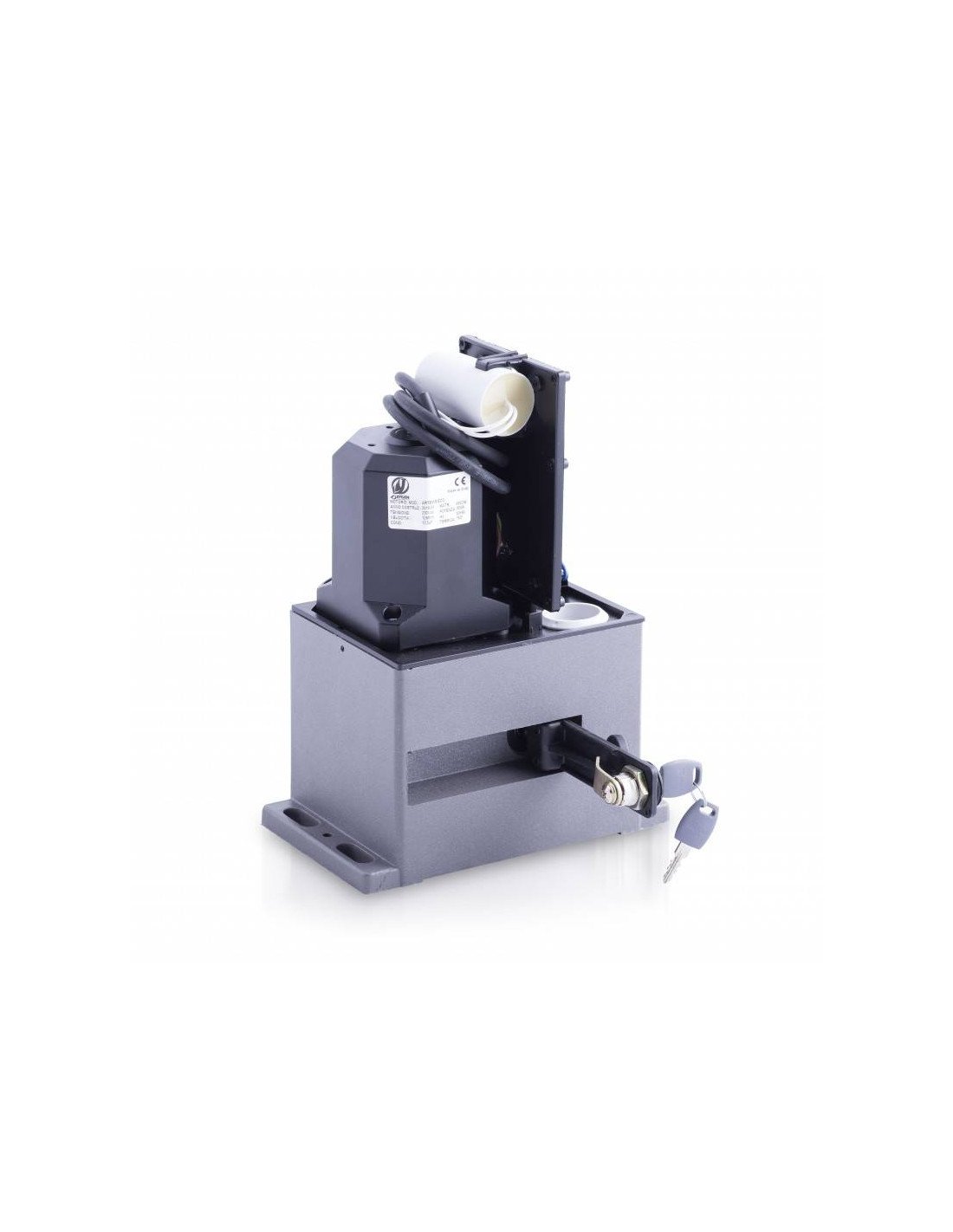

OXYGEN ARTEMIS 230V sliding motor for residential sliding doors up to 800 kg, with built-in receiver box.

The 230V electromechanical ARTEMIS motor is thought to power light or heavy doors up to 800 kg for residential use.

CHARACTERISTICS OF ARTEMIS

• FoodOther: 230Vac
• Maximum weight of door: 800 kg
• Power: 350 W
• Power absorbed: 1.5 TO
• Thermal protection: 150 oC
• Pineapple: M4 Z17
• Velocity: 10 mt/min
• Protection: IP55

CHARACTERISTICS AROUND 230V

• Automatic or step-by-step operation
• Automatically programmable shutdown
• Programmable pedestrian opening
• Connected safety photocells
• Force regulation and initial start by trimmer
• Control of deceleration
• Connection for flashing light

TECHNICAL CHARACTERISTICS

• Food In the case of vehicles of categories N1 and N2 with a maximum mass exceeding 2000 kg:.
• Light output of flashing : 230 Vac 50/60Hz 100 W Resistive Load maximum 50 W Inductive Load maximum.
• Engine outputs : 230 VAC 50/60 Hz 750 W maximum.
• Food supplies : 24 Vac 3 W maximum.
• Race finish and controls on BT : 24 Vcc
• Operating temperature : -10 to 55 °C
• Radio receiver : see model
• Transmitters op. What. : 12-18 Bit or Rolling Code
• Maximum TX codes in memory : 120 (CODE + CODE PED)
• Box dimensions The following: 110x121x47 mm .

MEASURES

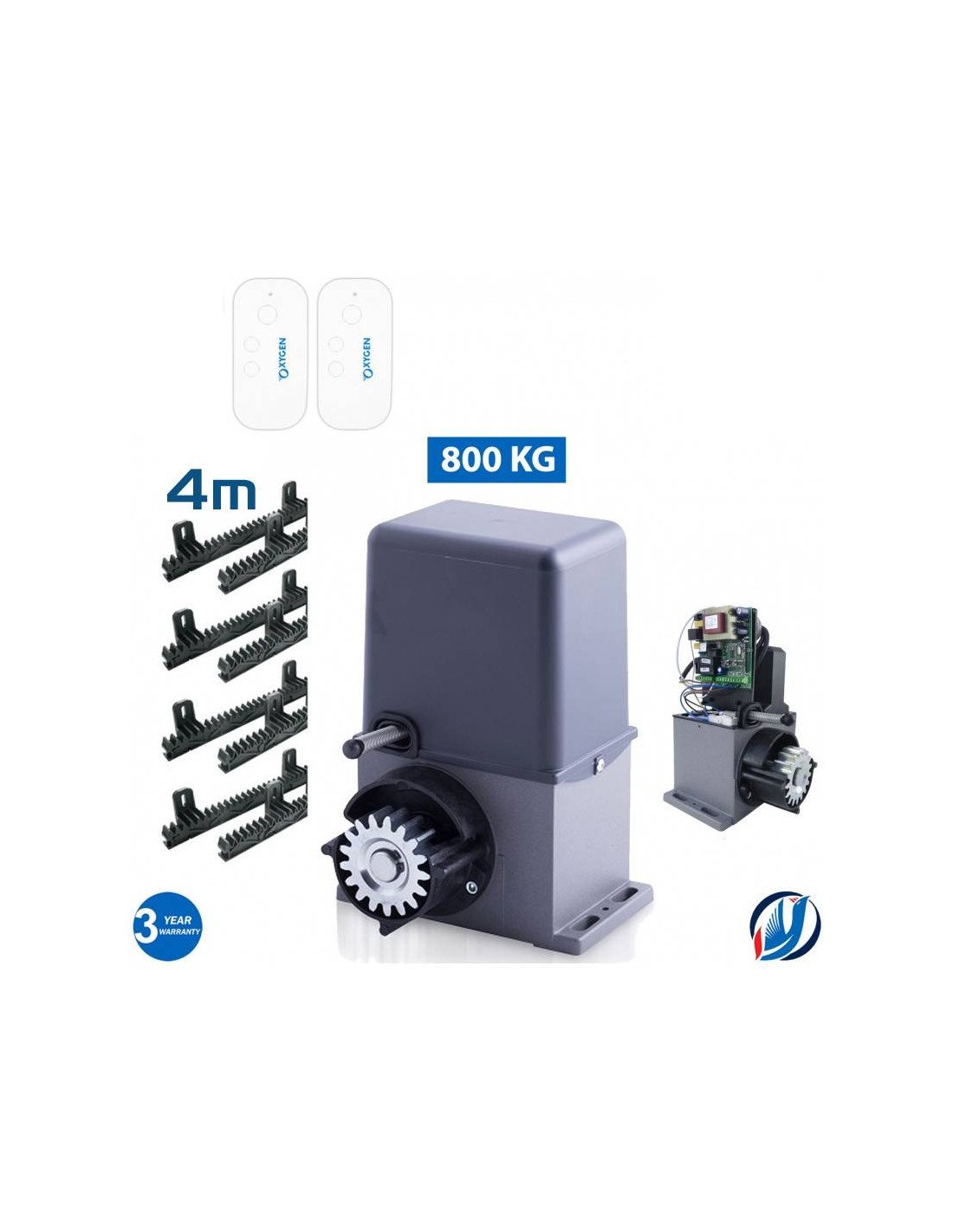

THE KIT CONTAINS:

• Motor gearbox of the Artemis 230V

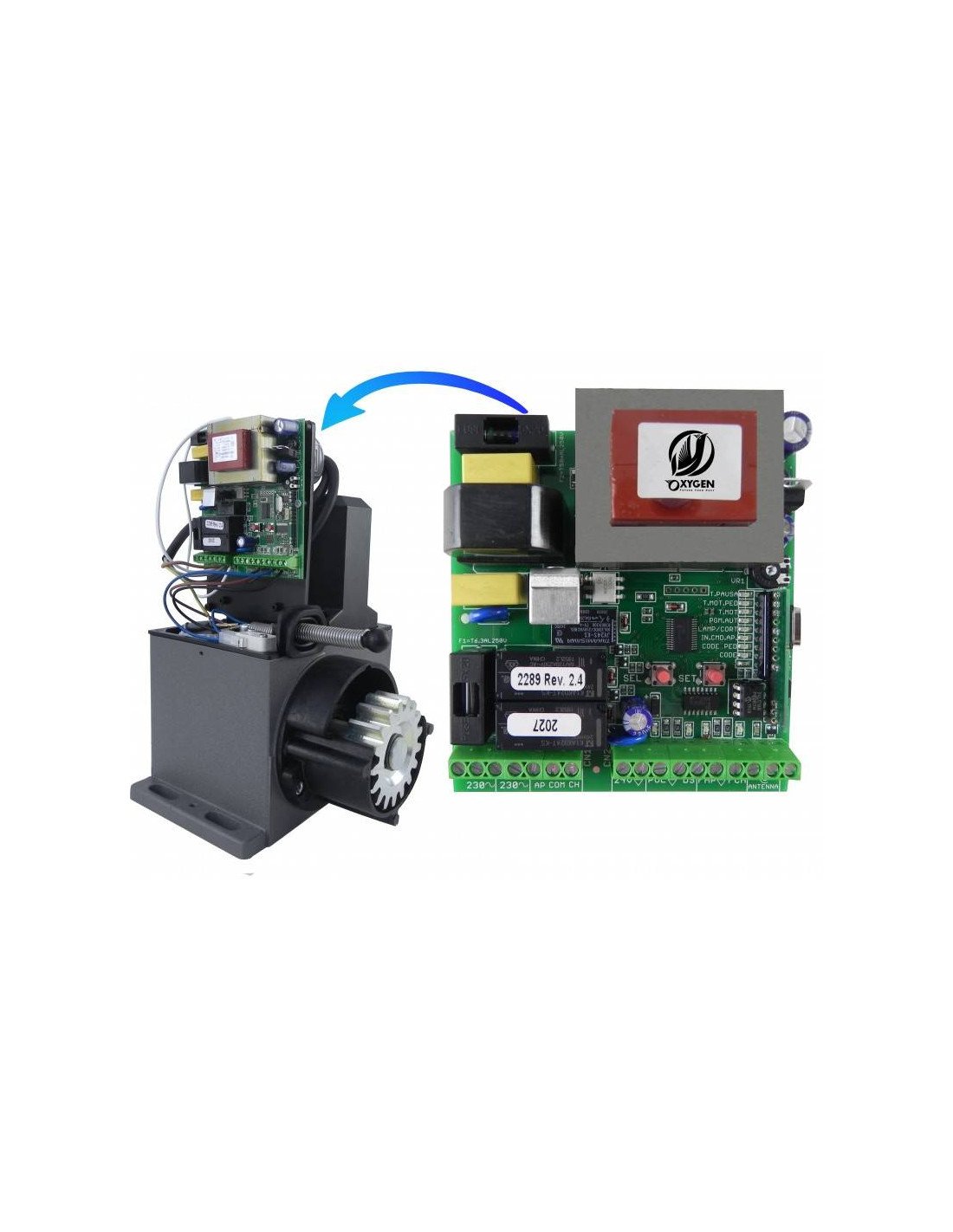

• 230V control board included
• 2x controls VENUS 433.92 MHz
• 4 metres of nylon zipper

MANUAL

Artemis instruction manual

Instructions for use CIRCE 230V

ARTEMIS VIDEO ENGINE
