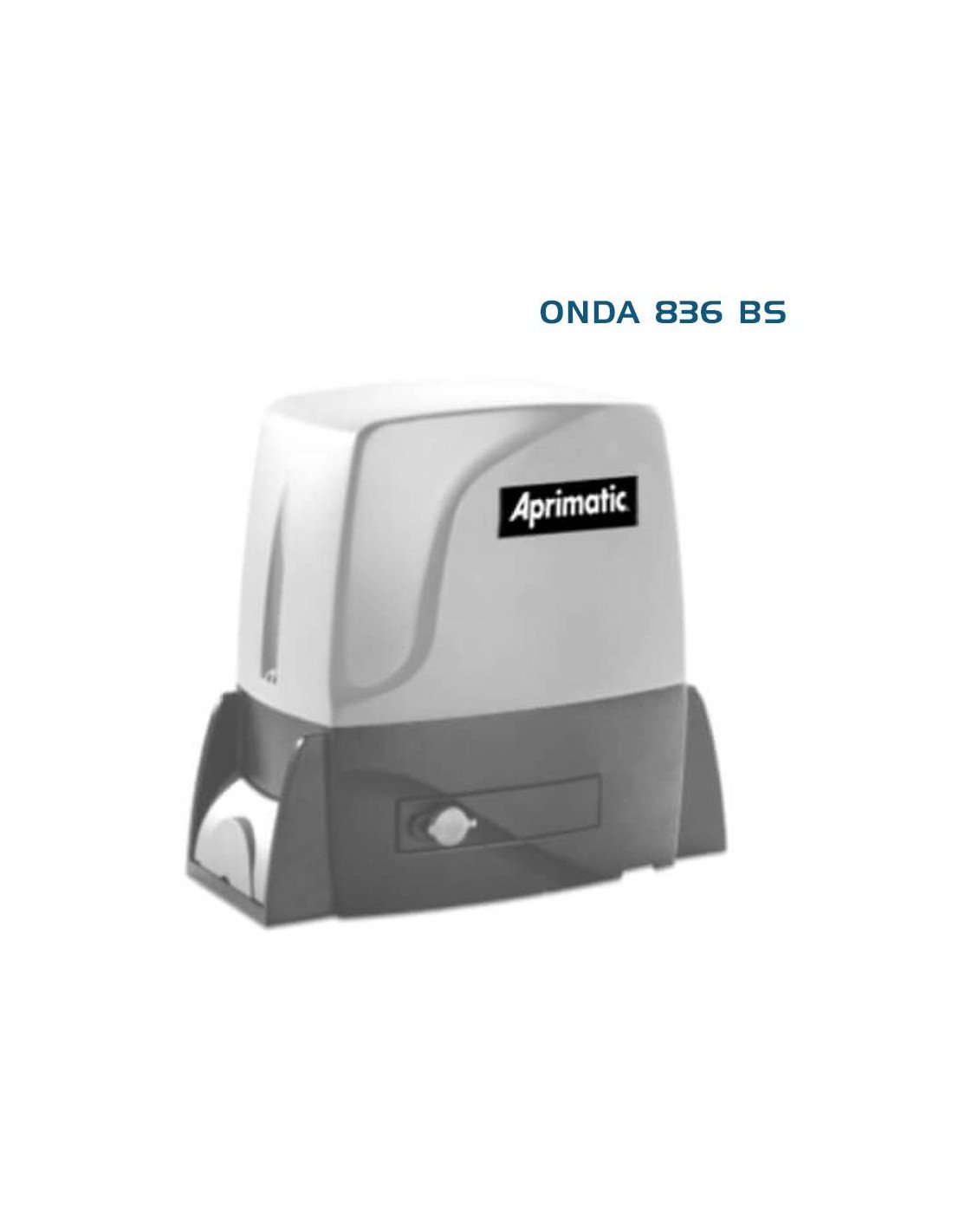

Sliding motor Aprimatic "ONDA 836 BS" Brushless 36V for doors up to 800 KG with continuous use.

ONDA 836 BS is an operator for sliding gates up to 800 kg for continuous use. It has a 36 Vdc motor and brushless technology which, together with an oil-bathed gearbox, allows continuous use of the door. It incorporates a double adjustable control over the engine force by means of a mechanical and electronic clutch. Precise movement under the supervision of a door position and speed recognition encoder.

• Brushless motor and oil bath gearbox with bronze crown.
• Electronic anti-crush safety by encoder.
• Torque control by mechanical friction clutch.
• Built-in A80 BS Table.

SPECIFICATIONS

• Power supply: 230V±5% (50/60 Hz)
• Motor voltage: 36 Vdc
• Power: 100 W
• Working frequency (*): 100%
• Thrust force: 1,600 N
• Sprocket speed: Adjustable up to 12.5 m/min
• Torque Control: Electronic & Mechanical
• Working temperature: -20 °C/+55 °C
• Weight: 14 Kg
• Degree of protection: IP 55
• Maximum blade weight: 800 Kg
• Maximum blade length: 10 m

MEASUREMENT

SHEET

Technical data sheet Aprimatic ONDA 836 BS
