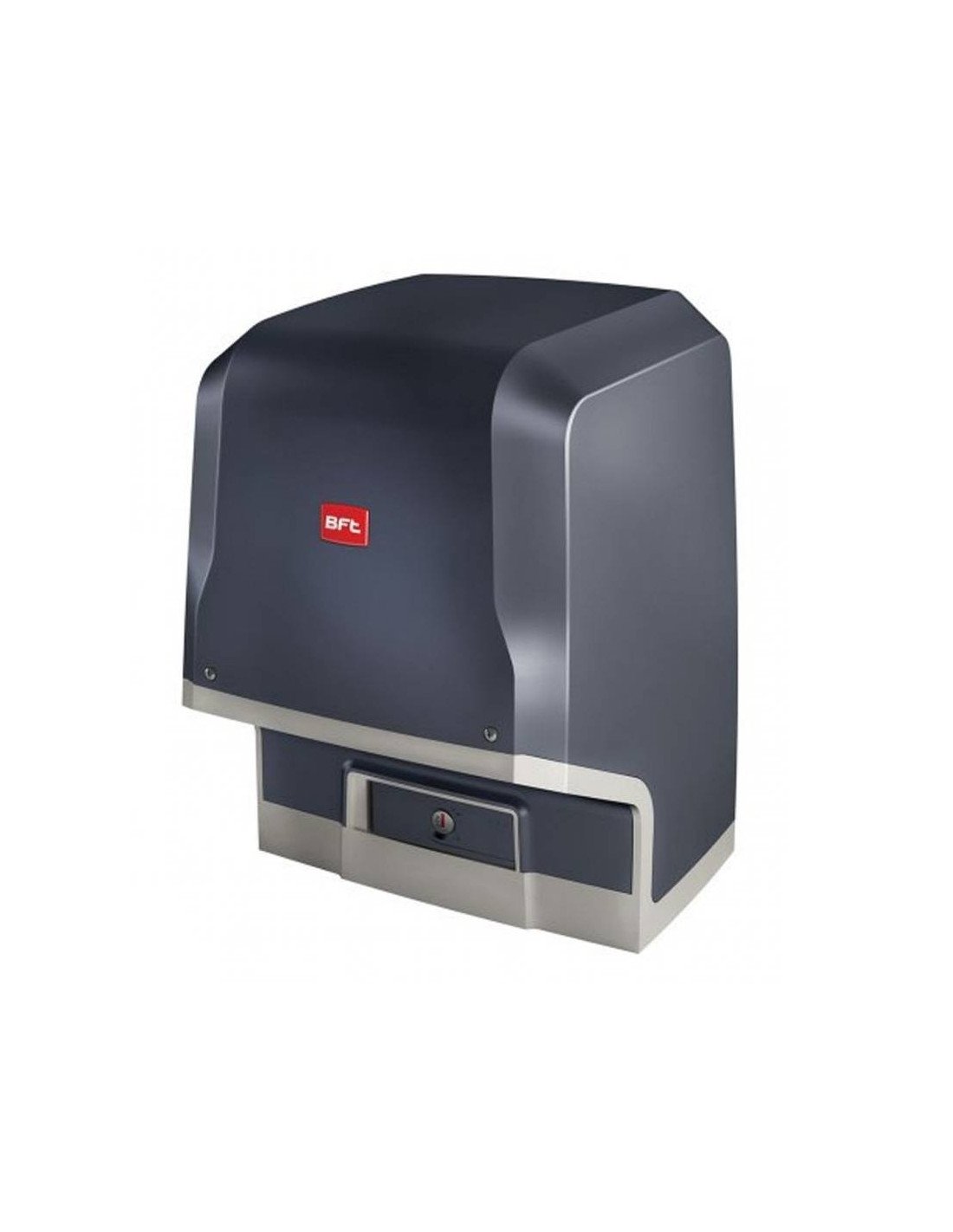

Fast BFT motor "ICARO VELOCE SMART AC A" 230V for heavy-duty and heavy-duty sliding doors up to 1,000 and 2,000 KG.

Fast 230 V operators for very heavy-duty, very robust and high-performance sliding doors thanks to the oil-immersed transmission. They fit doors weighing up to 1,000 kg and emptying speed of 25 m/min, or up to 2,000 kg weight and no-load speed of 18 m/min. The actual maximum speed you can achieve depends on the weight and condition of the door. Operator equipped with electromechanical limit switch. Torque control via D-Track technology and encoder for maximum motion accuracy.

A control unit prepared for communication with the U-Link protocol and with an anti-theft function. An ideal solution for contexts that require high manoeuvring speed, short waiting times and high safety standards

AVAILABLE MODELS

• ICARO VELOCE SMART AC A1000 (P925256 00002): 230 V operator for sliding doors weighing up to 1000 kg with encoder. Gate speed 25 m/min. With mechanical safety clutch, it manages torque using D-Track technology and an oil-immersed gearbox. Electromechanical end-of-career. Central with display prepared for communication with the U-Link protocol.
• ICARO VELOCE SMART AC A2000 (P925265 00002): 230 V operator for sliding doors weighing up to 2000 kg with encoder. Gate speed 18 m/min. With mechanical safety clutch, it manages torque using D-Track technology and an oil-immersed gearbox. Electromechanical end-of-career. Central with display prepared for communication with the U-Link protocol.

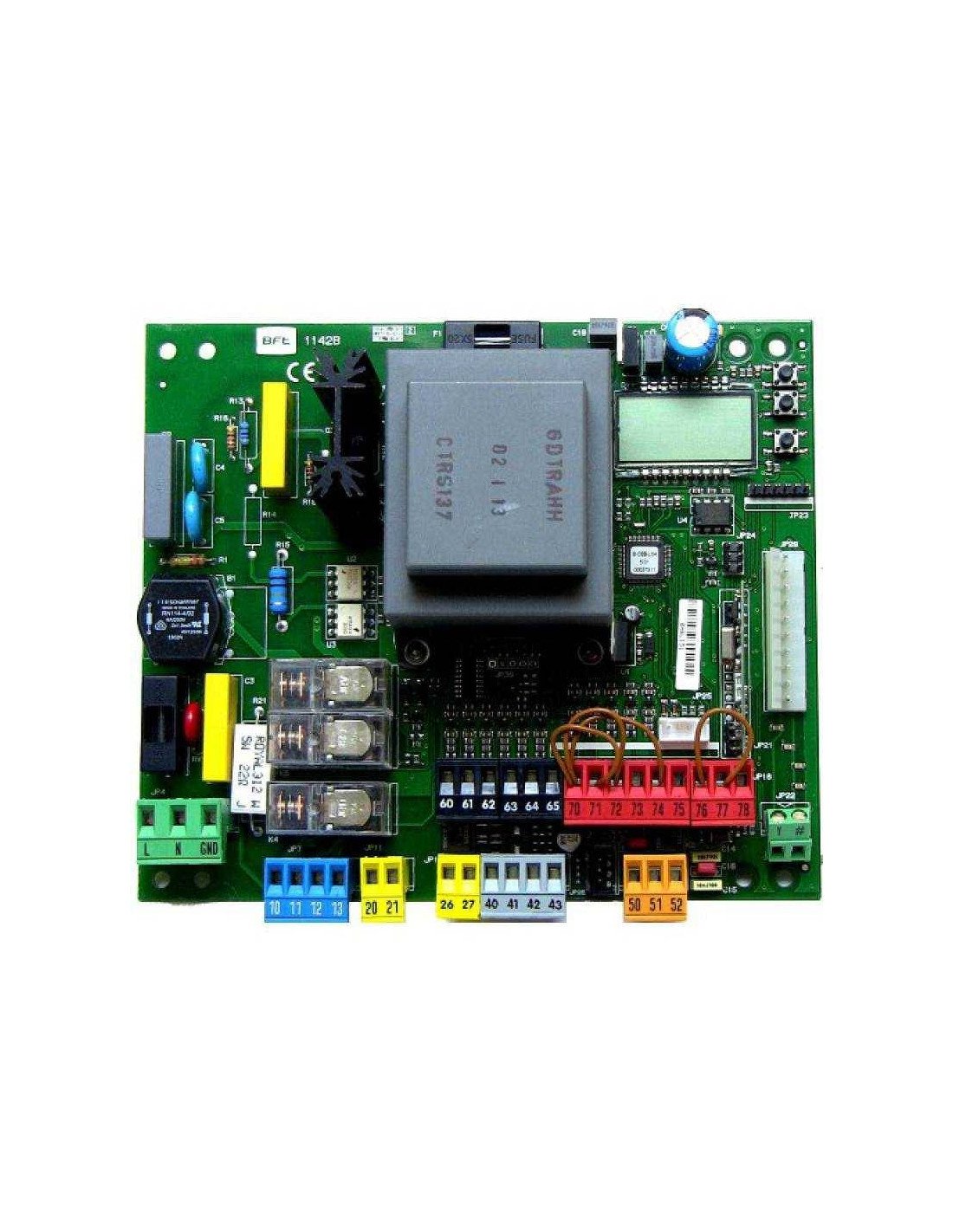

ELECTRONIC BOARD LEO B CBB SV

Integrated 230V operator control card for sliding doors

Application: Built-in 230V operator control panel for sliding gates

Card power: 230 V single-phase

Operator power: 230 V and 750 W

Key features: detachable terminal blocks with the new color standard, simplified scenario programming with display, built-in two-channel receiver, anti-crush based on the D-Track system, electronic opening and closing deceleration.

Main functions: automatic closing, quick closing and pedestrian opening

MEASUREMENT

MANUAL

Operating manual ICARO VELOCE SMART AC A

Instruction manual LEO B CBB SV
