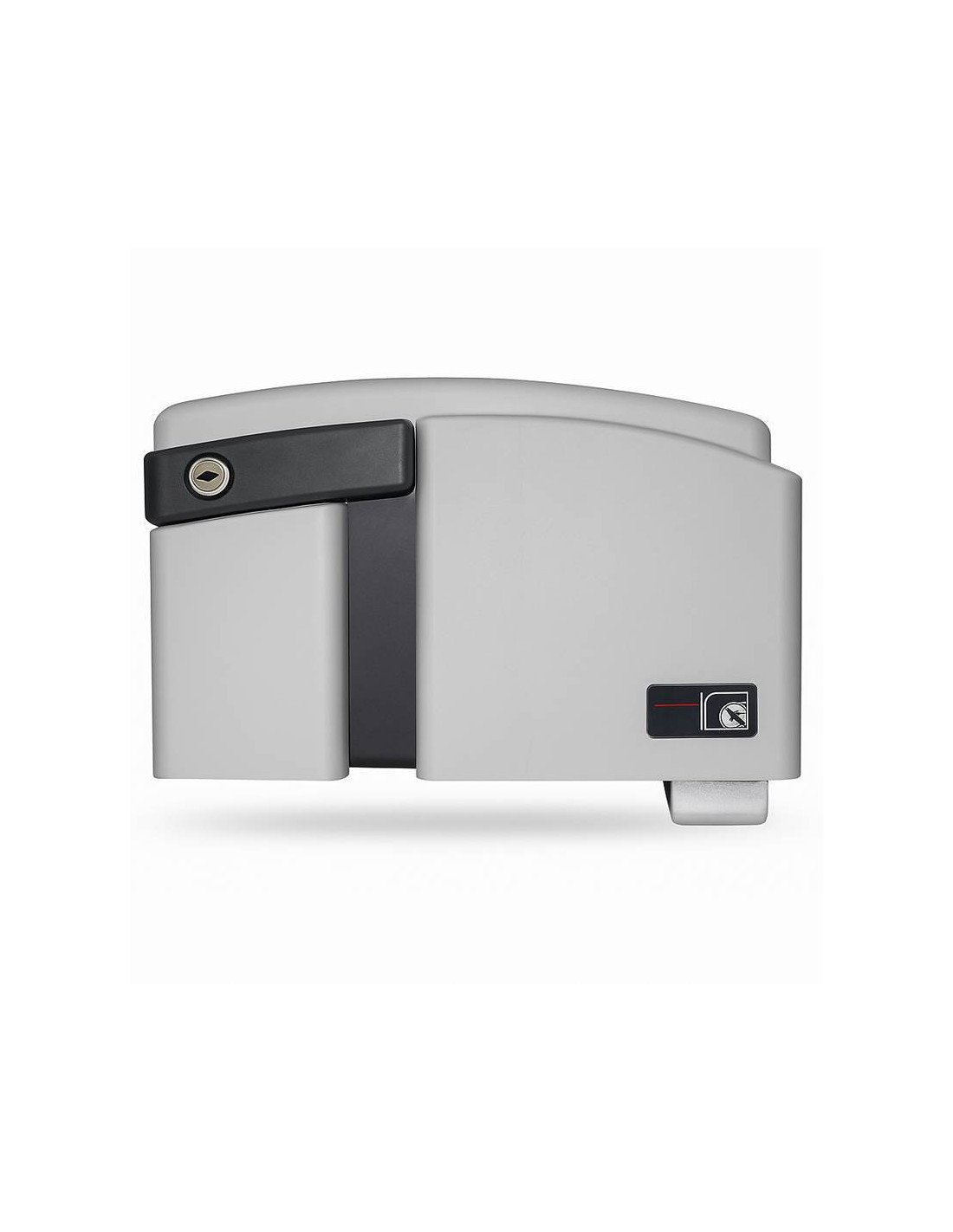

PUJOL MINI MARATHON Engine

Sliding motor for residential doors up to 400 KG.

PUJOL MINI MARATHON motor for sliding doors for residential use up to 400 KG.

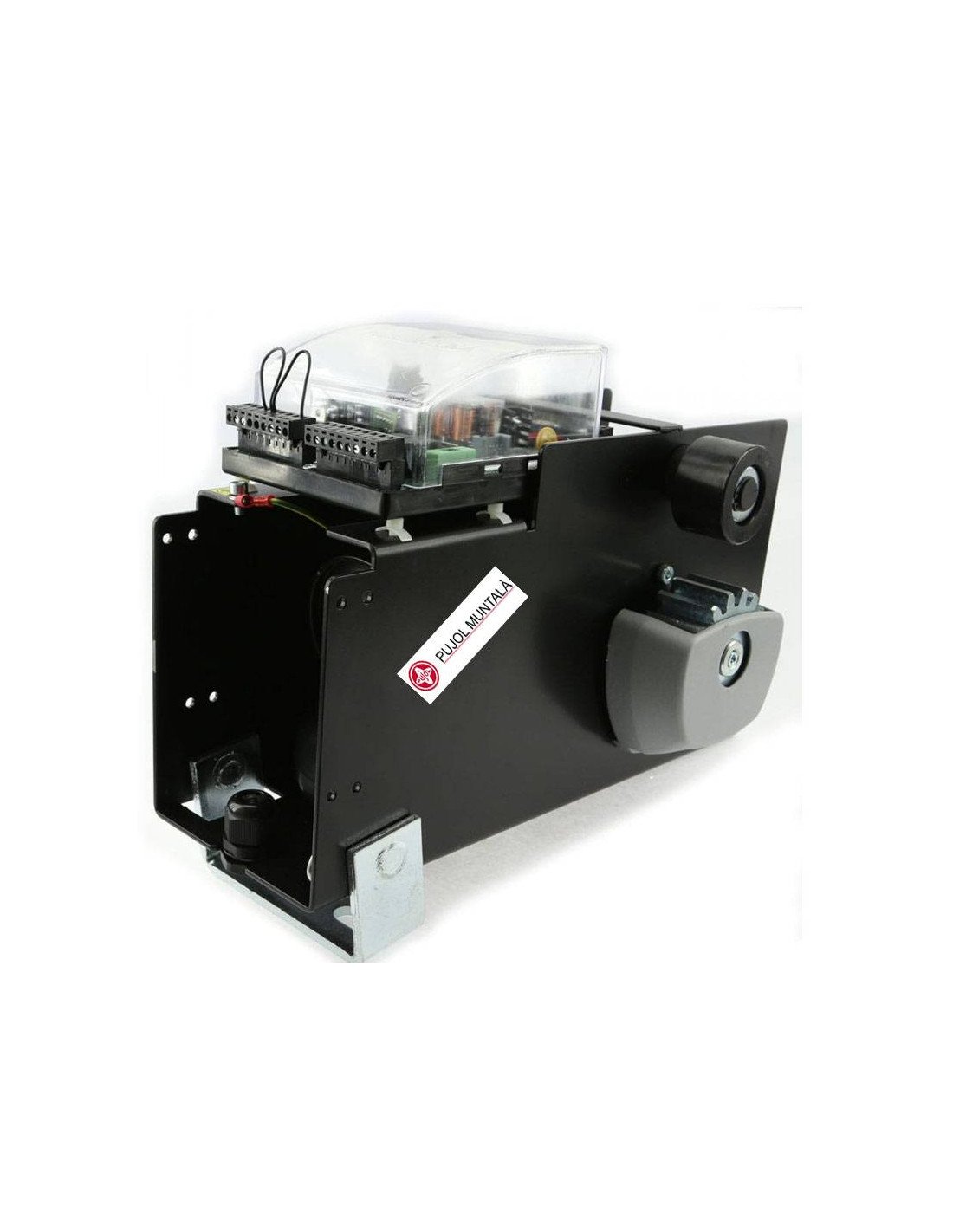

The MINI MARATHON model is a 24V single-phase electromechanical motor with a built-in control panel and receiver at 433.92 MHz. It is a very quiet piece of equipment ideal for semi-intensive use for residential gates.

Prepared with M4 rack and pinion module. Lever release for manual operation. Patented tilting clamping system, which absorbs deformations of the door and facilitates assembly.

Optional emergency battery kit (not included) that allows an autonomy of 40 manoeuvres without power.

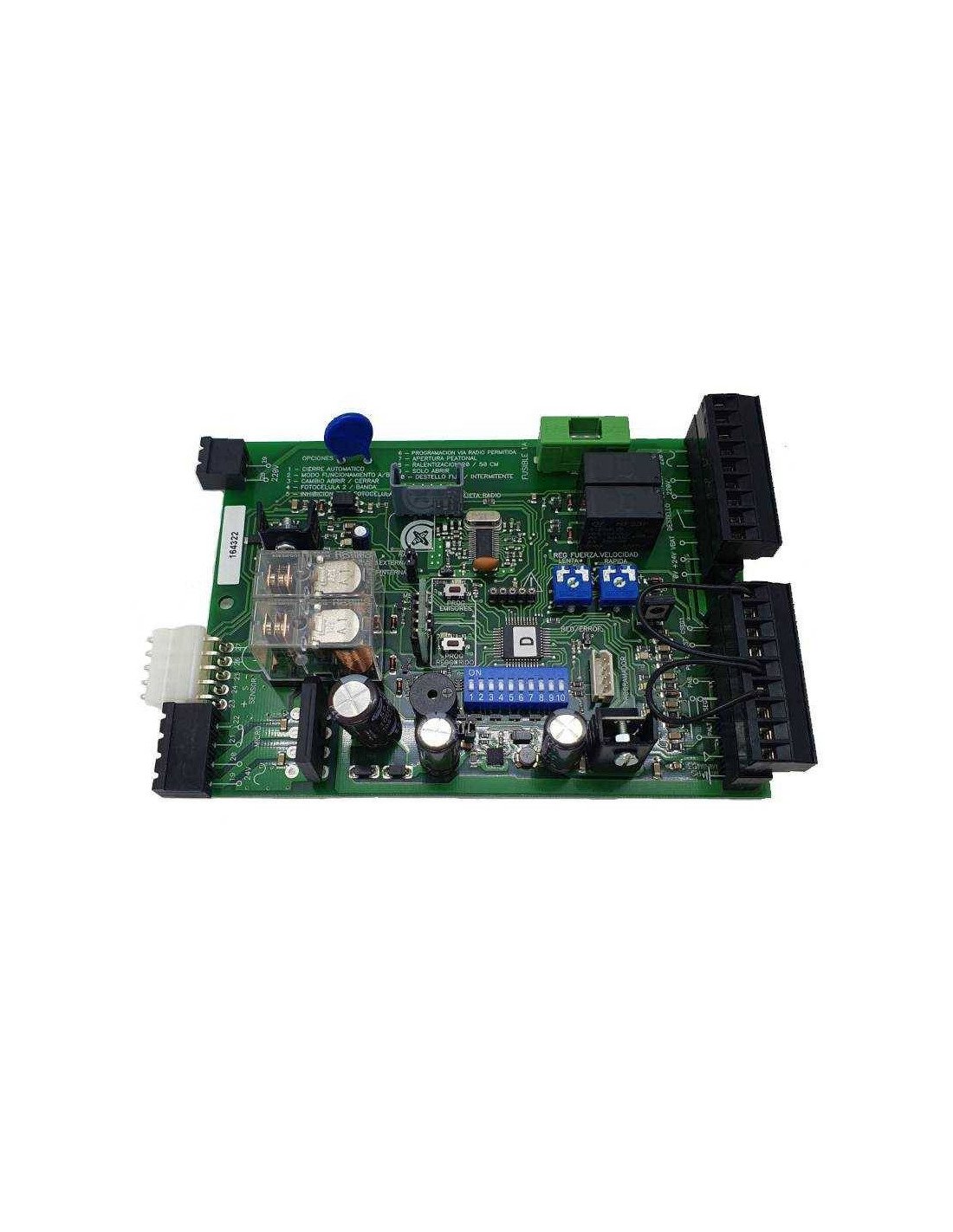

Functions of the control panel incorporated in the engine:

• Soft stop and speed reduction when opening and closing.
• Anti-crush safety system.
• Optional automatic closing by setting the desired time.
• Safety inputs for photocells or security band.
• Output for flashing lamp.

FEATURES PUJOL MINI MARATHON

• Power supply: 230Vac
• Internal motor power: 24Vdc
• Power: 30W
• Intensity: 0.6 Amp.
• Torque: 4Nm
• RPM: 60
• Operating temperature: -10º C / 40º C
• Service Factor: 80%
• Maximum speed: 12m/min
• Engine weight: 8 KG
• Max. towing capacity: 400 KG
• Sprocket Type: M4

PUJOL MINI MARATHON MEASUREMENTS

MANUAL PUJOL MINI MARATHON

Instruction manual PUJOL MINI MARATHON

MINI MARATHON ASSEMBLY VIDEO
