KIT Motor PUJOL MINI MARATHON for residential sliding doors up to 400 kg. It includes a 4-meter zipper pack and 2 VARIO4 transmitters at 433.92 MHz.

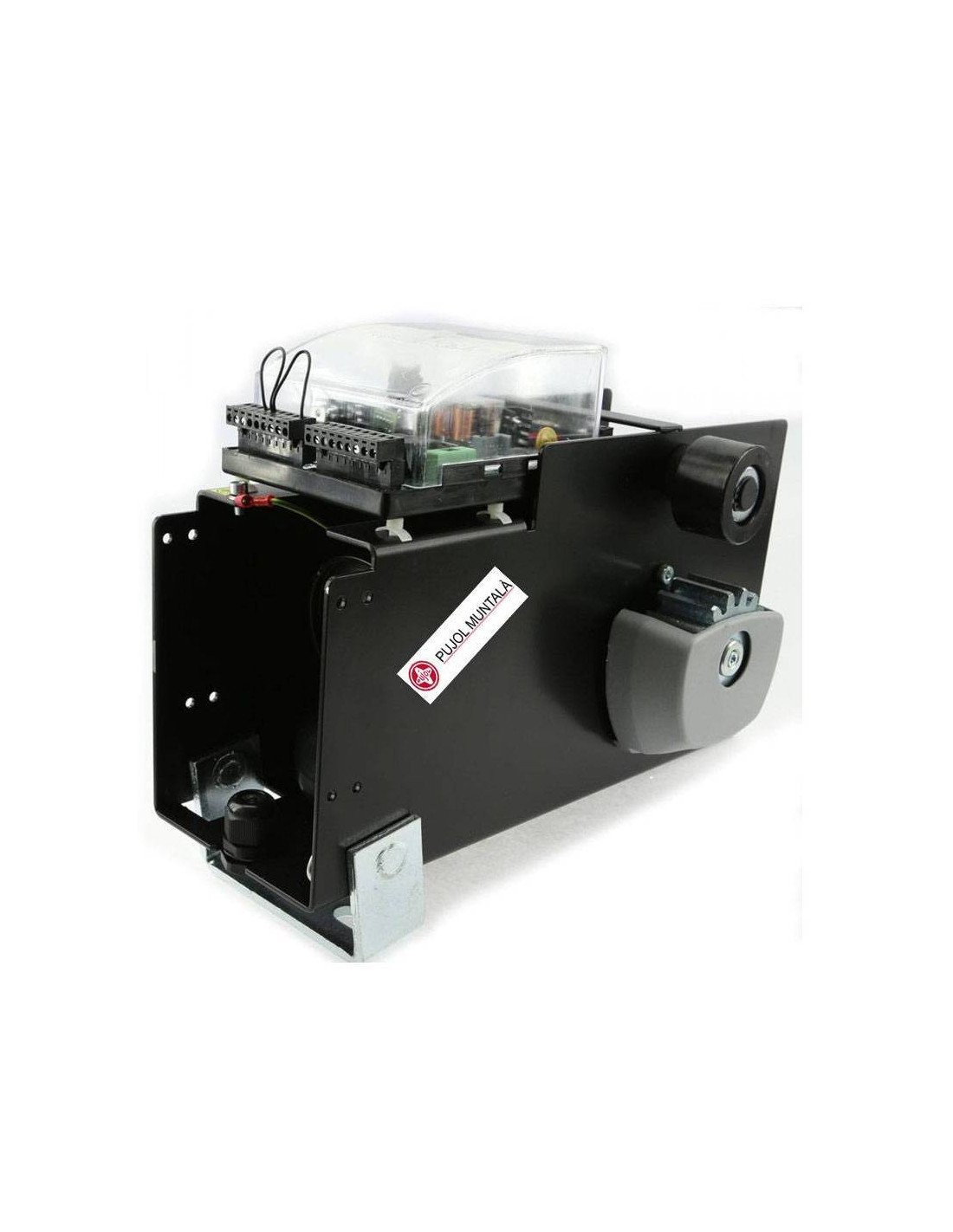

The MINI MARATHON model is a single-phase electromechanical 24V with manoeuvre box and built-in receiver at 433,92 MHz. What. It's a very quiet equipment ideal for semi-intensive use for residential cancellations.

Prepared with module of M4 zipper pin. Unlocking with lever for manual operation. What. Patented tilting restraint system, which absorbs the deformations of the door and makes the assembly easy.

Optional emergency battery kits (not included) allowing a range of 40 manoeuvres without power supply.

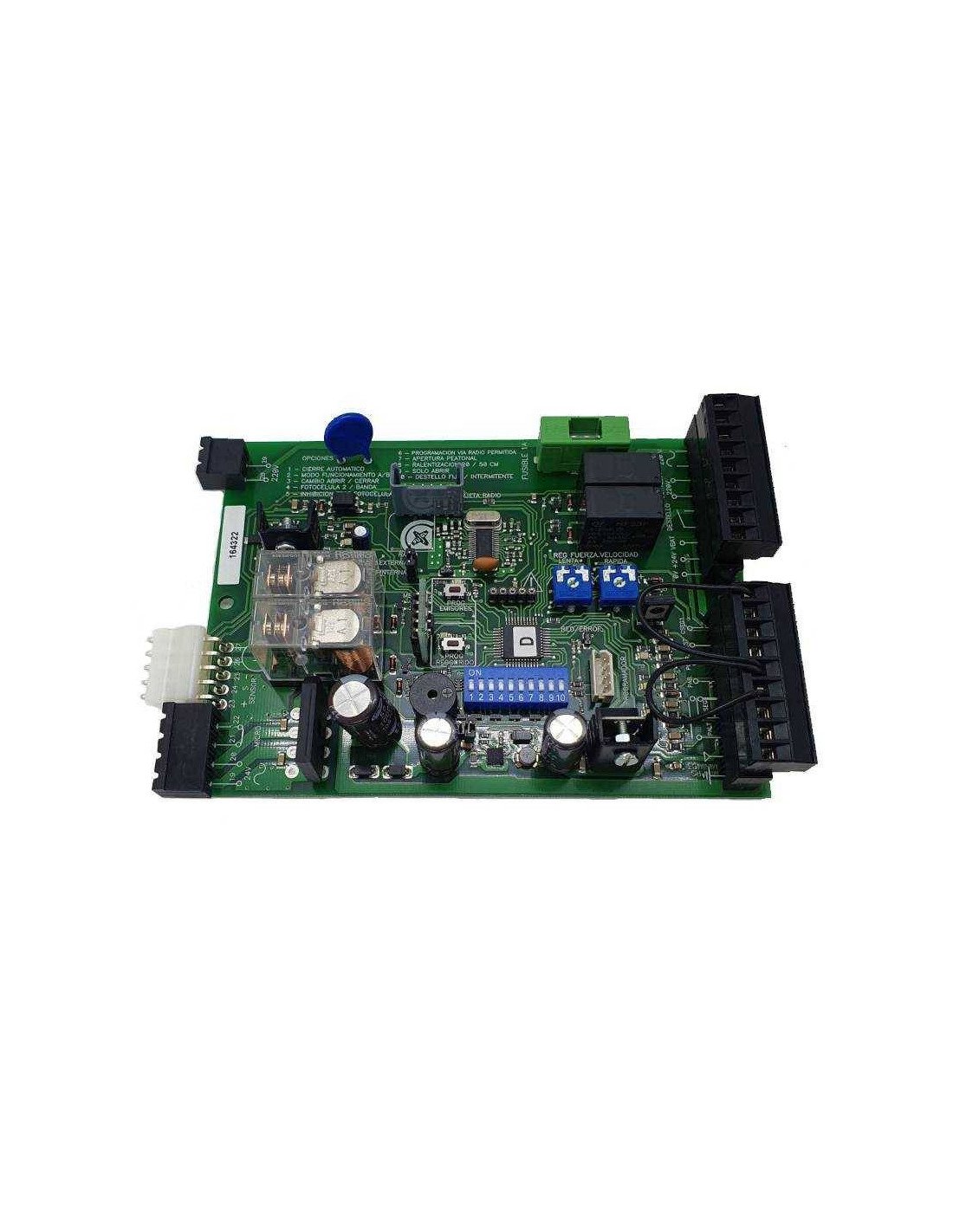

Functions of the engine-built manoeuvre panel:

• Soft stop and speed reduction on opening and closing.
• The anti-crush safety system.
• Optional automatic shut-off by setting the desired time.
• Security inputs for photocells or security bands.
• Out for flashing lamp.

FEATURES PUJOL MINI MARATHON

• FoodOther: 230Vac
• Internal power supply: 24Vdc
• Power: 30W
• IntensityIt's only 0.6 amps.
• Torque or torque: 4Nm
• RPM60
• Operating temperature10 ° C / 40 ° C
• Service factor: 80%
• Maximum speed12m / min
• Engine weight: 8 KG
• Max. drag capacity: 400 KG
• Type of pinion: M4

MEASURES

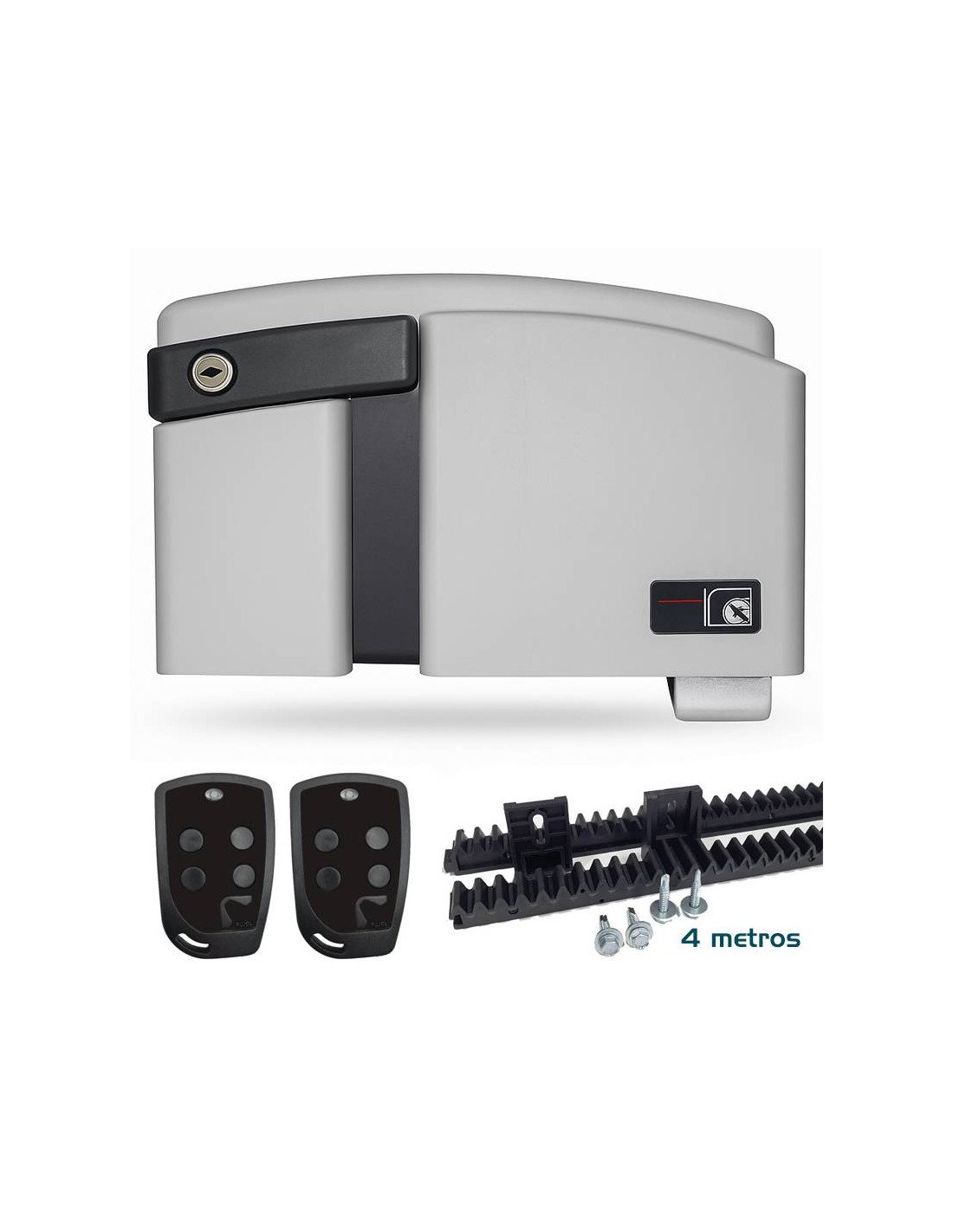

CONTENT OF THE KIT

• 1 unit MINI Marathon: 24V electromechanical motor with built-in frame for residential doors up to 400 kg.
• 4 meters: Pack of 4 metres8x0.5m) of nylon zipper with screw.
• 2 units VARIO4U: RollingCode transmitter with 4 channels 433.92 MHz.

MANUAL PUJOL MINI MARATHON

Instruction manual for the PUJOL MINI Marathon

VIDEO EDITING MINI MARATHON
