Proteci Sliding Mike Mike 24V Up to 400 kg

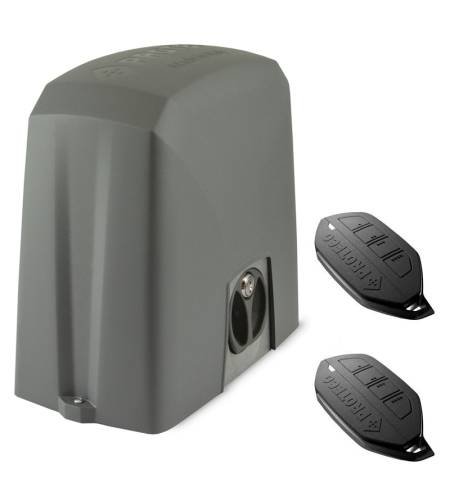

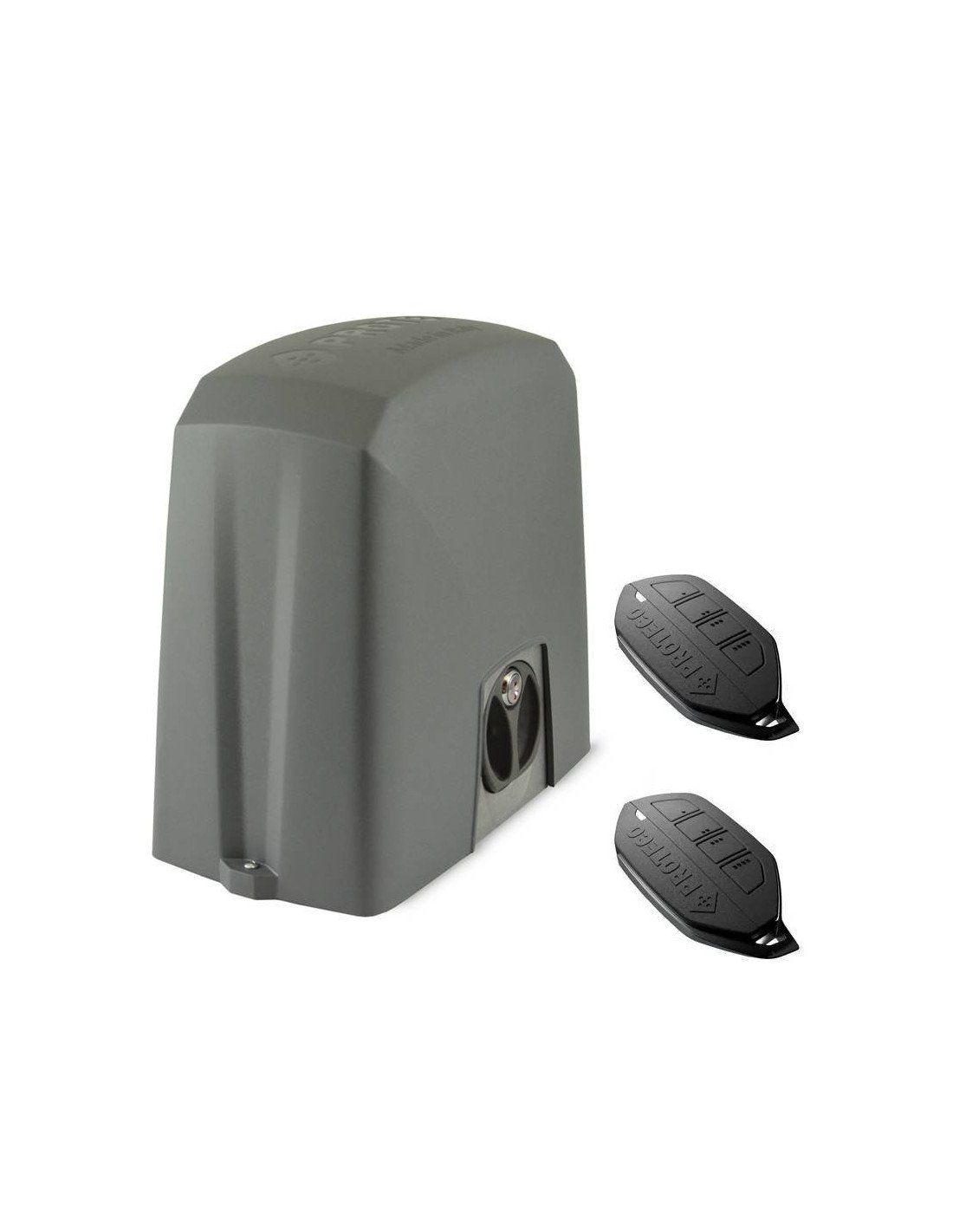

Automatism Mike is a Electromechanical actuator for sliding doors of 24v, designed to move leaves up 400 kg. It is oriented to facilities intensive use in environments Residential and collective, offering reliability and high performance.

Incorporate a zipper gear with Motor base with preperforated holes, Adjustable anchor plate and Fixing tool included, which allows a simple adjustment in both vertical and horizontal during installation.

The height of 75 mm between the floor and the pinion It facilitates the replacement of old systems without having to reposition the existing zipper.

It has a system of Robust unlocking with lock and key, in addition to a Integrated electronic card with radio receiver, programming screen and battery charger. The Programmable entries for resistive safety edges 8k2 They increase the protection of the whole.

Optionally it can be equipped with a Backup Kit that ensures performance in case of electric cut, with the Integrated charging circuit on the card.

The motor Mike is available in Mechanical or magnetic version, allowing to adapt to different climatic conditions and types of installation.

Technical characteristics

Measures

Documentation

INSTRUCTION MINKE4
