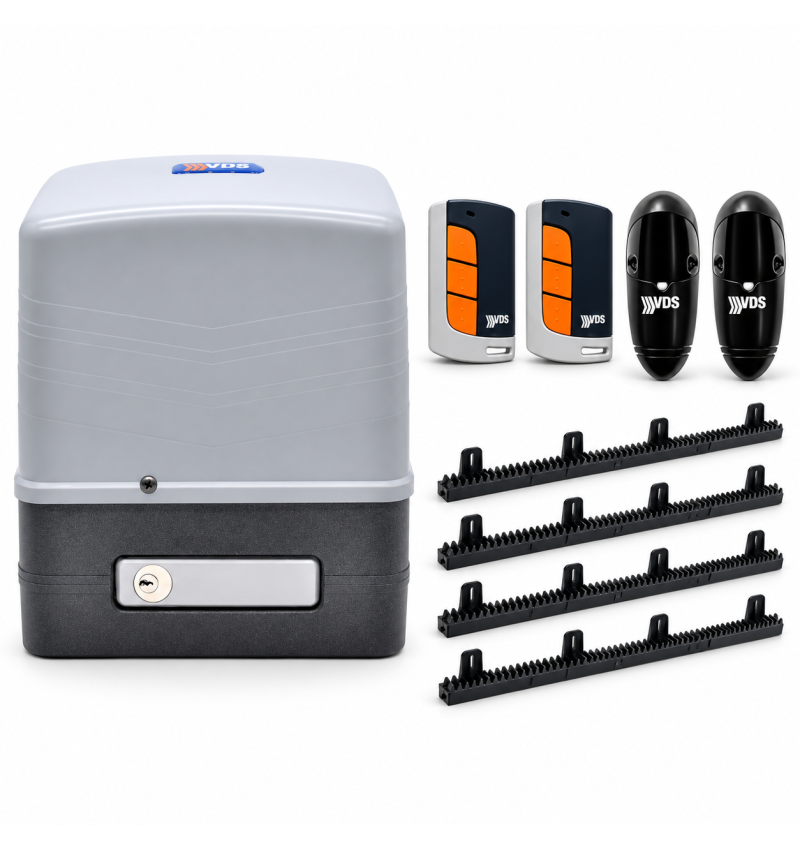

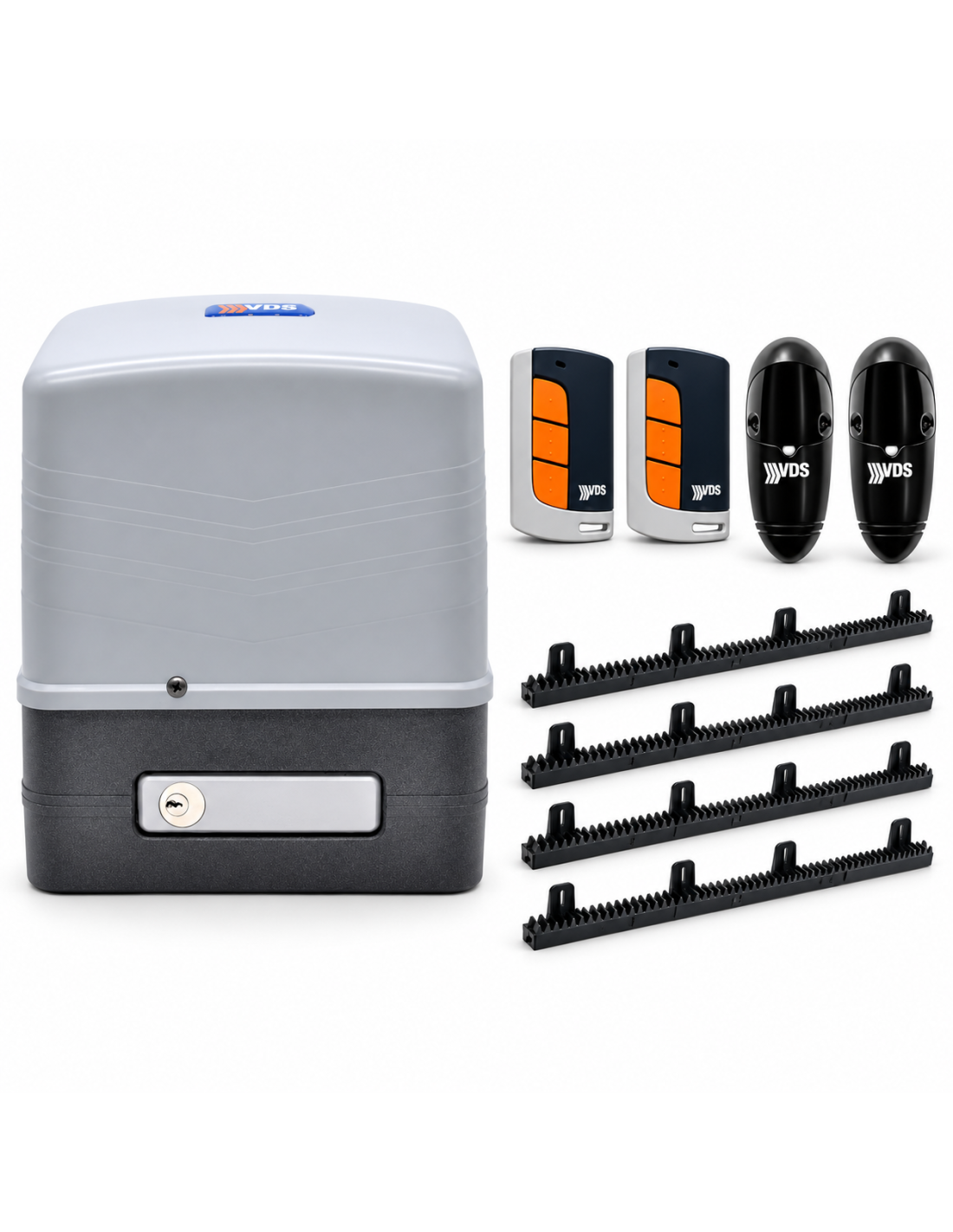

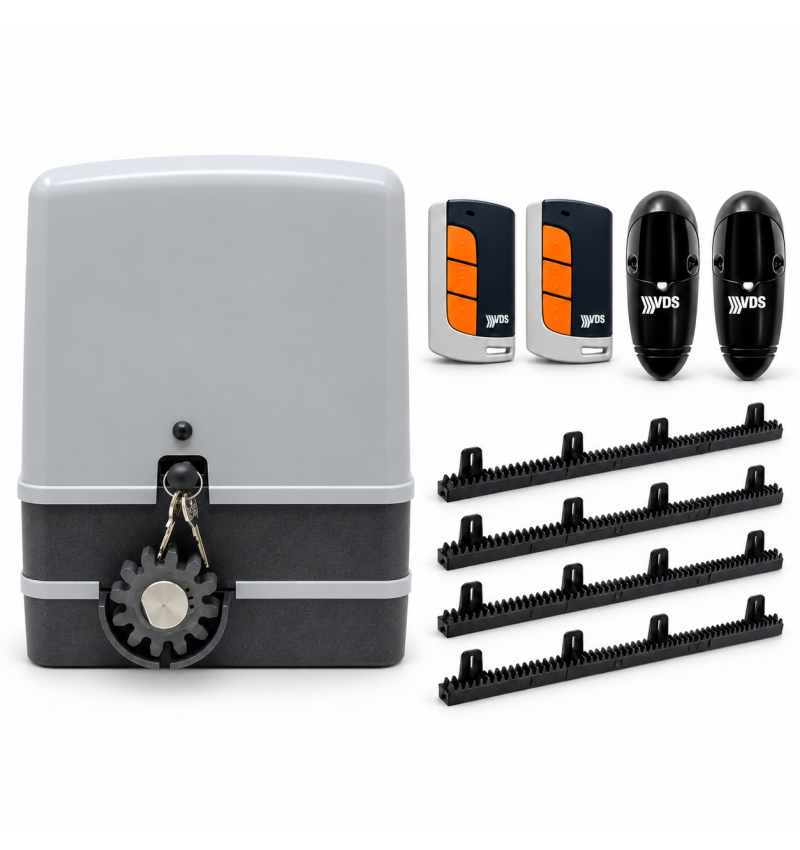

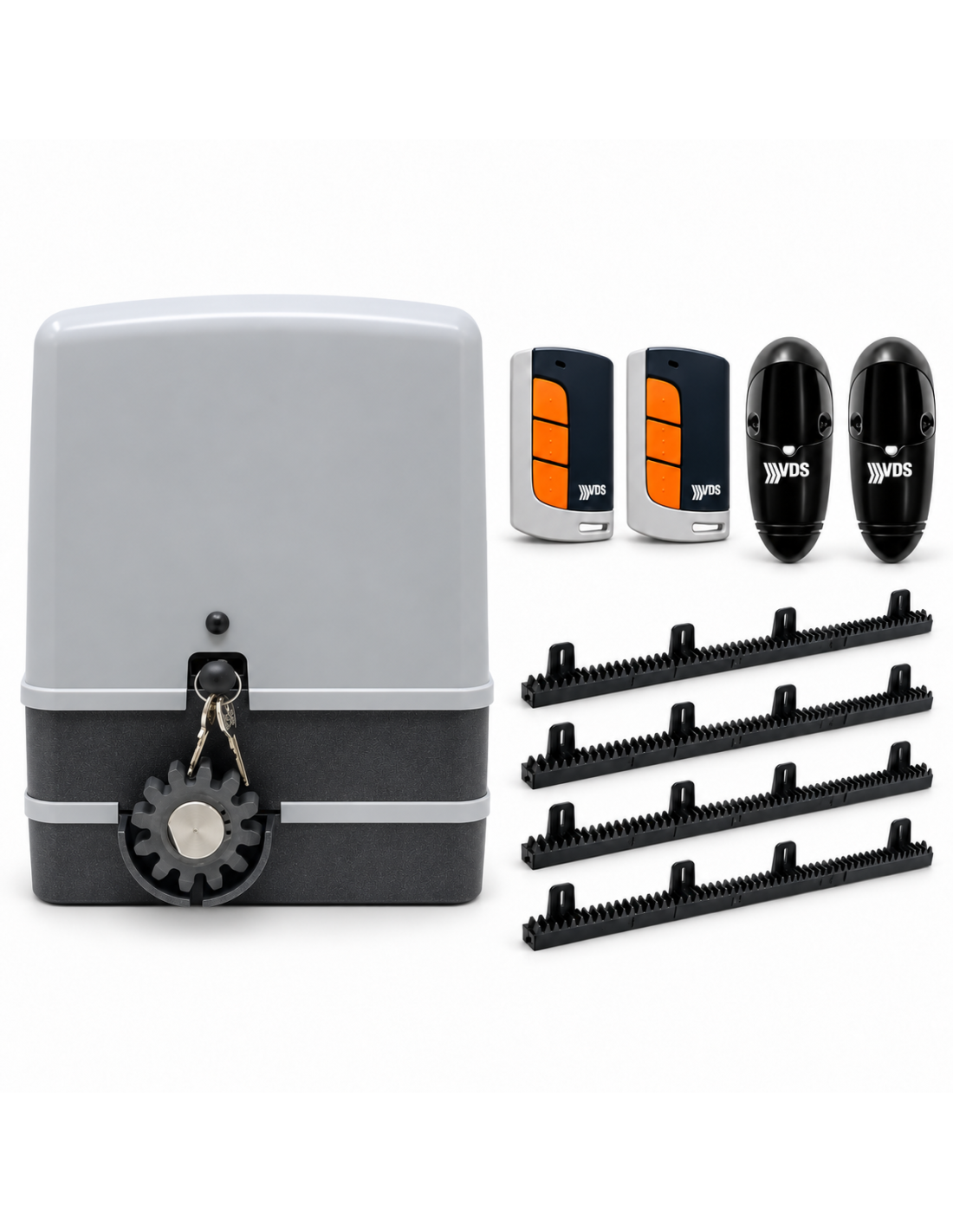

Kit VDS Simply 600K 230V for sliding door up to 600 kg with zipper

Kit VDS Simply 600K 230V for sliding doors up to 600 kg

The kit VDS SIMPLY 600K is designed for automation of sliding doors of up to 600 kg, incorporating 230VAC, electronic power station, two remote controls, safety photocells and nylon zipper.

The motor VDS SIMPLY 600K work 230Vac and develops a power of 250 W. Incorporates electromechanical race end and unlocking manual by key.

The electronics is managed by the central VDS EURO230M1, designed for a 230VAC engine and equipped with automatic closing functions, pedestrian opening, slowdown, force regulation and entries for safety devices.

The kit is completed with 2 controls VDS E010 ECO R 433, a game of photocells VDS 12 / T with reach up to 50 meters and 4 sections of nylon 216/1 zipper.

Complete kit for sliding door

✓ VDS Simply 600K 230VAC.

✓ For doors up 600 kg.

✓ Electronic Central EURO230M1.

✓ 2 controls E010 Eco R 433.

✓ Photocells VDS 12 / T up to 50 m.

✓ 4 sections of nylon 216/1 zipper.

The VDS SIMPLY 600K is a gearmotor for sliding doors up 600 kg.

Work 230Vac and has electromechanical race end, which allow to establish the end opening and closing points by means of the corresponding cams installed on the rack.

In case of absence of current, the engine has unlocking manual by key, allowing you to free the automation and move the door manually.

The degree of protection of the operator is IP44, being designed for exterior installation.

The Simply uses the plant VDS EURO230M1, designed to manage a 230VAC engine.

The plant allows to configure the operation of the automation and manage different control devices and safety.

It has two independent regulations: T1 for force during normal maneuver and T2 for force during the phase of slowdown.

The programming of the route and the controls is carried out by self-learning procedures.

✓ 1 engine 230VAC.

✓ Function of automatic closure.

✓ Community operation or step by step.

✓ Entry of pedestrian opening.

✓ Start entry.

✓ Stop entry.

✓ Input for closing photocell.

✓ Input for band or safety in opening.

✓ Management of opening and closing career end.

✓ Encoder input.

✓ Function of slow down / soft stop.

✓ Independent regulation of strength on travel and slowdown.

✓ Exit for flashing lamp 230VAC.

✓ Exit for 230VAC courtesy light.

✓ Accessory feeding 24VAC / 250 mA.

✓ Management of fixed code or ROLLING CODE.

✓ Memory for 254 controls.

The Kit incorporates 2 controls VDS Eco R Reference E010 for the remote operation of the door.

The composition of the kit identifies these transmitters as ECO R 433.

A game of photocells VDS 12 / T with an indicated range of 50 meters.

The EURO230M1 power station has a specific entrance for closing photocell; when activated during the closure, the control panel can invest.

The kit includes 4 nylon zip units ref. 216/1.

The zipper transmits the movement of the engine pinion to the door leaf and should be installed by leaving the proper slack between pinion and zipper.

Important before installing

The door must be moved manually in shape soft, regular and without frogs.

The manual indicates that the status of the lower guide, wheels and upper guide, in addition to installing a mechanical safety stop that avoids the leaf to leave their guides.

The installation and start-up must be performed by qualified personnel.

■ 1 × engine VDS Simply 600K 230VAC ref. 11010 / 1FG.

■ 1 × electronic Central EURO230M1 built-in.

■ 2 × controls VDS ECO R 433.

■ 1 × photocell game VDS 12 / T up to 50 m.

■ 4 × nylon zippered sections VDS 216/1.
