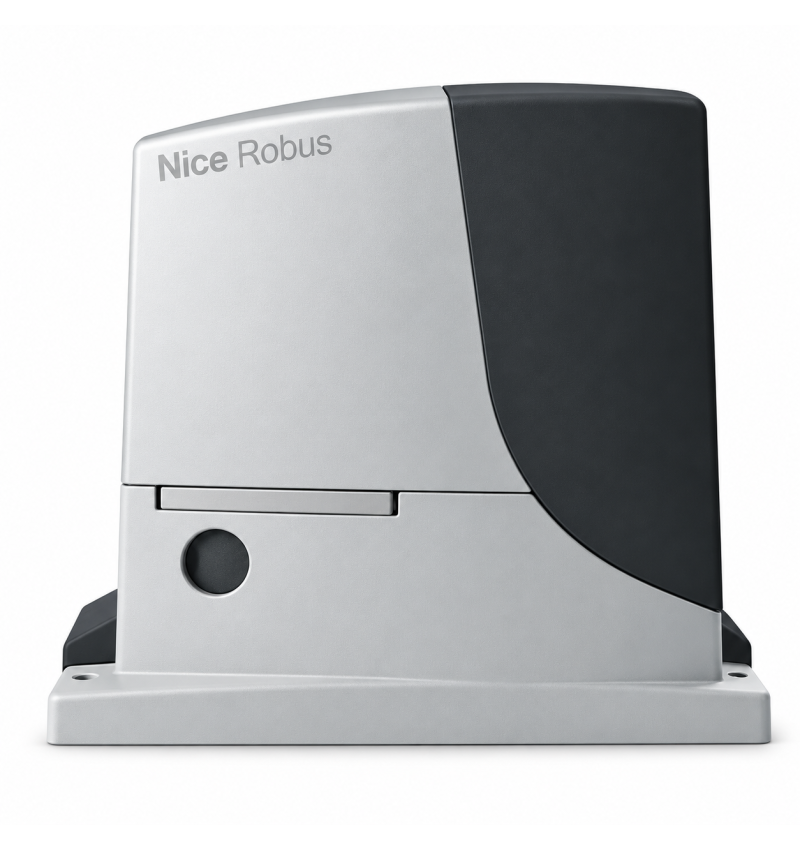

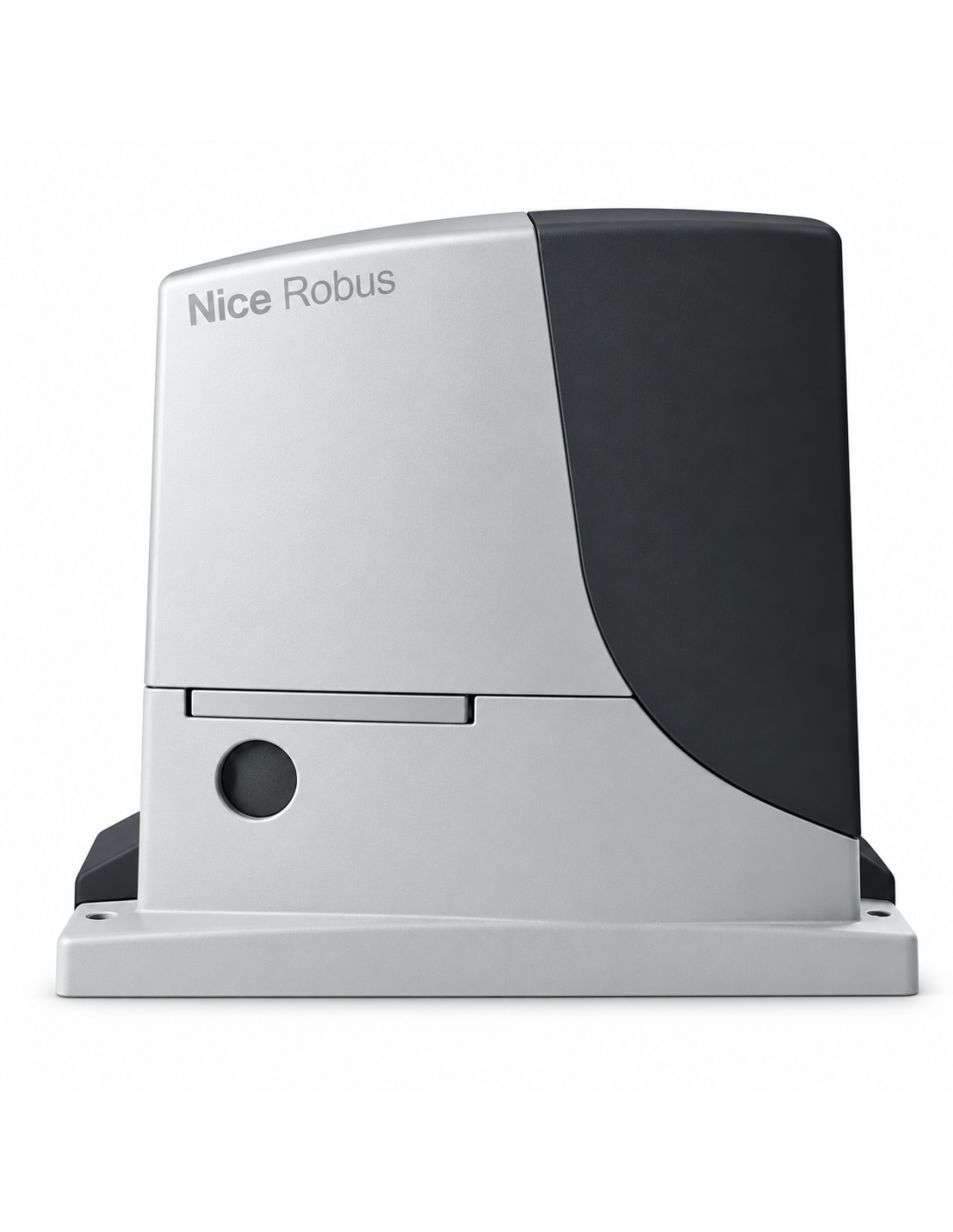

Engine Nice Robus 1000 RB1000 24V for sliding door up to 1000 kg

Sliding engine Nice Robus 1000 RB1000 24V Up to 1000 Kg

The Nice ROBUS 1000 RB1000 is an irreversible electromechanical gearmotor 24 VDC designed to automate sliding doors of up to 1000 kg.

Incorporates integrated command electron central, technology Nice Bluebus and end of electromechanical race, offering a flexible installation and advanced management of the control devices and security.

The RB1000 develops a maximum force of 900 N and reaches a speed of 0.28 m / s, equivalent to approximately 16.8 m / min.

Is ready to work with systems Nice Bluebus, Opera and optional accessories such as radio receiver, emergency battery and solar power.

Robus for sliding doors up to 1000 kg

✓ Maximum door weight: 1000 kg.

✓ Maximum length length: up to 12 meters.

✓ Irreversible gearmotor 24 VDC.

✓ Network supply 230 VAC / 50-60 Hz.

✓ Maximum force: 900 N.

✓ Technology Nice Bluebus.

✓ sliding doors of up to 1000 kg.

✓ Motorreductor irreversible of 24 VDC.

✓ Electronic Central Nice integrated.

✓ End of Electromechanical Race.

✓ Technology Bluebus to simplify the connection of compatible accessories by two threads.

✓ obstacle detection.

✓ Automatic programming of work times.

✓ Acceleration and deceleration adjustable at the beginning and end of the maneuvers.

✓ Temperature sensor to adapt the engine operation to environmental conditions.

✓ self-diagnosis by signaling the flashing lamp.

✓ Possibility of configuration Master / Slave to synchronize two automatisms in conflicted sliding doors.

✓ Compatible with system Nice Opera.

✓ Prepared for optional emergency battery Nice PS124.

✓ Manual unlocking by key to move the door in the absence of power.

The system Nice Bluebus allows you to connect different compatible control devices and safety using only two drivers.

This technology considerably simplifies the wiring of photocells and other accessories Nice Bluebus.

Robus electronics allows detecting obstacles during the displacement of the door and control the effort made by the engine.

The system also has automatic programming of work times.

The phases of acceleration and deceleration they can be regulated at the beginning and at the end of the maneuvers to achieve a more progressive movement.

The system allows you to select a configuration Master / Slave to automatically synchronize two Robus motors installed in two sliding doors confronted.

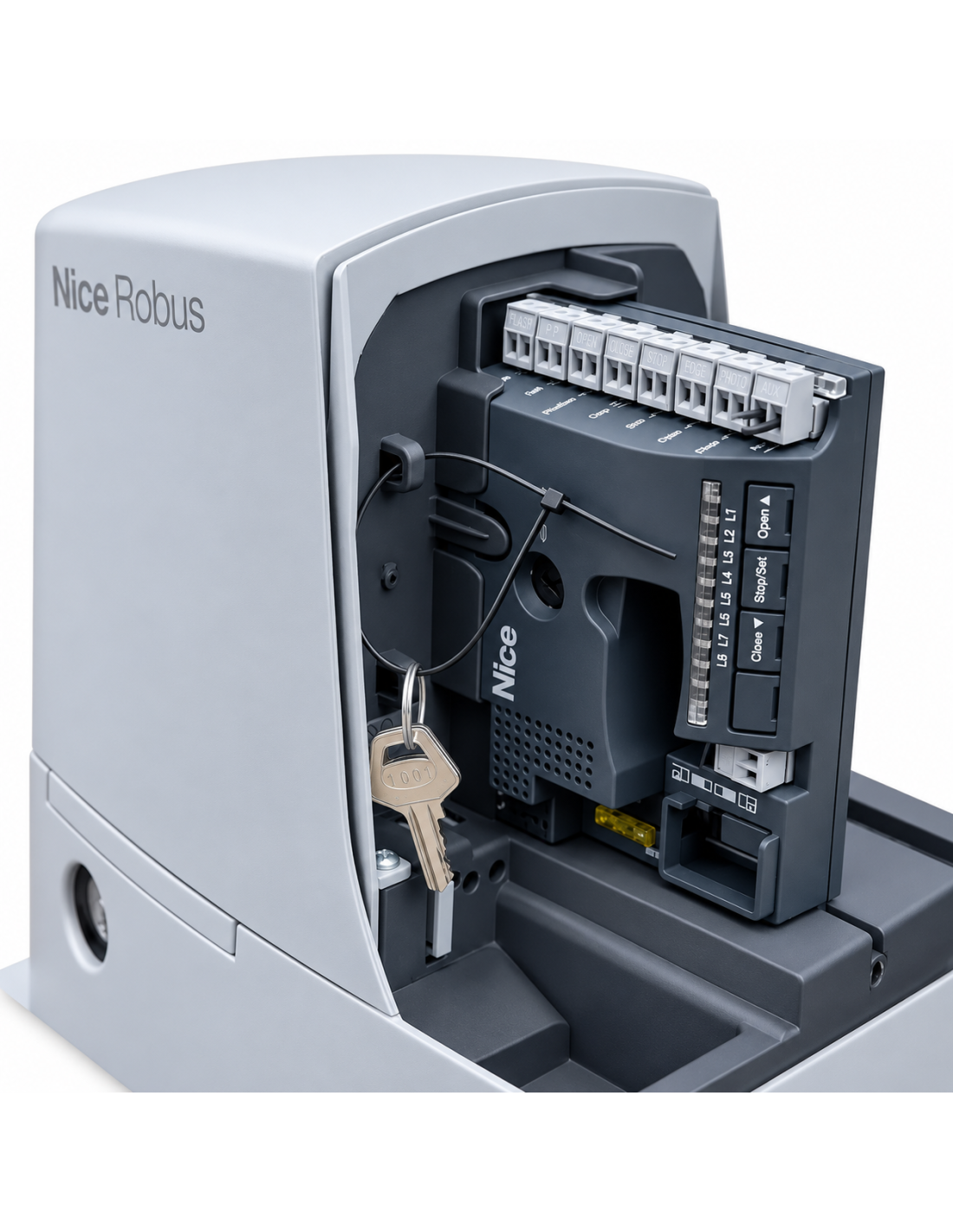

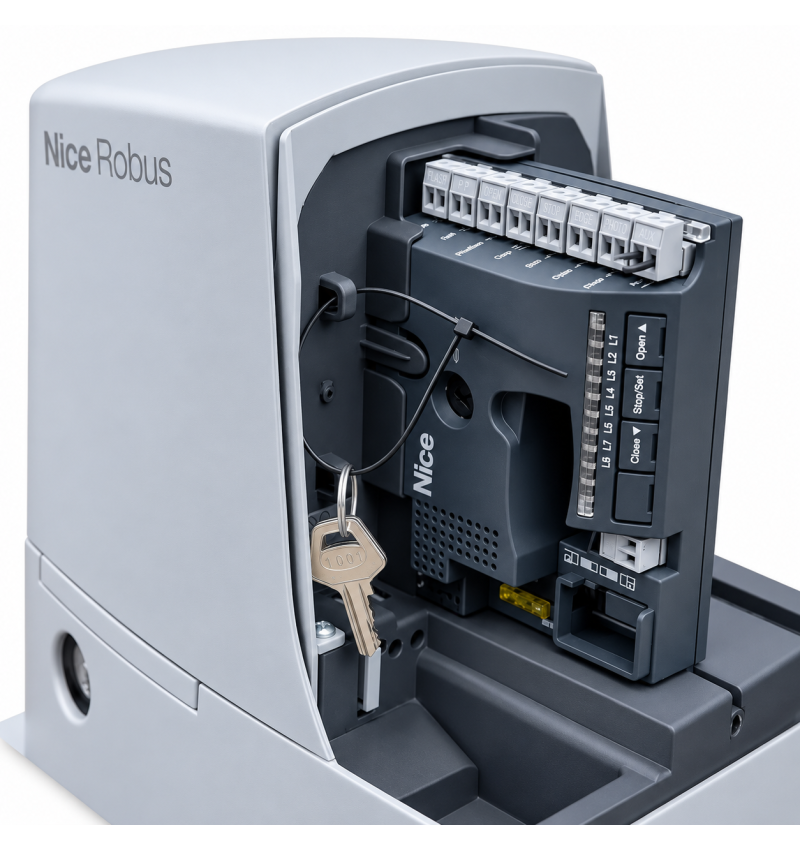

The control panel has a connector to install radio receivers Nice compatible, like the plug-in receptors of the OXI family.

The radio receiver and the controls are not included as standard in the RB1000 engine unless expressly indicated in the acquired configuration or kit.

In case of lack of power, the door can be unlocked manually by key.

The backup battery Nice PS124, which allows certain maneuvers during a temporary interruption of the current.

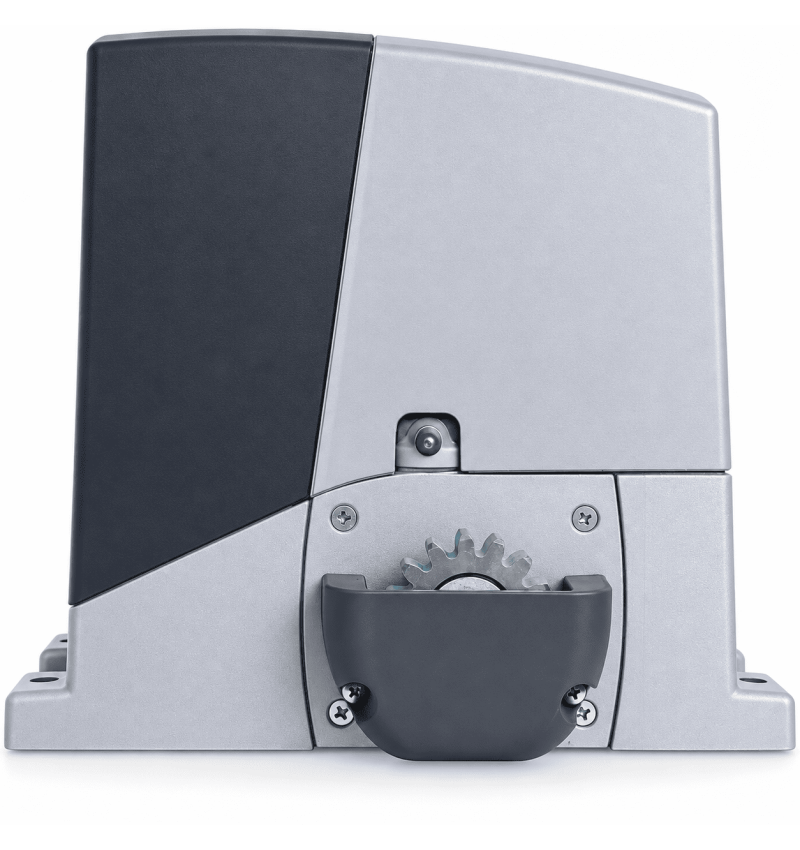

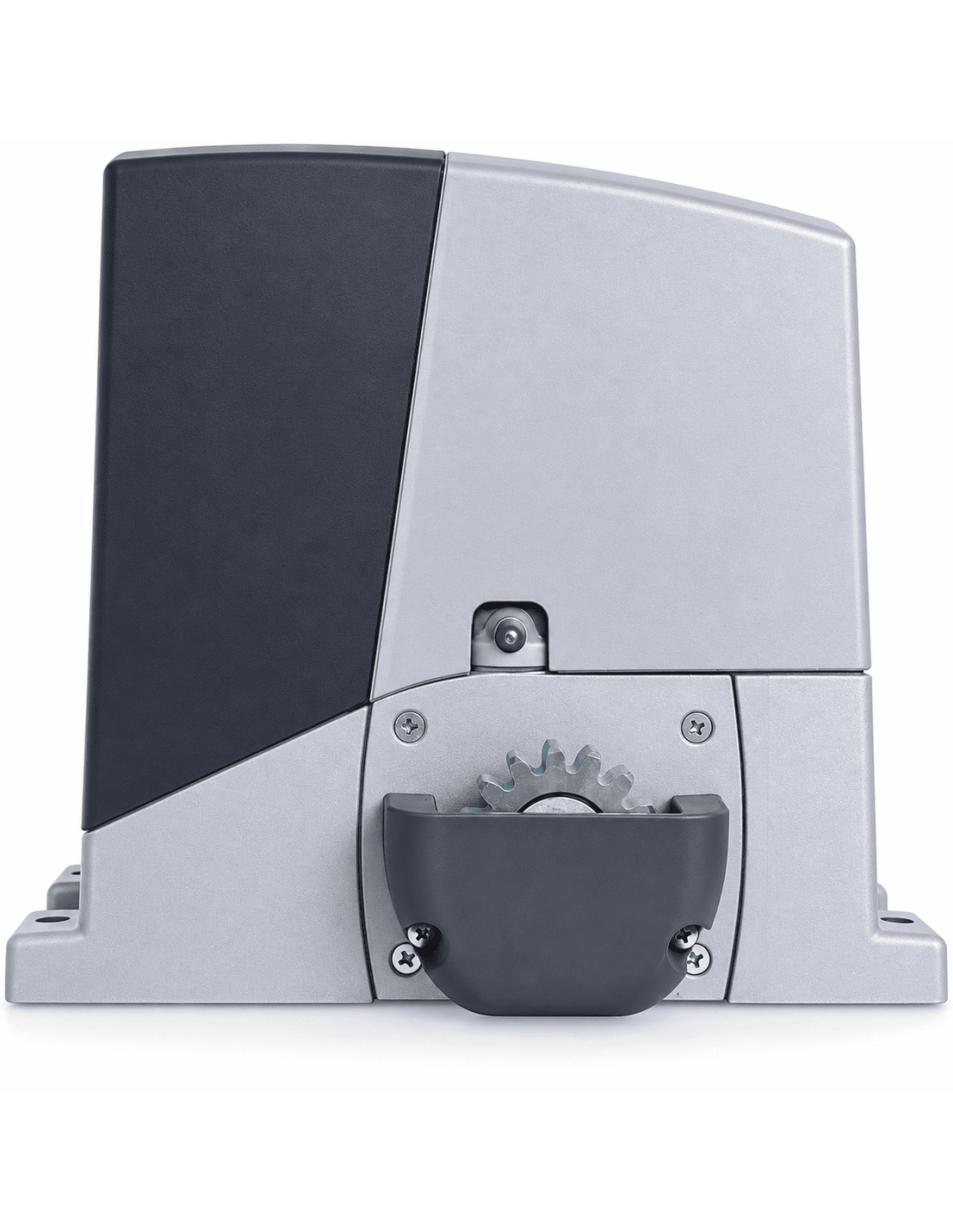

The engine works by means of a system of pinion and zipper.

Metallic zippers can be used for heavy doors Nice compatible, selecting the appropriate model according to the weight and features of the door.

The zipper is not included with the engine unless expressly indicated.

Important before placing the order

The limits of 1000 kg and 12 meters they are maximum values of automatism. The correct selection should also take into account the friction of the door, wheel status, guide, zipper, slope and environmental conditions.

The receiver, Controls, Photocells, Lamp, Battery PS124 and Zipper they are optional accessories and are not included unless expressly indication.
