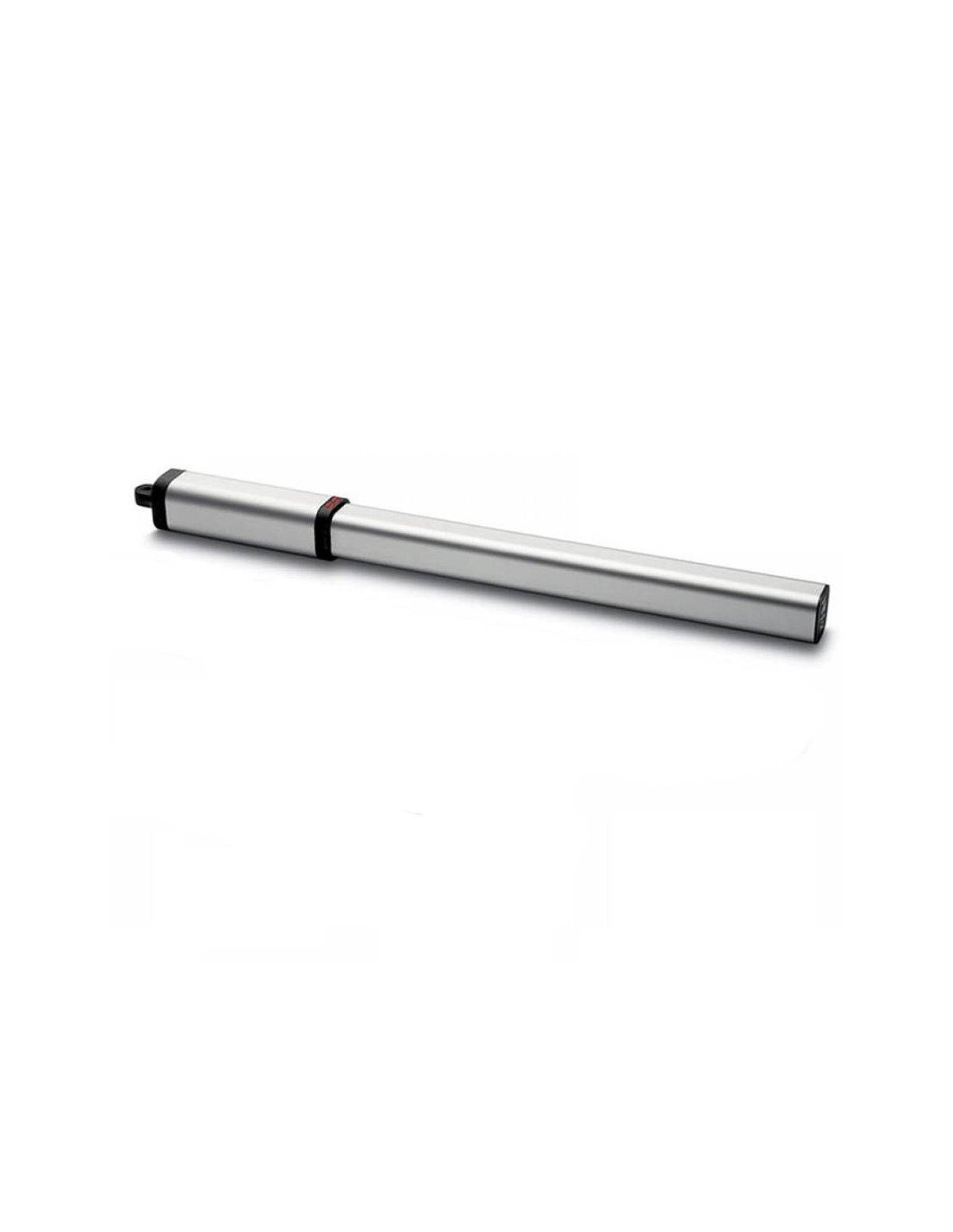

BFT LUX

Range of BFT 230V hydraulic LUX motors with very intensive use from 2 to 5 m in length.

Complete range of very intensive use hydraulic pistons, suitable for any type of application: residential, industrial or community. Compact and robust, they can automate swing gate leaves up to 5 metres wide and weighing up to 800 kg. Available in reversible or irreversible versions, they guarantee maximum torque regulation precision thanks to bypass valves.

LUX BFT CHARACTERISTICS

Structure entirely made of aluminum with high-strength anodizing.

In the 230 V versions, the bypass valves allow precise torque regulation when opening and closing, separately and independently.

The closing deceleration (R versions) ensures quiet and smooth movements of even the most voluminous doors. In addition, by means of a screw it is possible to regulate the deceleration intensity according to each situation.

MODELS AVAILABLE BFT LUX

■ LUX: 230V hydraulic operator for swing gates weighing up to 300 kg and 2 m long. Useful stroke of 270mm, maximum angle of 123º, electric lock lock and reversible release. Manoeuvring time 17s. Power absorbed 250W.

■ LUX B: 230V hydraulic operator for swing gates weighing up to 300 kg and 2 m long. Useful stroke of 270mm, maximum angle of 123º, hydraulic locking in locking and unlocking with a triangular key. Manoeuvring time 17s. Power absorbed 250W.

■ LUX 2B: 230V hydraulic operator for swing gates weighing up to 300 kg and 2 m long. Useful stroke of 270mm, maximum angle of 123º, hydraulic locking in opening-closing and unlocking with a triangular key. Manoeuvring time 17s. Power absorbed 250W.

■ LUX FC 2B: 230V hydraulic operator for swing gates weighing up to 300 kg and 2 m long. Useful stroke of 280mm, maximum angle of 117º, hydraulic lock in opening, locking, built-in limit switch and triangular key release. Manoeuvring time 17s. Power consumption 280W.

■ LUX R 2B SN2: 230V hydraulic operator for swing gates weighing up to 300 kg and 2 m long. Useful stroke of 250mm, maximum angle of 101º, hydraulic locking in opening, closing, deceleration in closing and unlocking with a triangular key. Manoeuvring time 16s+dec. Power absorbed 250W.

■ LUX L: 230V hydraulic operator for swing gates weighing up to 500 kg and 4 m long. Useful stroke of 270mm, maximum angle of 123º, electric lock lock and reversible release. Manoeuvring time 33s. Power absorbed 250W.

■ LUX LR: 230V hydraulic operator for swing gates weighing up to 500 kg and 4 m long. Useful stroke of 270mm, maximum angle of 101º, electric lock locking, deceleration in closing and reversible unlocking. Manoeuvring time 33s+dec. Power absorbed 250W.

■ LUX G: 230V hydraulic operator for swing gates weighing up to 800 kg and 5 m long. Useful stroke of 390mm, maximum angle of 130º, electric lock lock and reversible unlocking. Manoeuvring time 48s. Power absorbed 250W.

■ LUX GV: 230V hydraulic operator for swing gates weighing up to 300 kg and 3.5 m long. Useful stroke of 390mm, maximum angle of 130º, electric lock lock and reversible unlocking. Manoeuvring time 28s. Power absorbed 250W.

■ LUX GV-2B: 230V hydraulic operator for swing gates weighing up to 300 kg and 3.5 m long. Useful stroke of 390mm, maximum angle of 130º, electric lock locking, deceleration in closing and reversible unlocking. Manoeuvring time 28s + deceleration. Power absorbed 250W.

■ LUX GV-R: 230V hydraulic operator for swing gates weighing up to 300 kg and 3.5 m long. Useful stroke of 390mm, maximum angle of 130º, electric lock locking, deceleration in closing and reversible unlocking. Manoeuvring time 28s + deceleration. Power absorbed 250W.

■ LUX MB: 230V hydraulic operator for swing gates weighing up to 300 kg and 2.3 m long. Useful stroke of 270mm, maximum angle of 123º, hydraulic locking in locking and unlocking with a triangular key. Manoeuvring time 23s. Power absorbed 250W.

TECHNICAL CHARACTERISTICS BFT LUX

LUX BFT MEASUREMENTS

MANUAL BFT LUX

Technical data sheet BFT LUX range

Instruction manuals BFT LUX Range
