Engine Aprimatic XT2500 & XT2500L 230V for doors up to 3/4 metres by sheet
XT2500
€305.00
VAT excluded
369,05 €
Tax incl.
Engine Aprimatic XT2500 electro-mechanical 230 Vac for hinged doors up to 10 feet per leaf (XT2500) and up to 4 metres per leaf (XT2500L).
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky

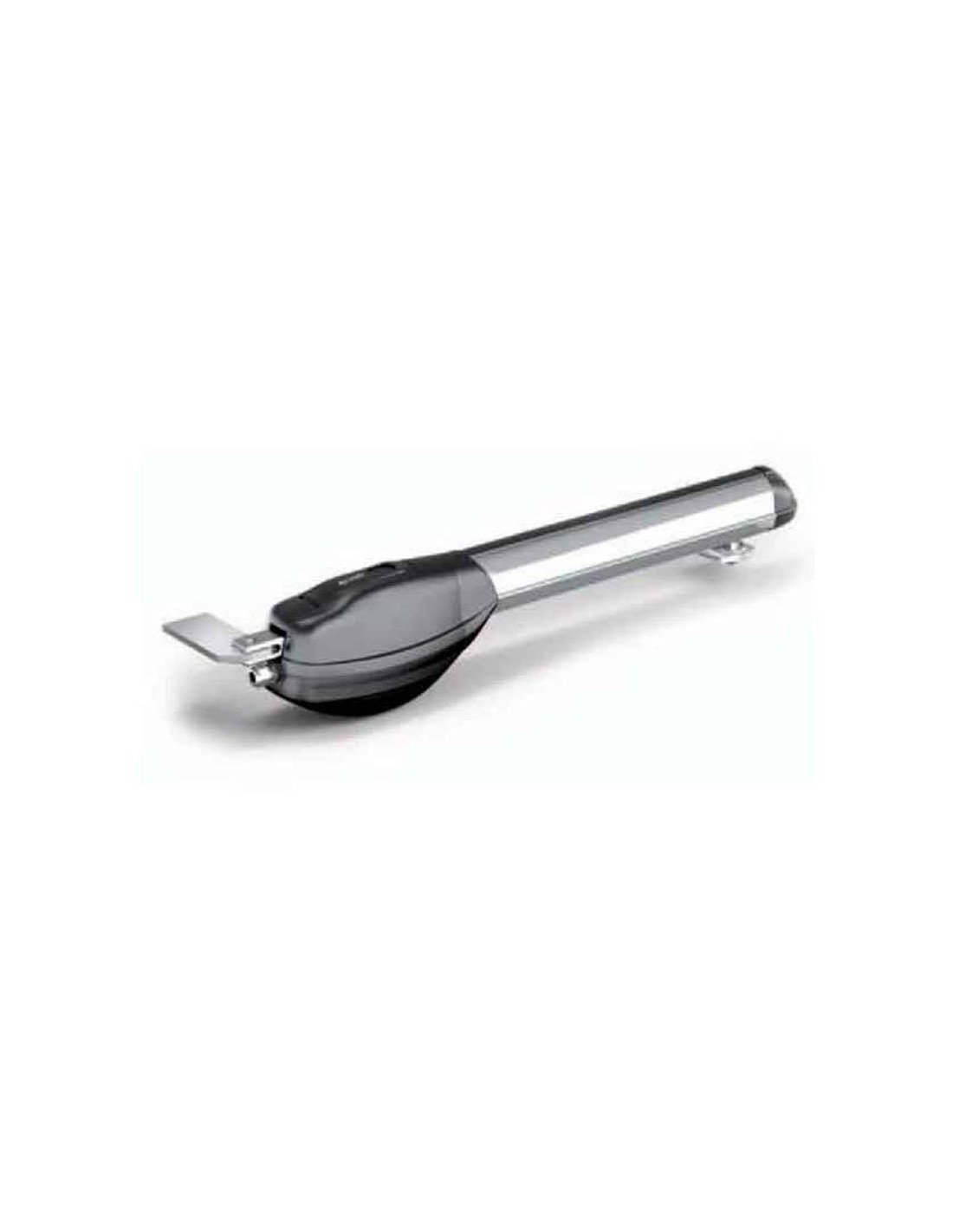

Engine Aprimatic XT2500 electro-mechanical 230 VacFor hinged doors up to10 feet per leaf (XT2500) and up to 4 metres per leaf (XT2500L).
Built on a sturdy aluminium chassis injected and oven-laced with special exterior epoxy resin. Residential use and small community.
- Robust chassis with endless drive in one piece supported on bearings.
- Endless drive nut made of bronze.
- Integrated race finishes (optional closing).
- Quick and easy unlock.
MANUALS
Manual installation Aprimatic XT2500
TECHNICAL SPECIFICATIONS
| XT 2500 | XT 2500L | |
|---|---|---|
| FOOD | 230 VAC/50 Hz | 230 VAC/50 Hz |
| POWER | 200 W | 200 W |
| CURRENT | 1.1 TO | 1.1 TO |
| PUSH | 2500 N | 2500 N |
| TRAVELLED | Other | Other |
| Opening time 90o | 19 s | 27 s |
| WORKING FACTOR | 40% | 40% |
| ENGINE HEAT PROTECTION | 140 oC | 140 oC |
| THERMAL RANGE | -20 °C or +55 °C | -20 °C or +55 °C |
| DEGREE OF PROTECTION | IP 43 | IP 43 |
| WEIGHT | 7,2 kg | Other |
| BUILT-IN CONDENSER | 15 μF | 15 μF |
| SPEED | 1,66 cm/s | 1,66 cm/s |
| LEAF WIDTH | 3 m | 4 m |
- Type of engine
- Electromechanical 24V
- Type of door
- Residential door
