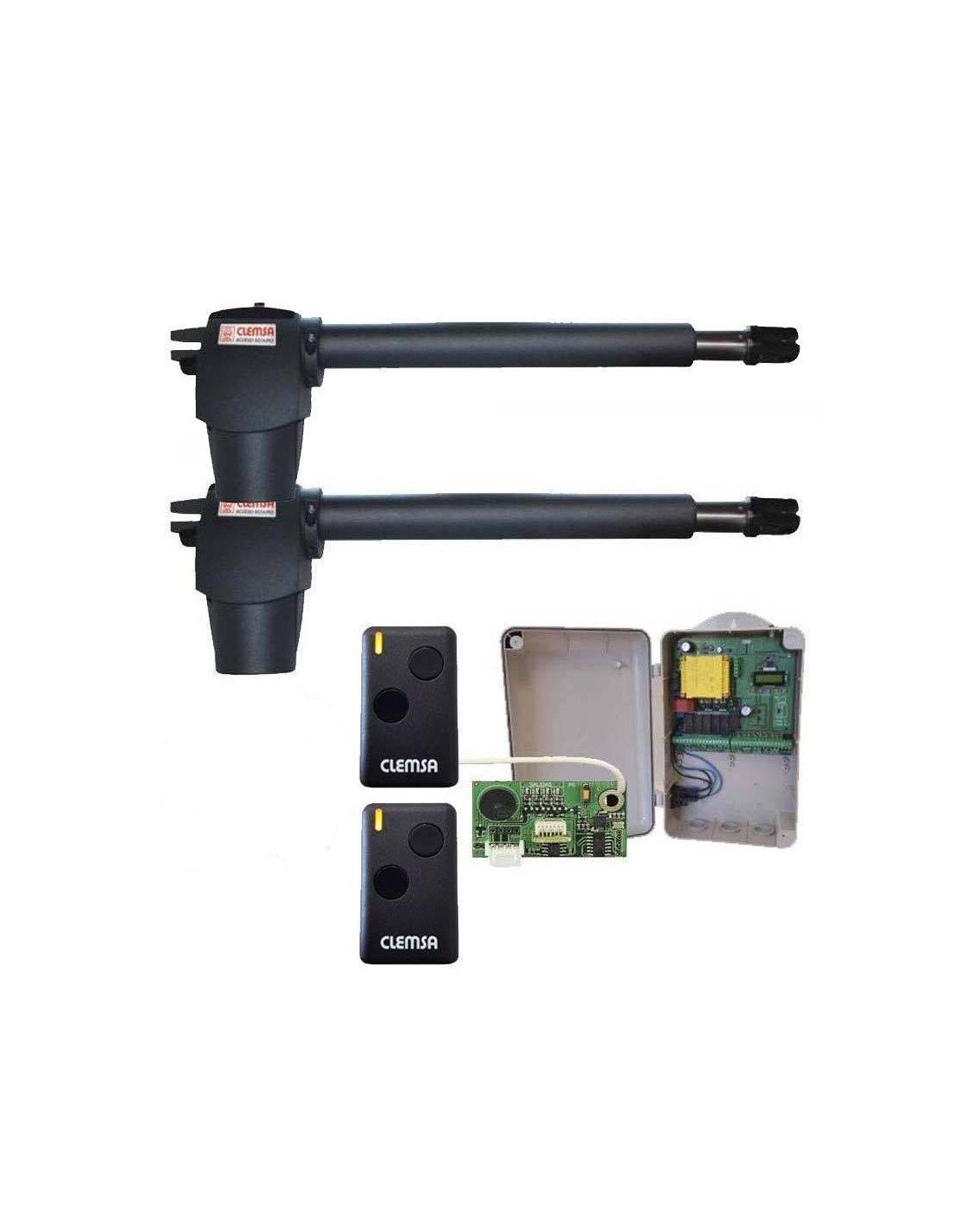

KIT engines Clemsa AA30 230 V electromechanical two-bladed swing doors for a maximum length of 3m by sheet. What. The AA30 model is ideal for automating residential doors for non-intensive use.

• Parts and accessories Clemsa with left and right position for hinged doors up to 3 metres in length.
• This gearbox motor is electromechanical and feeds at 230VAC, it has a power of 280W.
• Operators wear the included lock to prevent the installation of an electric lock.
• Each motor is accompanied by an 8 μF capacitor
• The installation of this kit is quick and simple, it carries anchors to be able to perform the installation as soon as receiving the motors.

TECHNICAL CHARACTERISTICS

Electromechanical drive with lock on opening and closing, for blades up to 3 m. I use S3 30%. 25 cycles an hour. Power 280 W. Intake 1,2 A. Thermal protection at 140 oC. 300 mm race. Stem output speed of 1,6 cm/sec. Operating temperature from -20oC to 55oC. Weighs 6.5 kg. Exposed components in stainless steel. Protected unlocking with lock allowing blade movement without power supply.

THE KIT CONTAINS:

• 1 unit 3500002583: Drive to the right Clemsa AA 30 D
• 1 unit 3500002584Drive to left Clemsa 30 AND
• 1 unit 300000001786: Table of manoeuvres CLAS 16.1 for controlling two actuators at 230Vac
• 1 unit 120000002910: Plug-in receiver card RNE 248 LR
• 2 unid 110000002740NT2S RollingCode 433 MHz Mutan-II is a radio frequency
