Kit's OXYGEN PARIS 230V hydraulic motors intensive use for swing doors up to 3 meters per leaf.

The motors of the PARIS series are available in IRREVERSIBLE format (locking in opening and closing) and REVERSIBLE format (without locking, which would require an electric electric lock to lock the leaves in the closing). The actuators feature a 240 mm shank for residential or community doors up to 350 kg.

SPECIFICATIONS

• Power supply: 230Vac - 50/60Hz
• Motor: 1400
• Power: 250 W
• Thermal protection: 120º
• Capacitor: 10 μf
• Thrust force: 5500 N
• Shank travel: 240 mm
• Rod linear speed: 1.3 cm/sec
• - Blade Lock: Yes
• Hydraulic Soft Stop: No
• Pump capacity: 1 l/min
• Oil Type: Total 52 / AT 42
• Operating temperature: -20° C +70° C
• Degree of protection: IP 55
• Weight: 7 Kg
• Engine dimensions: 960 x 99 x 123
• Maximum blade length: 3 meters

CHARACTERISTICS OF THE NEREA FRAME

• Automatic or step-by-step operation (open-close-stop)
• Programmable automatic shut-off
• Programmable pedestrian opening
• Safety photocell connection
• Force regulation and initial starting by trimmer
• Deceleration regulation
• Connection for flashing light

TECHNICAL CHARACTERISTICS OF THE NEREA FRAME

• Power supply : 230 Vac 50-60 Hz 1600 W max.
• Intermittent output : 230 Vac 500 W max.
• Motor output : 230 Vac 50/60 Hz. 500 W max.
• Electric lock output : 12 Vdc 15 W max.
• Photocell power supply : 24 Vac 3 W max.
• LV safety devices and controls : 24 Vdc
• Working temperature : -10 to 55 °C
• Radio receiver : see model - Op transmitters. : 12-18 Bit or Rolling Code
• Max TX Codes in Memory : 150 (CODE or CODE PEAT.)
• Card dimensions : 140 x 125 x 45 mm.
• Container dimensions : 190 x 140 x 70 mm.
• Degree of protection : IP 56

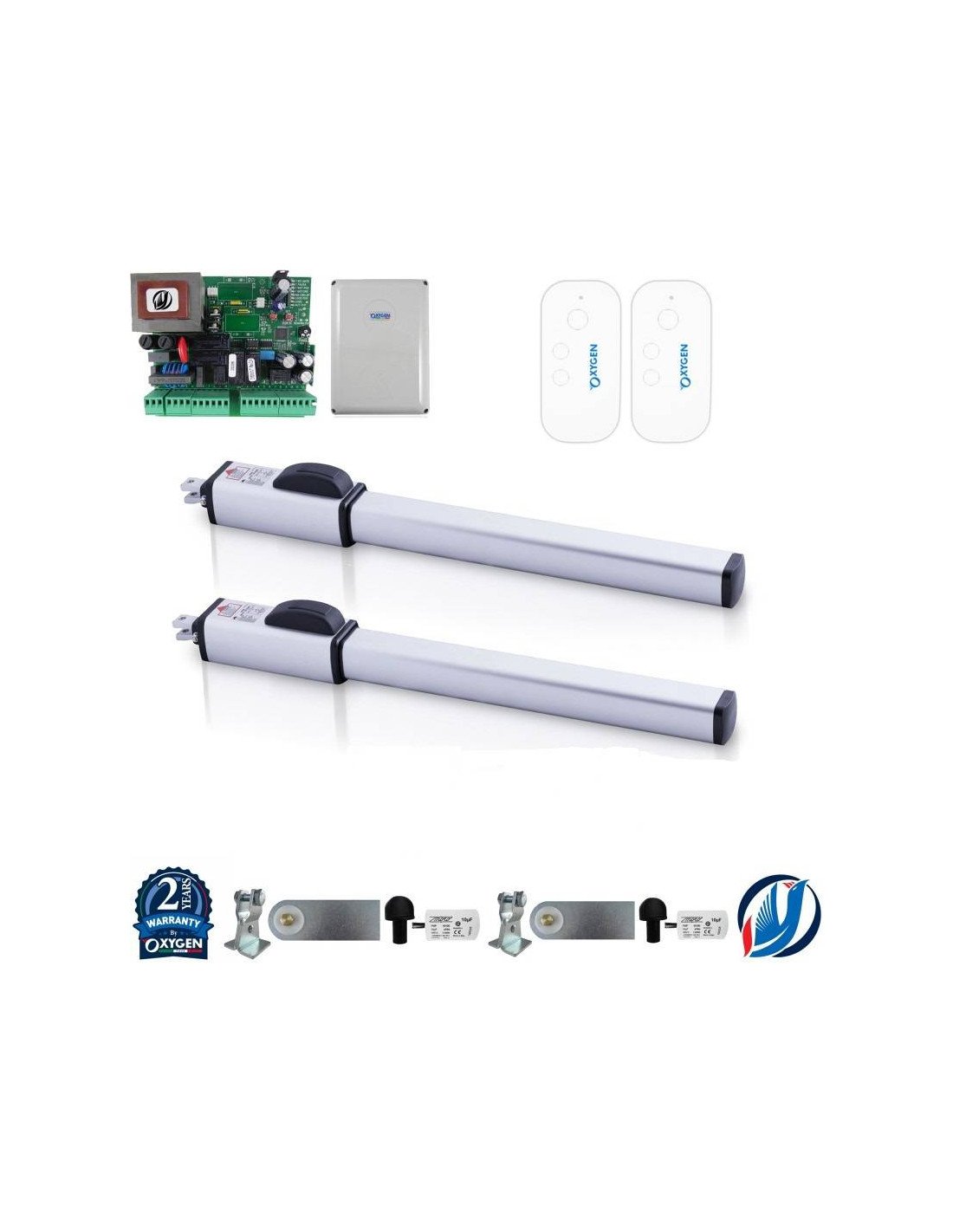

THE KIT CONTAINS

• 2x PARIS hydraulic motors to choose from IRREVERSIBLE or REVERSIBLE version
• 1x Nerea 230V Control Unit with Integrated Receiver
• 2x 433 MHz Controllers

MANUAL

PARIS Instruction Manual

NEREA Instruction Manual
