Kits OXYGEN ILIAD 230V hydraulic motors for heavy-duty swing doors up to 4 meters per leaf or 800 kg in weight.

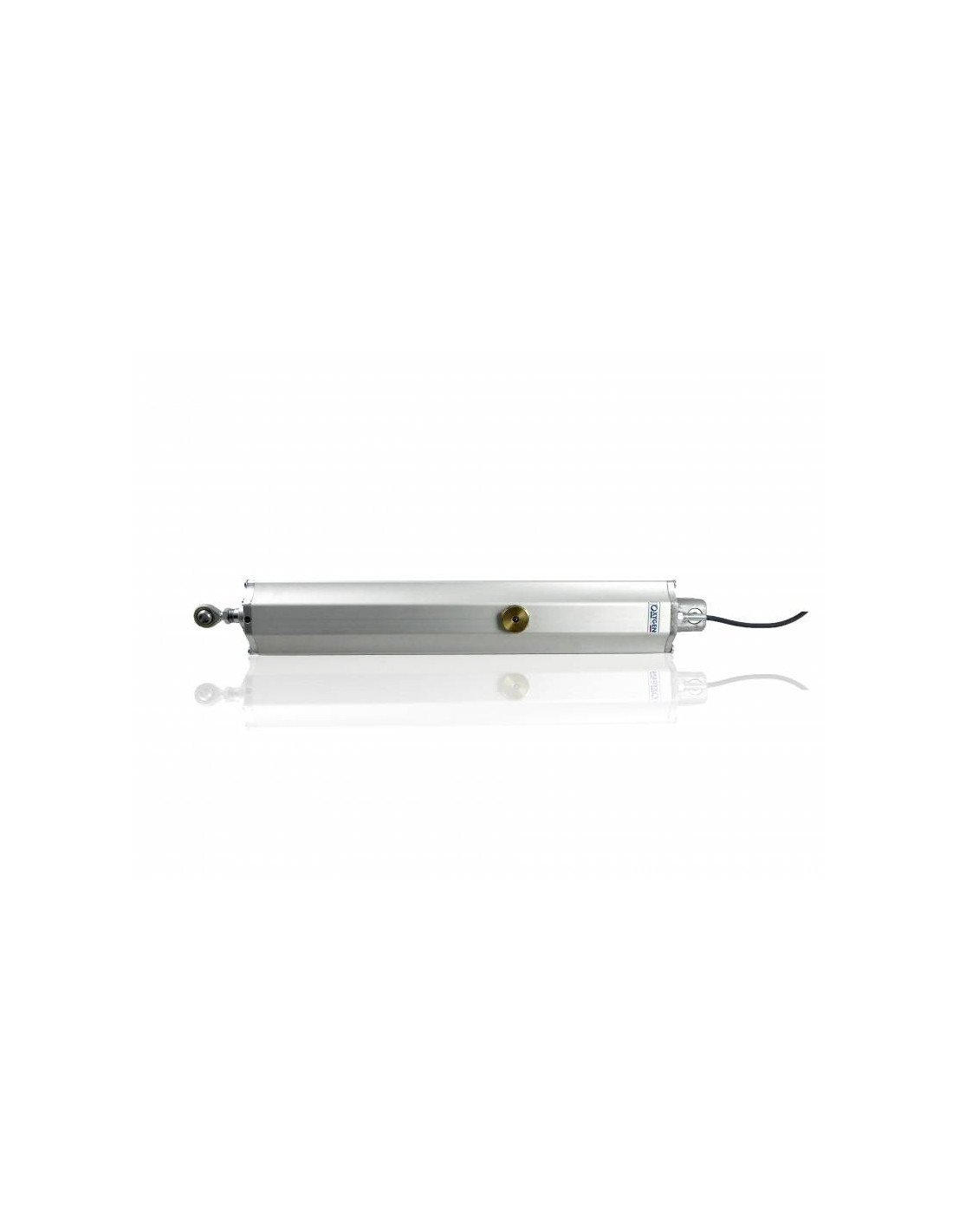

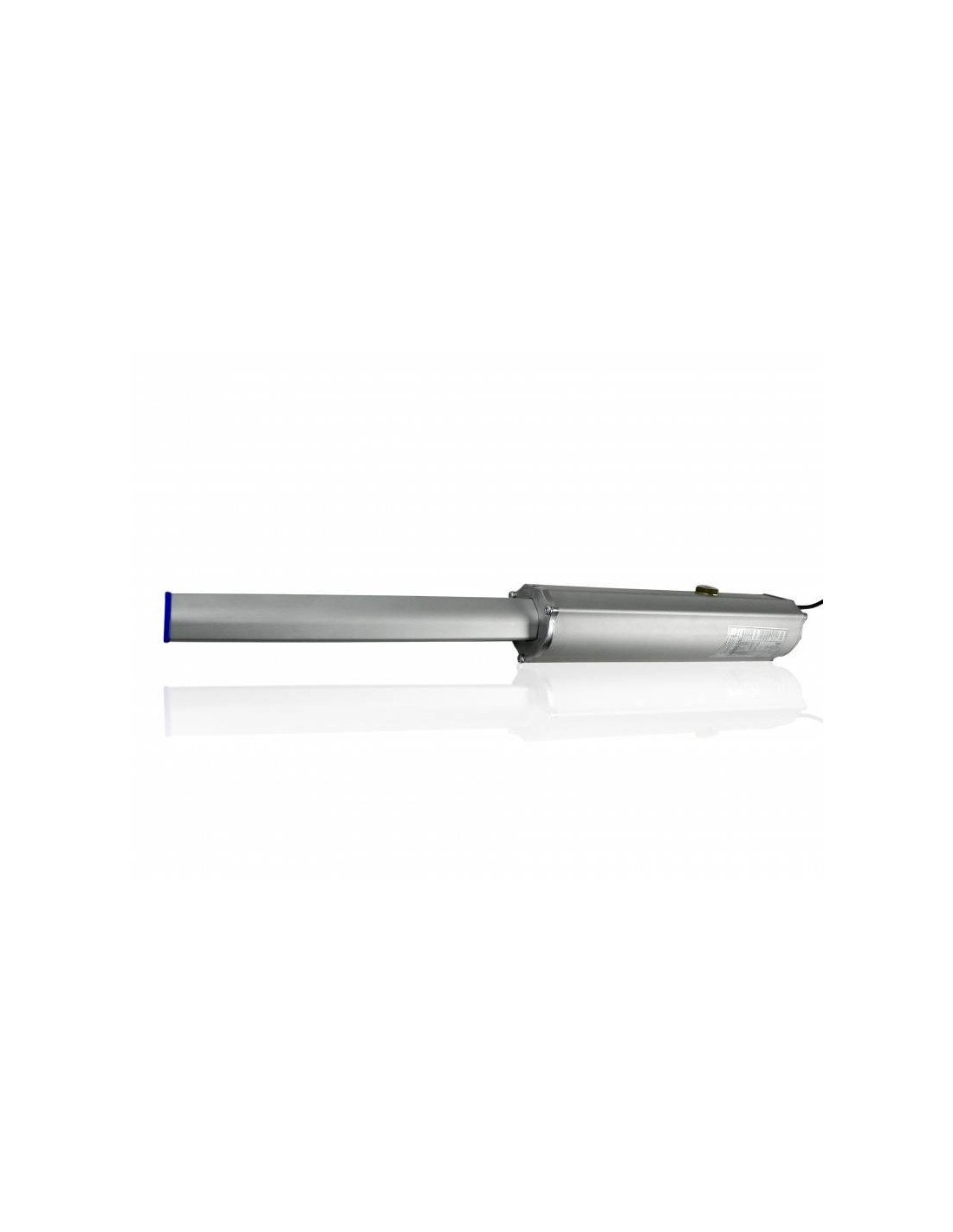

The heavy-duty ILIAD series motors are ideal for motorizing residential, community or industrial swing doors with a 285 mm shank. It can be configured to work without locking, locking or semi-locking.

ILIAD FEATURES

• Power supply: 230V 50/60Hz
• Power: 276 W
• Power consumption: 1.2 A
• RPM: 1450
• Capacitor: 14μf / 250V
• Protection: IP55
• Thermal protection: 100ºC
• Frequency of use: intensive
• Pump flow: 1.25 liters
• Working pressure: 0/55 bar
• Opening force: 5995 N
• Clamping force: 7990 N
• Shank: 285 mm
• Hydraulic deceleration: 17 mm
• Reversibility Adjustment on Closure: Reversible / Irreversible / Semi-Reversible
• Weight: 10 kg

CHARACTERISTICS OF THE NEREA FRAME

• Automatic or step-by-step operation (open-close-stop)
• Programmable automatic shut-off
• Programmable pedestrian opening
• Safety photocell connection
• Force regulation and initial starting by trimmer
• Deceleration regulation
• Connection for flashing light

TECHNICAL CHARACTERISTICS OF THE NEREA FRAME

• Power supply : 230 Vac 50-60 Hz 1600 W max.
• Intermittent output : 230 Vac 500 W max.
• Motor output : 230 Vac 50/60 Hz. 500 W max.
• Electric lock output : 12 Vdc 15 W max.
• Photocell power supply : 24 Vac 3 W max.
• LV safety devices and controls : 24 Vdc
• Working temperature : -10 to 55 °C
• Radio receiver : see model - Op transmitters. : 12-18 Bit or Rolling Code
• Max TX Codes in Memory : 150 (CODE or CODE PEAT.)
• Card dimensions : 140 x 125 x 45 mm.
• Container dimensions : 190 x 140 x 70 mm.
• Degree of protection : IP 56

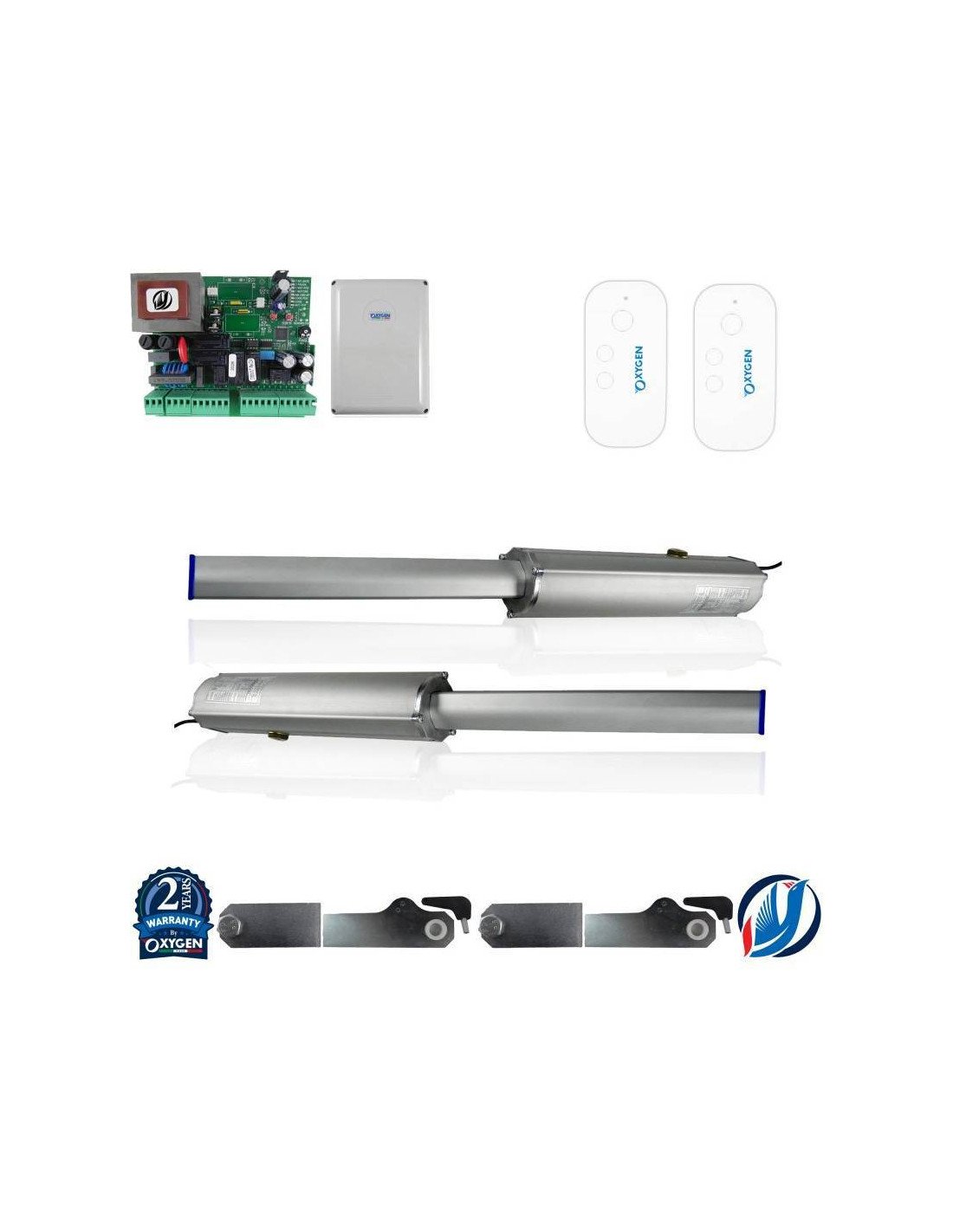

THE KIT CONTAINS

• 2x Iliad 230V hydraulic motors up to 4m (800 kg)
• 1x Nerea 230V control panel with integrated receiver
• 2x VENUS 433 MHz Controllers

DIMENSIONS

MANUAL

ILIAD Instruction Manual

Nerea Instruction Manual
