OXYGEN PARIS hydraulic motor at 230V irreversible heavy use for swing doors up to 3 meters per blade.

The engines of the PARIS series incorporate double lock but the use of electric lock is recommended, they have a 240 mm stem for residential or community doors up to 350 kg.

TECHNICAL CHARACTERISTICS

• FoodIn the case of vehicles of categories M1 and N2
• Electric motor: 1400
• Power: 250 W
• Thermal protection120o
• Capacitor10 μf
• Push force: 5500 N
• Path of the stemother:
• Linear velocity stem: 1.3 cm/sec
• Locking in sheetYes
• Hydraulic soft stopNo
• Pump capacity: 1 l/min
• Type of oilTotal of 52/AT 42
• Operating temperature20°C TO +70°C
• Degree of protection: IP 55
• Weight7 kg
• Engine dimensionsThe following: 960 x 99 x 123
• Maximum leaf length3 meters

CHARACTERISTICS

• Automatic or step-by-step operation
• Automatically programmable shutdown
• Programmable pedestrian opening
• Connected safety photocells
• Force regulation and initial start by trimmer
• Control of deceleration
• Connection for flashing light

TECHNICAL CHARACTERISTICS

• Food : 230 Vca 50-60 Hz 1600 W maximum.
• Intermittent output : 230 Vca 500 W maximum.
• Output from engines For the purposes of this Regulation:. 500 W maximum.
• Power lock output : 12 Vcc 15 W maximum.
• Power supply for photovoltaic cells : 24 Vca 3 W maximum.
• Safety devices and controls in BT : 24 Vcc
• Working temperature : -10 to 55 °C
• Radio receiver : see model - Optical transmitters. : 12-18 Bit or Rolling Code
• Maximum TX codes in memory : 150 (CODE or PEAT code.)
• Card dimensions The following: 140 x 125 x 45 mm .
• Dimensions of the container The following: 190 x 140 x 70 mm .
• Degree of protection : IP 56

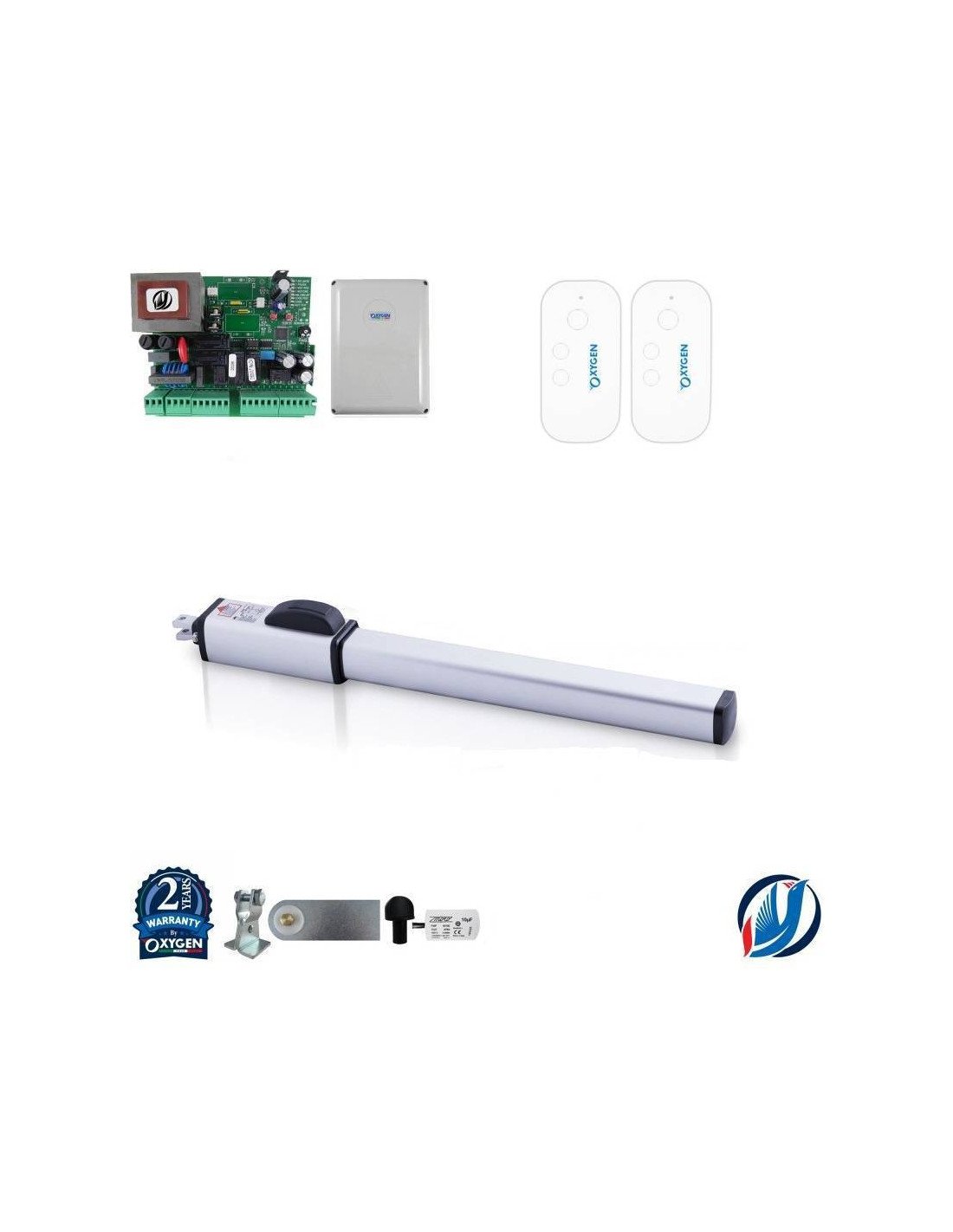

THE KIT CONTAINS:

• 1x hydraulic motor PARIS
• 1x Nerea 230V control unit with integrated receiver
• 2x controls 433 MHz
