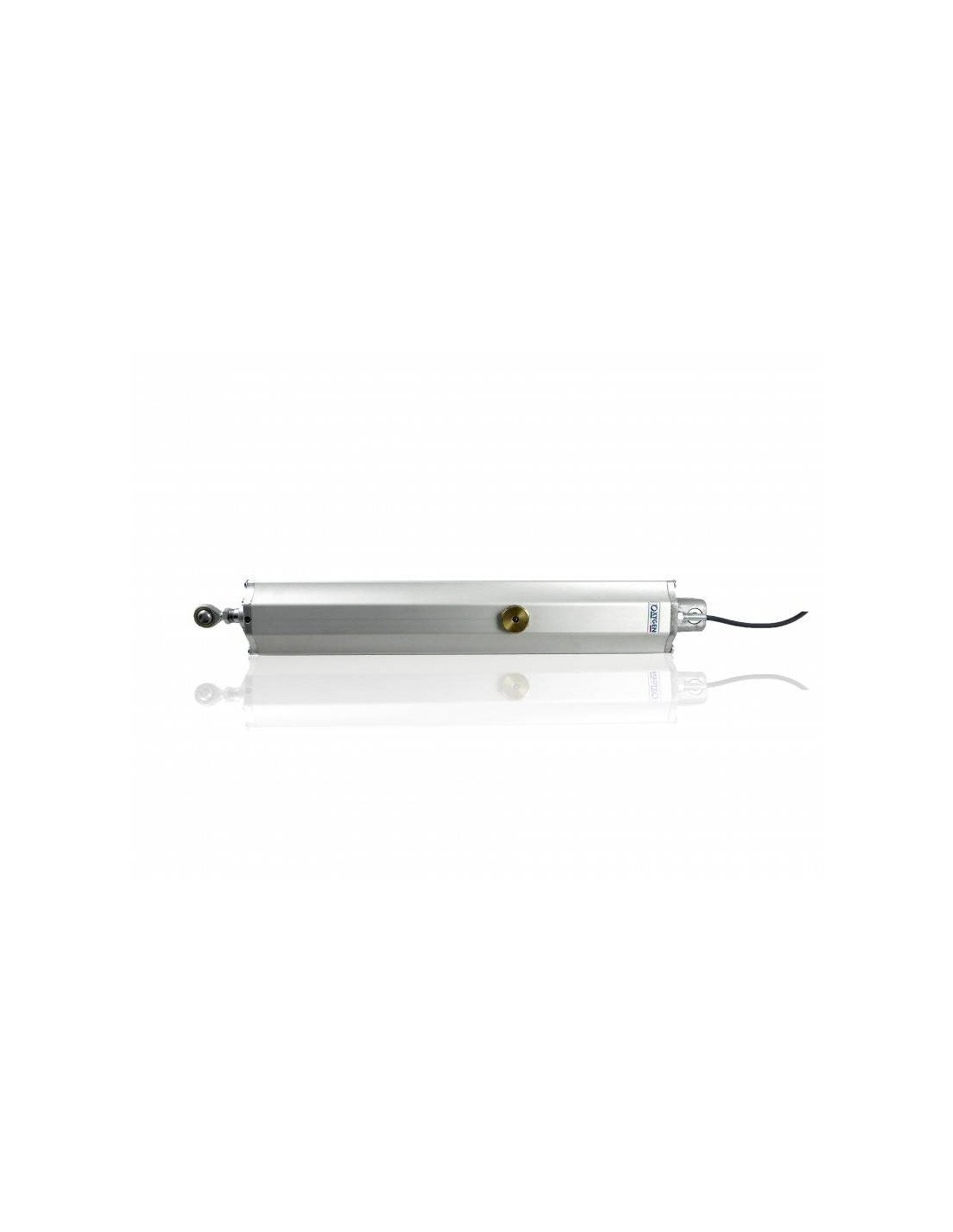

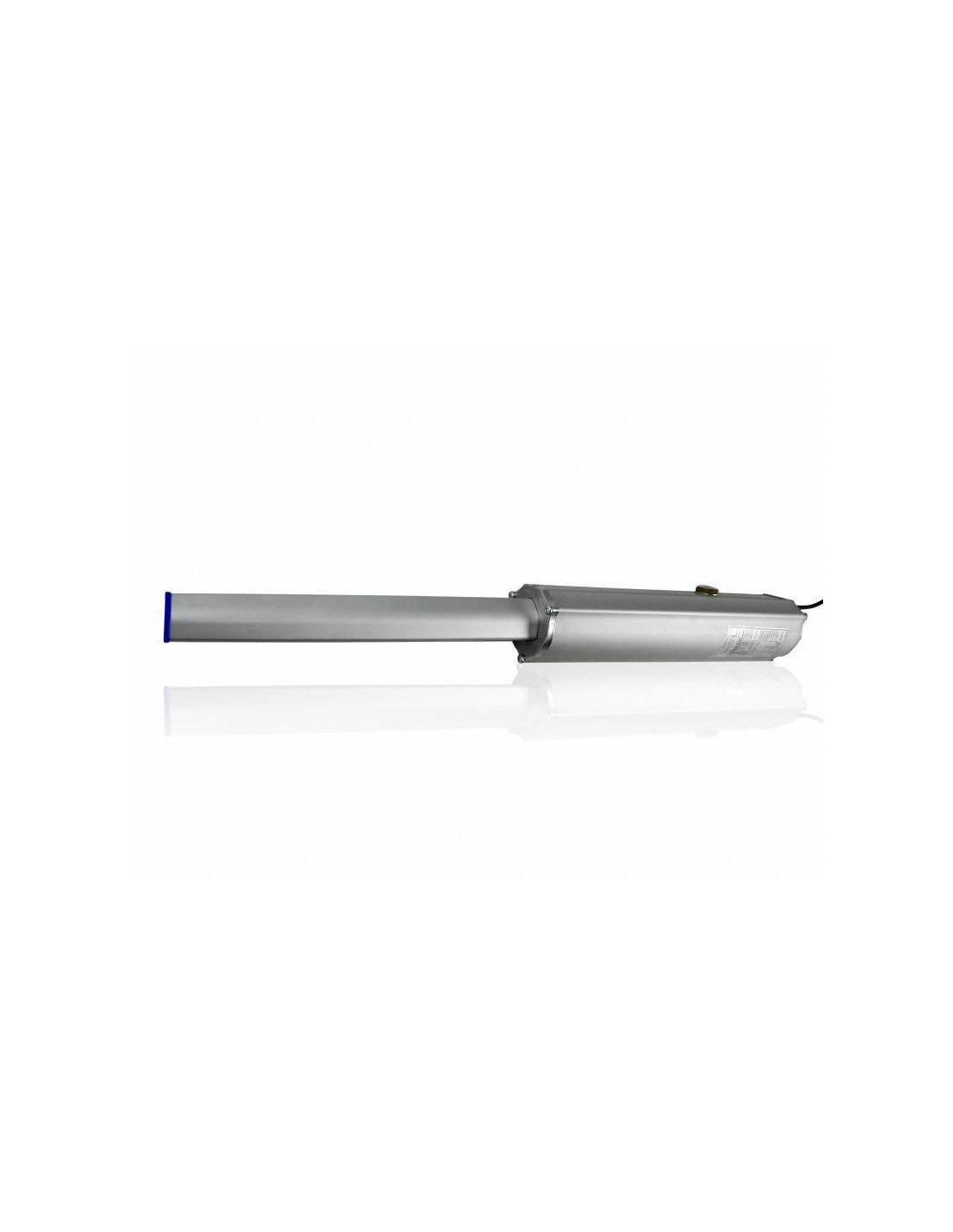

OXYGEN ILIAD 230V hydraulic motor kit for heavy duty swing doors up to 4 metres per blade or 800 kg weight.

The heavy duty ILIAD series engines are ideal for powering residential, community or industrial swing doors with a 285 mm stem. Allows it to be configured to work unlocked, locked or semi-locked.

CHARACTERISTICS

• FoodOther: 230V 50/60Hz
• Power: 276 W
• Power absorbed: 1.2 A
• RPM: 1450
• Capacitor: 14 μf / 250 V
• Protection: IP55
• Thermal protection: 100oC
• Frequency of use: intensive
• Pump flow: 1.25 litres
• Working pressure0/55 bars
• Opening force: 5995 N
• Locking force: 7990 N
• Wastedother:
• Hydraulic deceleration: 17 mm
• Reversibility of closing adjustmentReversible / Irreversible / Semi-reversible
• Weight: 10 kg

CHARACTERISTICS

• Automatic or step-by-step operation
• Automatically programmable shutdown
• Programmable pedestrian opening
• Connected safety photocells
• Force regulation and initial start by trimmer
• Control of deceleration
• Connection for flashing light

TECHNICAL CHARACTERISTICS

• Food : 230 Vca 50-60 Hz 1600 W maximum.
• Intermittent output : 230 Vca 500 W maximum.
• Output from engines For the purposes of this Regulation:. 500 W maximum.
• Power lock output : 12 Vcc 15 W maximum.
• Power supply for photovoltaic cells : 24 Vca 3 W maximum.
• Safety devices and controls in BT : 24 Vcc
• Working temperature : -10 to 55 °C
• Radio receiver : see model - Optical transmitters. : 12-18 Bit or Rolling Code
• Maximum TX codes in memory : 150 (CODE or PEAT code.)
• Card dimensions The following: 140 x 125 x 45 mm .
• Dimensions of the container The following: 190 x 140 x 70 mm .
• Degree of protection : IP 56

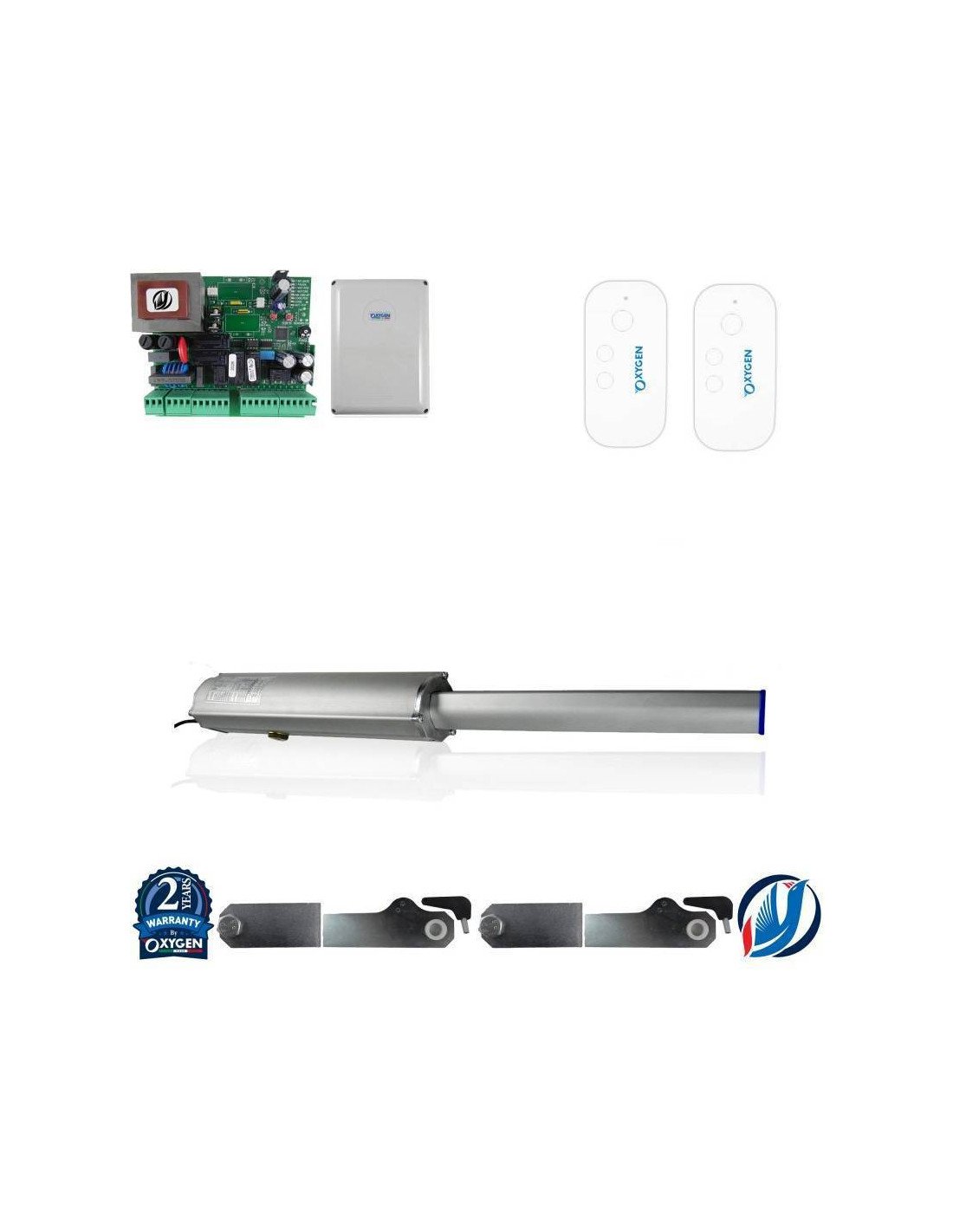

THE KIT CONTAINS:

• 1x Iliad 230V hydraulic motor up to 4m (800 kg)
• 1x Nerea 230V control panel with integrated receiver
• 2x controls VENUS 433 MHz

DIMENSIONS

MANUAL

Instruction manual for the ILIAD

Nerea instruction manual
