KIT Hydraulic engine Aprimatic For the purposes of this Regulation, the following definitions shall apply:, ideal for powering community use doors with high vehicle traffic.

The hydraulic operator FORTY40BS for one- or two-bladed designed for continuous use with 100% working factor. What. It uses a 36 Vcc gearbox motor with «brushless» technology. It has an absolute linear encoder that allows an exact control of the position and speed of the door.

Functions associated with the A40 BS control panel:

• Adjusting the blade speed.
• Deceleration at the ends of the track.
• Locking effect on opening and closing.
• Adjust the thrust force.
• Setting the sensitivity «auto-reverse».

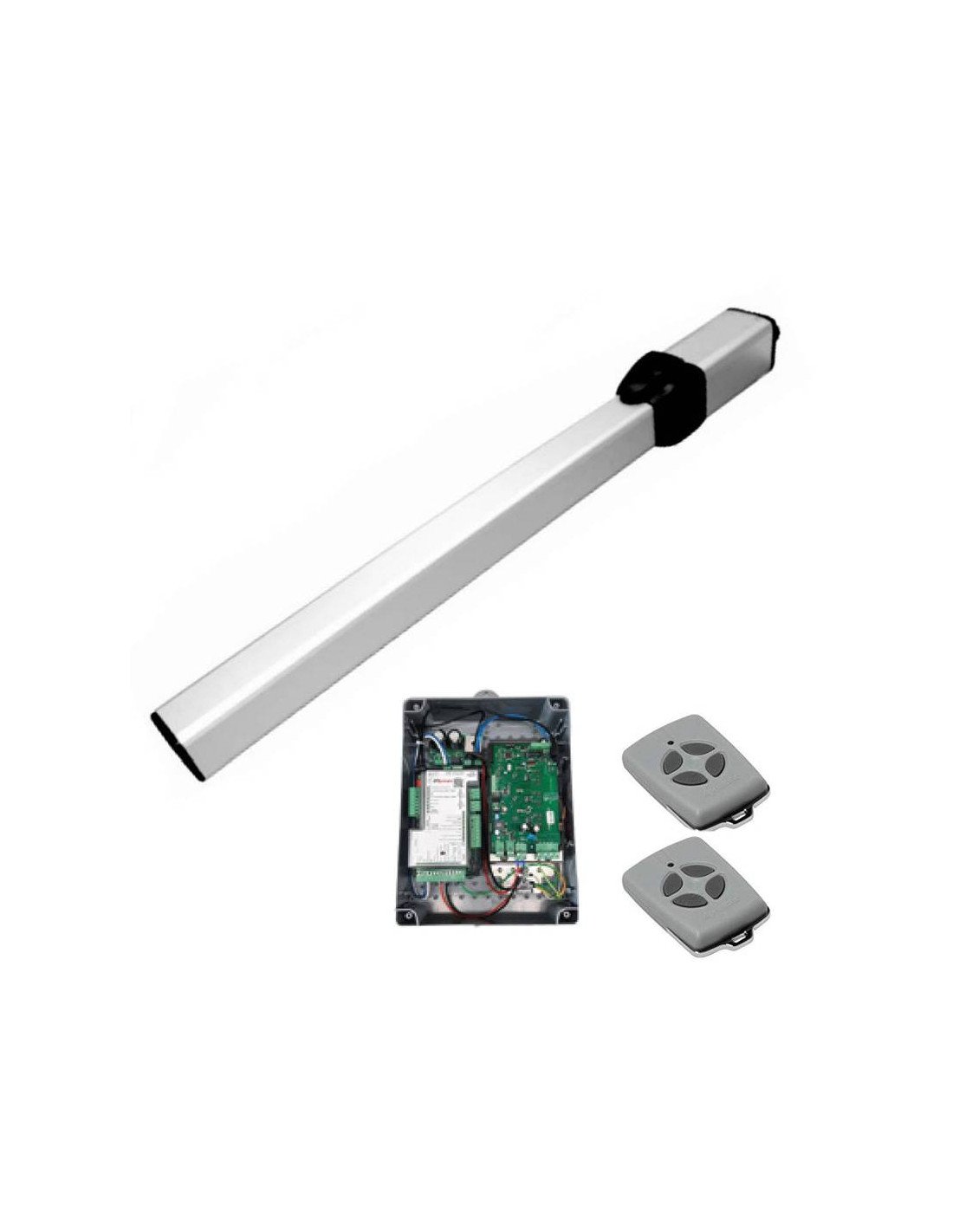

THE KIT KT02SZZ24 CONTAINS:

• 1 unit MANUFACTURE FROM MATERIALS OF ANY HEADING, EXCEPT THAT OF THE PRODUCT: hydraulic motor, force 640 daN, stroke 270 mm. Max length. 6m
• 1 unit A40 BS-1Table of manoeuvres for a 36 V brushless motor
• 2 unid TX4E: 4 channel transmitter 433 MHz

KIT KT02SZZ23 CONTAINS:

• 1 unit FORTY 40 BS 370 (660460016Q0): hydraulic motor, force 640 daN, stroke 370 mm. Max length. 7m
• 1 unitA40 BS-1Table of manoeuvres for a 36 V brushless motor
• 2 unidTX4E: 4 channel transmitter 433 MHz

TECHNICAL CHARACTERISTICS

(*) The frequency of use is valid for the first hour at 20°C. For temperatures below -20 °C it is recommended to use an external heating device

MEASURES

MANUAL

Technical data sheet Aprimatic FORTY40BS

Instruction manual Aprimatic A40 BS
