KIT Electromechanical engine Clemsa "AA 300 B" 230Vac irreversible with lock, for residential sliding doors up to 3 metres in length per sheet.

The actuator has a lock so it does not require the use of electric locks, however, it may be installed as a recommendation. The actuator stroke is 300 mm and the stem output speed is 1,6 cm/sec. Manufacture is made of stainless steel, and the unlock is protected with a lock giving it greater security and reliability.

CHARACTERISTICS

• Electromechanical drive with articulated arm for semi-intensive use on folding doors of not more than 3 metres in width transmitting the movement to the blade by means of an endless screw.
• Quick and easy installation thanks to a floating aluminum fork that compensates for possible structural defects.
• Maximum anti-crush safety thanks to an electronic device that regulates engine shutdown.
• It is equipped with electrical end runners at opening and closing.
• The unlock, fully protected with a lock, allows manual movement of the blade even without electrical power.
• All components exposed to atmospheric agents are made of stainless steel and the body of aluminum painted with double layer for increased durability and safety.

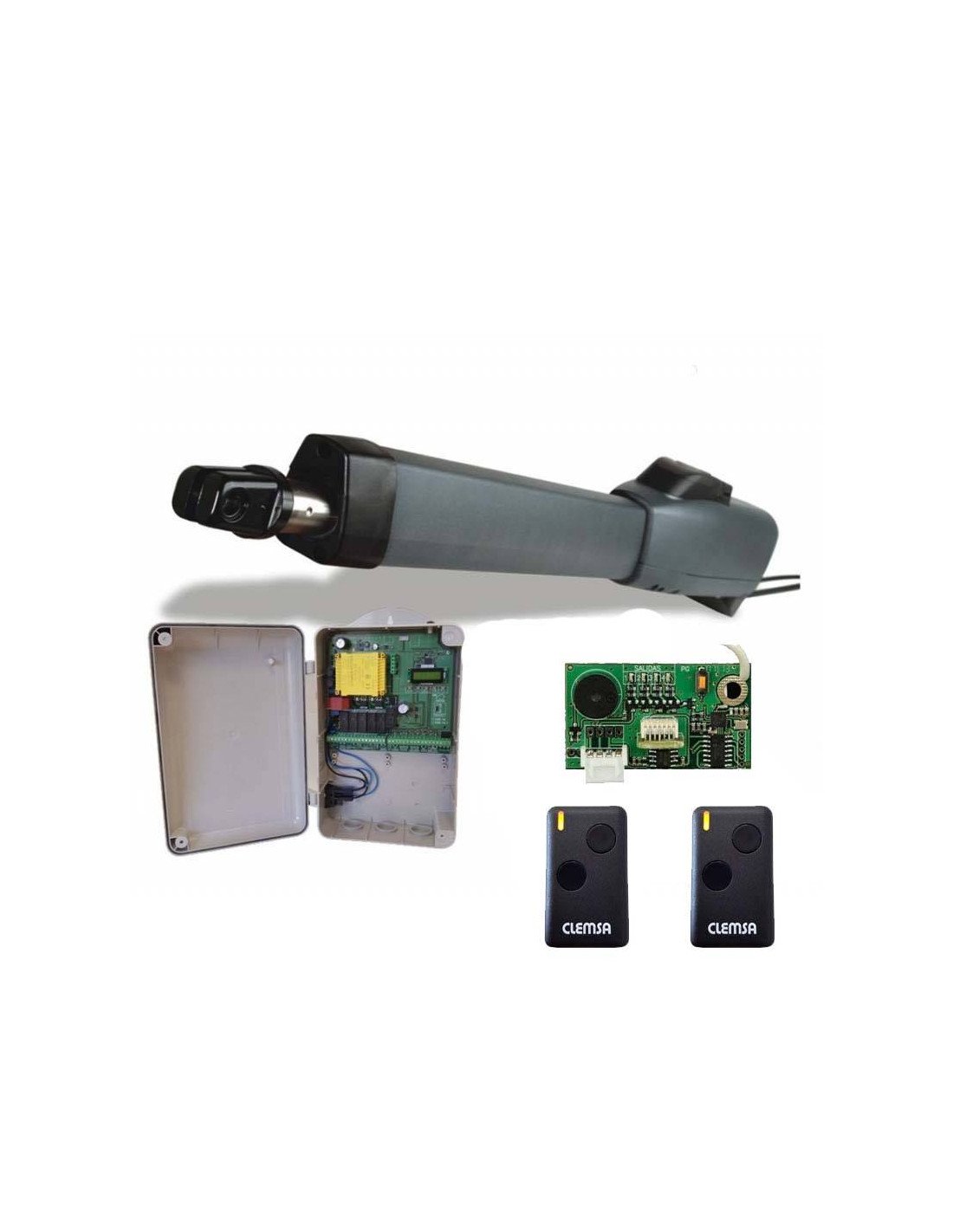

THE KIT CONTAINS:

• 1 unit 3500002572: Electromechanical engine AA 300 SB
• 1 unit 300000001785In the case of vehicles of categories M1 and N2
• 1 unit 120000002910: Plug-in receiver RNE 248 LR
• 2 unid 110000002740NT2S transmitter Mutan-II 433 MHz

MANUAL

Instruction manual Clemsa AA300
