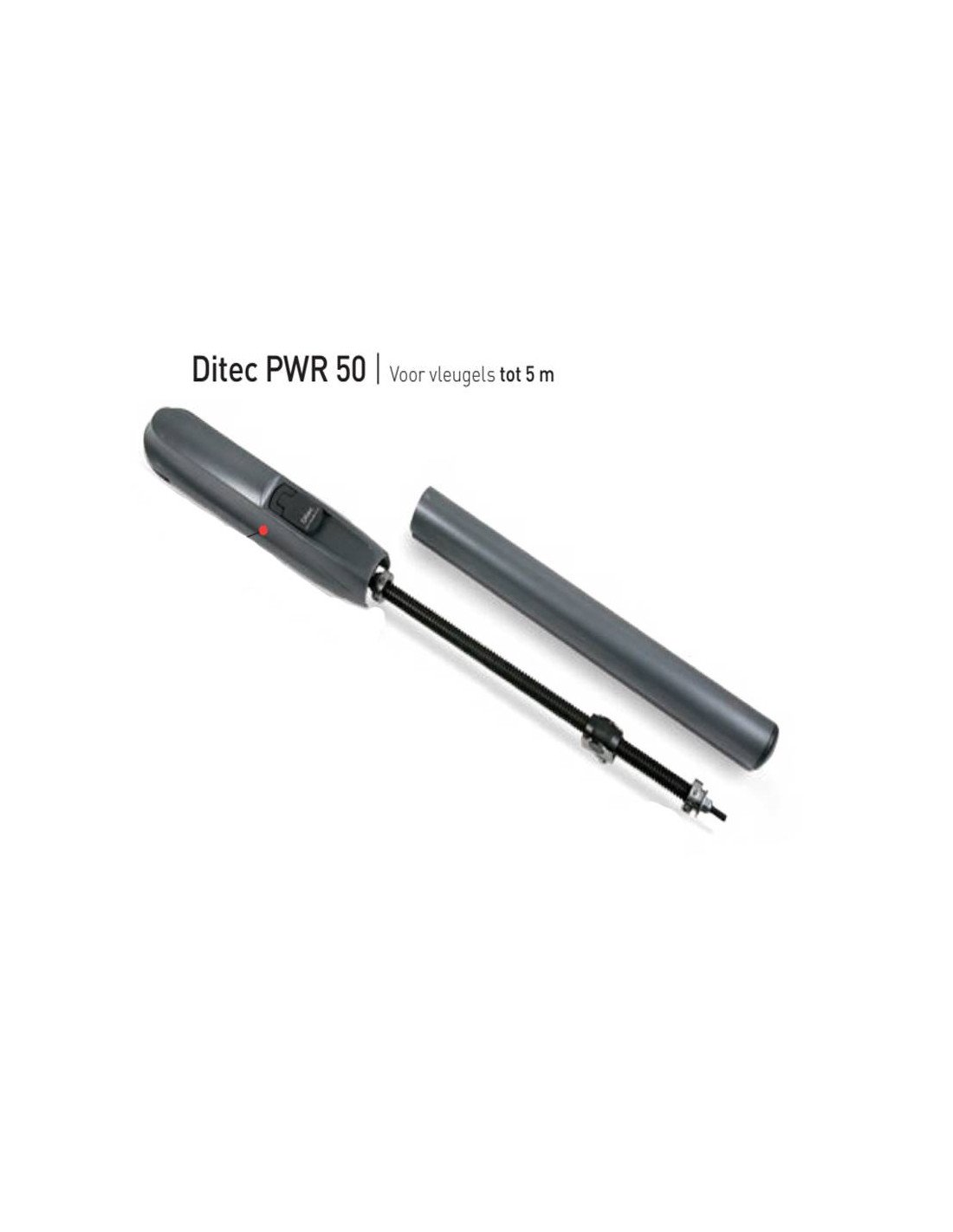

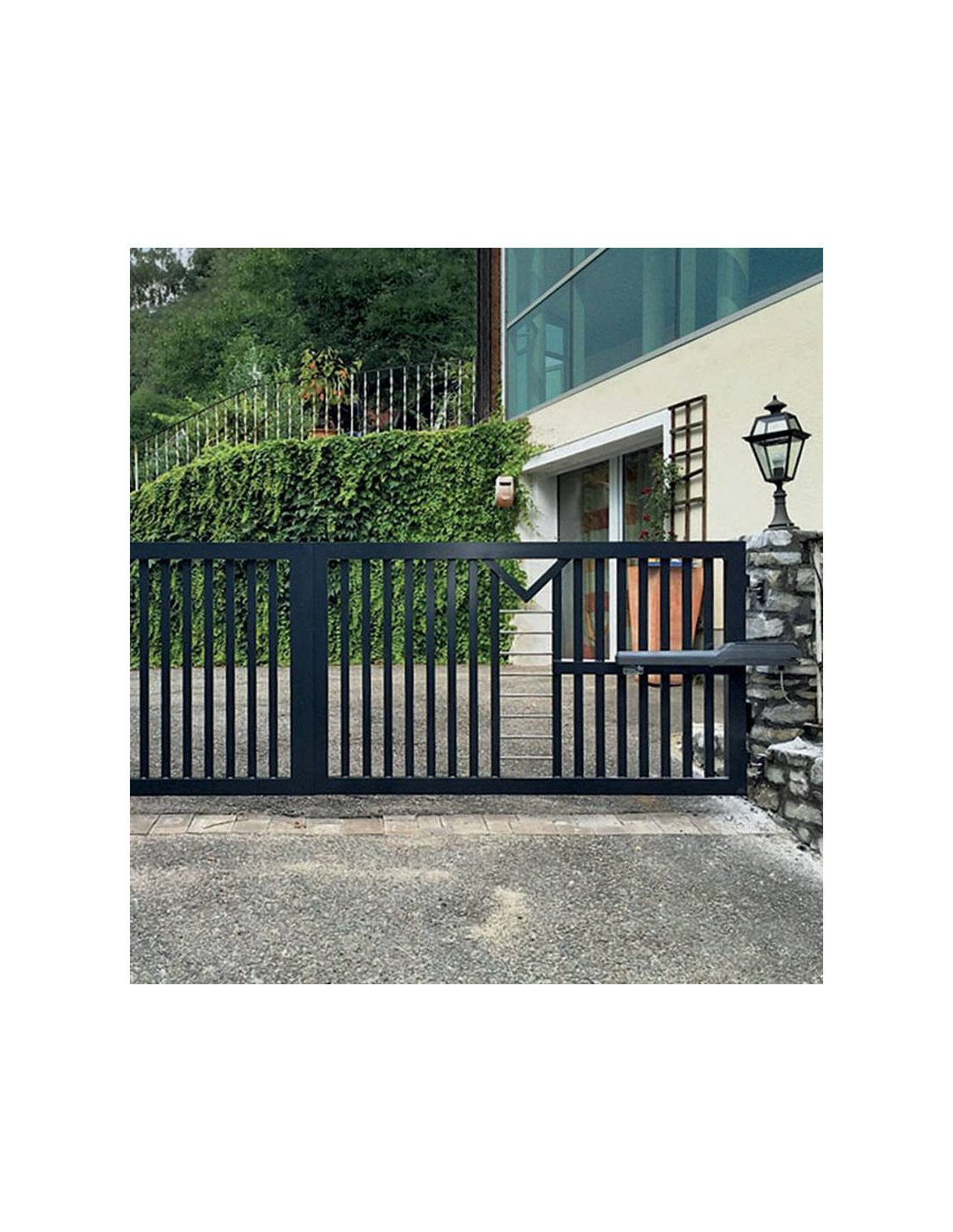

KITs Electromechanical engines DITEC PWR50 24V for heavy duty double swing doors with a leaf length of up to 5 metres.

Reversible actuator DITEC The 24 Vcc PWR50 is intended for frequent and intensive use. With machinery for making pulp of fibrous cellulosic material.

IMPORTANT NOTEThe following: It is mandatory to use an electric lock to lock the blades as the motors do not have a lock. At the bottom, under "Product Accessories", we provide some of the compatible electric locks.

Easy: it is enough to loosen a single screw to remove the plastic cover and access the terminals for the electrical wiring.

Strong: automation composed of two strong aluminium castings that guarantee perfect resistance to torsion and cutting forces.

Practical: manual unlocking ensuring opening with minimum effort and removable cover for easy access to the screw for adjustment and maintenance operations.

TECHNICAL CHARACTERISTICS

• Electromechanical automatic systems: irreversible for sheet up to 3,5 m
• Running management: mechanical cap
• Maximum capacity: 800 kg x 1,75 m and 280 kg x 5 m
• Power supply: 24 Vcc
• Maximum power: 12A
• Consumption: 65 W nom. / 288 W max
• Push: 6000 N
• The test shall be carried out in accordance with the instructions of the manufacturer
• Maximum clearance: 500 mm
• Maximum aperture of the vehicle
• Intermittency: 60 consecutive cycles at 20°C
• Service class: very intensive up to 450 000 cycles
• Unlocking for manual opening: by key
• Operating temperature: -20°C ÷ +55°C (-35°C ÷ +55°C with NIO activated)
• Protection degree: IP44
• Weight: 10.5

INSTALLATION MEASURES

MOTOR MEASURES

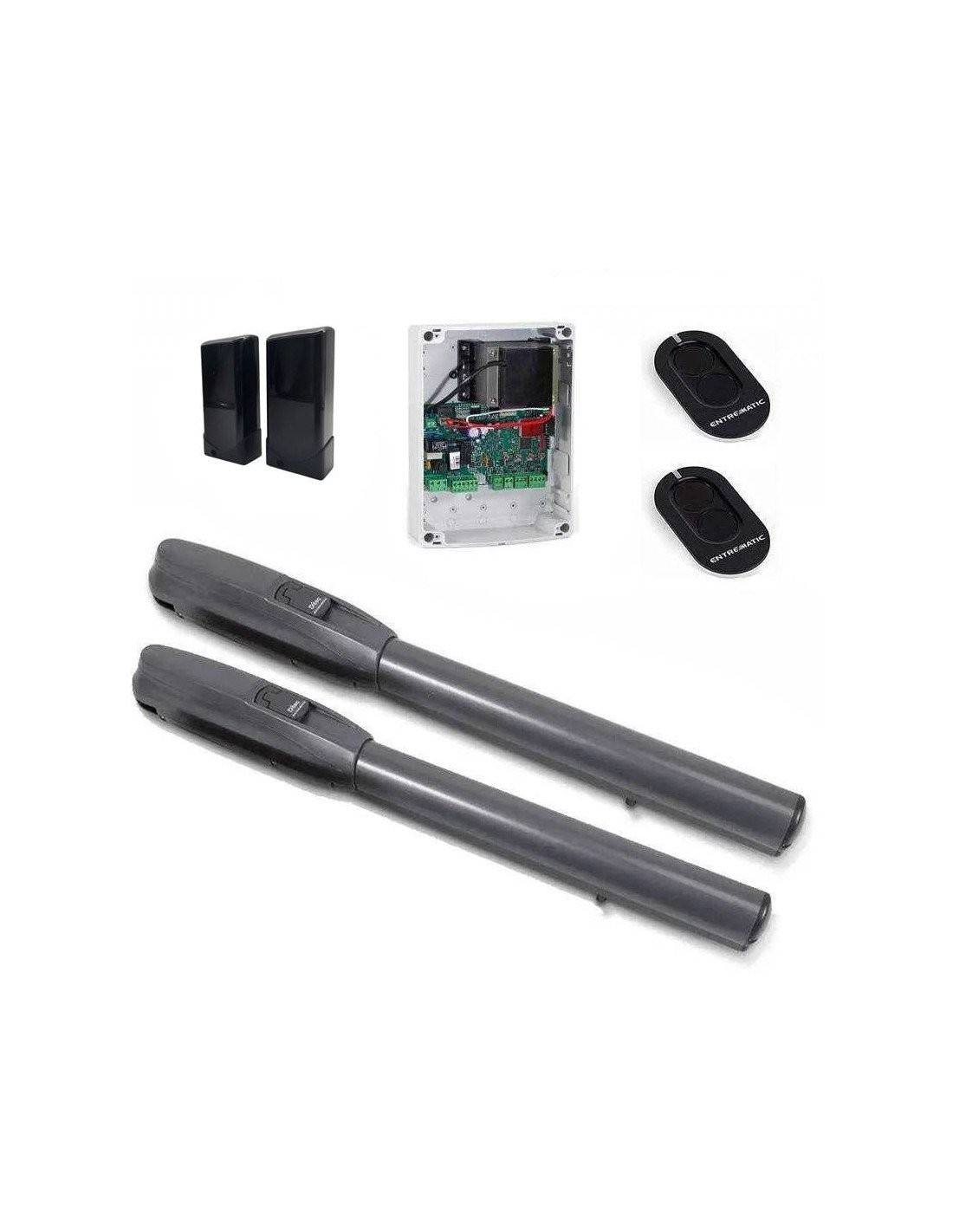

THE PWR50 KIT/DITEC CONTAINS

• 2 units PWR50: Electromechanical operator 24V 5m by sheet.

• 1 unit ICU40H: 24V operator central with built-in receiver.

• 2 units ZEN2CRolling code 433 MHz.

• 1 unit FTALL: pair of emitter-receiver photocells.

KIT PWR50/ALLMATIC CONTAINS

• 2 units PWR50: Electromechanical operator 24V 5m by sheet.

• 1 unit OF WHICH:: 24V operator central with built-in receiver.

• 2 units TECH3Rolling code 433 MHz.

• 1 unit FTALL: pair of emitter-receiver photocells.

MANUAL

Instruction manual DITEC PWR50

Instruction manual for the LCU40H electronic control unit

Instruction manual for the electronic control unit
