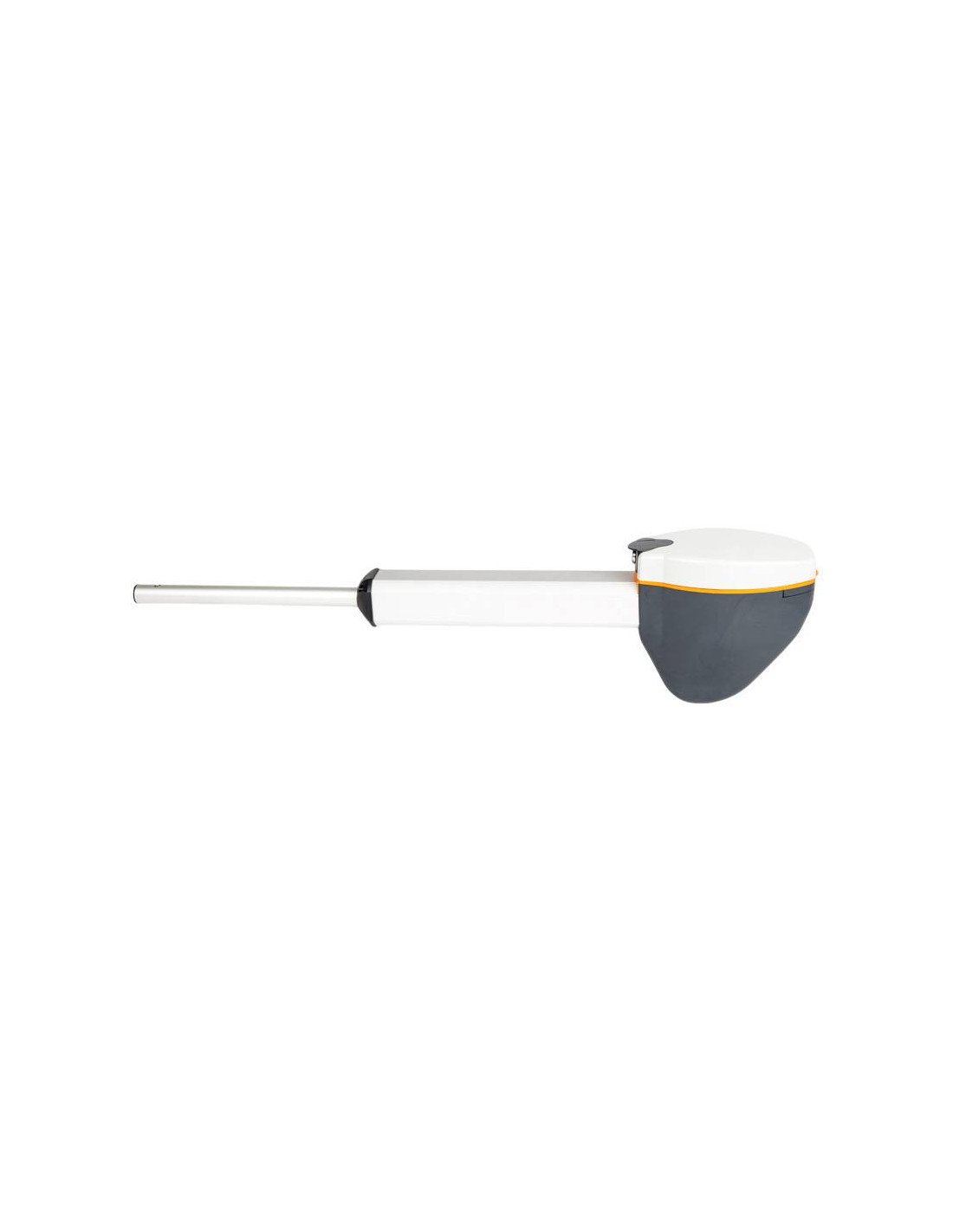

TMP Jaguar Low: 24V electromechanical swing motor

Jaguar Low is an electromechanical engine at 24V with built-in center for doors of 2.5 to 5 meters. It is the most robust and rapid electromechanical engine to place, and has a telescopic arm.

The Jauau range It has been carried out and designed to respond to the most modern technologies of automation. The choice of the components and the special finishing level give the product a high quality and reliability, together with a decidedly pleasant aesthetic and at the same time robust and reinforced to withstand possible impacts or torsions.

Low Jaguar Feathers

• 24V engine. of intensive use.
• Electronics incorporated inside.
• Incorporates 50-pulse encoder per second.
• Anti-crushing system.
• Tour programming based on self-learning with soft stop.
• Very low sound level.
• Quickly in its operation.
• Easy to unlock on the outside of the door.
• Possibility of connecting a second motor for double door.

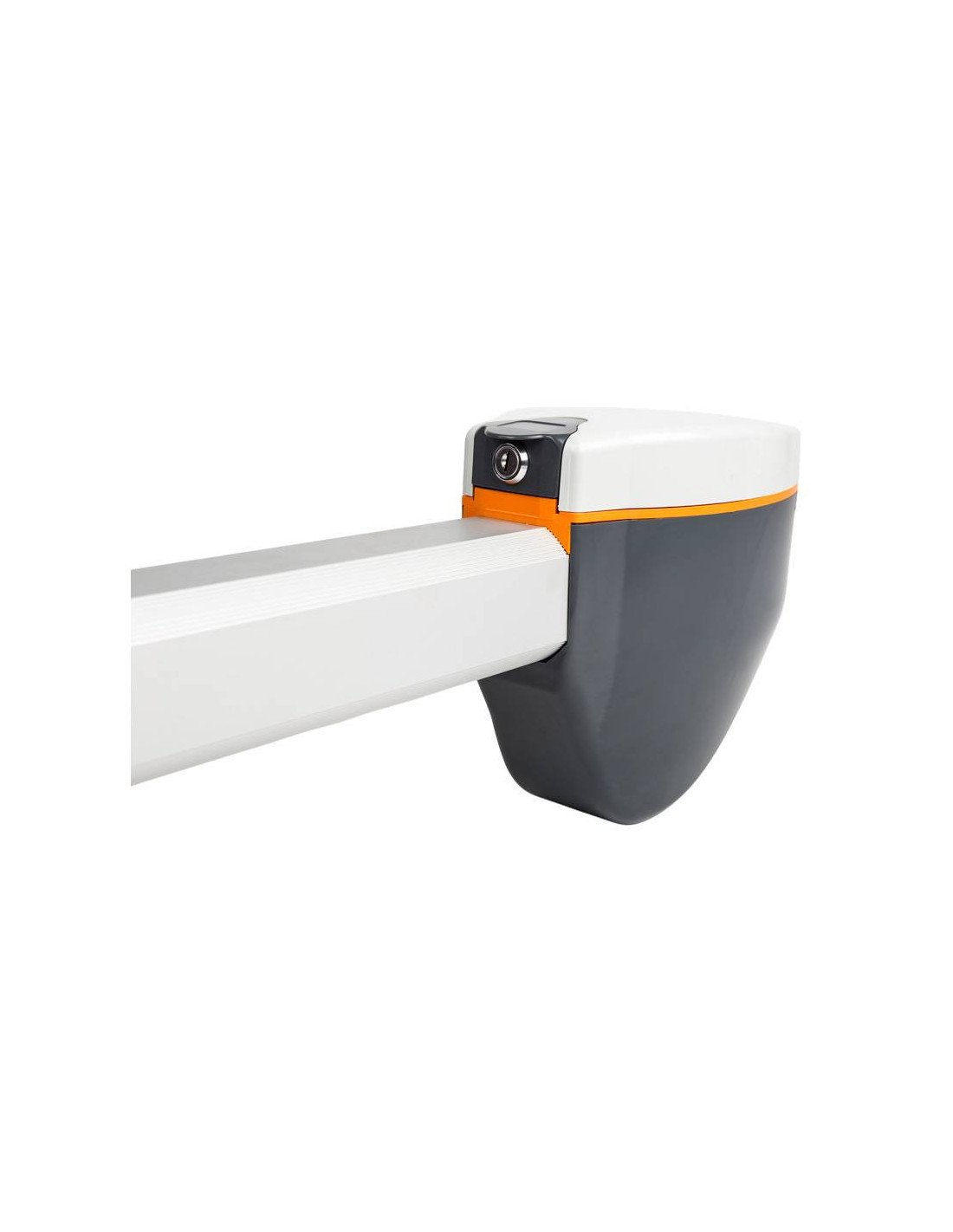

Easy exterior unlock

Practical design of the unlocking system on the front.

Advantages

✓ Be able to unlock automatism on the street in case of bars or similar doors.

✓ Simple unlock system with standard type key.

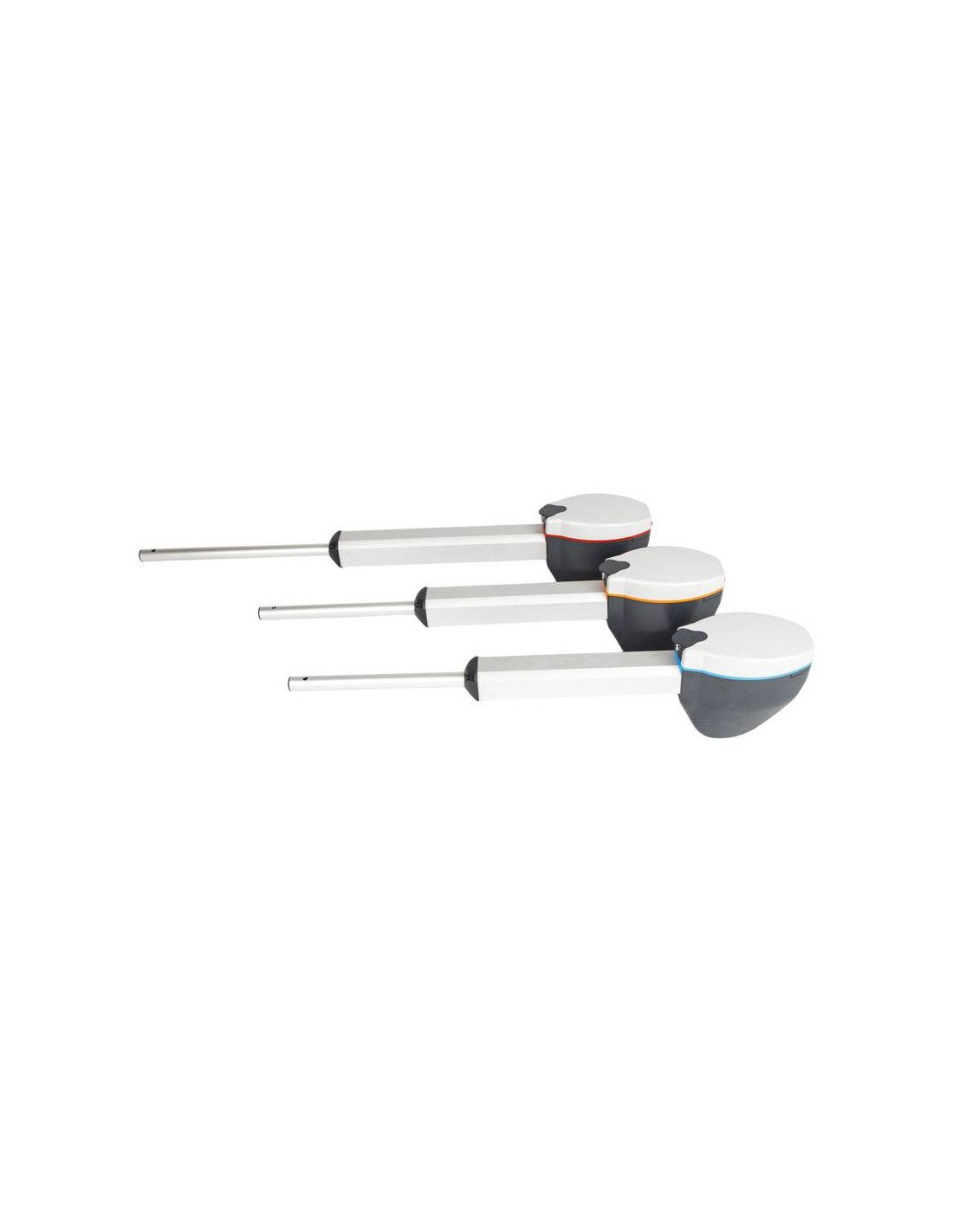

Range of products

TMP Jaguar Low 40

Electromechanical automatism with 24V blocking. Race 300mm for doors not greater than 2.5 meters wide. Incorporate maneuver and receiver box inside.

TMP Jaguar Low 60

Electromechanical automatism with 24V blocking. Race 300mm for doors not greater than 4 meters wide. Incorporate maneuver and receiver box inside.

TMP Jaguar Low 80

Electromechanical automatism with 24V blocking. Race 400mm for doors not over 5 meters wide. Incorporate maneuver and receiver box inside.

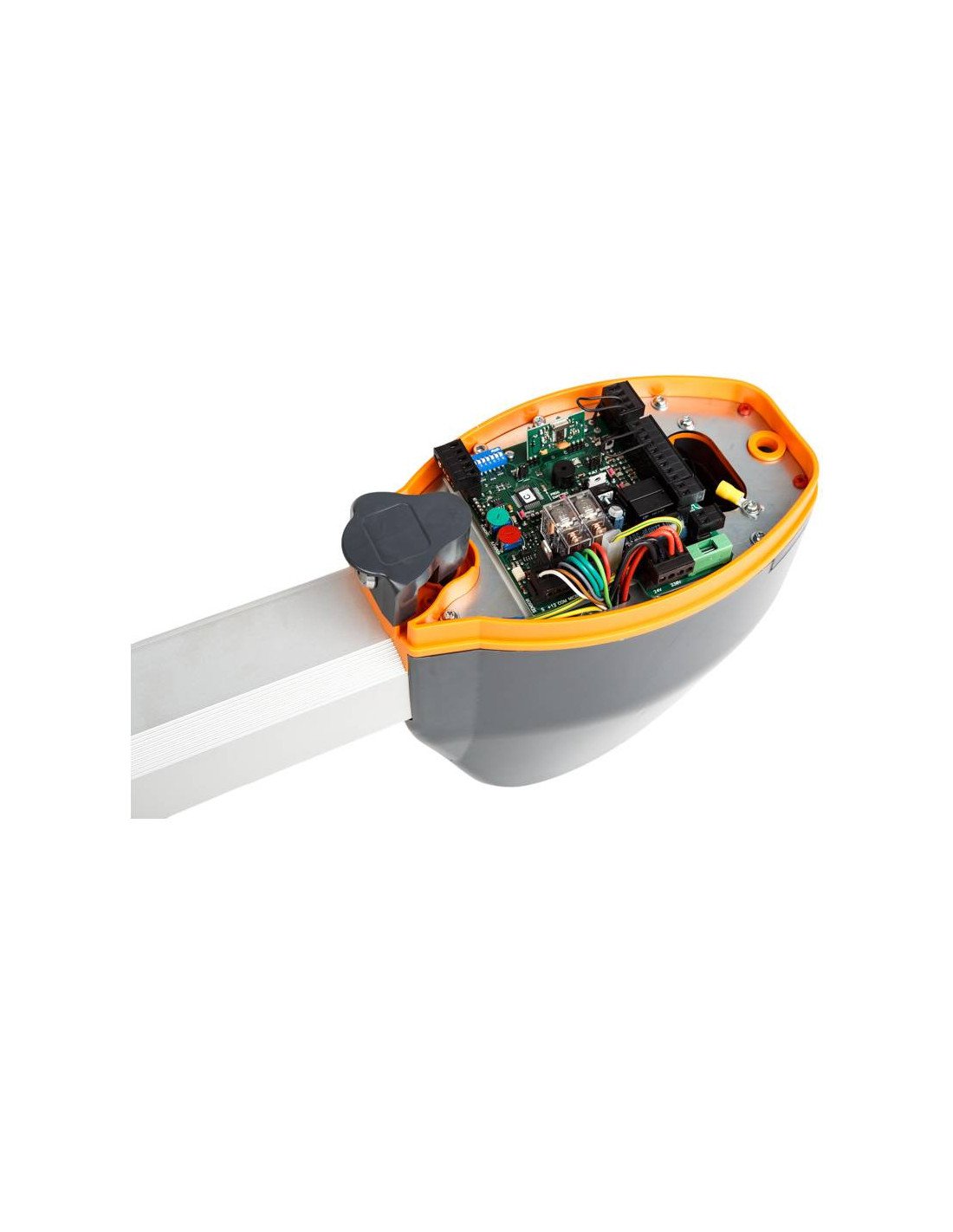

Built-in electronics

We have opted to introduce the electronics inside the engine and be pioneers in doing it in this range.

✓ Easy installation, since the set is wired and tested. Connected at 220V is ready to work.

✓ We improve the aesthetics by leaving the installation cleaner as we save the placement of the old maneuvering box attached to the engine.

Placement of two engines

The entire range of jaguar automation incorporates the possibility of double motor for two-leaf doors. It is as simple as connecting the two electronics.

✓ We standardize the product in a single stock.

✓ We save time and simplify your placement.

Manual

Manual TMP Jaguar Low
