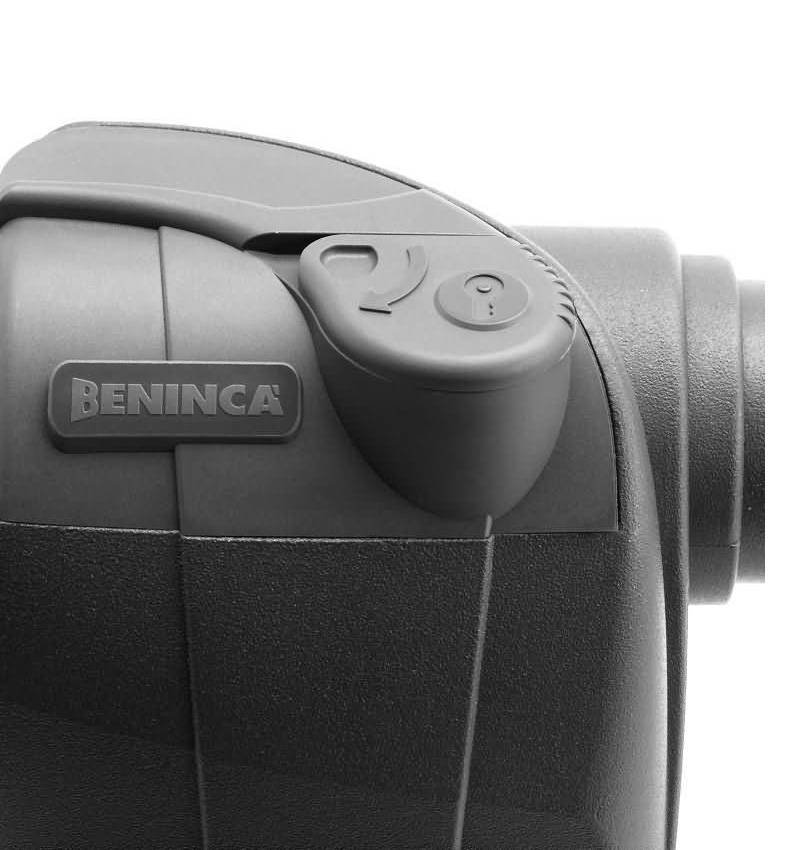

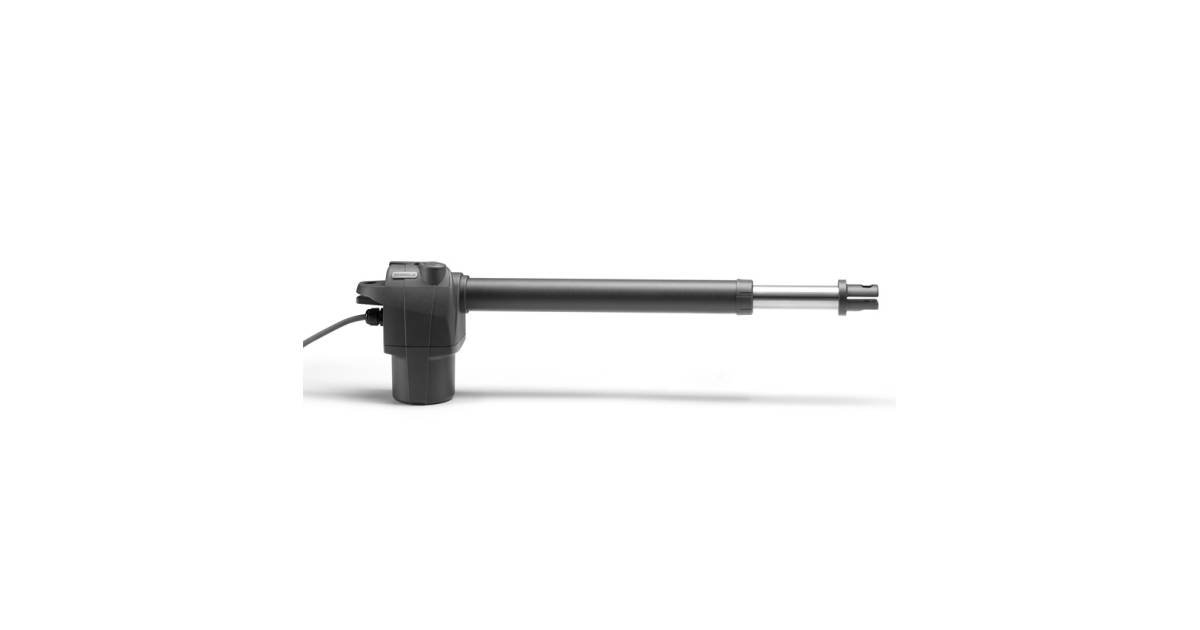

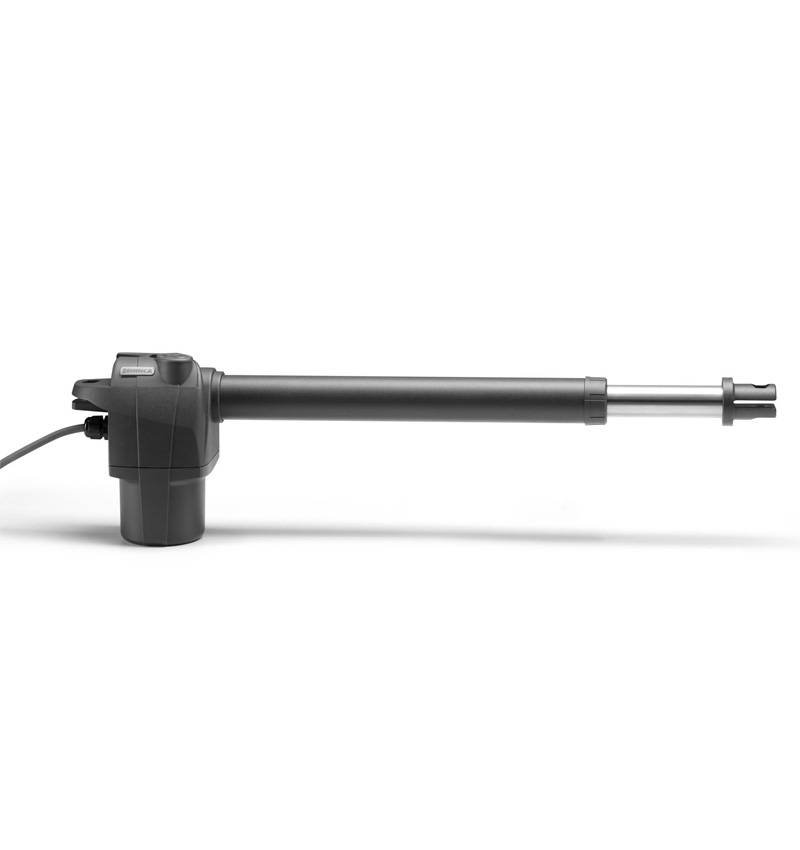

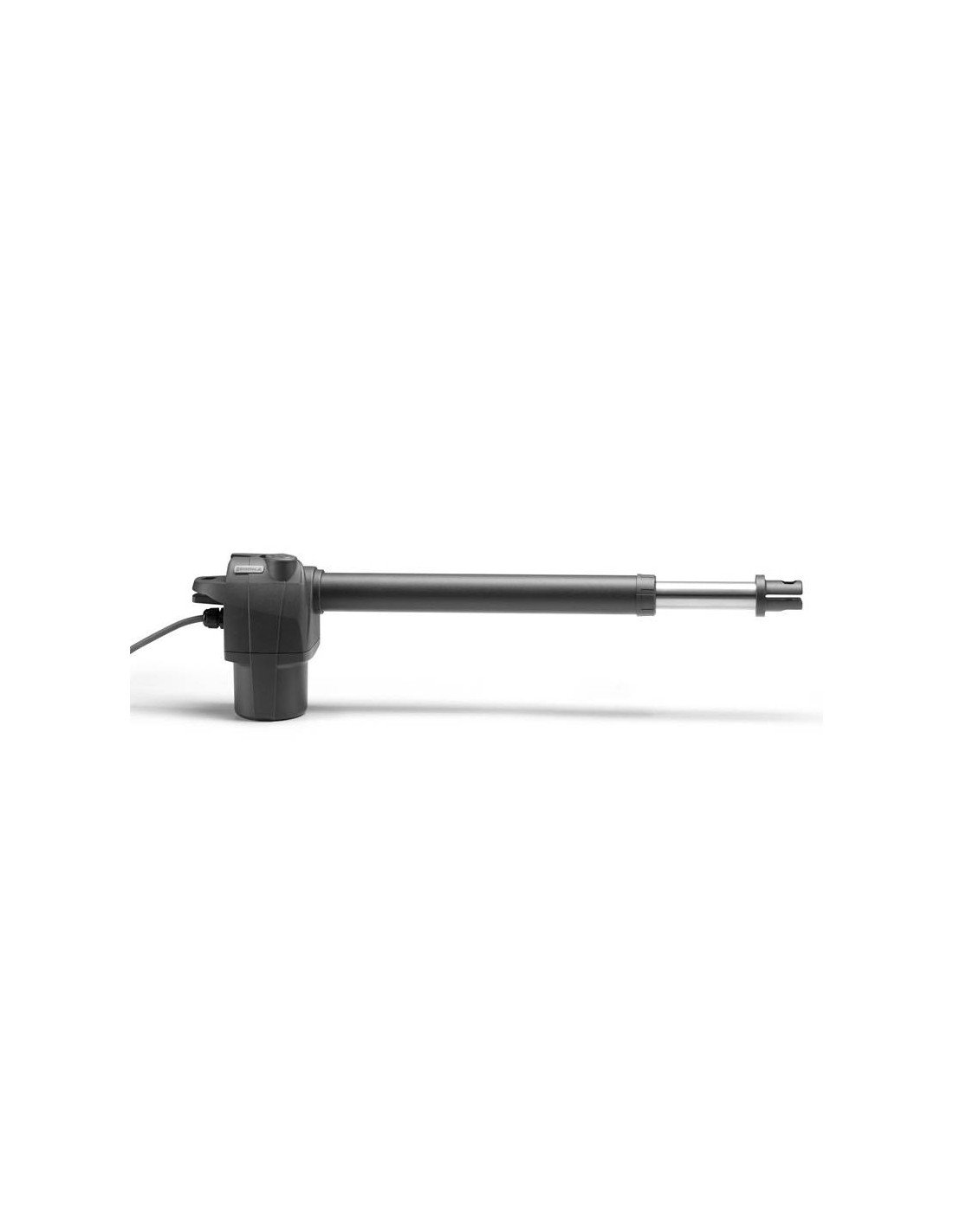

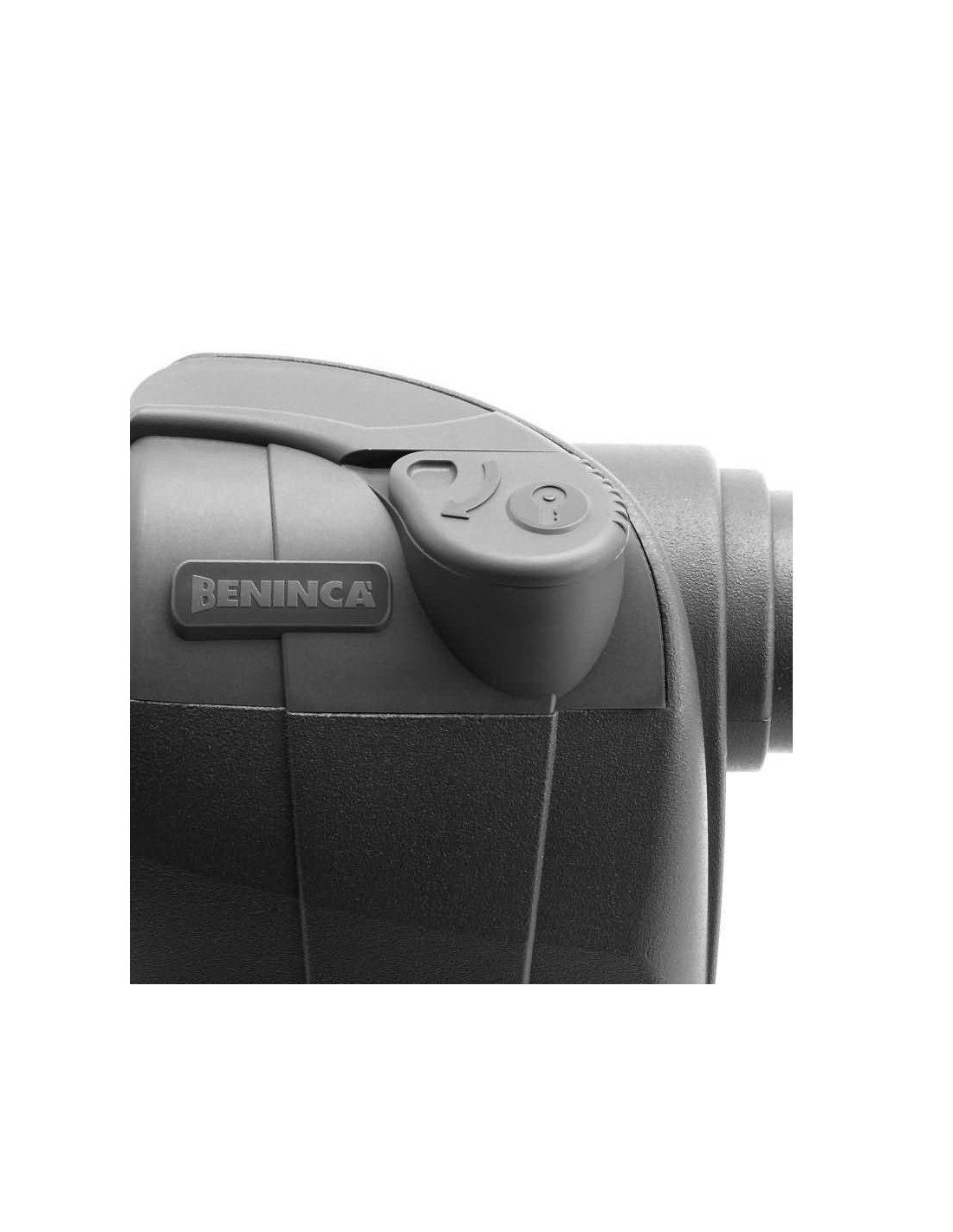

Electromechanical motor Beninca Bill for residential swing doors
BILL
€226.00
VAT excluded
273,46 €
Tax incl.

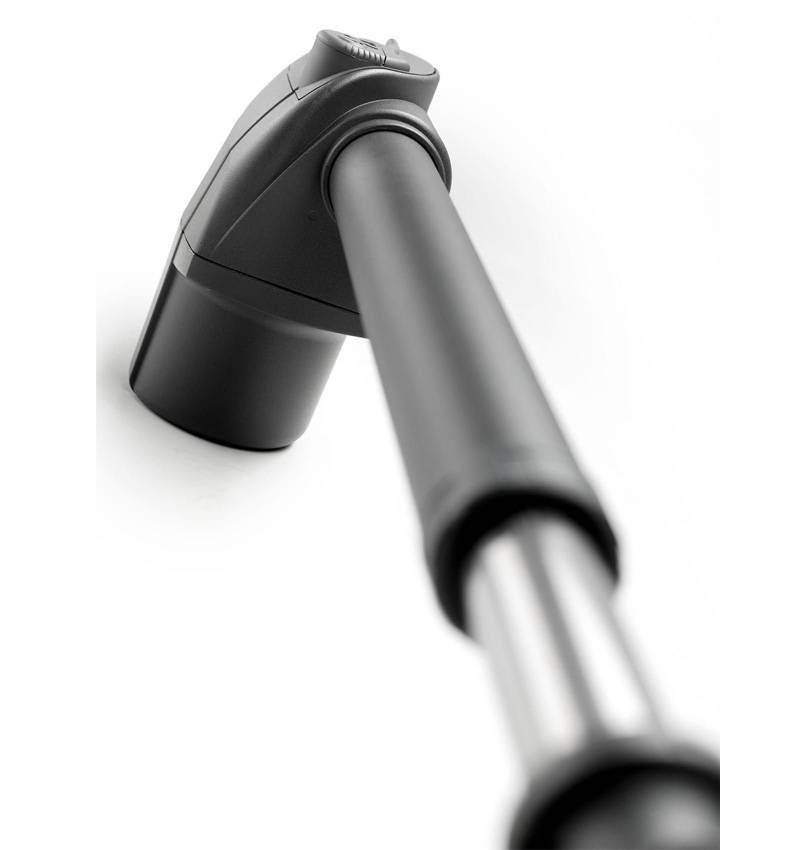

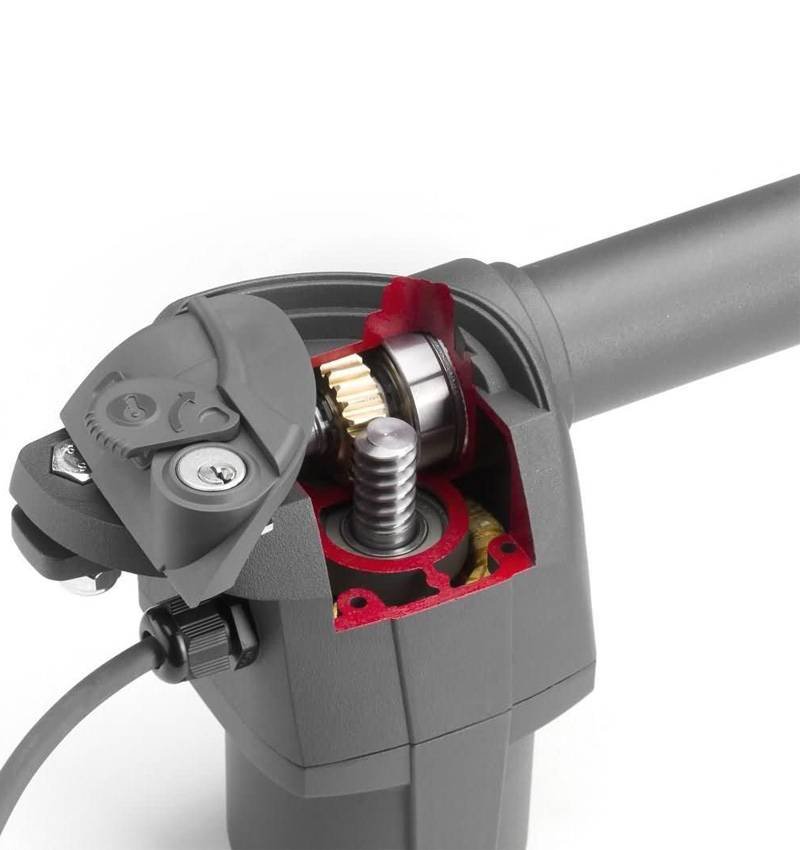

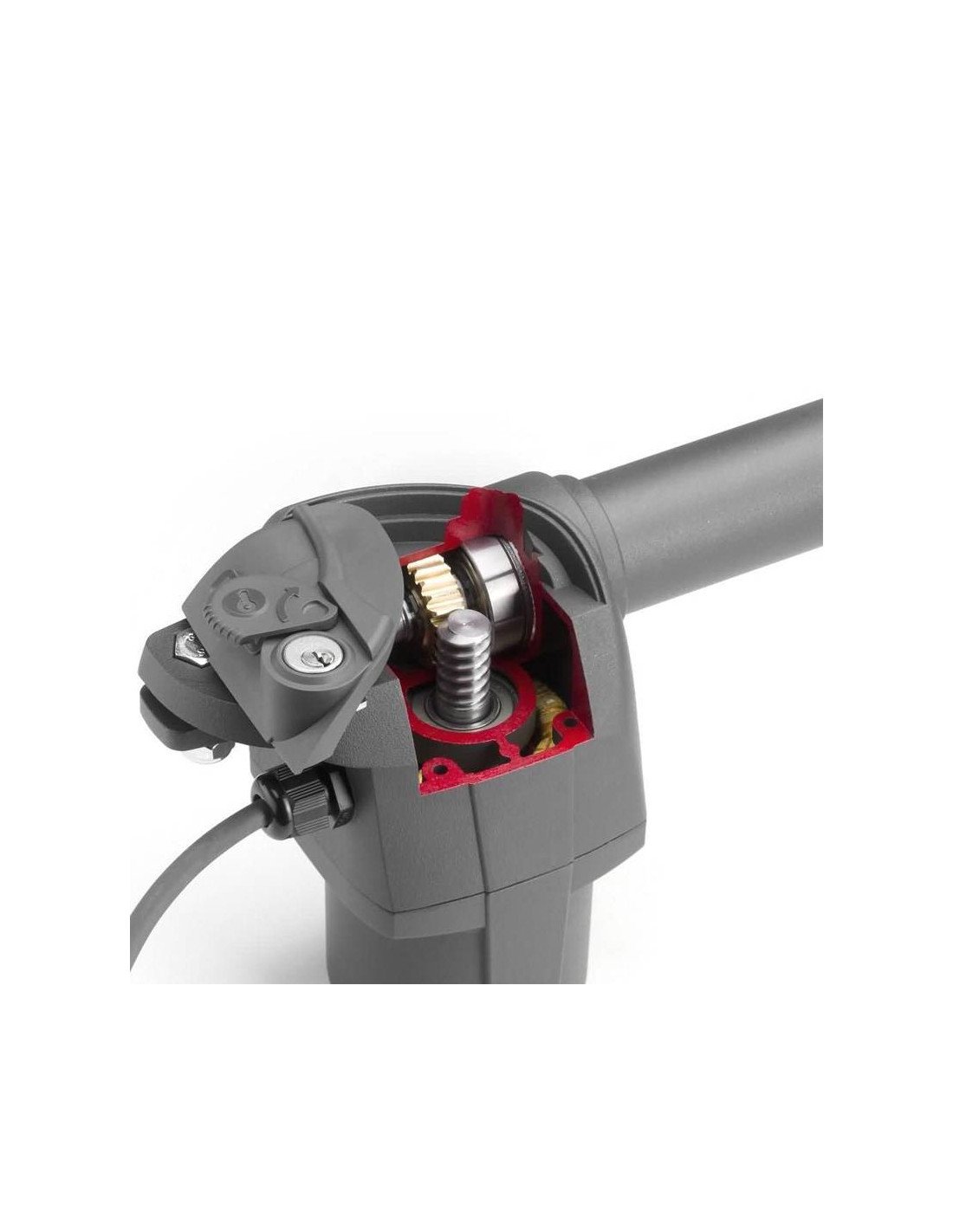

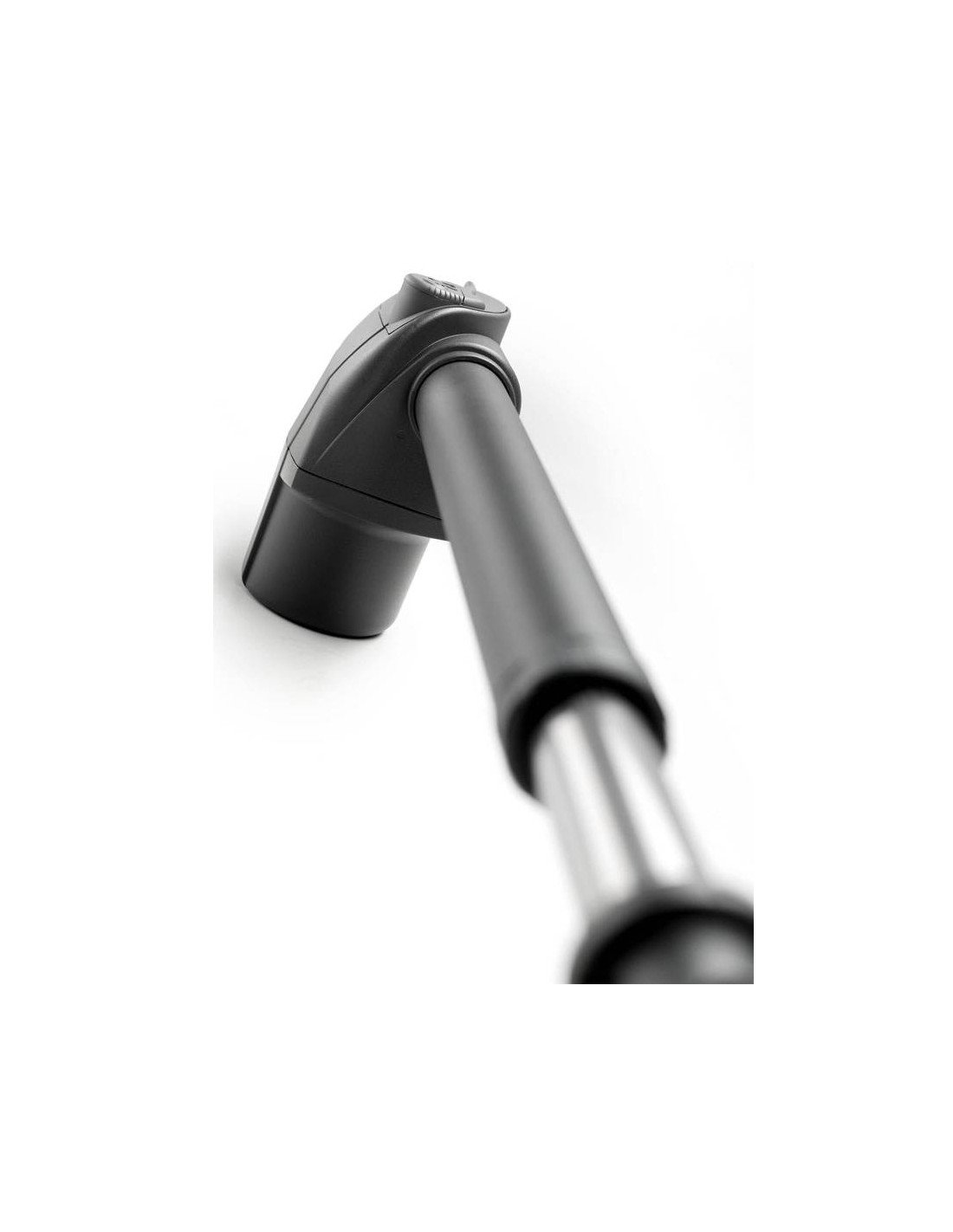

Irreversible electromechanical gearmotor Beninca Bill available 230vac or 24vdc. Ideal for the automation of wrought iron doors, it is characterized by its reduced dimensions for easy and fast installation. Endless screw protected by a scraper ring and a Stainless steel stem They make it suitable for dusty, sandy or characterized environments by aggressive atmospheric agents.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Beninca Bill | Electromechanical engines
Irreversible electromechanical gearmotor available 230vac or 24vdc. Ideal for the automation of wrought iron doors, it is characterized by its reduced dimensions for easy and fast installation. Endless screw protected by a scraper ring and a Stainless steel stem They make it suitable for dusty, sandy or characterized environments by aggressive atmospheric agents.
Available in the right and left version.
Available models:
- Bill30M-R (9592100): Electromechanical motor 230V Right side, Stem 300, doors up to 2.5m
- Bill30M-L (9592101): Electromechanical motor 230V Left side, Stem 300, doors up to 2.5m
- Bill40M-R (9592124): Electromechanical motor 230V Right side, Stem 400, doors up to 3.5m
- Bill40M-L (9592125): Electromechanical motor 230V left side, stem 400, doors up to 3.5m
- Bill4024-R (9592562): Electromechanical motor 24V Right side, Stem 400, doors up to 3.5m
- Bill4024-L (9592563): 24V Electromechanical Motor Left side, Stem 400, doors up to 3.5m
- Bill50M-R (9592102): Electromechanical motor 230V Right side, Stem 500, doors up to 4.0m
- Bill50M-L (9592103): Electromechanical motor 230V Left side, Stem 500, doors up to 4.0m
Measures Beninca Bill
Technical characteristics
| Technical data | Bill30m * | Bill40m * | Bill50m * | Bill4024 * |
|---|---|---|---|---|
| Motor feed | 230 VAC (50-60Hz) | 230 VAC (50-60Hz) | 230 VAC (50-60Hz) | 24 VDC |
| Max. absorption of power | 1.1 to | 1.1 to | 1.1 to | 5 a |
| Maximum | 2800 n | 2800 n | 2800 n | 2000 |
| Opening time | 16 " | 18 " | 21 " | 15 " |
| Work cycle | 30% | 30% | 30% | Intensive use |
| Standard career | 300 mm | 400 mm | 500 mm | 400 mm |
| Max. | 320 mm | 420 mm | 520 mm | 420 mm |
| Degree | Ip54 | Ip54 | Ip54 | Ip54 |
| Operating temperature | -20 ° C / + 50 ° C | -20 ° C / + 50 ° C | -20 ° C / + 50 ° C | -20 ° C / + 50 ° C |
| Max. leaves | 2.5 m | 3.5 m | 4.0 m | 3.5 m |
| Weight | 6.1 kg | 6.7 kg | 6.9 kg | 5.5 kg |
| Weight kit | 14.6 kg | 15.6 kg | 16.2 kg | 14.6 kg |
- Type of engine
- Electromechanical 24V
Electromechanical 230V - Type of door
- Residential door
