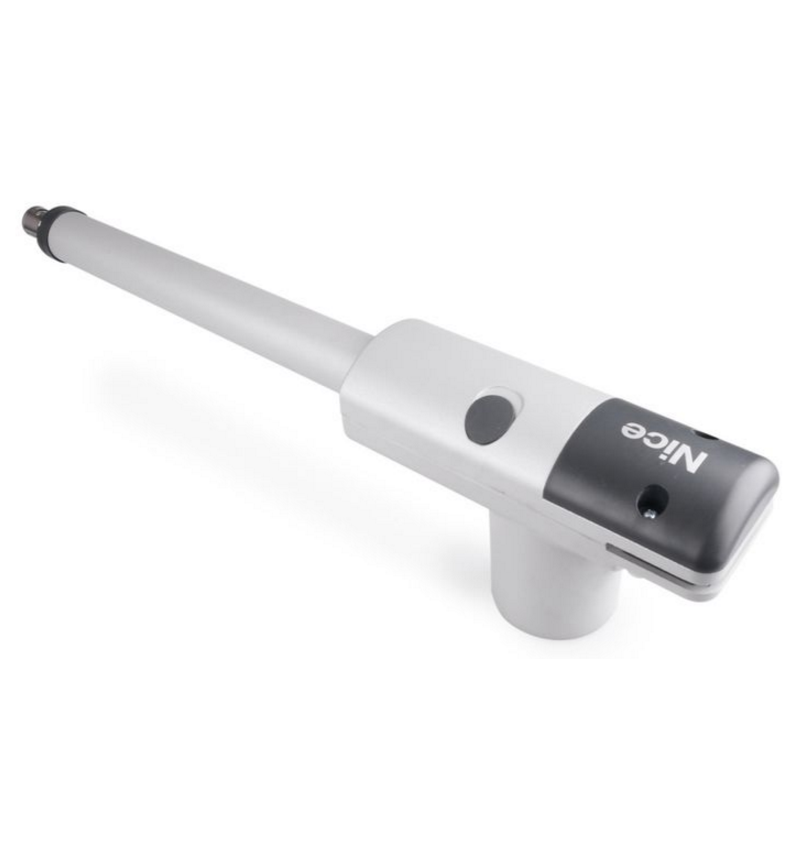

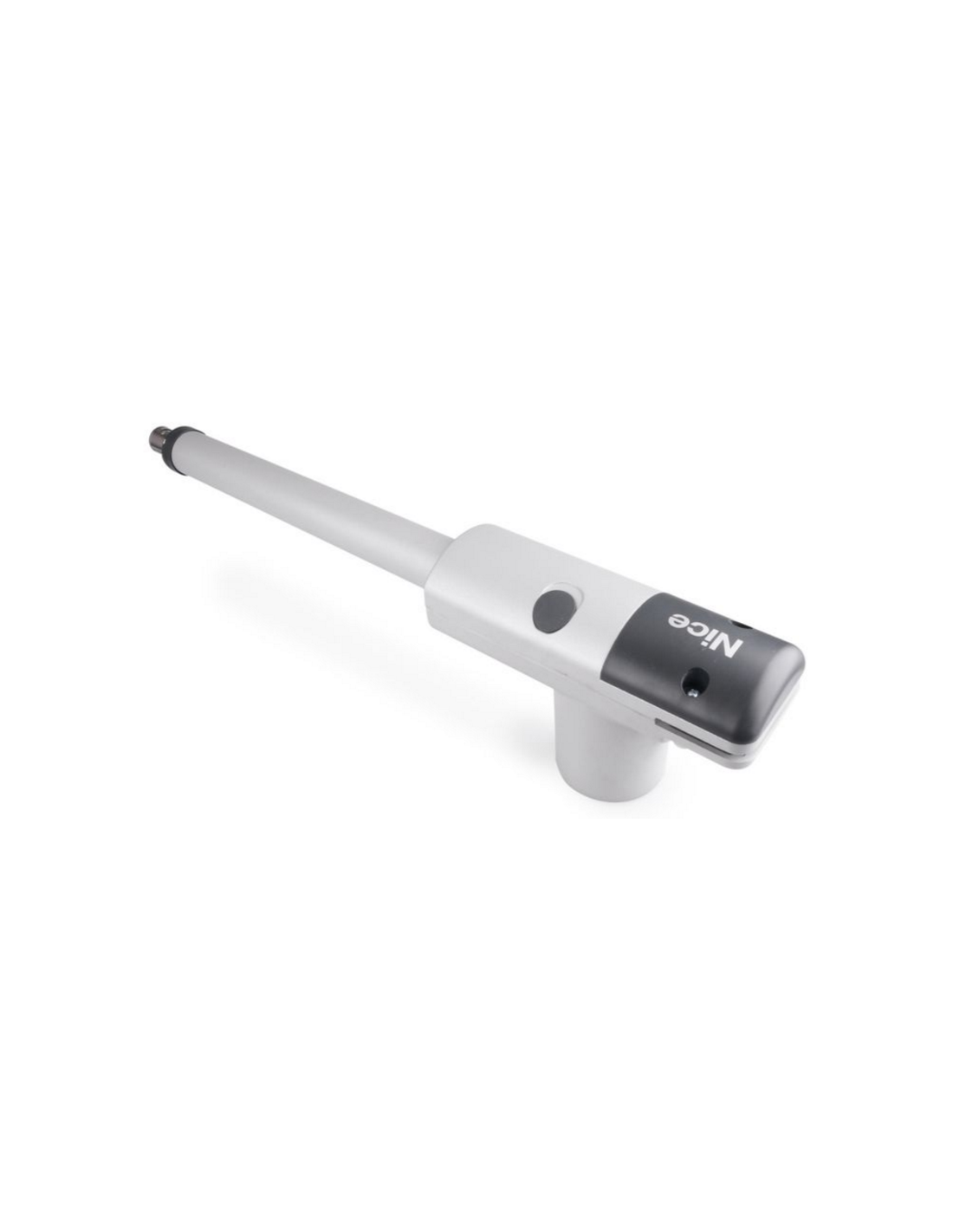

Engine Nice TOO4524 24V for swing doors up to 4.5 m and 250 kg

Engine Nice TOO4524 24V for swing doors up to 4.5 m

The Nice TOO4524 it is a gearmotor 24vDC telescopic electromechanical designed to automate swing doors and cancels.

Is indicated for leaves up 4.5 meters long and 250 kg of weight, always respecting the limits of use established by Nice and the real conditions of the door.

Its telescopic design incorporates a 500 mm, robust aluminum structure painted with epoxy powder and stainless steel stem, offering a resistant and discreet solution for outdoor installations.

This product corresponds to engine Nice TOO4524 Individual. The electronic power plant, receiver, controls, photocells and other accessories are supplied separately.

Application

✓ swinging one or two leaves.

✓ Maximum guidance length: up to 4.5 m per leaf.

✓ Maximum guidance weight: up to 250 kg per leaf.

✓ Telescopic motor 24VDC for outdoor assembly.

✓ Motorreductor electromechanical telescopic.

✓ ENGINE EARING TO 24Vdc.

✓ For leaves up 4.5 m and 250 kg.

✓ Race of the Stem 500 mm.

✓ Stem made in stainless steel.

✓ Robust structure of aluminum with epoxy paint.

✓ Maximum force of 1,800 N.

✓ Degree of protection IP54.

✓ Upper compartment to facilitate connections and maintenance.

✓ Unlocking manual with custom key Nice located at the top.

✓ Adjustable subsequent fixing to facilitate adaptation to different installation dimensions.

✓ Supports designed to facilitate automation assembly.

* The maximum permissible length and weight are related to each other. The height and structure of the door, exposure to the wind, the state of the hinges and installation geometry should also be taken into account.

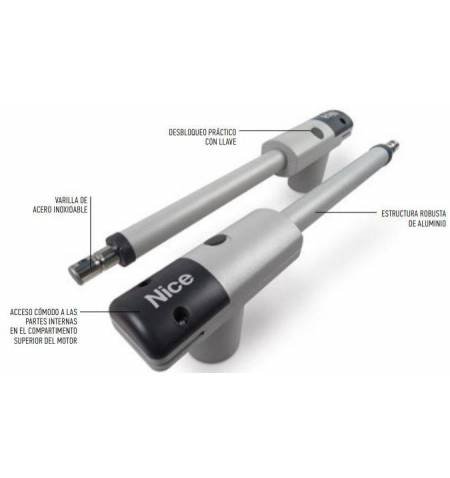

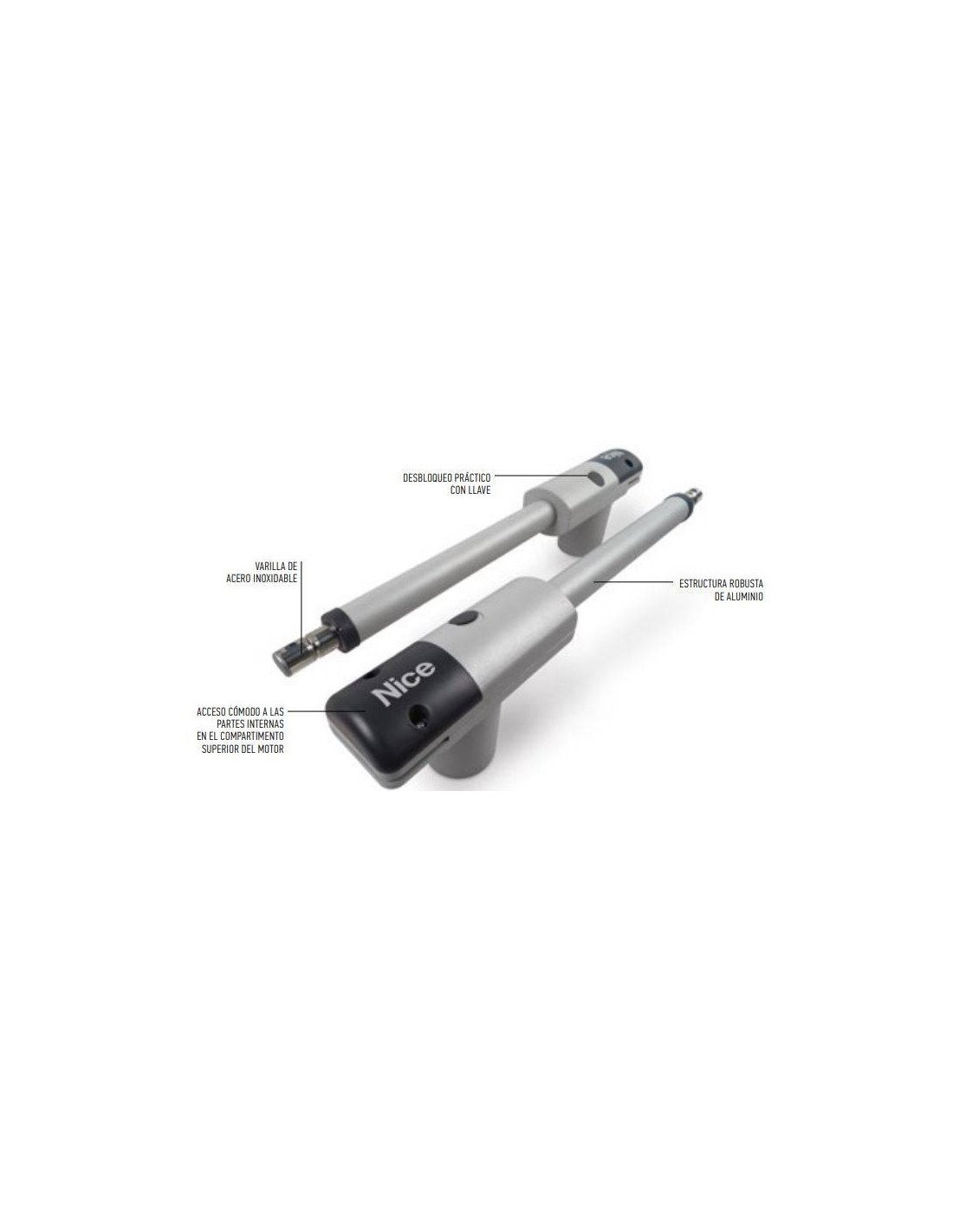

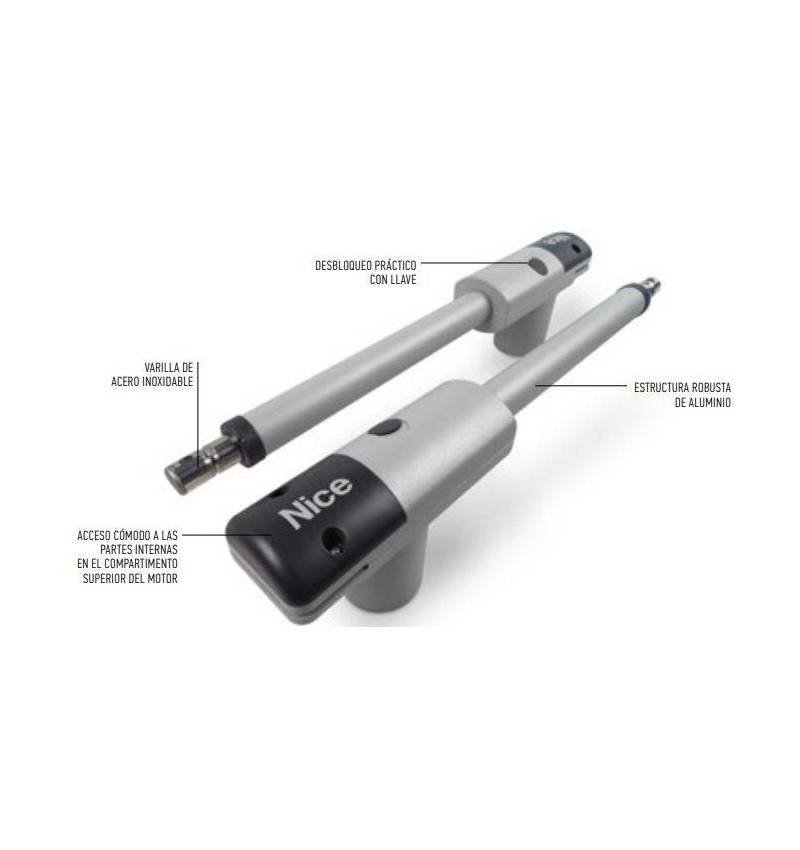

The TOO4524 incorporates a aluminum structure protected by epoxy paint and a stainless steel stem.

Its long-stroke telescopic configuration allows you to adapt it to larger swing doors, maintaining outer protection IP54.

The Nice TOO4524 it is designed to work with central Nice of compatible 24V, including the Nice MC424L.

The MC424L allows managing one or two Motors TOO4524 and perform the learning of mechanical automation tours and stops.

The electronic plant is supplied separately.

■ Nice MC424L – electronic Central for one or two Motors TOO4524.

■ Nice OXIBD - plug-in receiver 433.92 MHz compatible with the corresponding plant.

■ Nice WAS INTI2 – command of 2 channels 433.92 MHz O-Code.

■ Photocells Nice – safety for the zone.

■ Nice ELDC – lED signaling lamp for compatible 24V automation.

■ Nice PS124 – emergency battery for compatible power plants.

Important before selecting the engine

The values of 4.5 m and 250 kg they are maximum reference limits and should not be interpreted as values that can be combined in any installation without pre-evaluating the door assessment.

The weight, length and height of the leaf, wind exposed surface, hinged state, manual movement ease and available in the pillar.

■ 1 × telescopic gearmotor Nice TOO4524 24VDC.

■ Supports and elements corresponding to the motor assembly.

It does not include electronic center, receiver, controls, photocells, flashing lamp or other accessories.

Installation manual Nice TOO3000 and TOO4500
