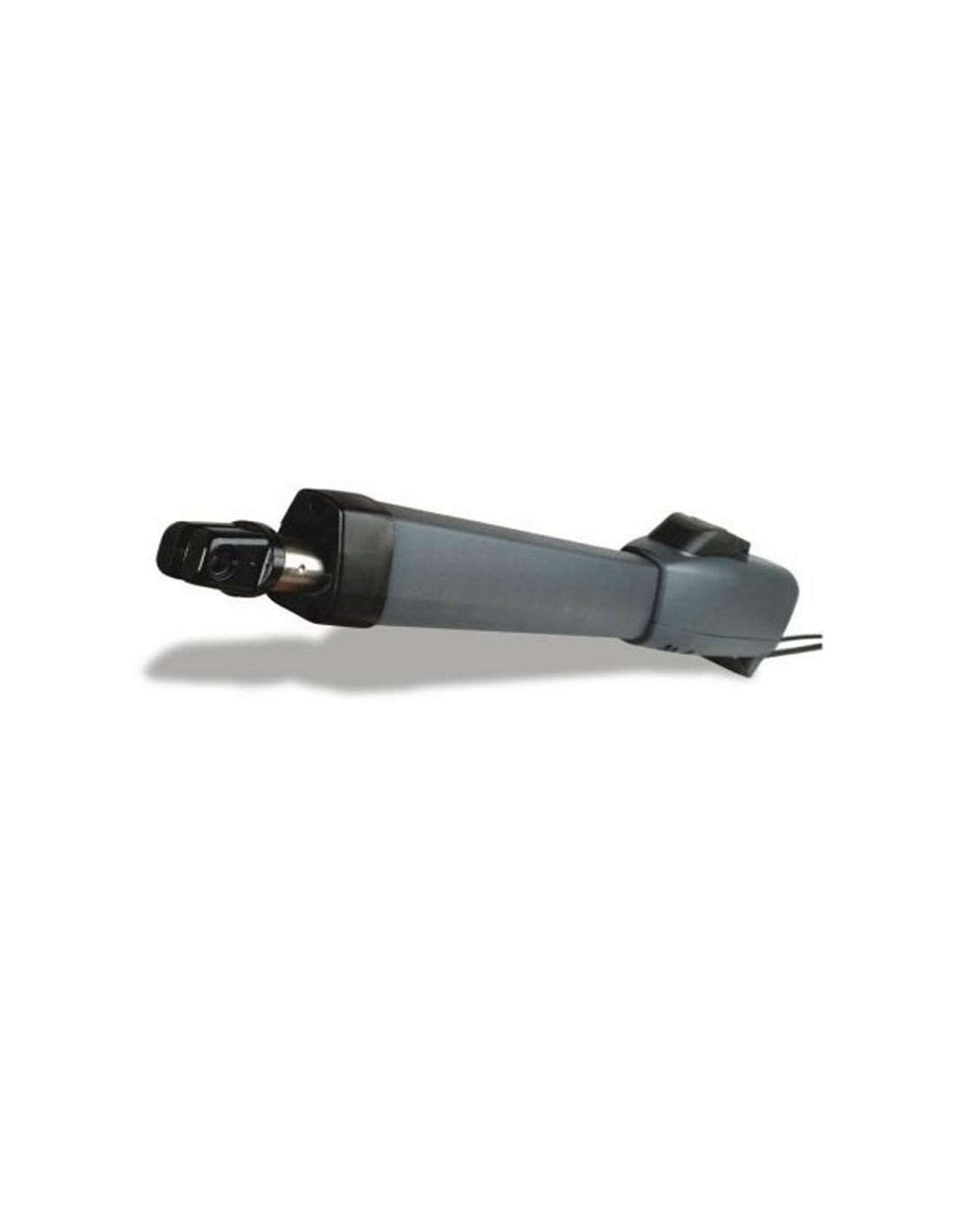

Electromechanical engine Clemsa AA400 for swing doors up to 4 metres in length by leaf, designed for motorized residential use door. What. The model "AA400 424 B" allows us to perform a semi-intensive use motorization.

Unlocked electromechanical drive, with electric running ends, for blades up to 3 m. I use S3 30%. 30 cycles an hour. Power 300 W. Intake 1,3 A. Thermal protection 140 oC. 400 mm race. Stem output speed of 1,6 cm/sec. Operating temperature from -20oC to 55oC. It weighs 7.8 kg. 230 Vac. Exposed components in stainless steel. Protected unlock with lock allowing movement of blade without power.

• Electromechanical drive with articulated arm for semi-intensive use in folding doors up to 4 metres wide that transmit the movement to the blade by means of an endless screw.
• Quick and easy installation thanks to a floating aluminum fork that compensates for possible structural defects.
• Maximum anti-crush safety thanks to an electronic device that regulates engine shutdown.
• It is equipped with electrical end runners at opening and closing.
• The unlock, fully protected with a lock, allows manual movement of the blade even without electrical power.
• All components exposed to atmospheric agents are made of stainless steel and the body of aluminum painted with double layer for increased durability and safety.

MODELS AVAILABLE

• THE FOLLOWING: Electromechanical actuator 230 V with 400 mm rod with lock.
• AA400 SB: Electromechanical actuator 230 V with 400 mm rod without lock.
• THE FOLLOWING PARAGRAPH IS ADDED: Electromechanical drive 230V with 400mm stem with lock and end of run.
• A400 FC: Electromechanical actuator 230V with 400mm stem with end of stroke.

MANUAL

Instruction manual Clemsa AA400
