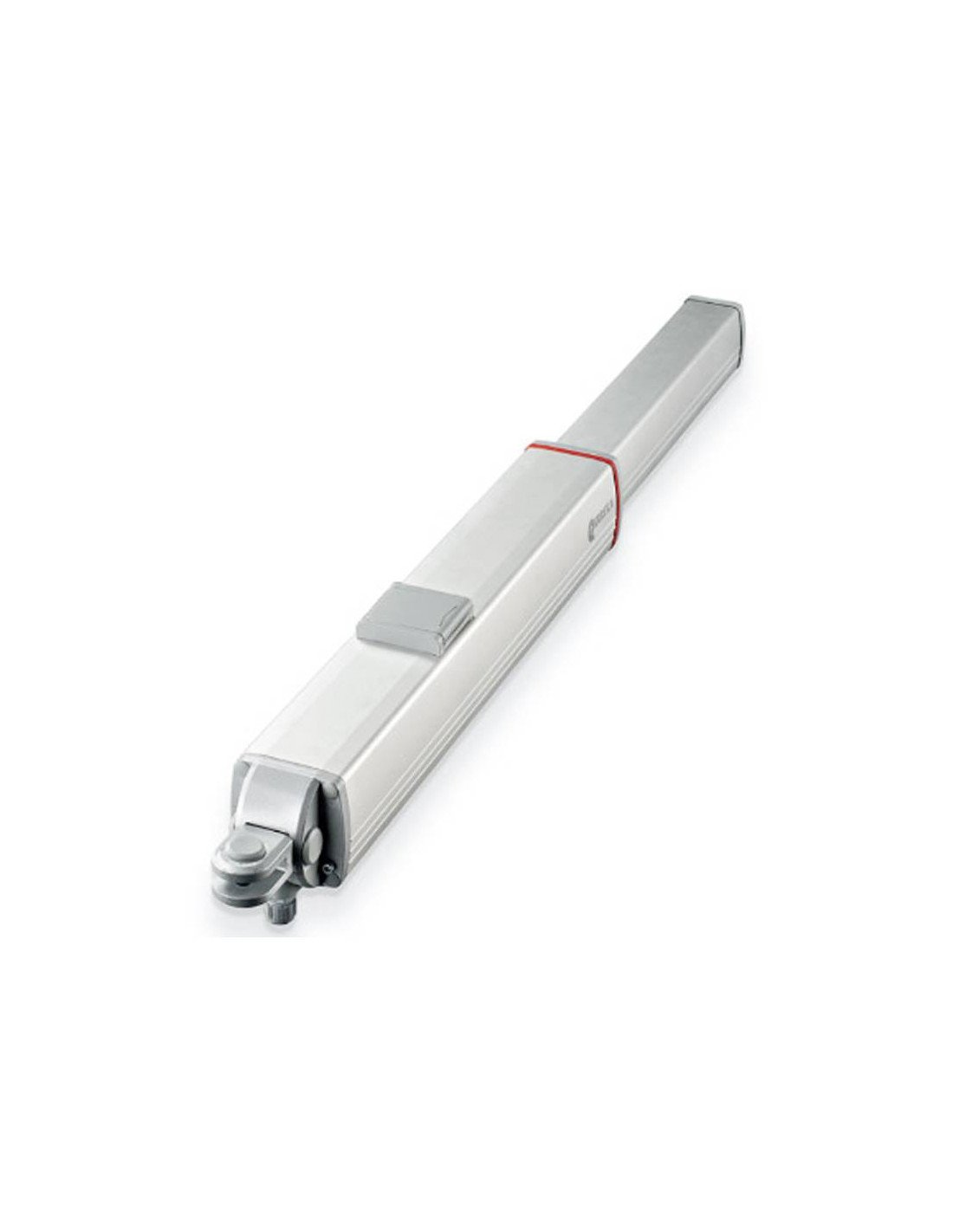

Hydraulic motor ERREKA VULCAN for swing doors
VULCAN hydraulic motor intensive use for swing doors up to 6m - Figure 2
VULCAN hydraulic motor intensive use for sliding doors up to 6m - Figure 3
Hydraulic motor ERREKA VULCAN for swing doors
VULCAN hydraulic motor intensive use for swing doors up to 6m - Figure 2
VULCAN hydraulic motor intensive use for sliding doors up to 6m - Figure 3

VULCAN hydraulic motor intensive use for swing door up to 4/6m

VULCAN
€522.00
VAT excluded

631,62 €

Tax incl.

Linear hydraulic motor Erreka VULCAN for swing doors residential, community and industrial with a maximum blade length of 6 metres.

Full range: reversible and locked actuators, with for use in the manufacture of motor vehicles.

Vulcan



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky



Erreka VULCAN linear hydraulic motor for residential, community and industrial swing gates with a maximum leaf length of 6 meters.

Complete range: reversible and locked actuators, with 265 mm and 400 mm rods.

Intensive use: actuators especially suitable for access gates to enclosures with a large number of vehicles.

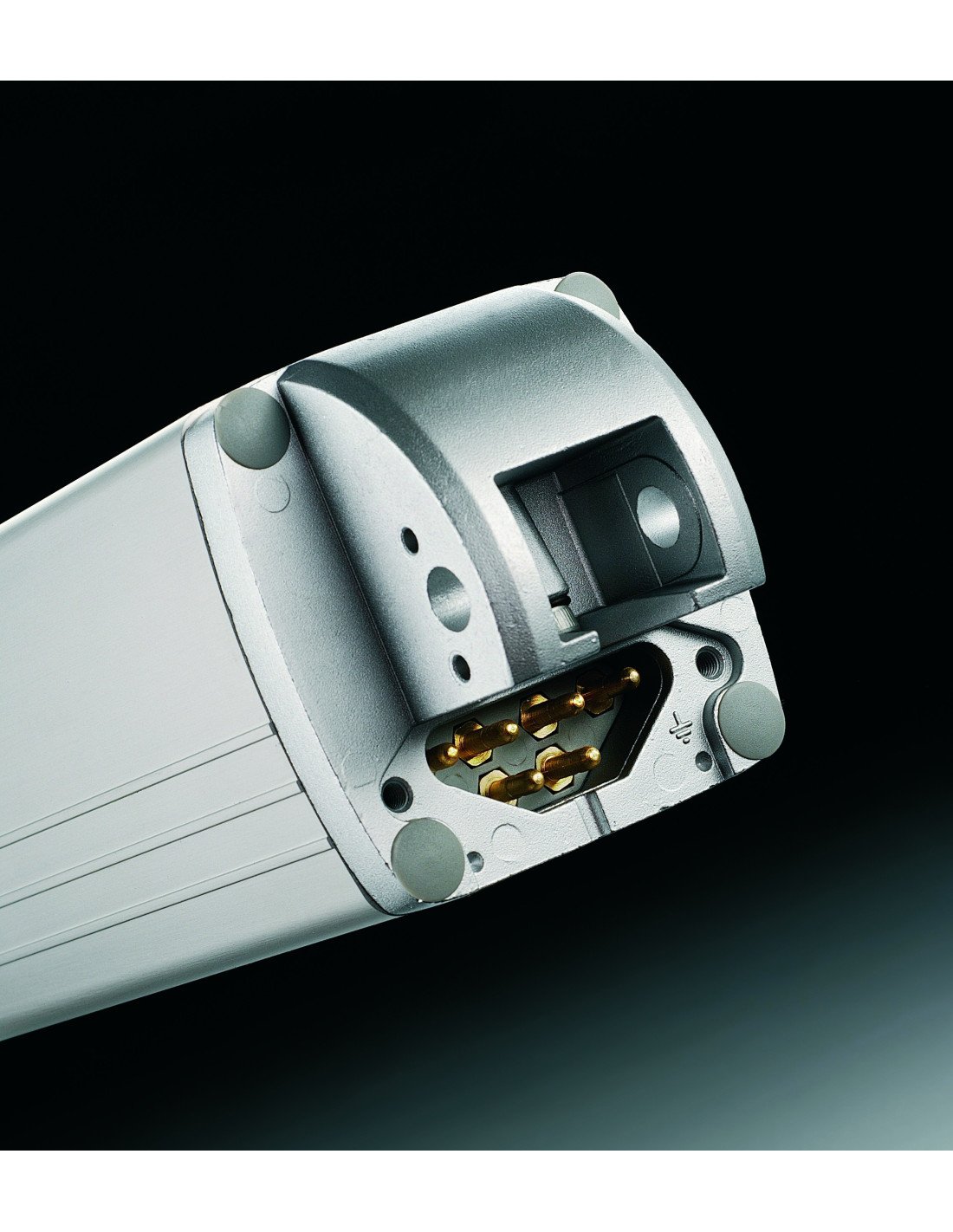

Easy connection: it has removable terminals in both actuator and control panel, to facilitate the connection of the actuator to the control panel.

CHARACTERISTICS

  • Very powerful 7000N
  • Very high use factor
  • No internal wear for greater durability
  • Locked/non-locked motors
  • Two stem sizes (stroke 265mm, 400mm)
  • Mechanical soft stop on closing

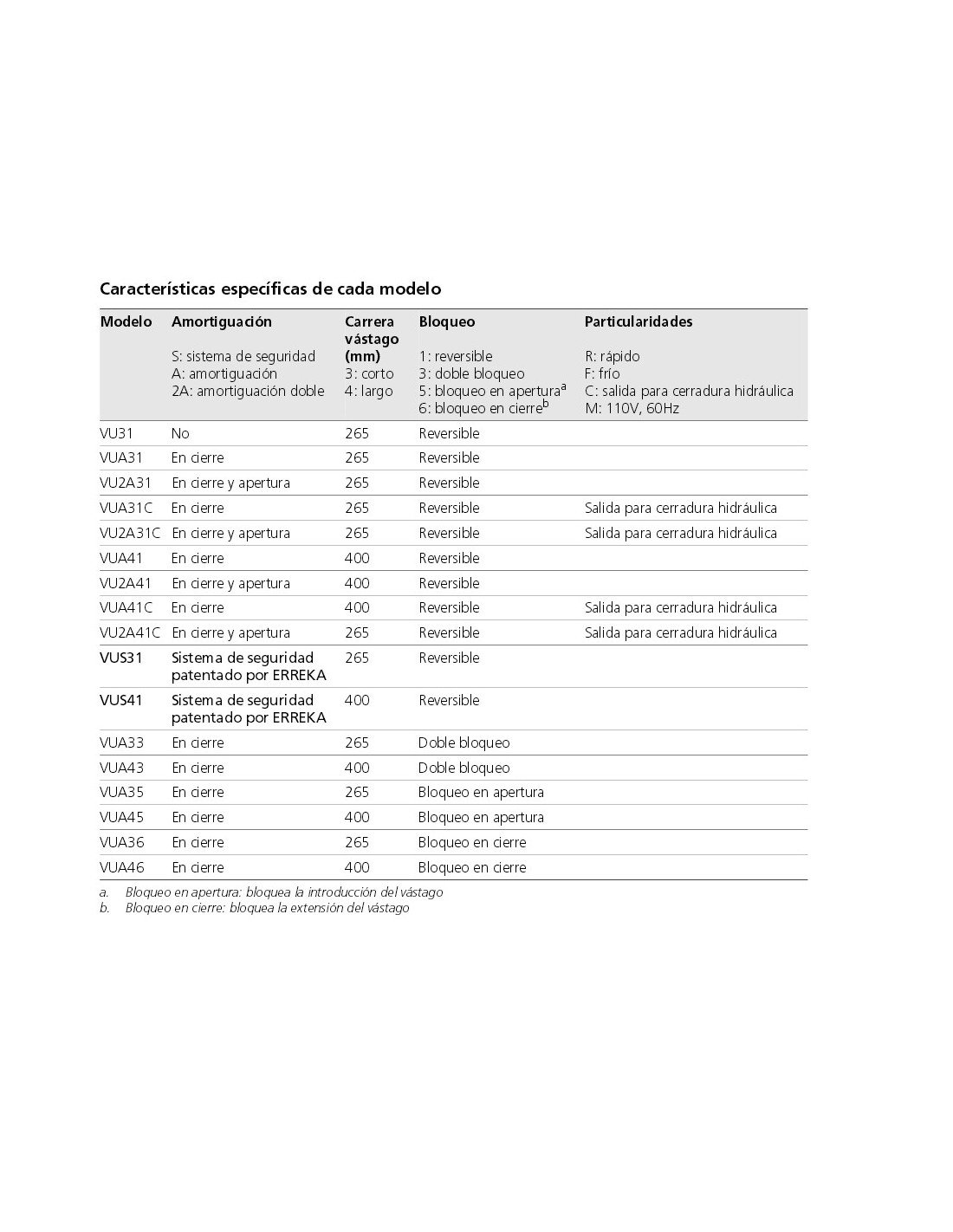

PRODUCT RANGE

  • VUA31LB: Actuator with soft on-off damping, 265mm stem, reversible, with lobe pump

  • VU2A31LB: Actuator with cushioning on opening and closing, 265 mm reversible stem, with lobe pump

  • VUA31CLB: Actuator with closing damping, 265 mm piston rod, reversible, with hydraulic locking output, with lobe pump

  • VU2A31CLB: Actuator with closing and opening damping, 265mm stem, reversible and hydraulic locking output, with lobe pump. with lobe pump

  • VUA41LB: Actuator with closing damping, 400 mm piston rod, reversible, with lobe pump

  • VU2A41LB: Actuator with cushioning on closing and opening, 400 mm piston rod, reversible, with lobe pump

  • VUA41CLB: Actuator with damping on closing, 400 mm piston rod, reversible, with outlet for hydraulic lock, with lobe pump

  • VUA33LB: Actuator with damping on closing, 265 mm stem, locked with lobe pump

  • VUA43LB: Actuator with end-position cushioning, 400 mm piston rod, locked, with lobe pump

  • VUA35LB: Actuator with closing cushioning, 265 mm piston rod, locking on opening, with lobe pump

  • VUA45LB: Actuator with end-position cushioning, 400 mm piston rod, locking on opening, with lobe pump

  • VUG2A31LB: Actuator independent group with damping on closing and opening, with lobe pump

  • VUS31LB: Actuator 265 mm reversible stem actuator with anti-trapping system, with lobe pump

  • VUS41LB: Actuator stem 400 mm reversible with anti-trapping system, with lobe pump

MANUALS

ASSEMBLY VIDEO

Type of engine
Hydraulic
Sheets from the door
1-leaf door

Product accessories
